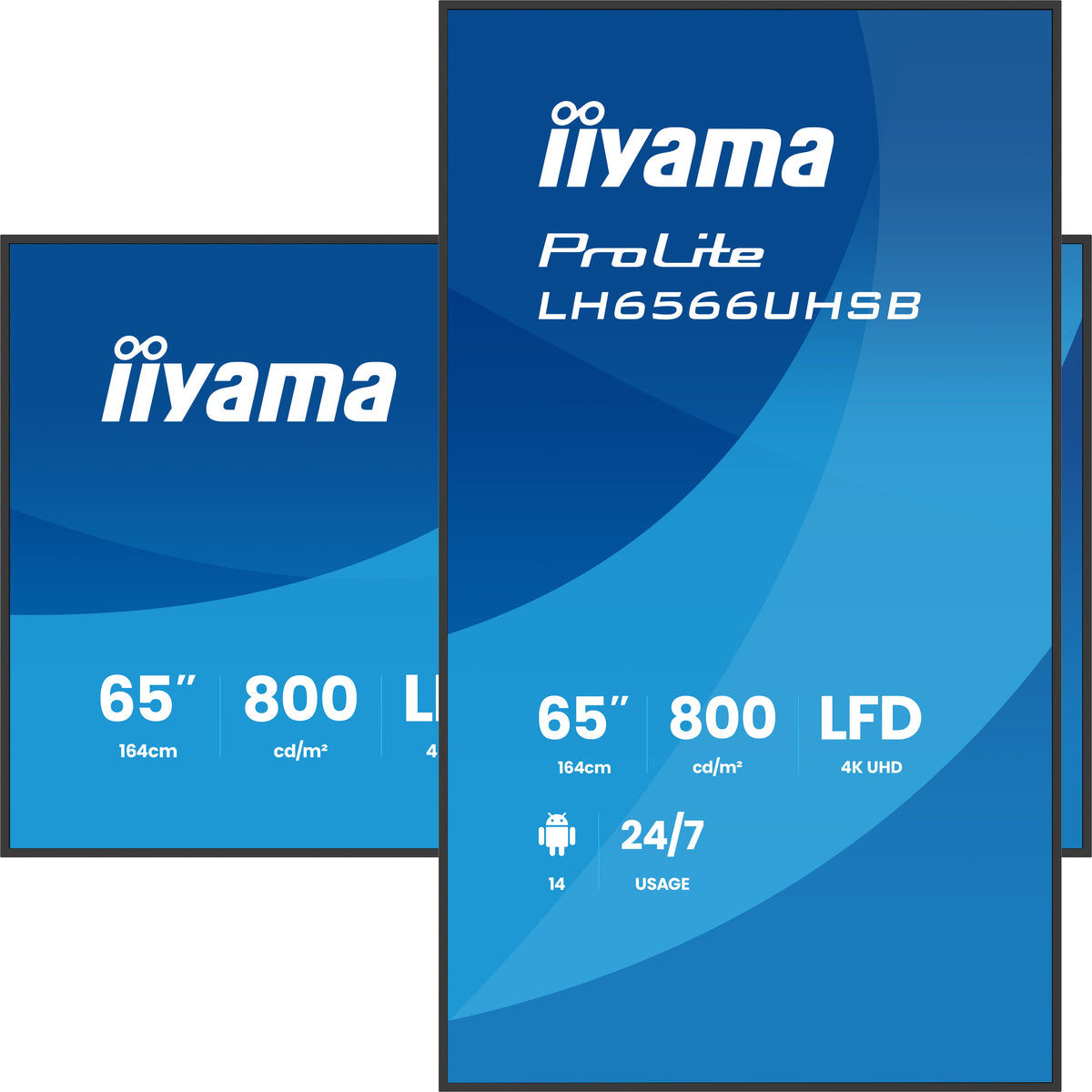

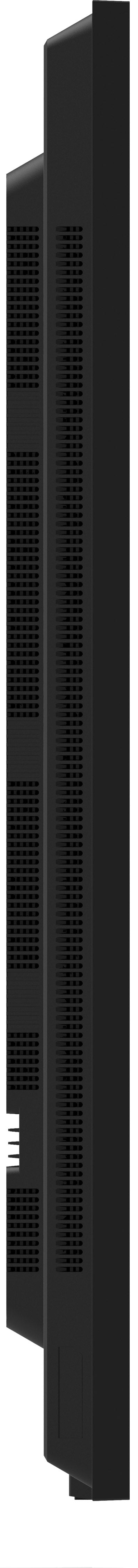

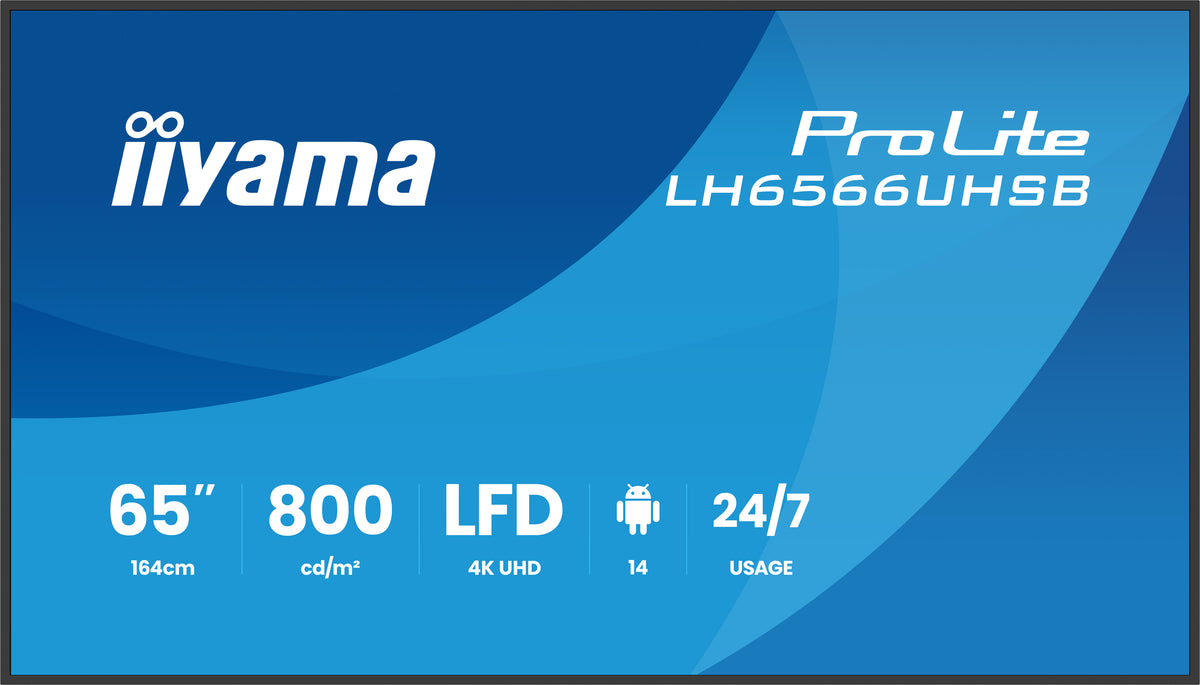

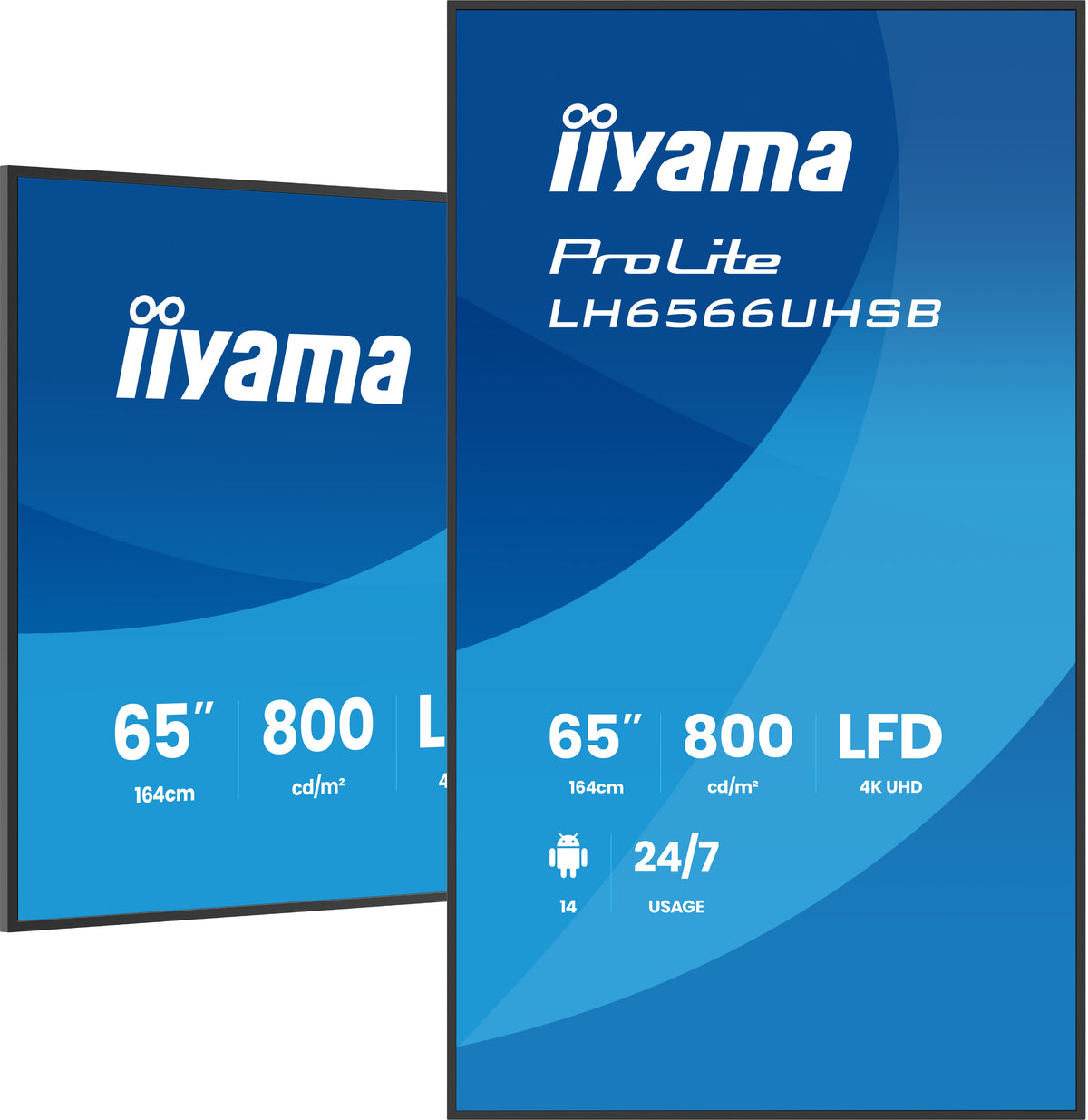

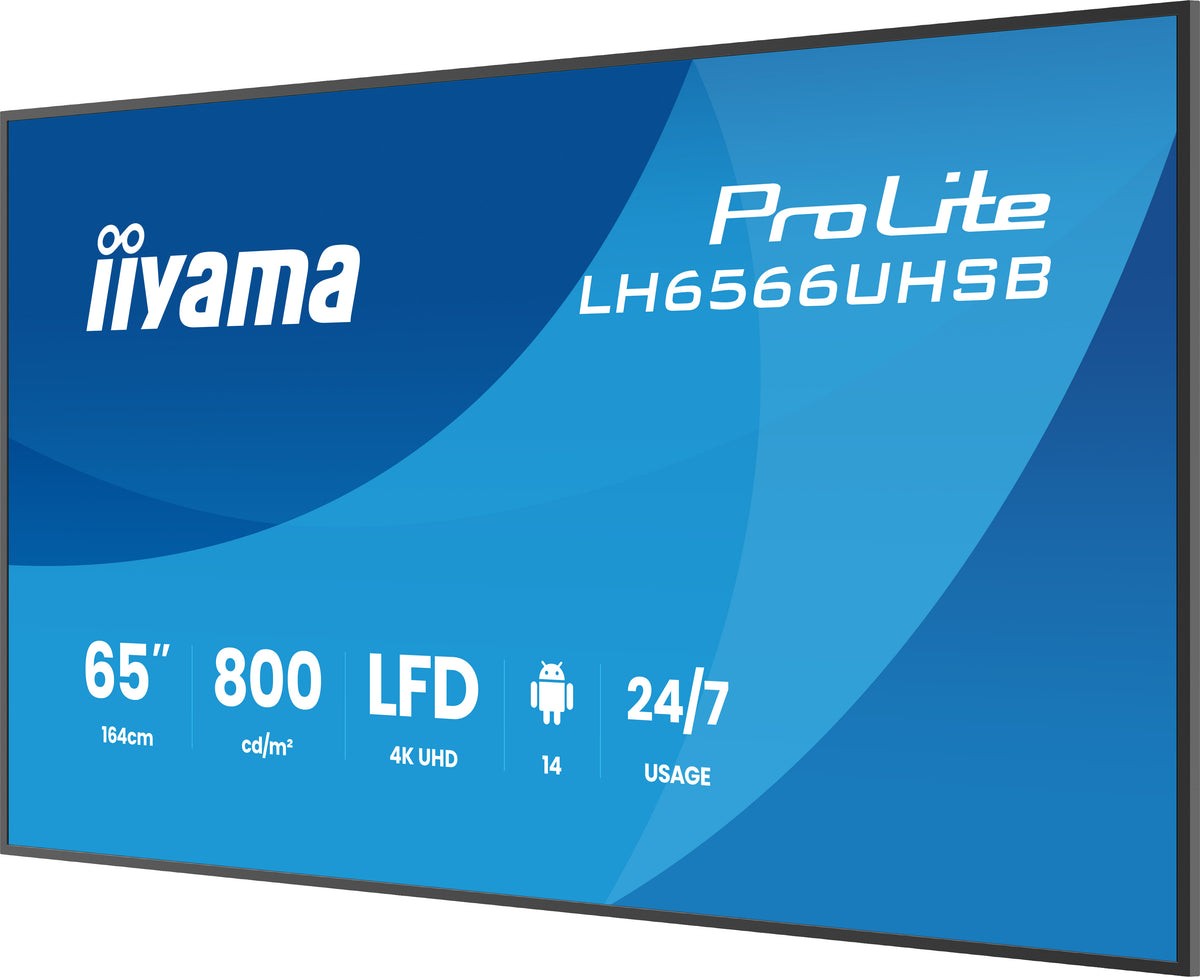

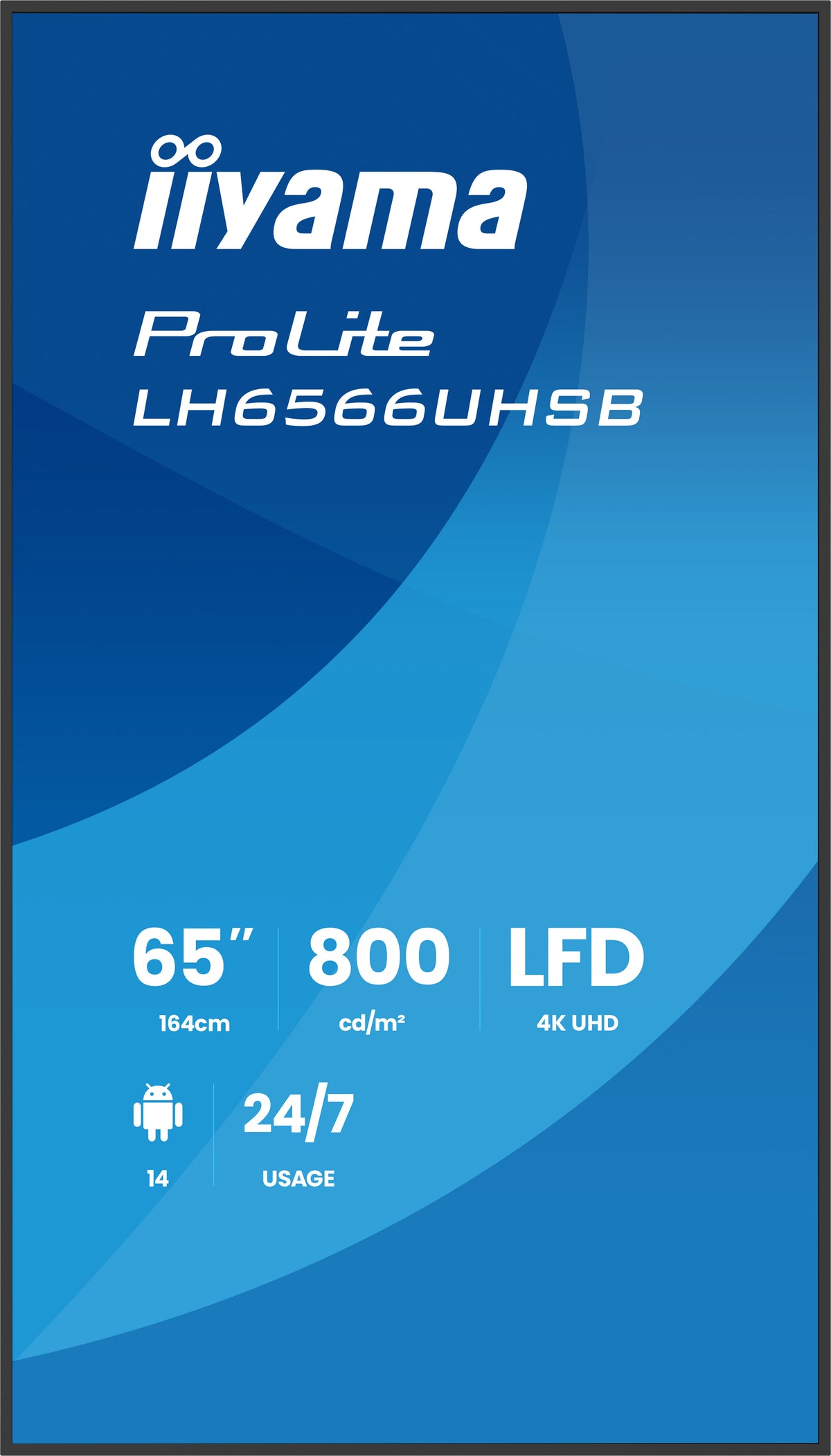

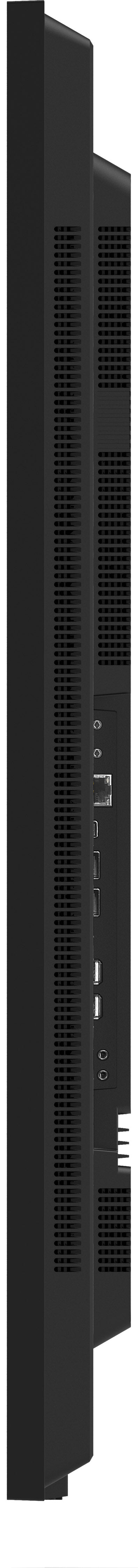

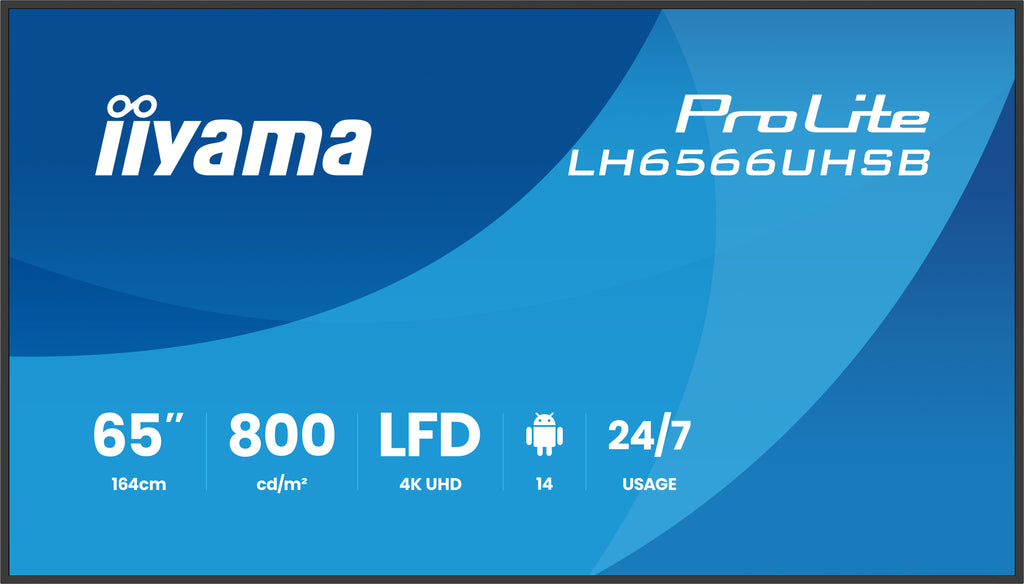

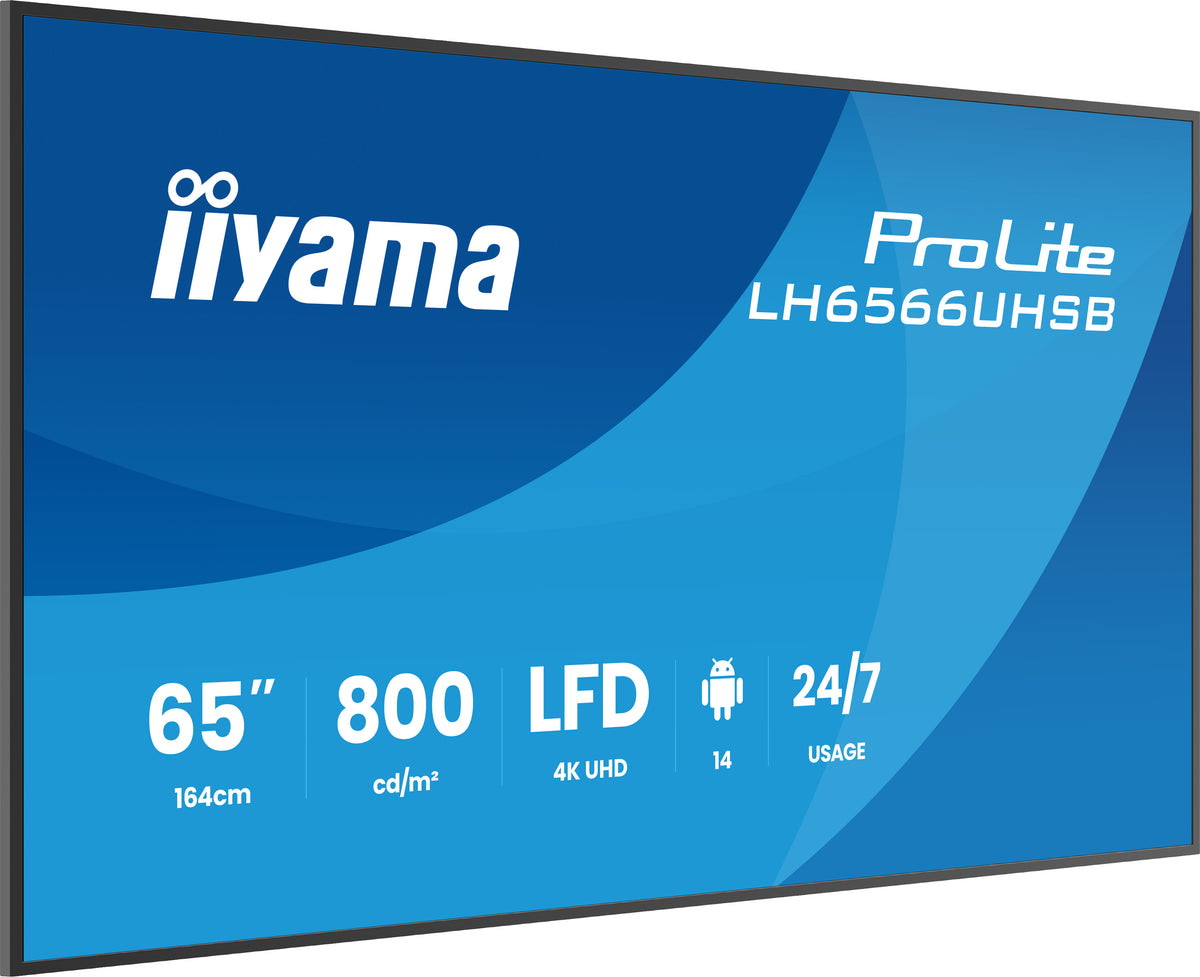

iiyama LH6566UHSB-B1AG Signage Display Digital signage flat panel 165.1 cm (65") LCD Wi-Fi 800 cd/m² 4K Ultra HD Black Built-in processor Android 24/7
€1.429,49
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
The ProLite LH6566UHSB-B1AG is a 65" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness of 800cd/m2 .
Specifications
Display
| Panel type | VA |
| Display diagonal | 165.1 cm (65") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 800 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.372 x 0.372 mm |
| Active display area (W x H) | 1428.48 x 803.52 mm |
| Display diagonal (metric) | 163.8 cm |
| Horizontal scan range | 57 - 62 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
Ports & interfaces
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
Audio
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
Design
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 500 x 500 mm |
| Bezel width (bottom) | 1.28 cm |
| Bezel width (side) | 1.28 cm |
| Bezel width (top) | 1.28 cm |
| Bezel colour | Black |
| Anti-glare screen | Yes |
Performance
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 1.4/2.0 |
| Mean time between failures (MTBF) | 50000 h |
Power
| Power consumption (typical) | 194 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 194 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
Computer system
| Computer system | Yes |
| Built-in processor | Yes |
| Processor manufacturer | MediaTek |
| Processor family | ARM Cortex |
| Processor model | MT9679 |
| Processor architecture | ARM Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
Weight & dimensions
| Display width | 1456.5 mm |
| Display depth | 69 mm |
| Display height | 831.5 mm |
| Display weight | 17.8 kg |
| Width | 1456.5 mm |
| Depth | 69 mm |
| Height | 831.5 mm |
| Weight | 17.8 kg |
Packaging data
| Package width | 1640 mm |
| Package depth | 990 mm |
| Package height | 164 mm |
| Package weight | 27.5 kg |
Packaging content
| Remote control included | Yes |
| Cables included | AC, HDMI, RS-232 |
| Mounting kit | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Logistics data
| Products per pallet | 12 pc(s) |
Network
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Technical details
| Playback media | Y |
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export) |
| Sustainability certificates | ErP |
| Pallet net height | 115.8 cm |
| Pallet net length | 198 cm |
| Pallet net width | 165 cm |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
Other features
| Quick start guide | Yes |
| Power supply type | Internal |
