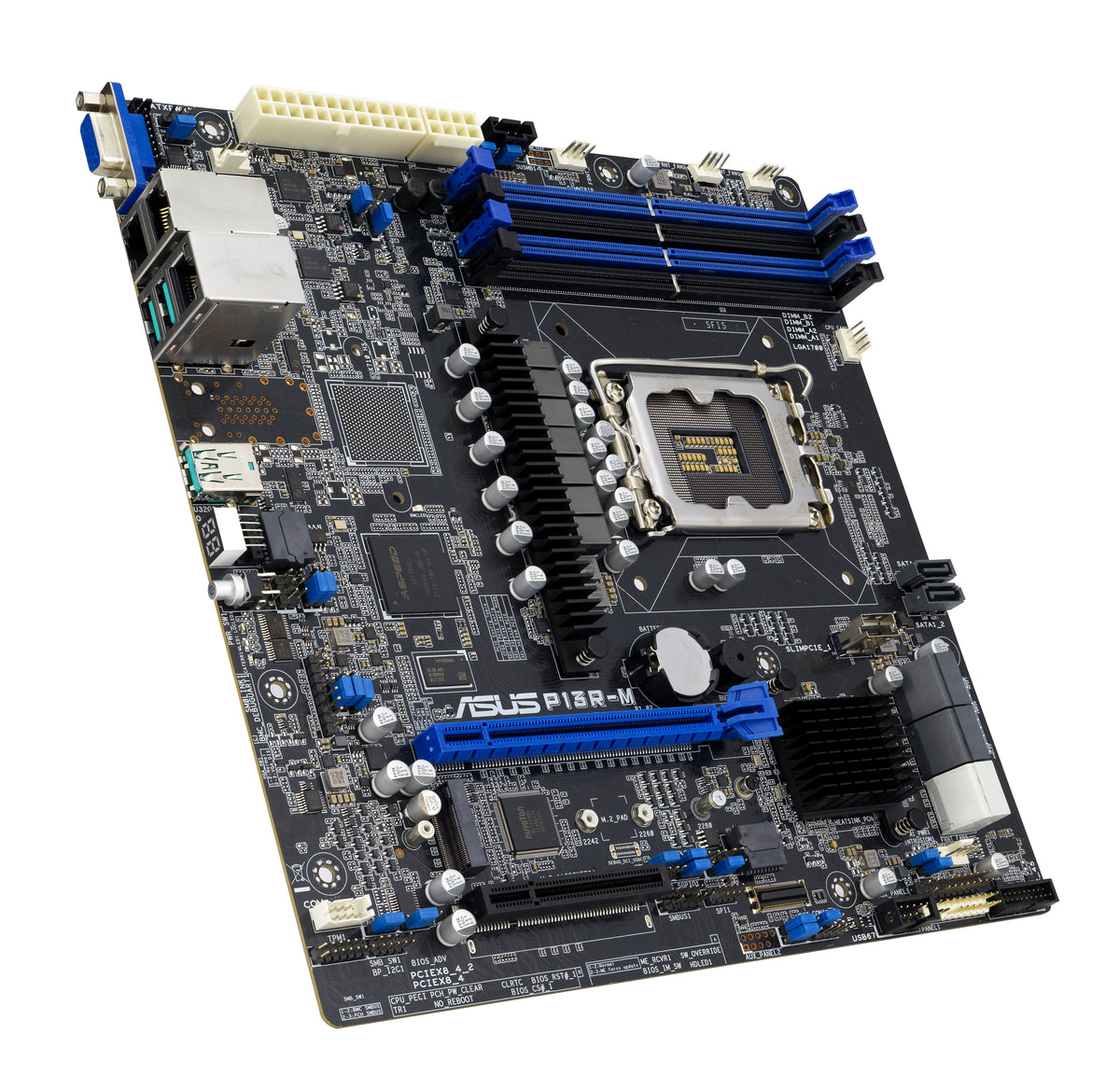

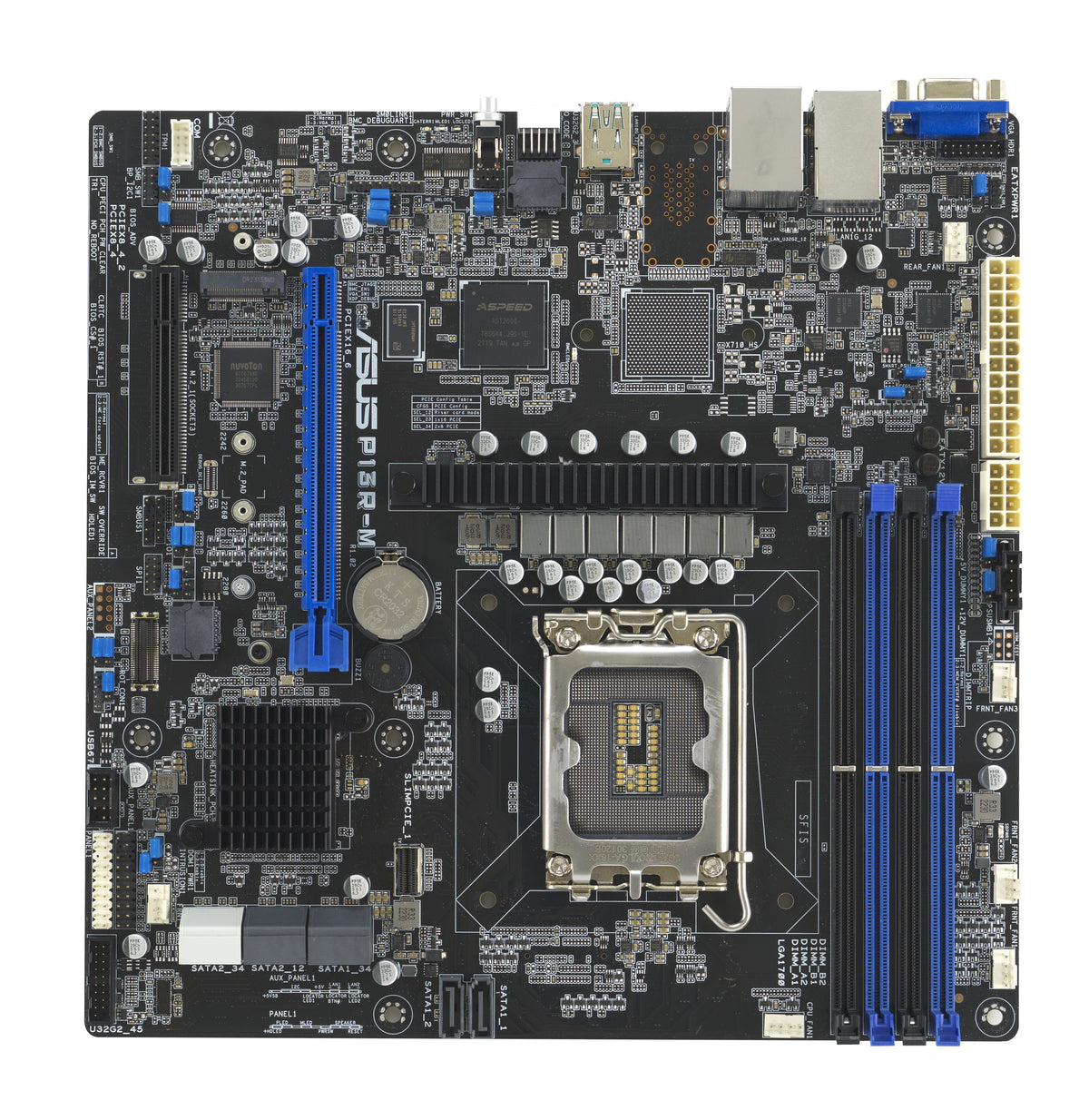

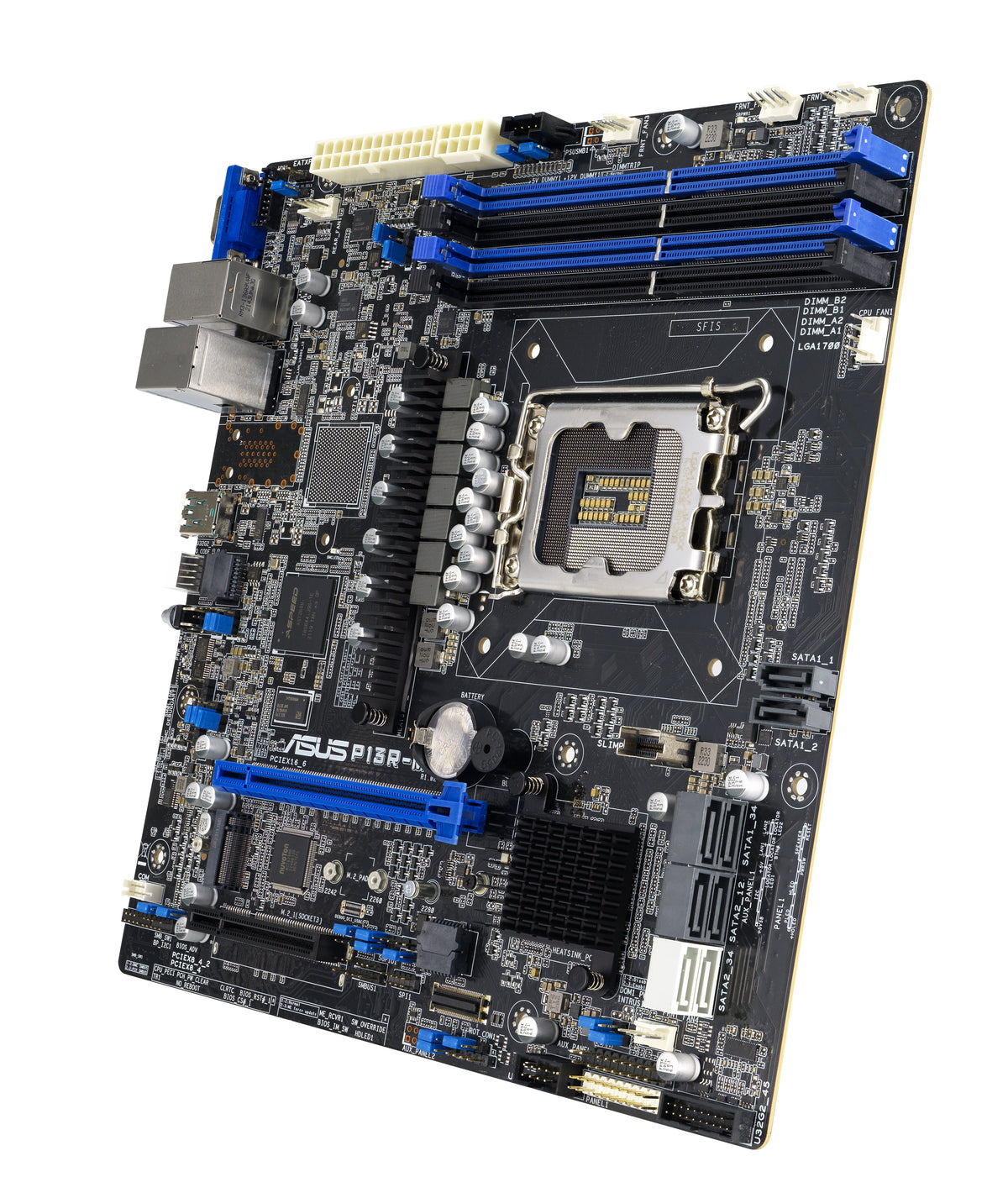

ASUS P13R-M Intel C262 LGA 1700 micro ATX
€454,65
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
Specifications
Processor
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
Memory
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 3600,4000,4400 MHz |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 8GB, 16GB, 32GB |
Storage controllers
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 9 |
| RAID support | Yes |
Graphics
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
Internal I/O
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 3 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |

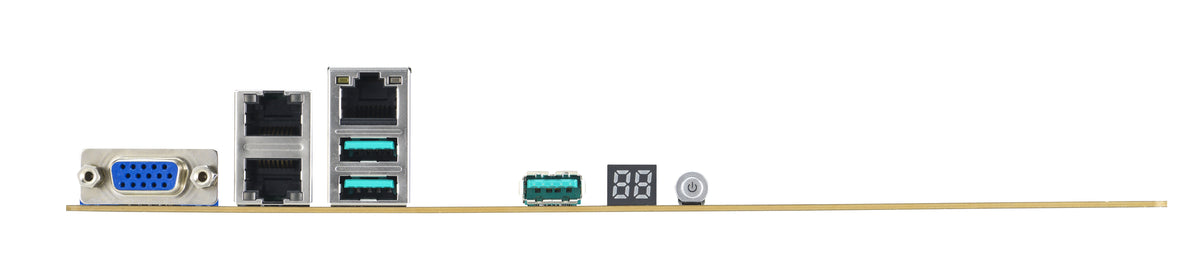

Rear panel I/O ports
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
Features
| Motherboard chipset | Intel C262 |
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
Expansion slots
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
Operational conditions
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Packaging data
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.3 kg |
Weight & dimensions
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Cables included | SATA |
Other features
| Weight | 760 g |
Documents
Fiche technique fournie par Icecat.
