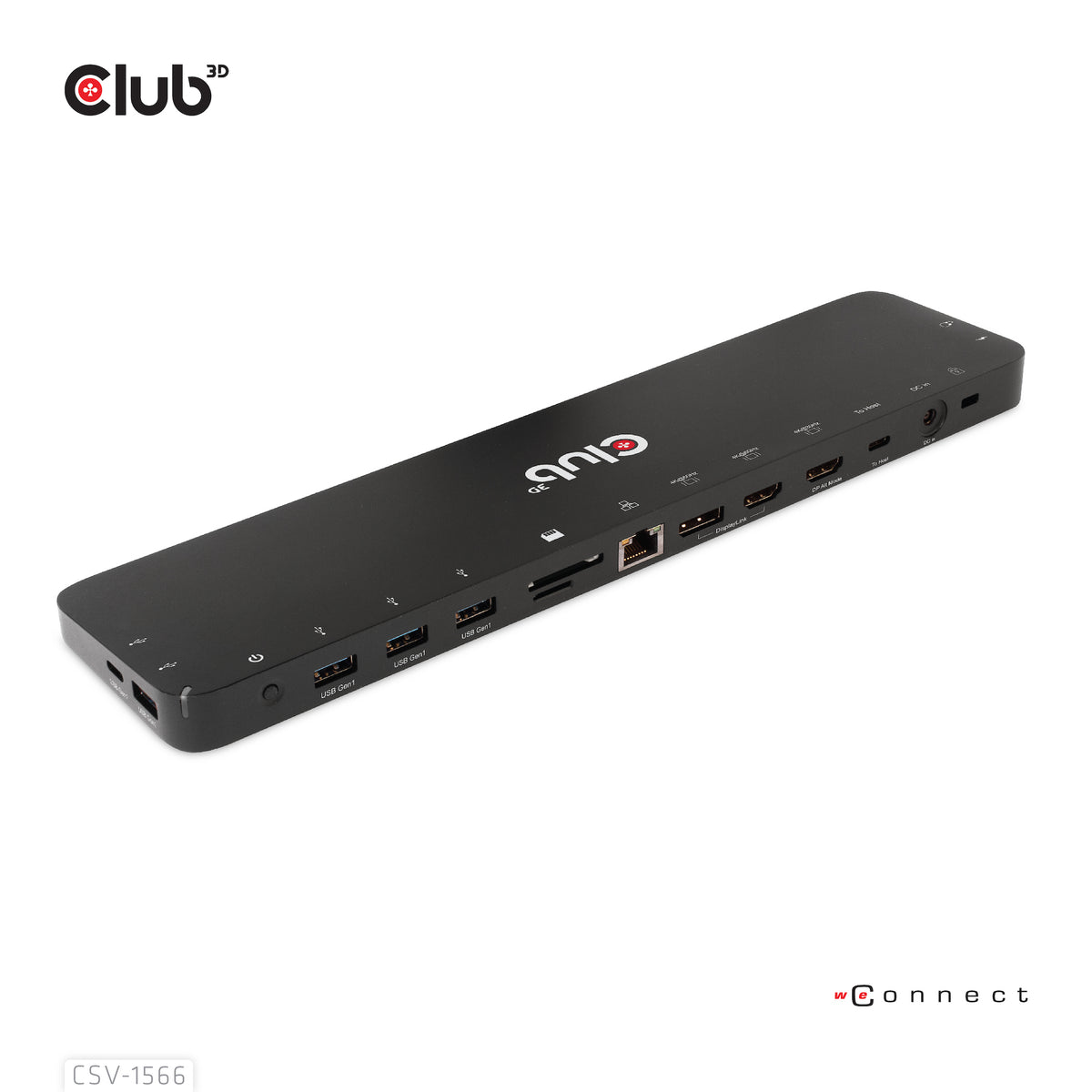

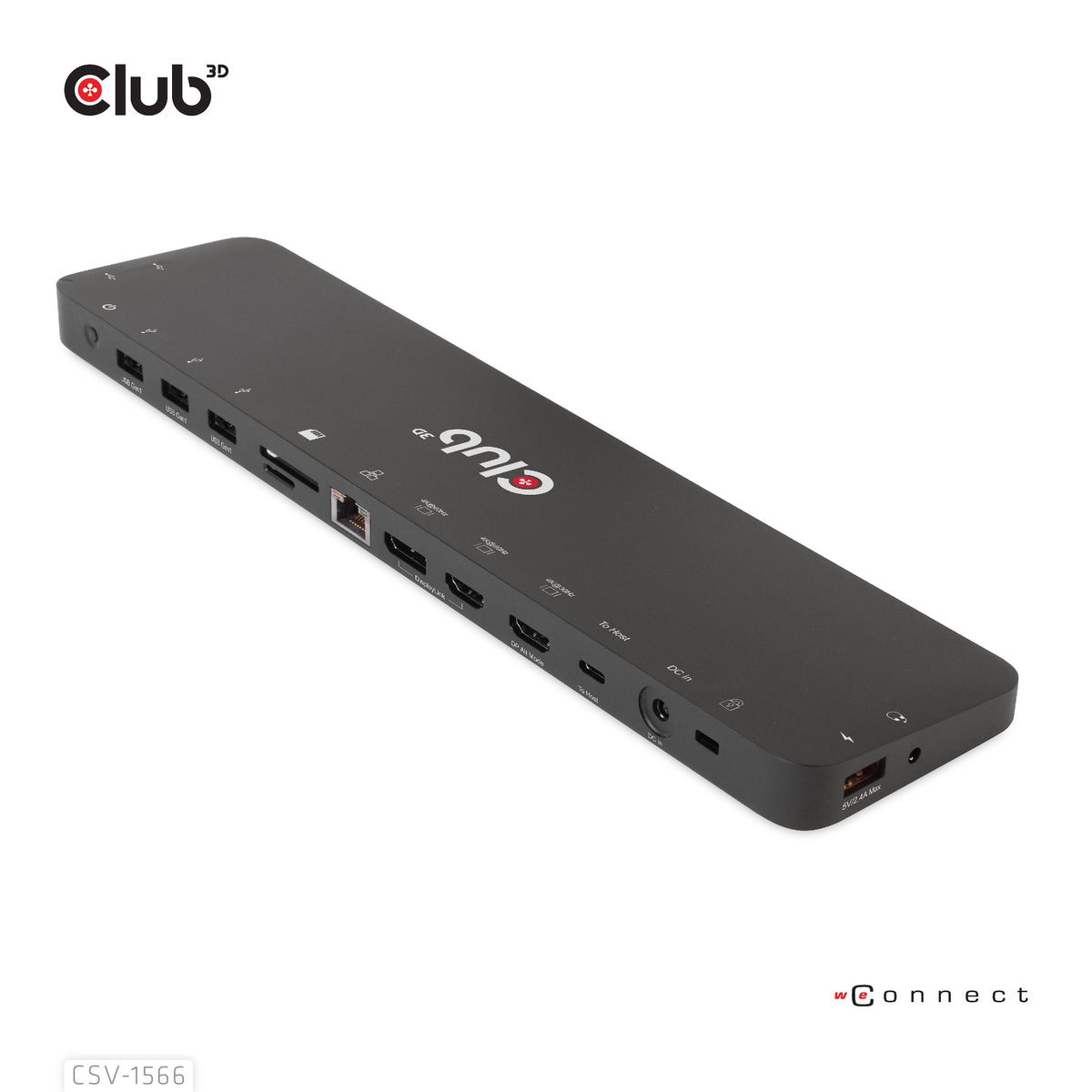

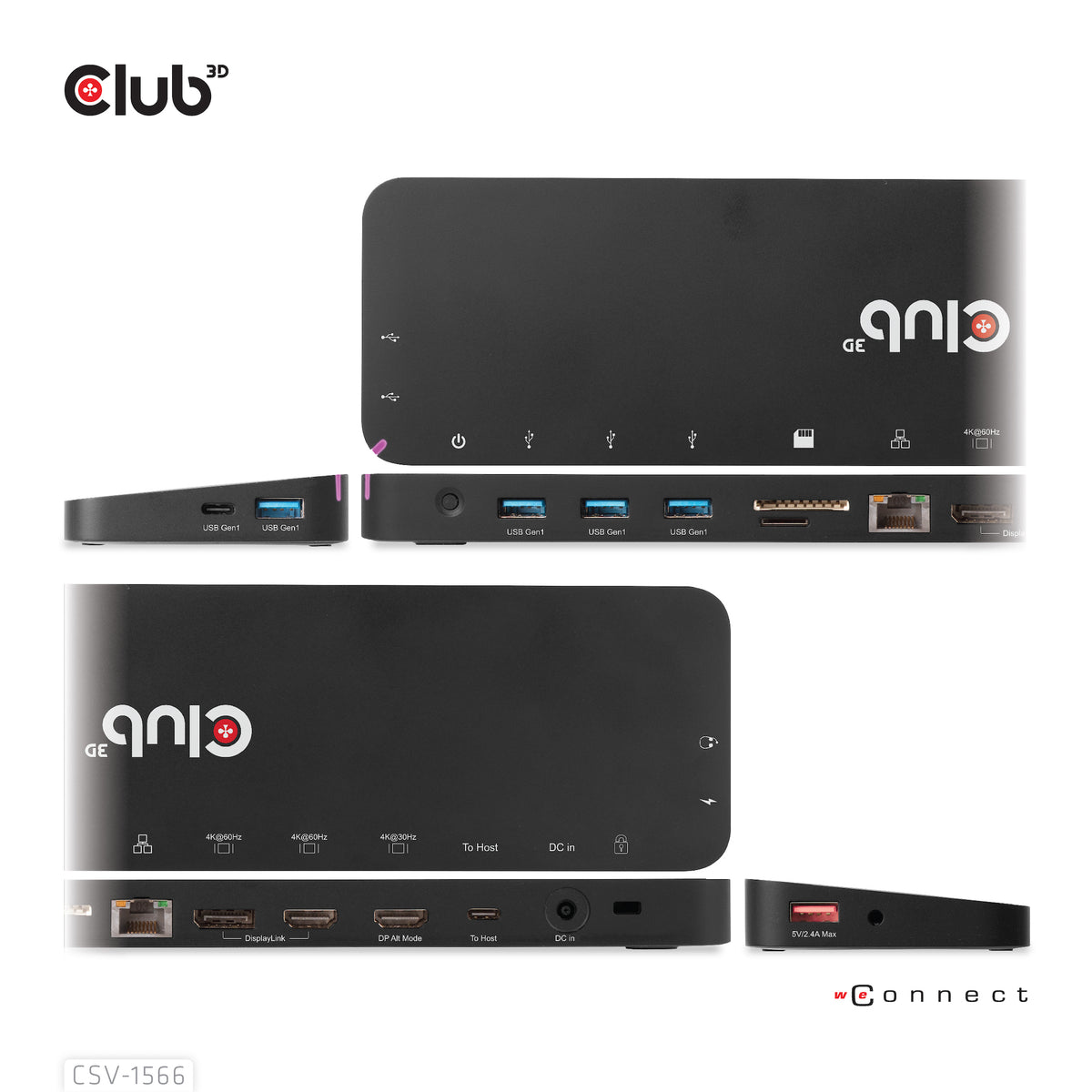

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio, video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile devices (Apple, Samsung phones, pads, etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with a max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts.

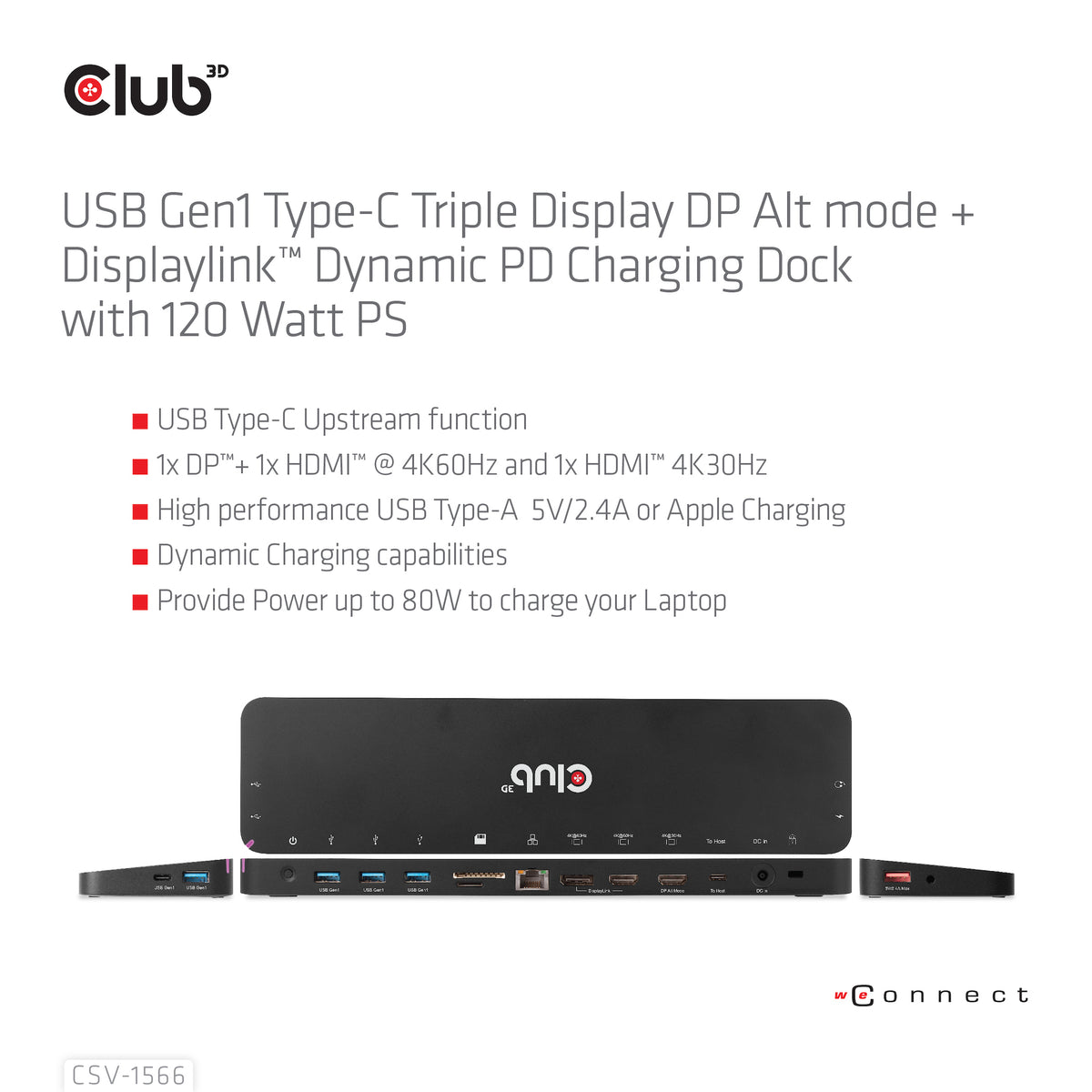

CLUB3D USB Gen1 Type-C Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS
€179,60
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

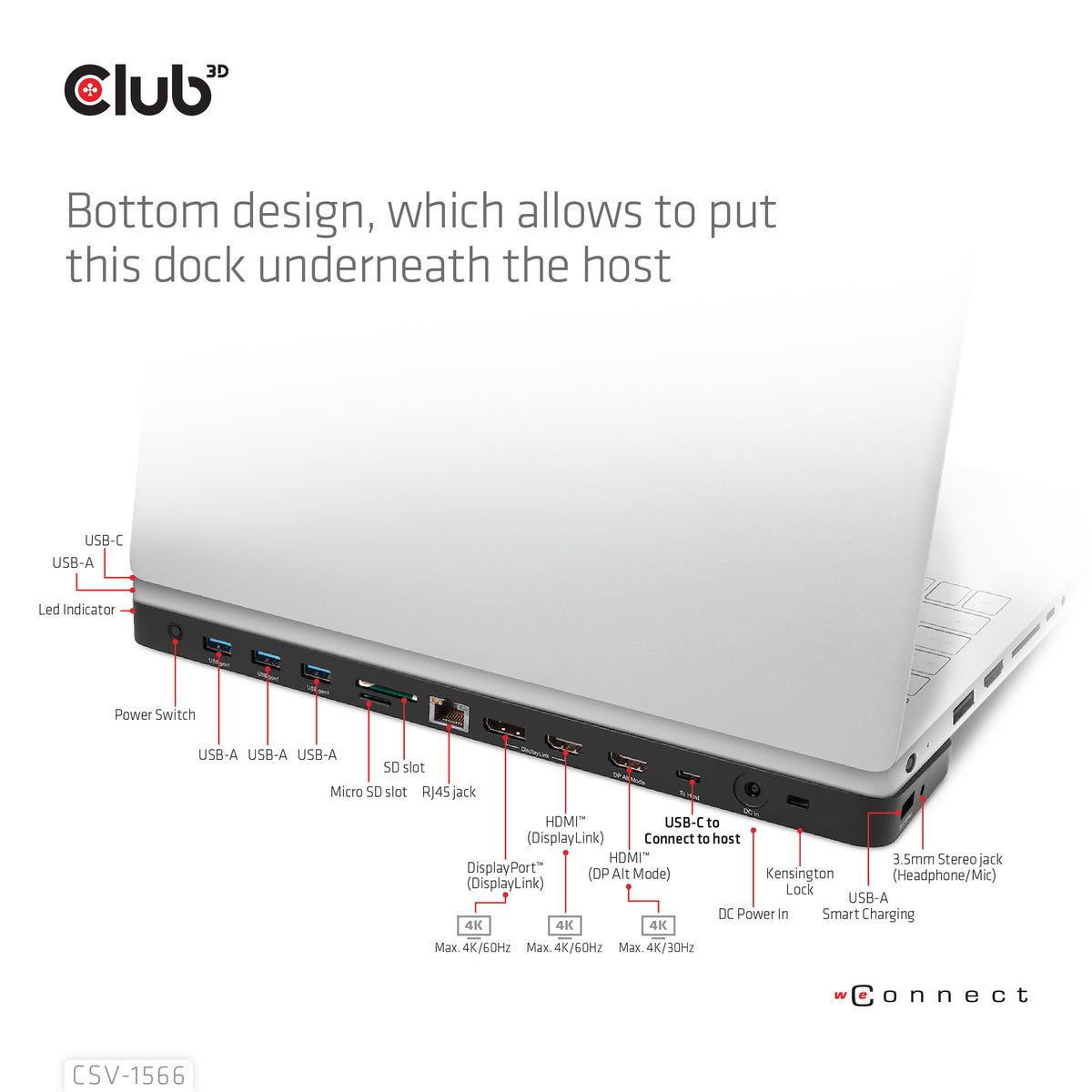

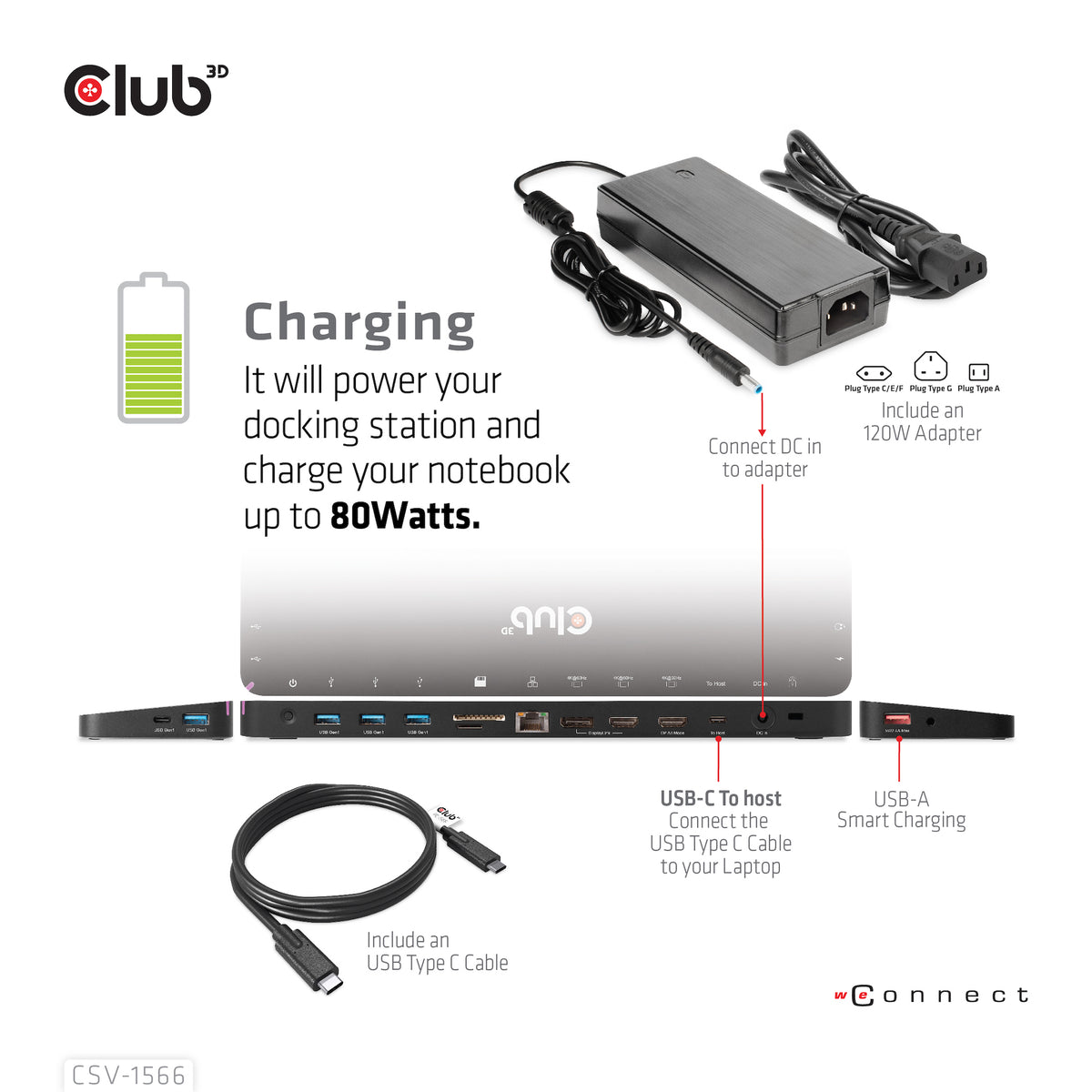

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio, video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile devices (Apple, Samsung phones, pads, etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with a max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts.
Specifications
Ports & interfaces
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Product colour | Black |
| Plug and Play | Yes |
| Compatibility | Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
Power
| Power source type | DC |
Weight & dimensions
| Width | 304 mm |
| Depth | 77 mm |
| Height | 18 mm |
| Weight | 358 g |
Packaging data
| Quantity per pack | 1 pc(s) |
| Package width | 360 mm |
| Package depth | 115 mm |
| Package height | 65 mm |
| Package weight | 726 g |

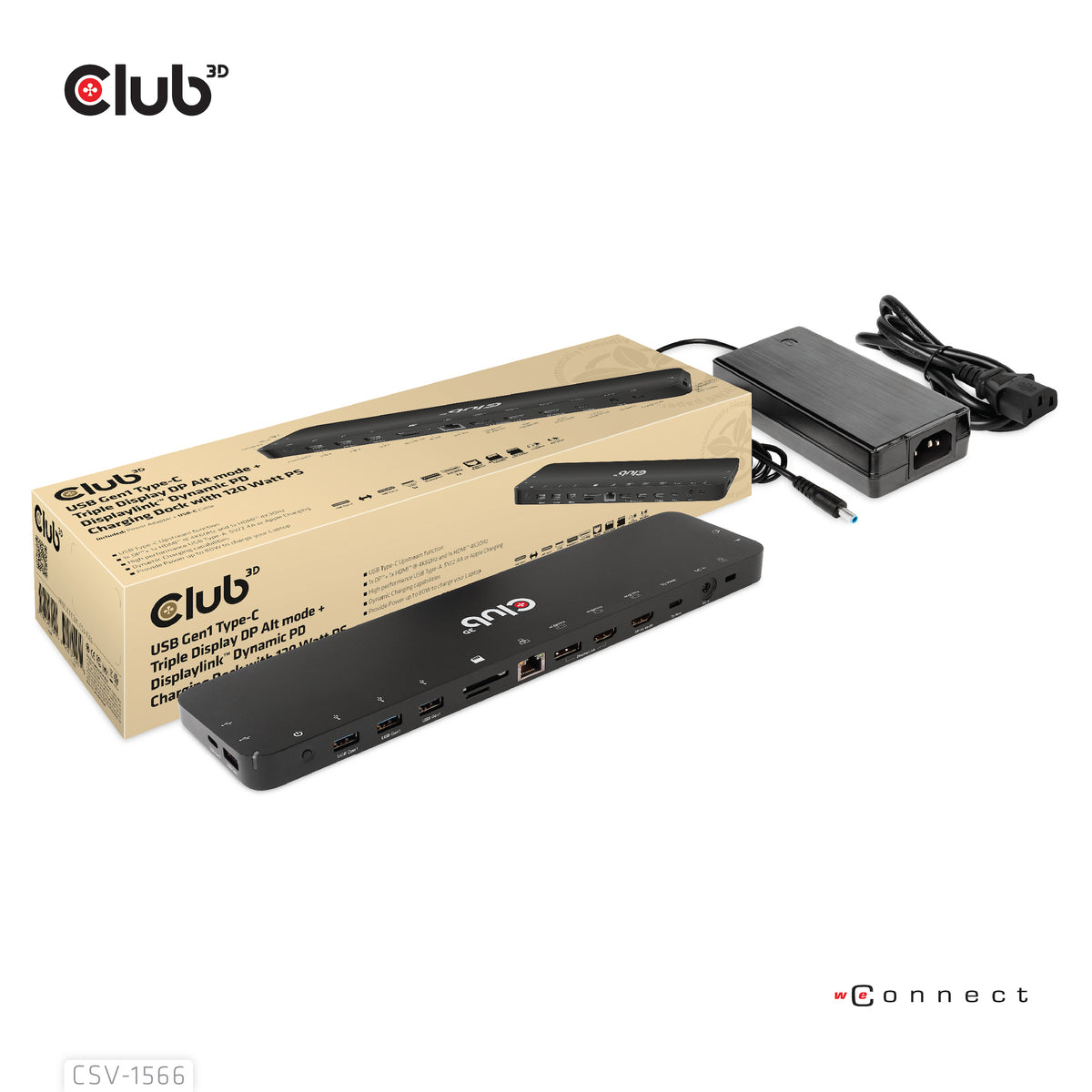

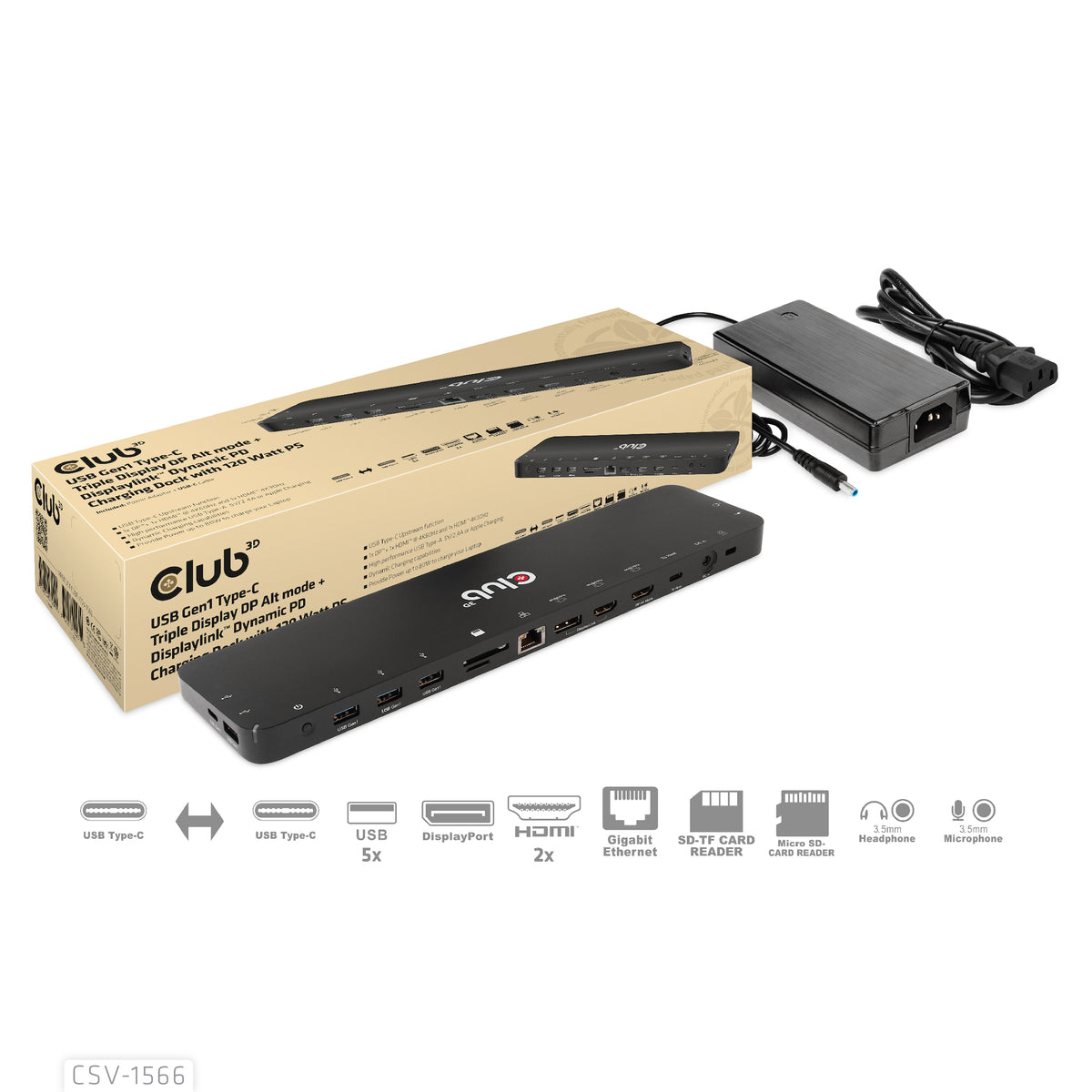

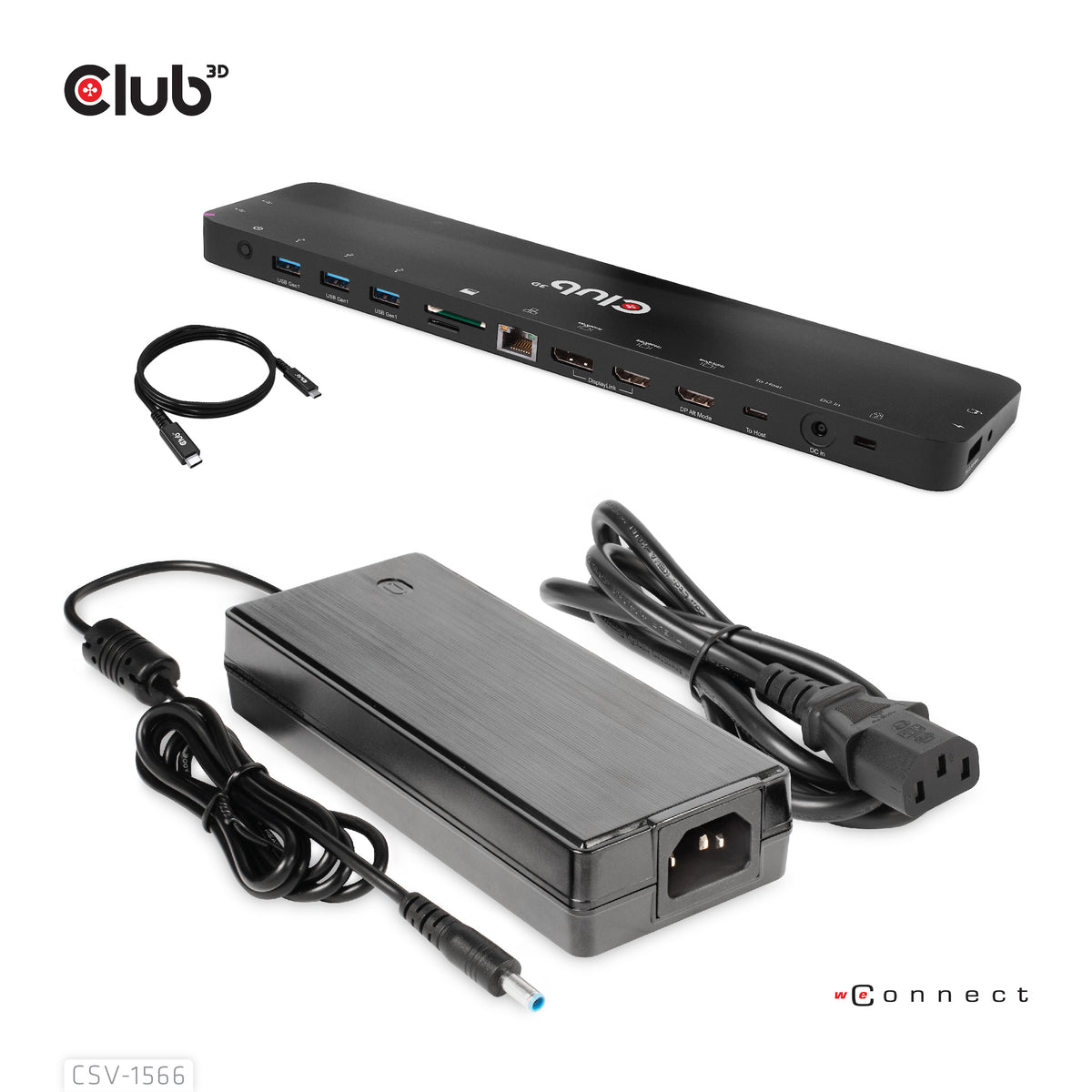

Packaging content
| Cables included | USB Type-C |
| AC adapter included | Yes |
| Quick start guide | Yes |
Packaging composition
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 168 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
Other features
| Voltage | 20.5 V |
