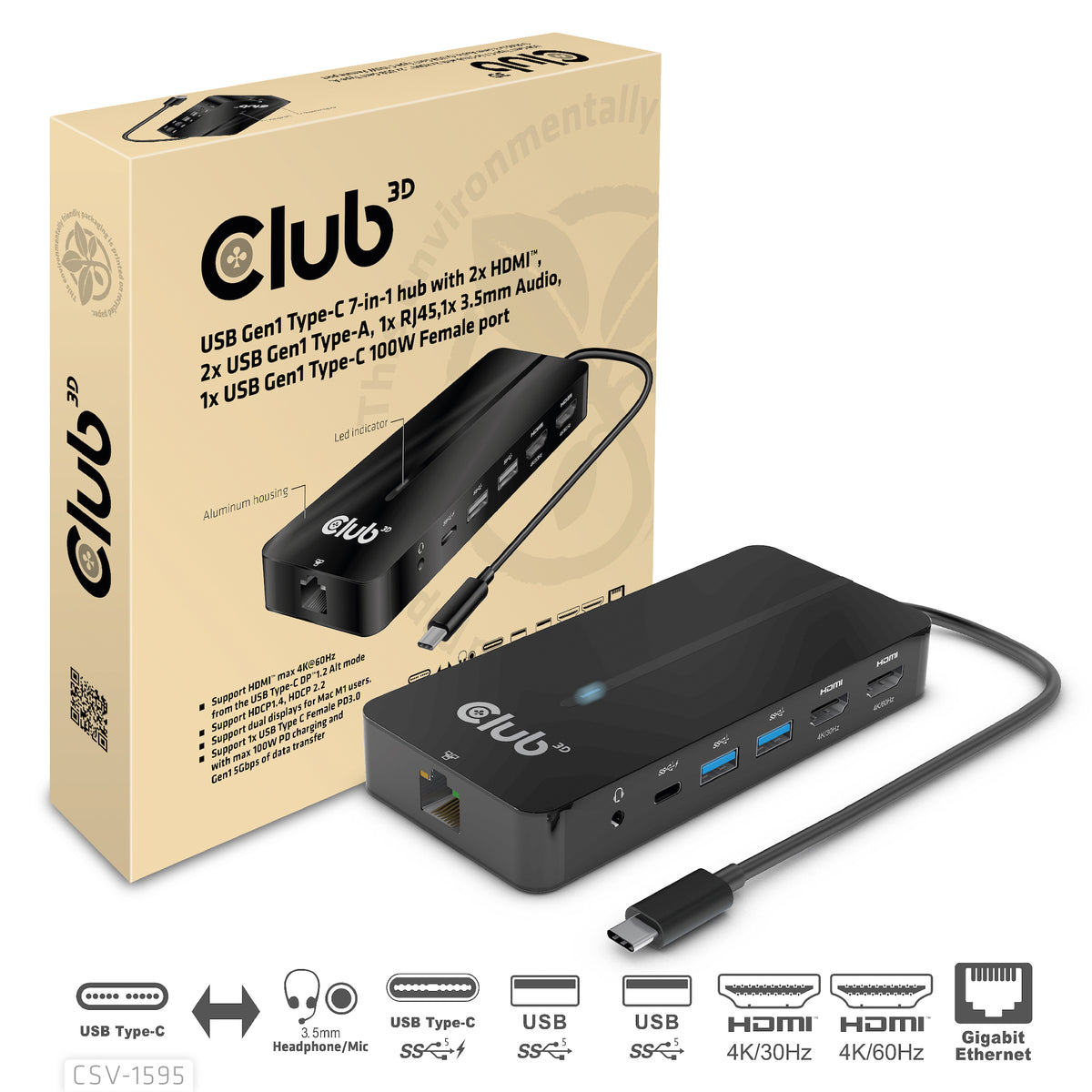

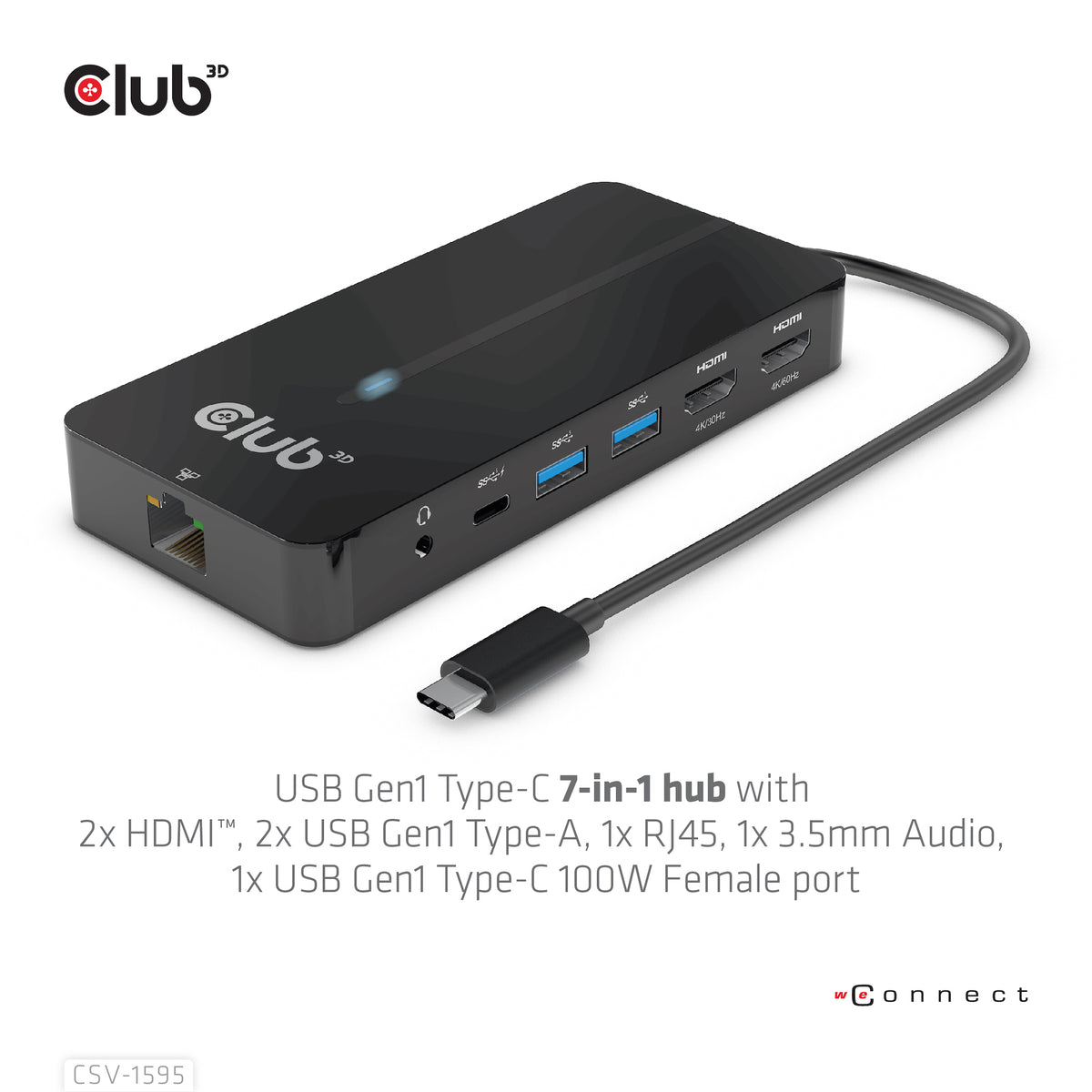

CLUB3D Type-C 7-in-1 hub with 2x HDMI, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port
€134,68
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

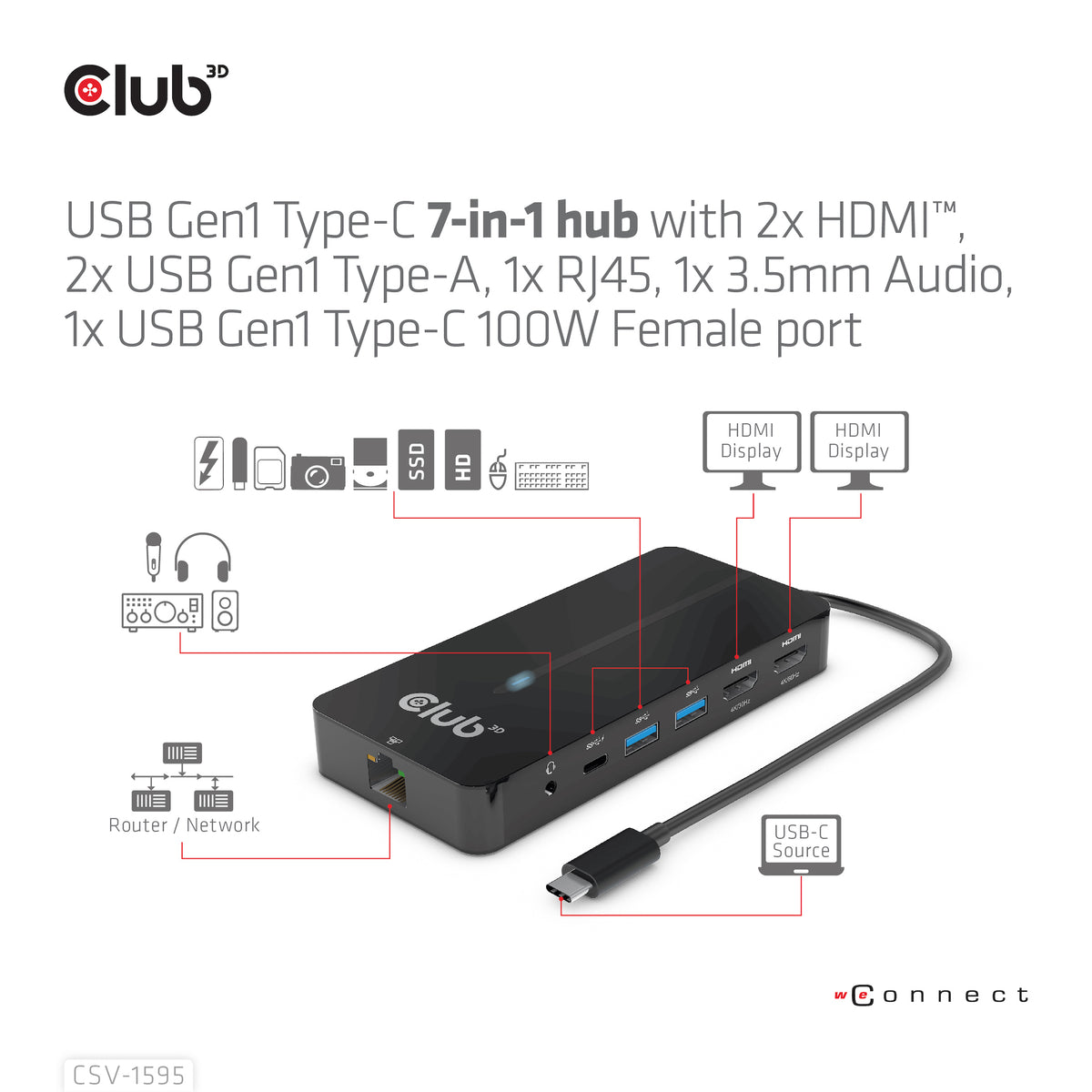

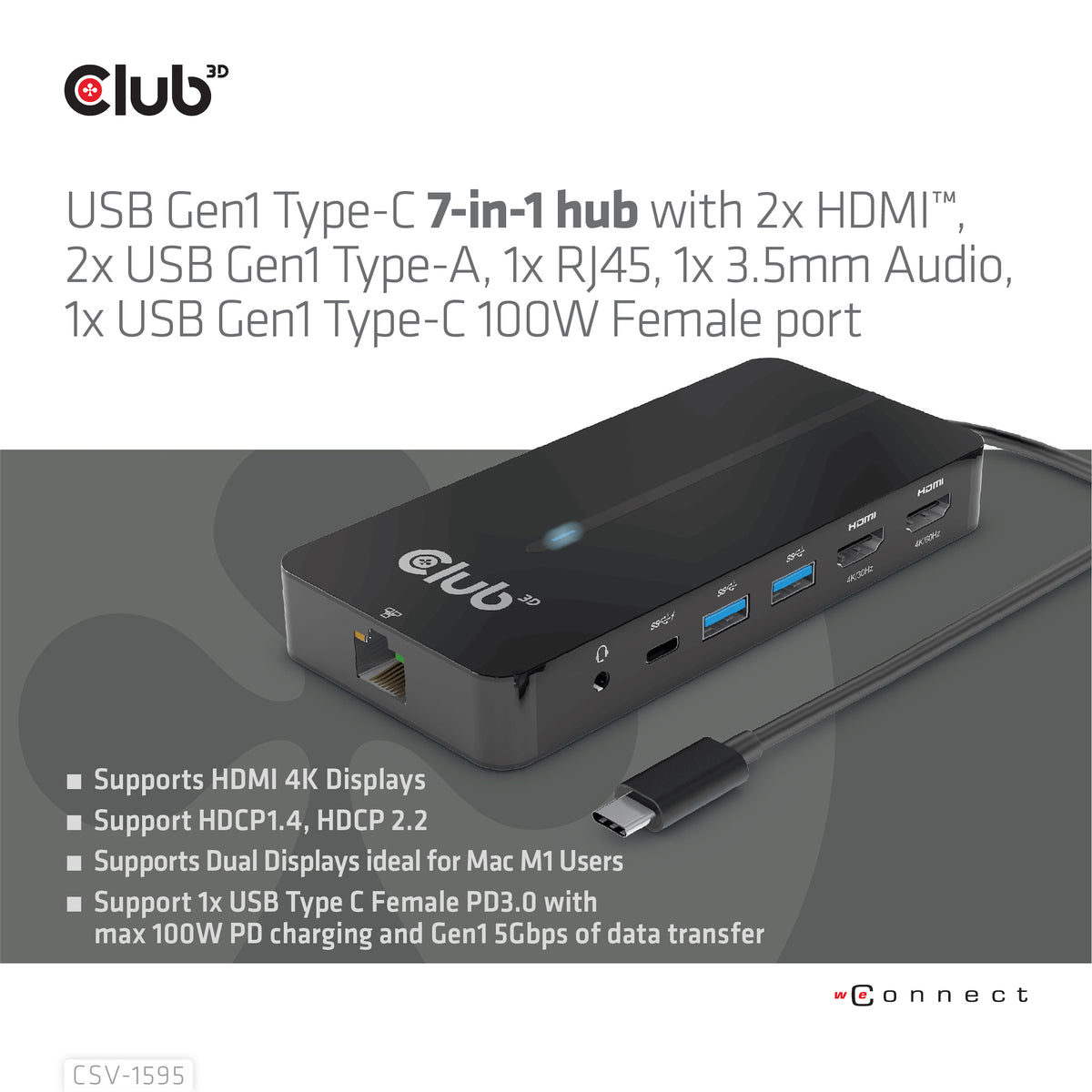

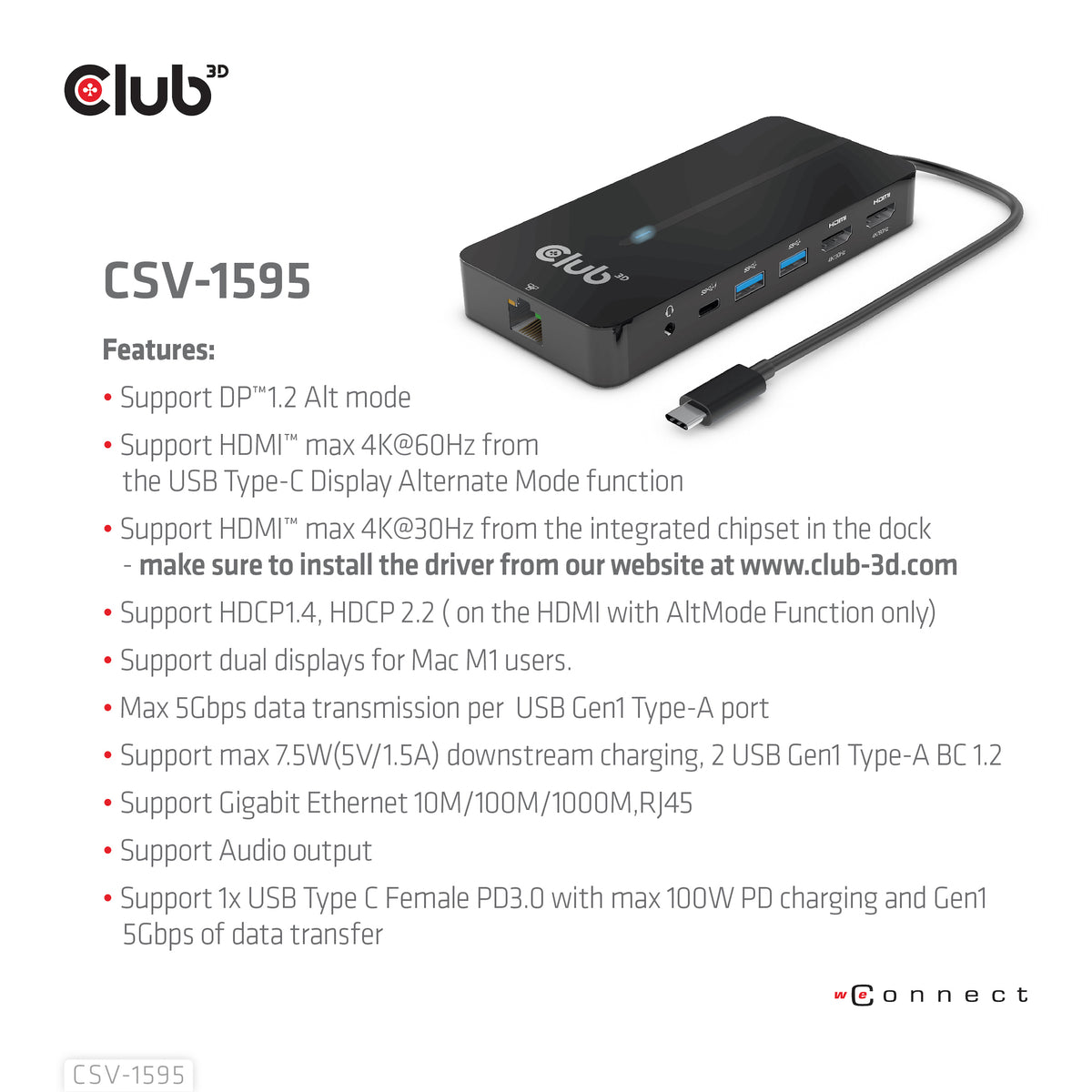

The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts.

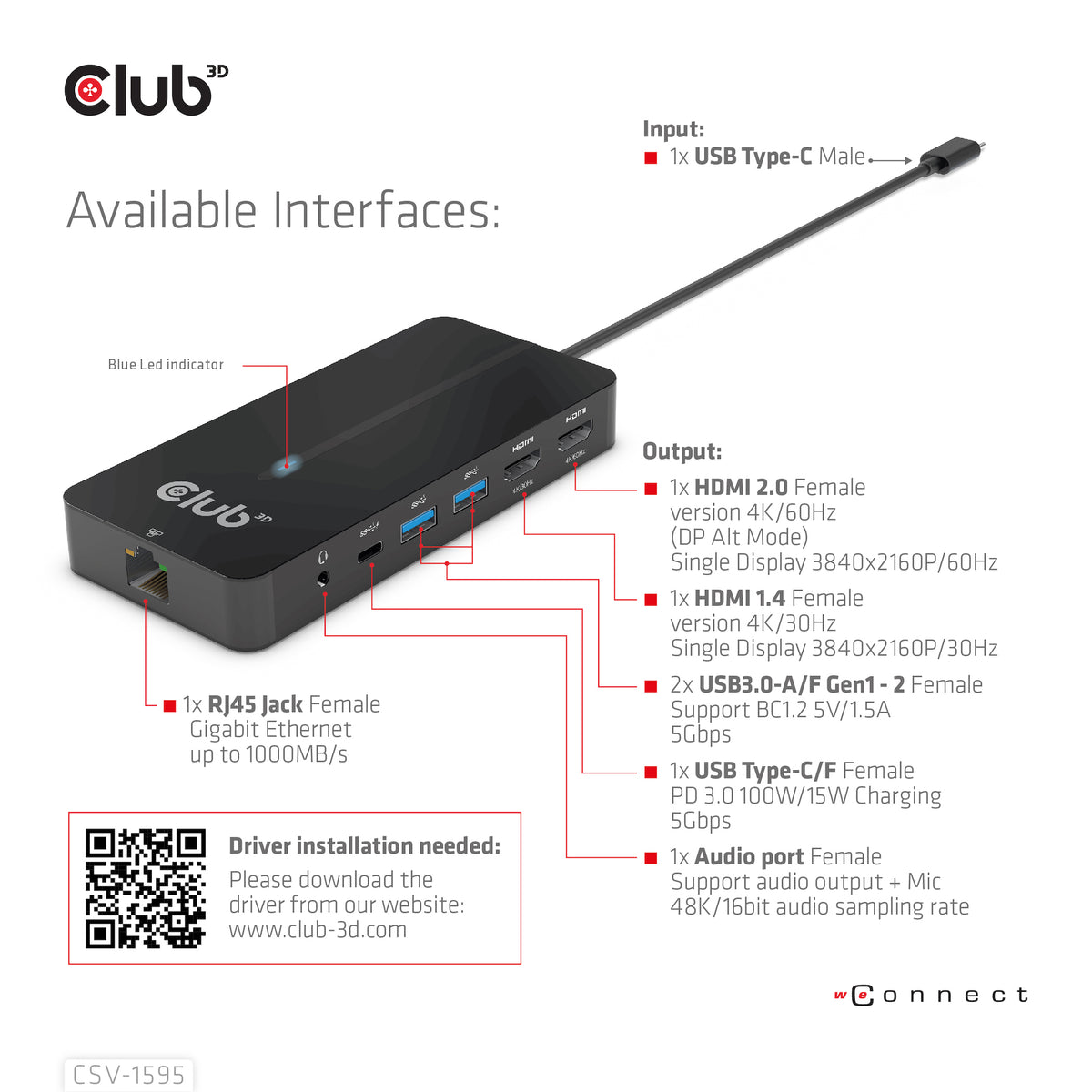

Specifications
Ports & interfaces
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Combo headphone/mic port | Yes |
| DC-in jack | No |
| HDCP | Yes |
| HDCP version | 2.2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Hub interfaces | 3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Plug and Play | Yes |
| Certification | ROHS, FCC, CE EMI |
Power
| Output voltage | 5 V |
| Output current | 1.5 A |
| Power consumption (max) | 7.5 W |
| Wireless charging | No |
Software
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |

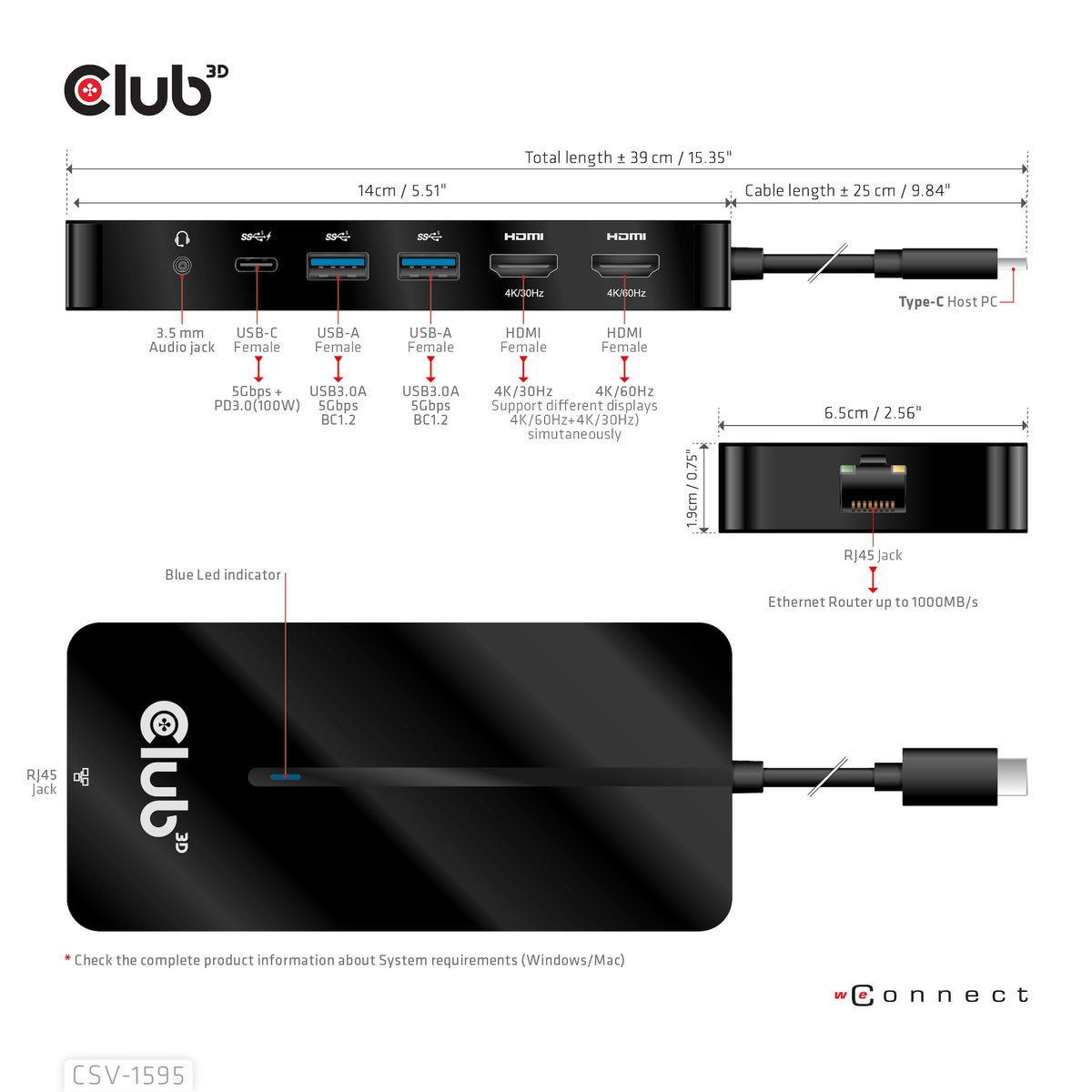

Weight & dimensions
| Width | 140 mm |
| Depth | 65 mm |
| Height | 19 mm |
| Weight | 210 g |
Packaging data
| Quantity per pack | 1 pc(s) |
| Package width | 210 mm |
| Package depth | 35 mm |
| Package height | 210 mm |
| Package weight | 286 g |
Packaging composition
| Plastic packaging weight | 6 g |
| Paper/cardboard packaging weight | 70 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
Other features

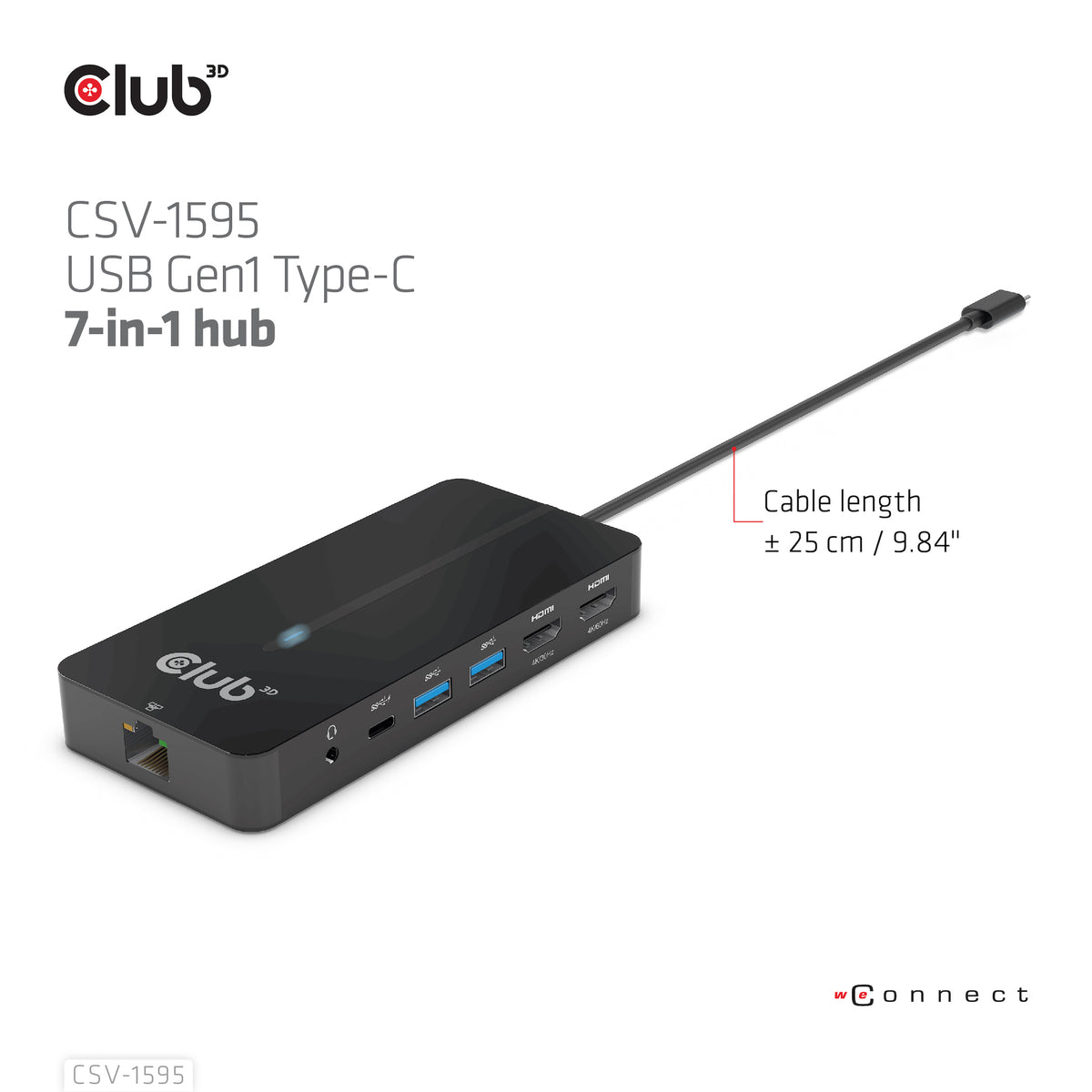

| Cable length | 0.25 m |
| Cable type | Round cable |
