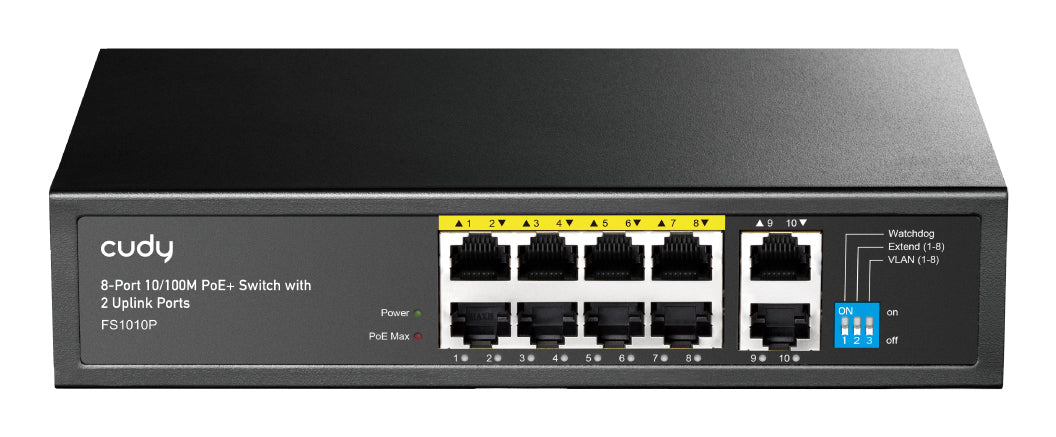

Cudy FS1010P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
€44,65
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
Reliable PoE for 24/7 Consistent Operation
IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.
PoE Auto Recovery
Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.
Simplify PoE Management
Extend PoE Reach. Enhance Client Security.
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
Exceptional Built-Quality for Stable Operation
Build Robust Systems with Outstanding EMC
Improves service reliability and reduces downtime caused by power surges and ESD.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Shielded Ports. Solid Metal Casing.
Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.
Versatile Scenarios
Surveillance
Office Networking
Campuses Wi-Fi
Accesses and Signages
IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.
PoE Auto Recovery
Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.
Simplify PoE Management
Extend PoE Reach. Enhance Client Security.
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
Exceptional Built-Quality for Stable Operation
Build Robust Systems with Outstanding EMC
Improves service reliability and reduces downtime caused by power surges and ESD.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Shielded Ports. Solid Metal Casing.
Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.
Versatile Scenarios
Surveillance
Office Networking
Campuses Wi-Fi
Accesses and Signages
Specifications
Management features
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Uplink ports quantity | 2 |
| Power connector | AC-in jack |
Network
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3i |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
Data transmission
| Switching capacity | 2 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
| Packet buffer memory | 0.25 MB |
Design
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
Performance
| Plug and Play | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 50000 h |
Power
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 2 W |
| Power consumption (max) | 120 W |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Other features
| Warranty period | 1 year(s) |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Width | 200 mm |
| Depth | 120 mm |
| Height | 45 mm |
| Weight | 610 g |

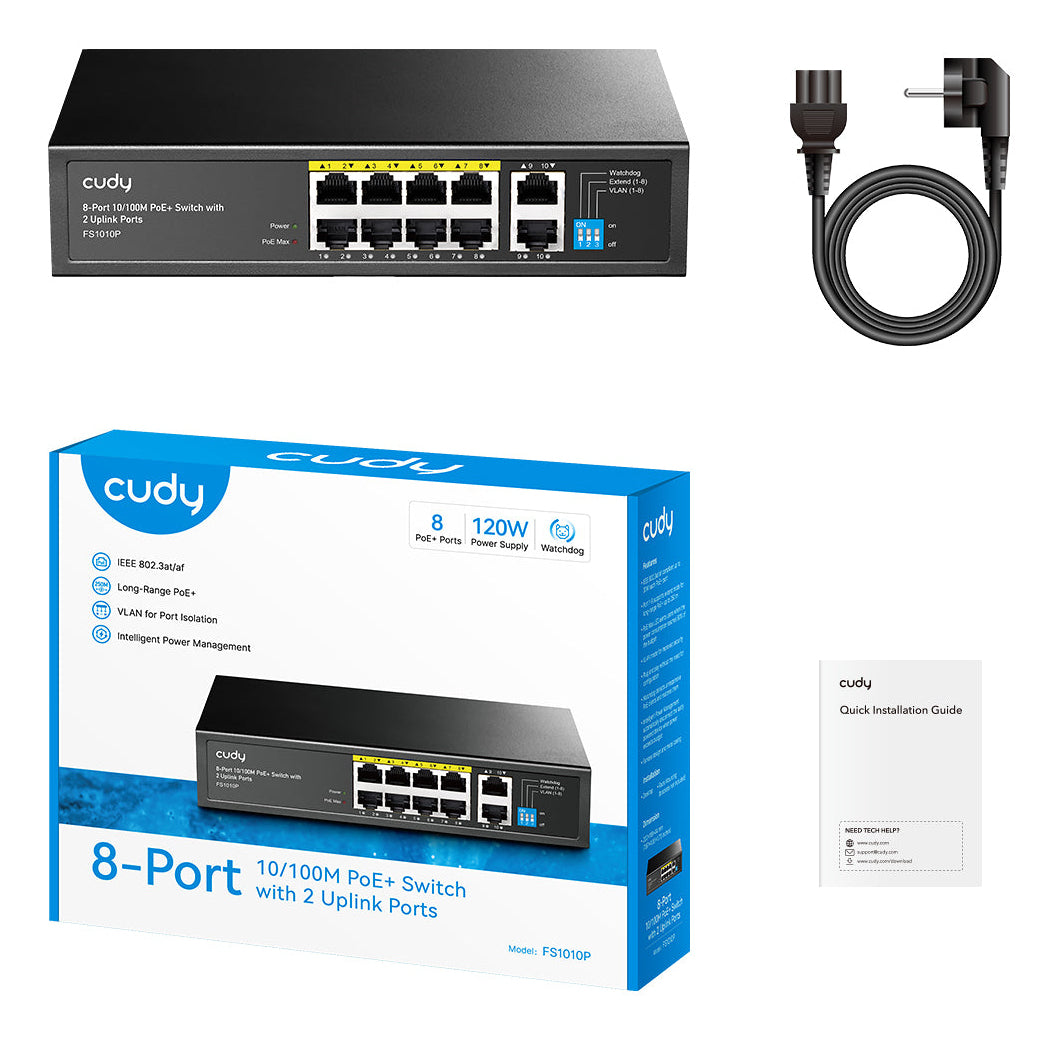

Packaging content
| Cables included | AC |
| Quick start guide | Yes |
Packaging data
| Package type | Box |
| Package weight | 926 g |
Technical details
| Products per shipping (inner) case | 16 pc(s) |
Logistics data
| Country of origin | China |
