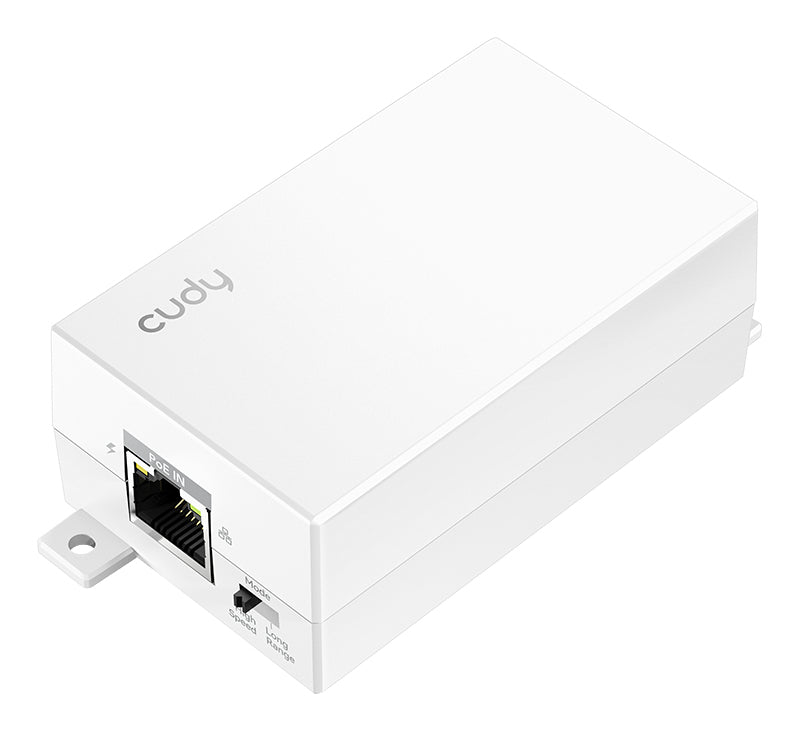

Cudy POE10 PoE adapter Gigabit Ethernet
€49,35
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

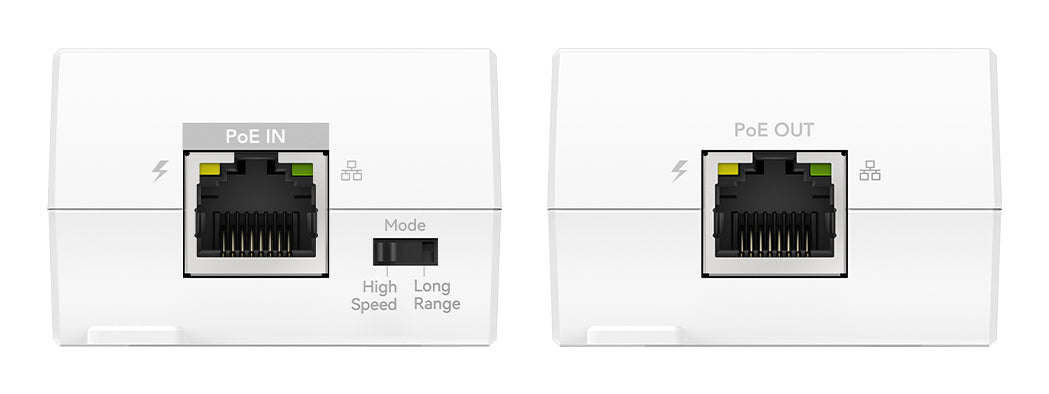

Connect Further. Deploy Flexibly.
Choose High-Speed mode to extend PoE by 100 m, or Long-Range mode to reach up to 250 m by limiting the speed to 10 Mbps. Need more distance and high speed? You can add up to three extenders in a daisy chain to achieve a total extension of 300 m.
Built for Consistent Networking 24/7
Shields Against Static Discharge
Dry office environment may harm the client with static discharge, and POE10 is equipped with level 3 ESD protection, handling 6kV contact and 8kV air ESD.
Tri-Level Client Protections
Provide more reliable networking with short-circuit protection, overvoltage protection, and polarity protection.
High-Speed. Plug and Play.
Gigabit Speed
Provides super-fast bandwidth suitable for connecting multiple cameras, high-speed access points, speakers down the line. Connecting mulitple clients requries additional network switch at its end.
Wall-Mount Ready
Installation is straightforward with no configuration required. Mounting screws are included in the box.
Choose High-Speed mode to extend PoE by 100 m, or Long-Range mode to reach up to 250 m by limiting the speed to 10 Mbps. Need more distance and high speed? You can add up to three extenders in a daisy chain to achieve a total extension of 300 m.
Built for Consistent Networking 24/7
Shields Against Static Discharge
Dry office environment may harm the client with static discharge, and POE10 is equipped with level 3 ESD protection, handling 6kV contact and 8kV air ESD.
Tri-Level Client Protections
Provide more reliable networking with short-circuit protection, overvoltage protection, and polarity protection.
High-Speed. Plug and Play.
Gigabit Speed
Provides super-fast bandwidth suitable for connecting multiple cameras, high-speed access points, speakers down the line. Connecting mulitple clients requries additional network switch at its end.
Wall-Mount Ready
Installation is straightforward with no configuration required. Mounting screws are included in the box.
Specifications
Network
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x |
| Duplex system | Full, Half |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
Features
| Product colour | White |
| Wall mountable | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Activity, Link, PoE |
| Pin assignment & polarity | 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+) |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Output power | 30 W |
Operational conditions
| Operating temperature (T-T) | -10 - 45 °C |
| Operating temperature (T-T) | 14 - 113 °F |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 145 mm |
| Depth | 60 mm |
| Height | 40 mm |

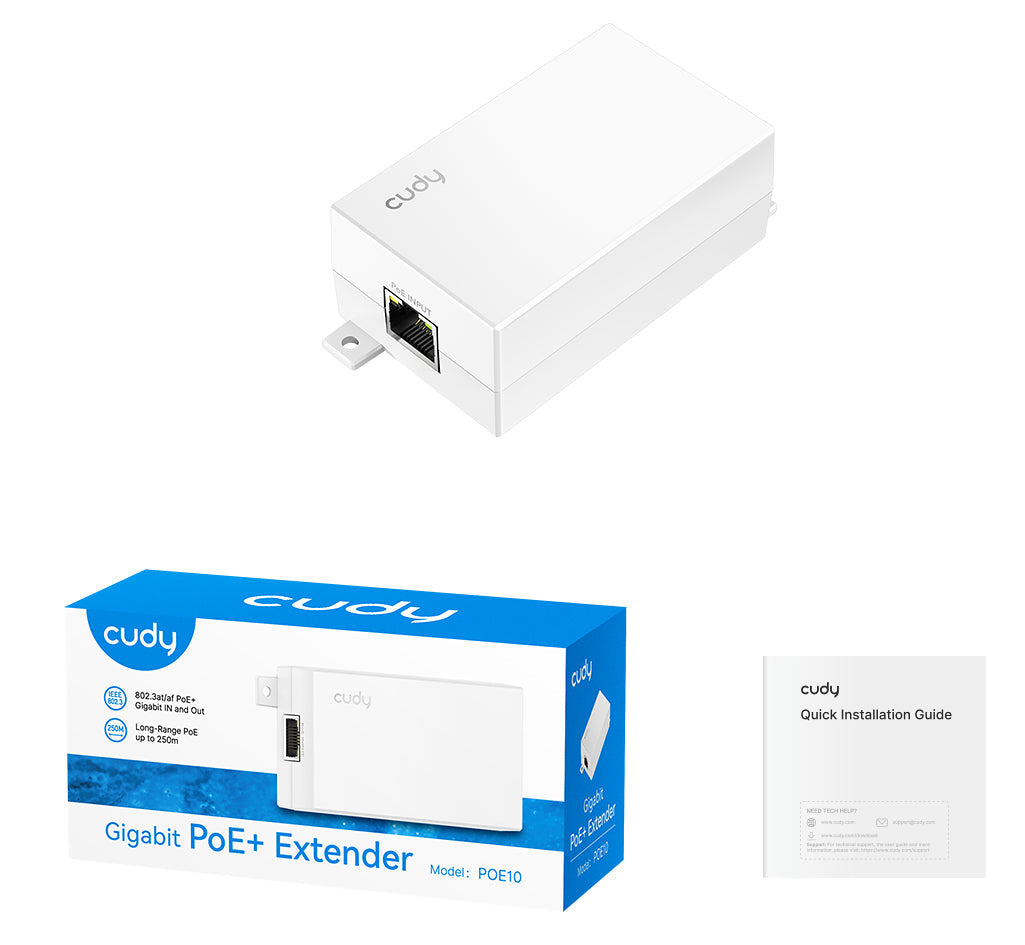

Packaging content
| Manual | Yes |
Packaging data
| Package width | 133.6 mm |
| Package depth | 53.8 mm |
| Package height | 45.6 mm |
| Package type | Box |
Logistics data
| Quantity per pack | 1 pc(s) |
Documents
Fiche technique fournie par Icecat.
