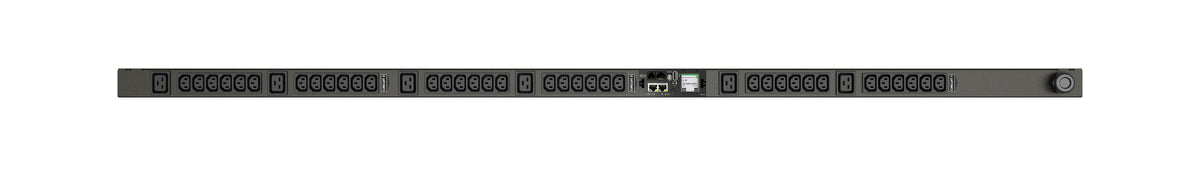

Vertiv Geist VP4G20AE power distribution unit (PDU) 42 AC outlet(s) 0U Black
€1.611,67
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

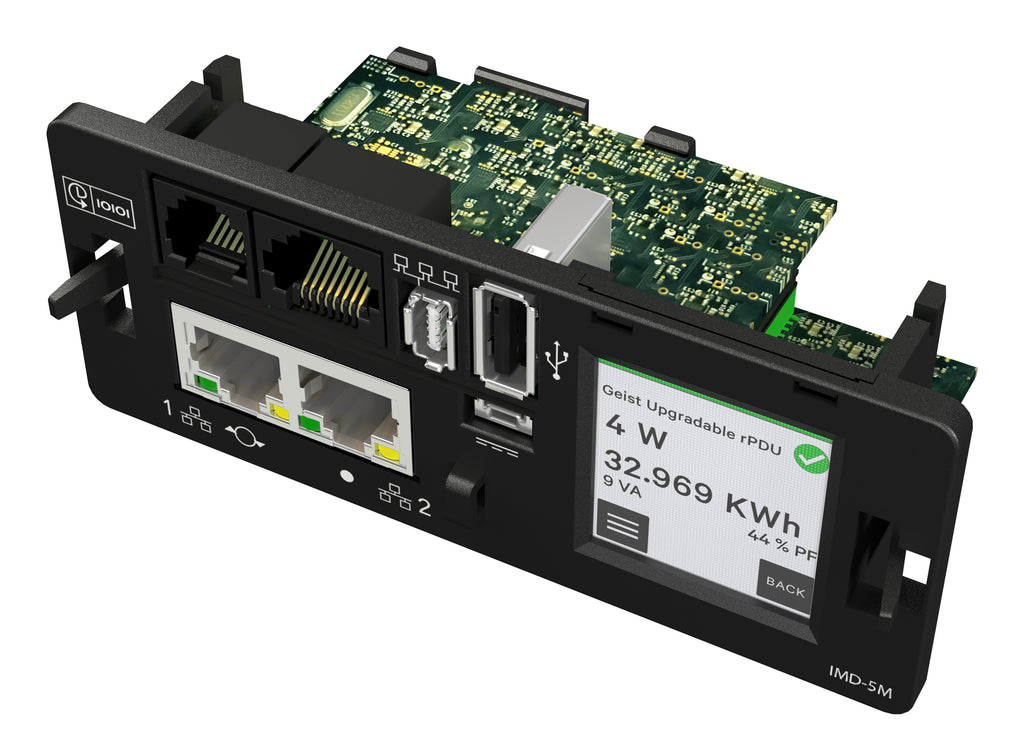

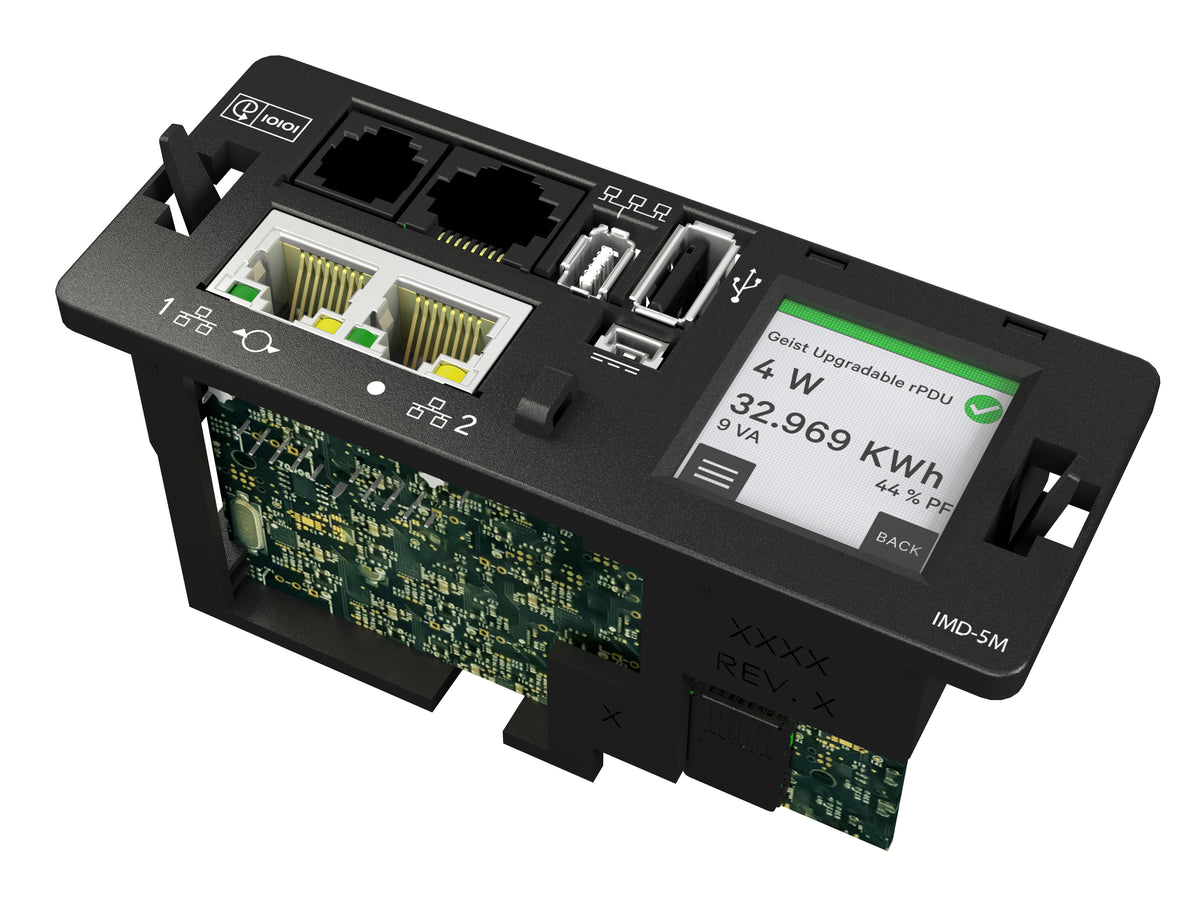

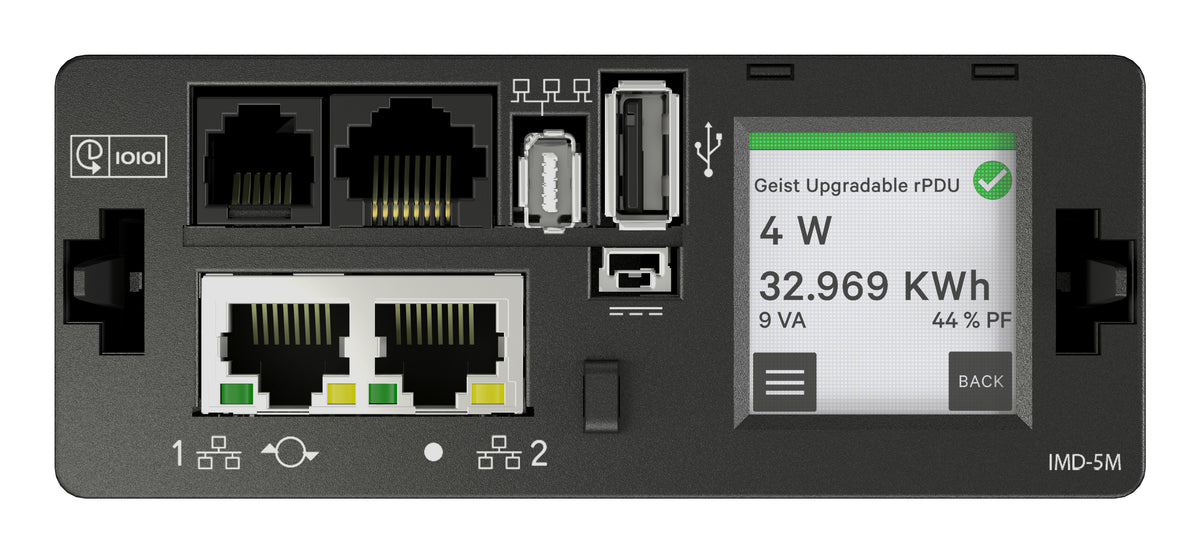

The Vertiv Geist Monitored RPDU VP4G20AE is a 16A, 230V/400V, 0U, vertical rack power distribution unit with input power monitoring. It has (36) IEC C13 and (6) IEC C19 outlets and a 3P+N+E (IP44) providing 11kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility touchscreen LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are CE Marked, comply with IEC 60950-1 (CB Certificate Available), RoHS certified, and are individually tested for functionality and reliability.
Specifications
Design
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
| On/off switch | No |
Ports & interfaces
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
Features
| Reset button | Yes |
| Cable length | 3 m |
Management features
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Nominal input voltage | 200-240/346-415 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Load capacity | 230 VA |
| Maximum power | 11000 W |
Certificates
| Compliance certificates | RoHS |
| Certification | CE Mark, UKCA Mark, Complies with IEC 62368-1, RCM Mark (EMC Only) |
Weight & dimensions
| Width | 51 mm |
| Depth | 51 mm |
| Height | 1683 mm |
Packaging data
| Package weight | 7.26 kg |
