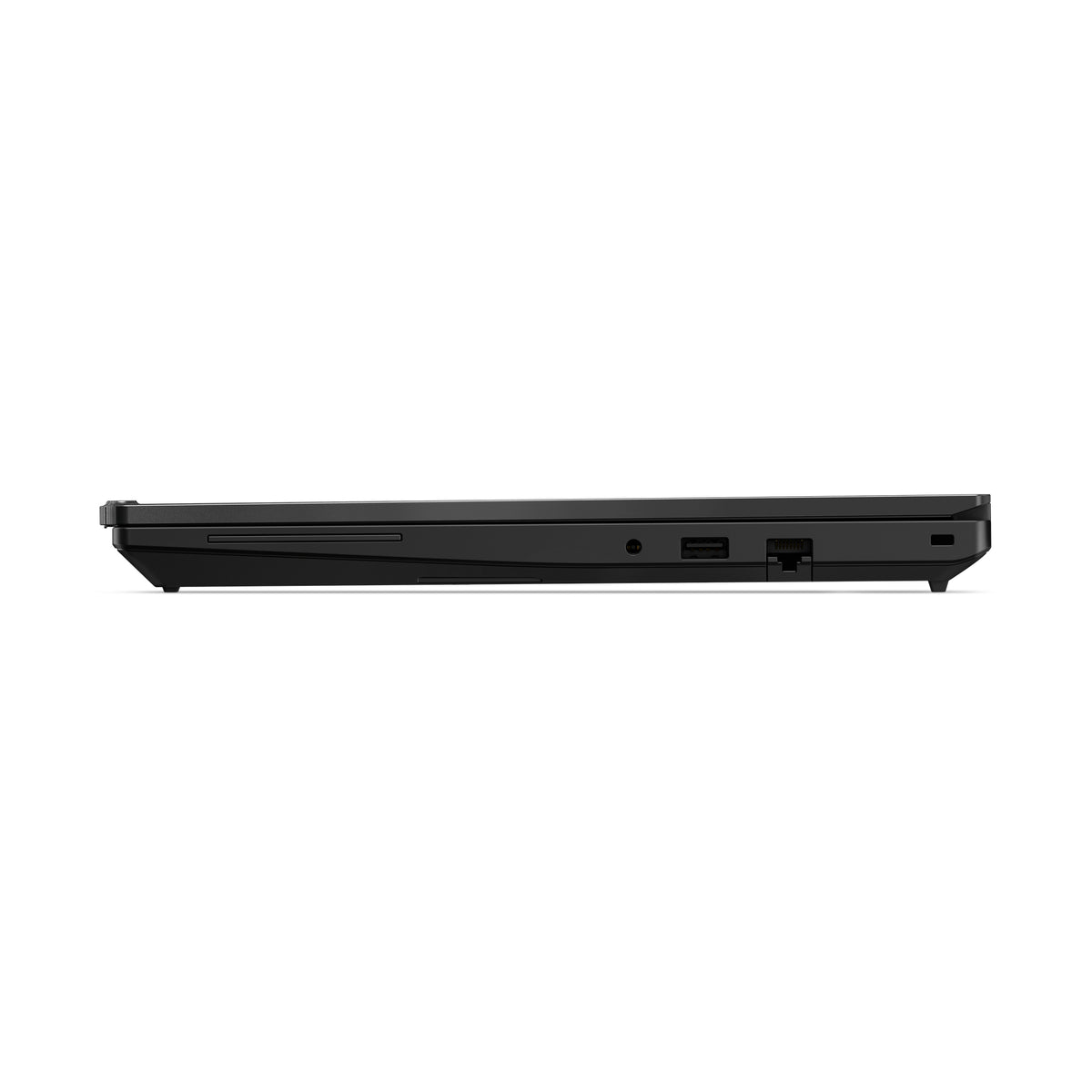

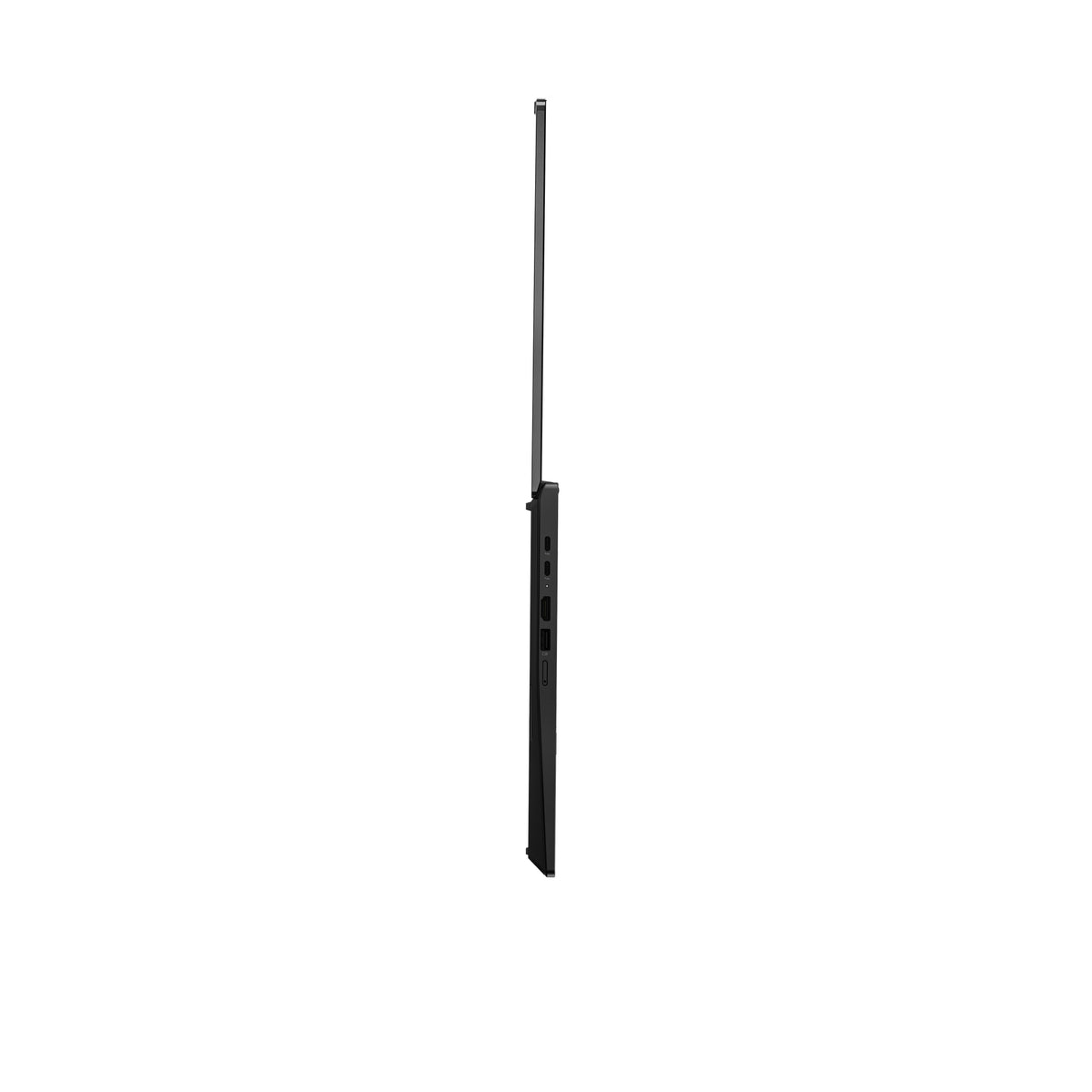

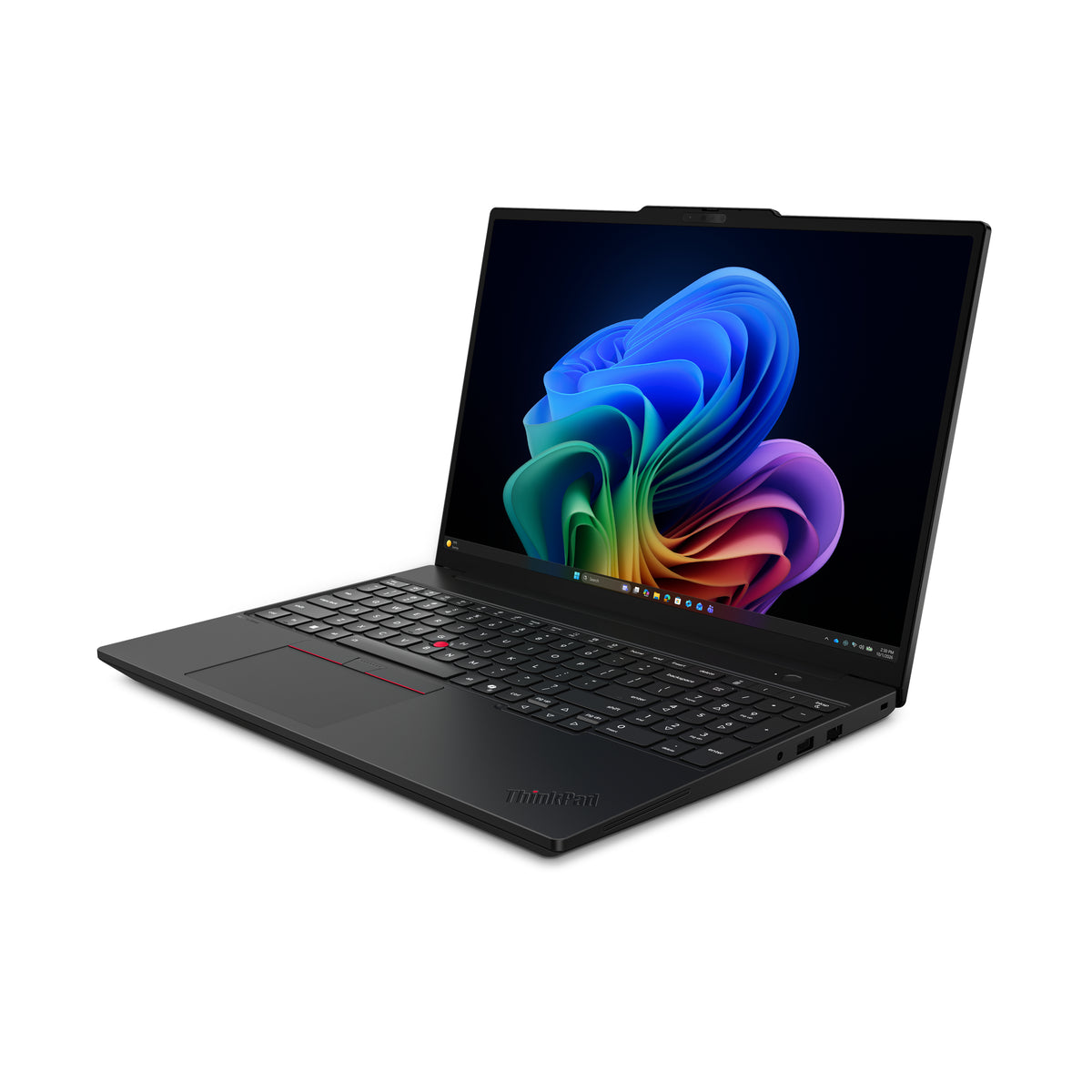

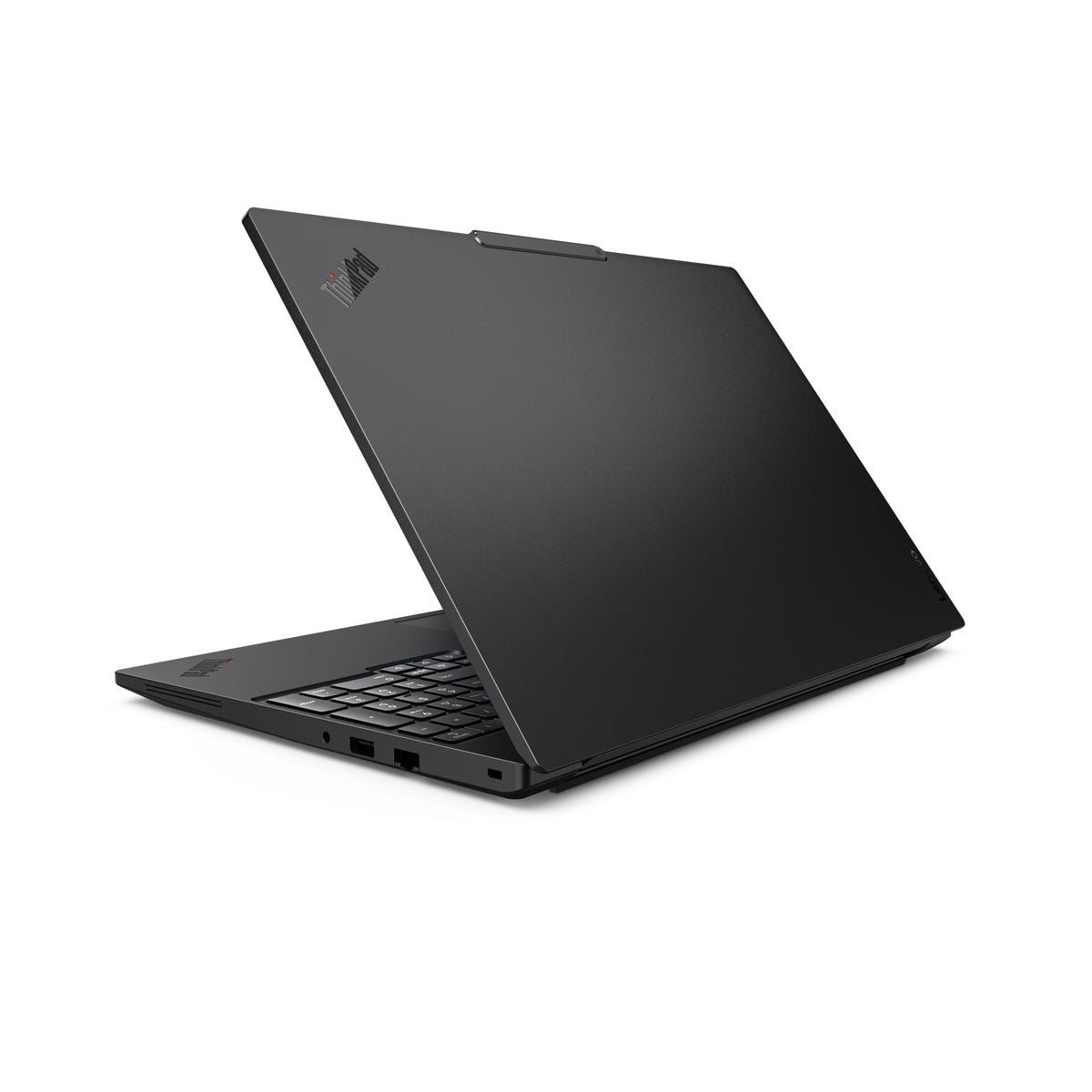

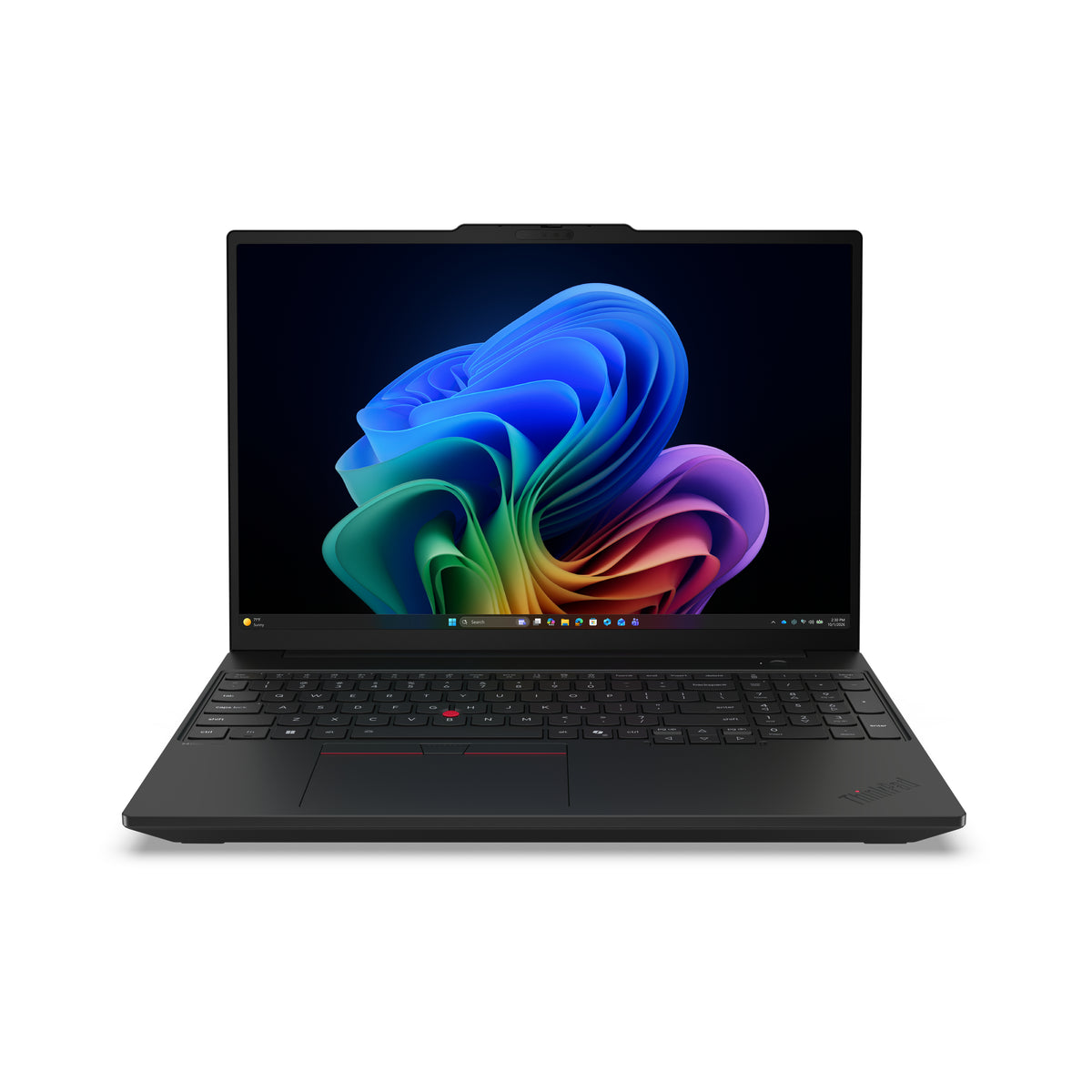

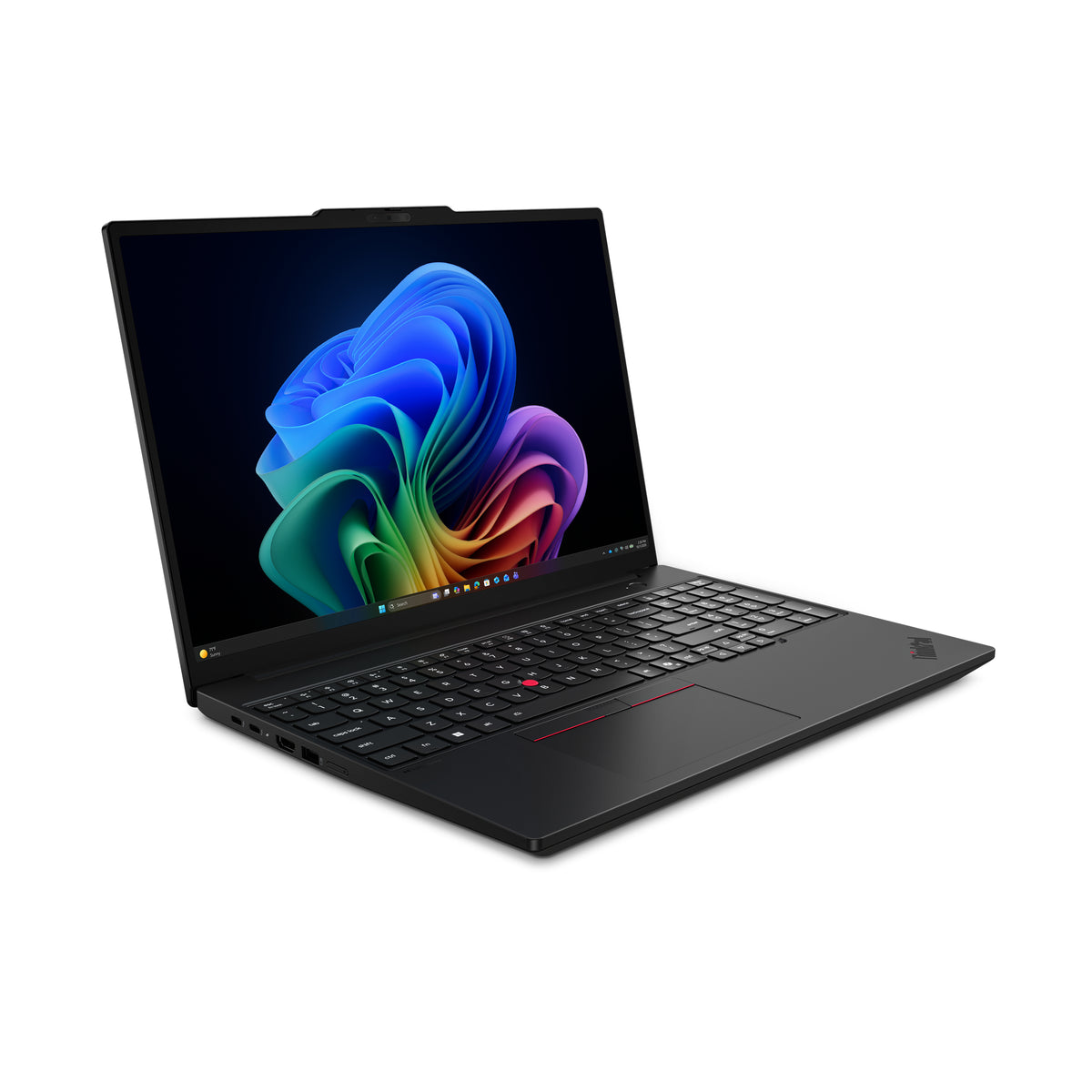

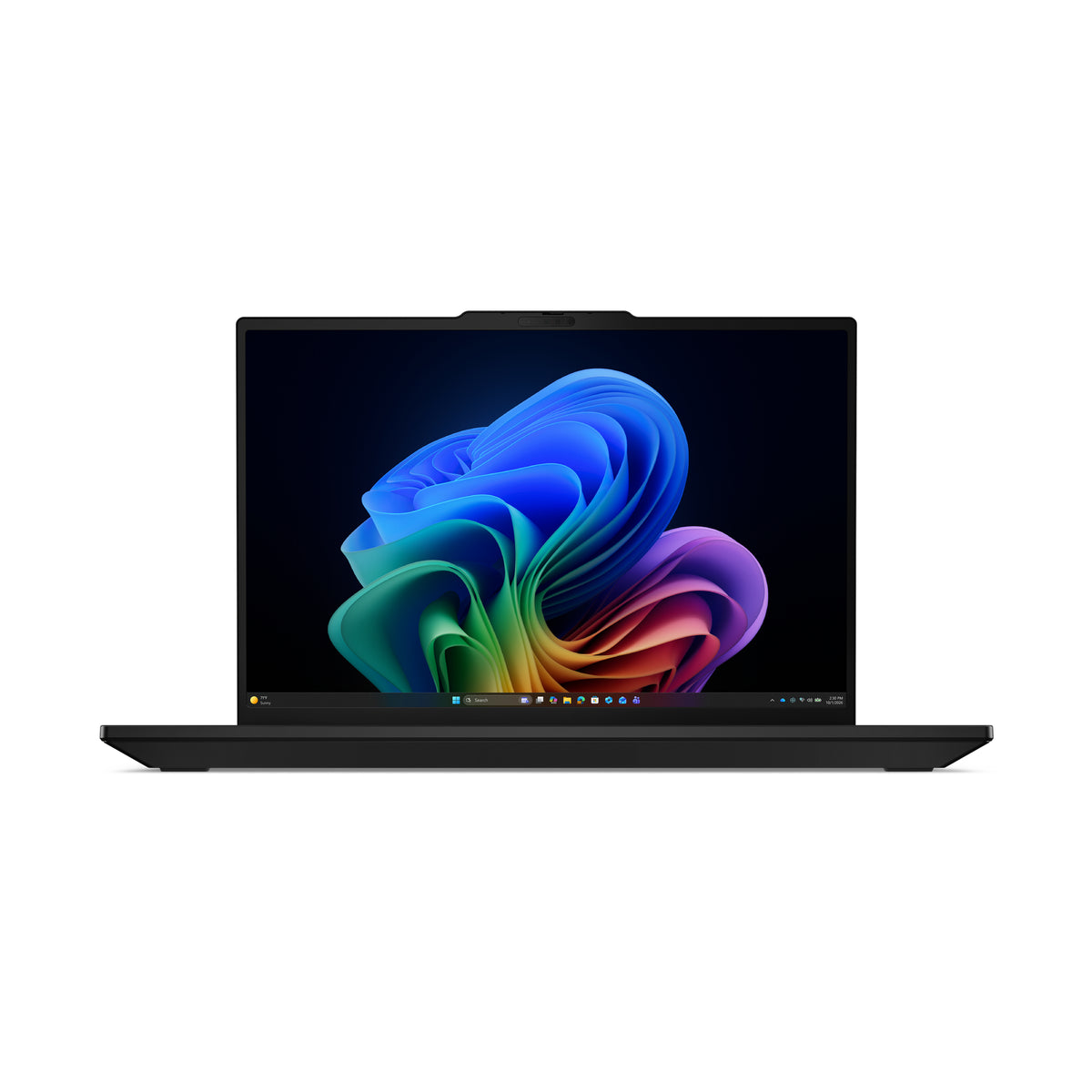

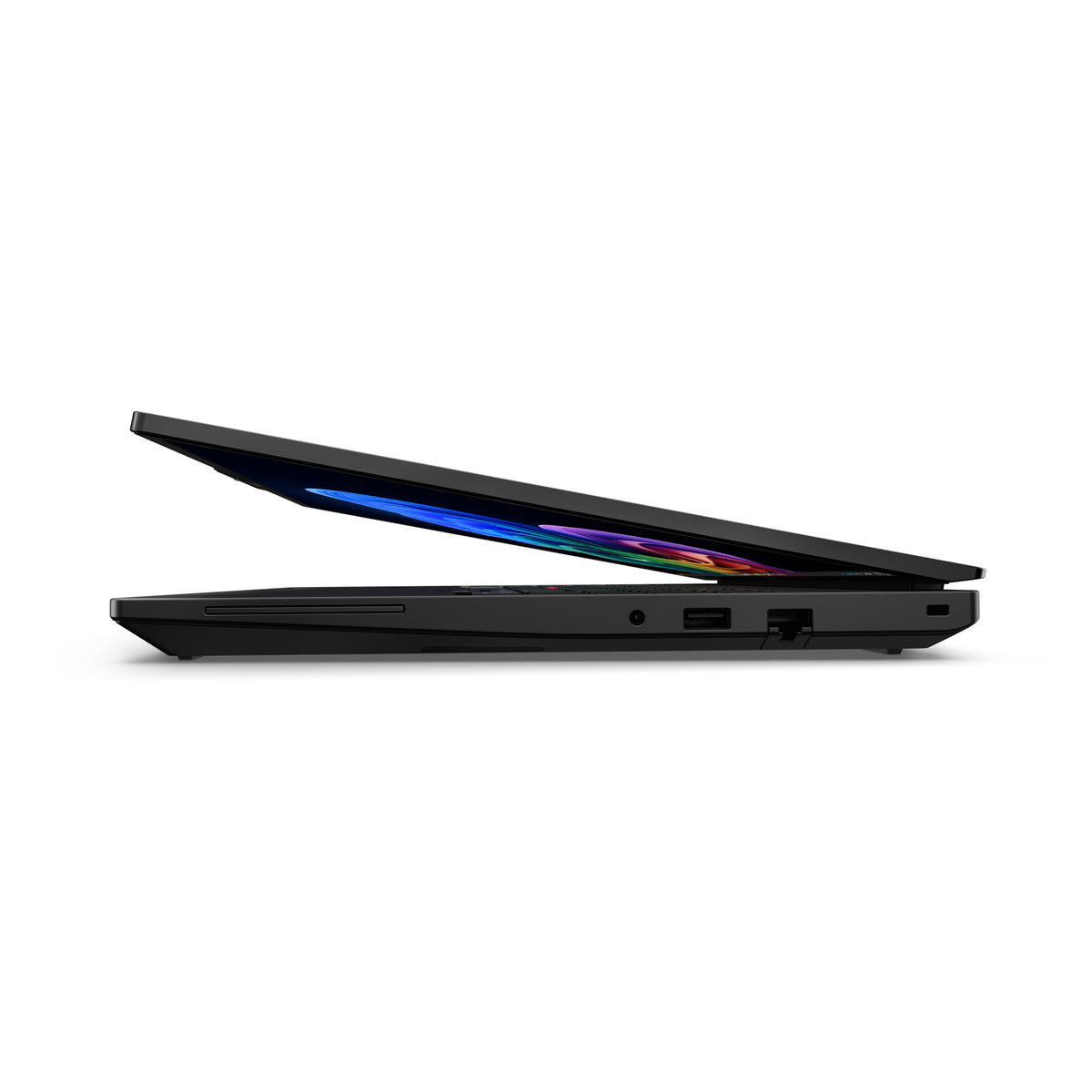

Lenovo ThinkPad T16 Gen 5 (AMD). Product type: Mobile workstation, Form factor: Clamshell. Processor family: AMD Ryzen™ 5 PRO, Processor model: 215, Processor frequency: 3.2 GHz. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 740M. Operating system installed: Windows 11 Pro. Product colour: Black
Specifications Design Product type Mobile workstation Product colour Black Form factor Clamshell Housing material Polycarbonate (PC), Carbon fibre, Glass fibre Market positioning Business
Display Display diagonal 40.6 cm (16") Display resolution 1920 x 1200 pixels Touchscreen No HD type WUXGA Panel type IPS Native aspect ratio 16:10 Anti-glare screen Yes Display brightness 400 cd/m² RGB colour space NTSC Colour gamut 45% Maximum refresh rate 60 Hz Contrast ratio (typical) 1000:1
Processor Processor manufacturer AMD Processor family AMD Ryzen™ 5 PRO Processor generation AMD Ryzen PRO 200 Series Processor model 215 Processor cores 6 Processor threads 12 Processor boost frequency 4.7 GHz Processor frequency 3.2 GHz Processor cache type L2 & L3 L3 cache 16 MB L2 cache 6 MB Processor base power 28 W
Memory Internal memory 16 GB Internal memory type DDR5-SDRAM Memory clock speed 5600 MHz Memory form factor SO-DIMM Memory layout (slots x size) 1 x 16 GB Memory slots 2x SO-DIMM Maximum internal memory 64 GB Memory channels Single-channel
Storage Total storage capacity 512 GB Storage media SSD Total SSDs capacity 512 GB Number of SSDs installed 1 SSD capacity 512 GB SSD interface PCI Express 4.0 NVMe Yes SSD form factor M.2 M.2 SSD size 2280 (22 x 80 mm) Optical drive type No Card reader integrated No
Graphics Discrete graphics card model Not available On-board graphics card Yes On-board GPU manufacturer AMD Discrete graphics card No On-board graphics card family AMD Radeon On-board graphics card model AMD Radeon 740M
Audio Audio chip Realtek ALC3287 Audio system Dolby Atmos Number of built-in speakers 2 Speaker power 2 W Built-in microphone Yes Number of microphones 2
Camera Front camera Yes Front camera resolution (numeric) 5 MP Infrared (IR) camera Yes Privacy camera Yes Privacy type Privacy shutter
Network Top Wi-Fi standard Wi-Fi 7 (802.11be) Wi-Fi standards Wi-Fi 7 (802.11be) Mobile network connection No Antenna type 2x2 WLAN controller model MediaTek MT7925 WLAN controller manufacturer MediaTek Ethernet LAN Yes Ethernet LAN data rates 100,1000 Mbit/s Bluetooth Yes Bluetooth version 5.4 Near Field Communication (NFC) No WWAN Upgradable
Ports & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 Thunderbolt 4 ports quantity 2 Intel® Thunderbolt 4 Yes Combo headphone/mic port Yes USB Type-C DisplayPort Alternate Mode Yes USB Sleep-and-Charge Yes USB Sleep-and-Charge ports 1
Performance Motherboard chipset AMD SoC
Keyboard Pointing device ThinkPad UltraNav Numeric keypad Yes Keyboard backlit Yes Spill-resistant keyboard Yes Keyboard language Nordic Copilot key Yes
Software Operating system language English, Finnish, Swedish, Danish, Norwegian Operating system installed Windows 11 Pro
Battery Battery technology Lithium-Ion (Li-Ion) Battery capacity 75 Wh Fast charging Yes
Power AC adapter power 100 W AC adapter frequency 50/60 Hz AC adapter input voltage 100 - 240 V USB Type-C charging port Yes USB Power Delivery (USB PD) Yes
Security Cable lock slot Yes Cable lock slot type Kensington Fingerprint reader Yes Smart card reader No Trusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 2.0 Password protection Yes Password protection type BIOS, Power on, Supervisor
Operational conditions Operating temperature (T-T) 5 - 35 °C Storage temperature (T-T) 5 - 43 °C Operating relative humidity (H-H) 8 - 95% Storage relative humidity (H-H) 5 - 95% Maximum shipping altitude 3048 m
Certificates Compliance certificates RoHS Certification ErP Lot 6/26
TCO Certified, generation 10
MIL-STD-810H
Sustainability Sustainability certificates ENERGY STAR, EPEAT Gold
Weight & dimensions Width 357.9 mm Depth 247.9 mm Height (front) 1.15 cm Height (rear) 1.82 cm Weight 1.78 kg
Packaging content Video Documents Fiche technique fournie par Icecat.
