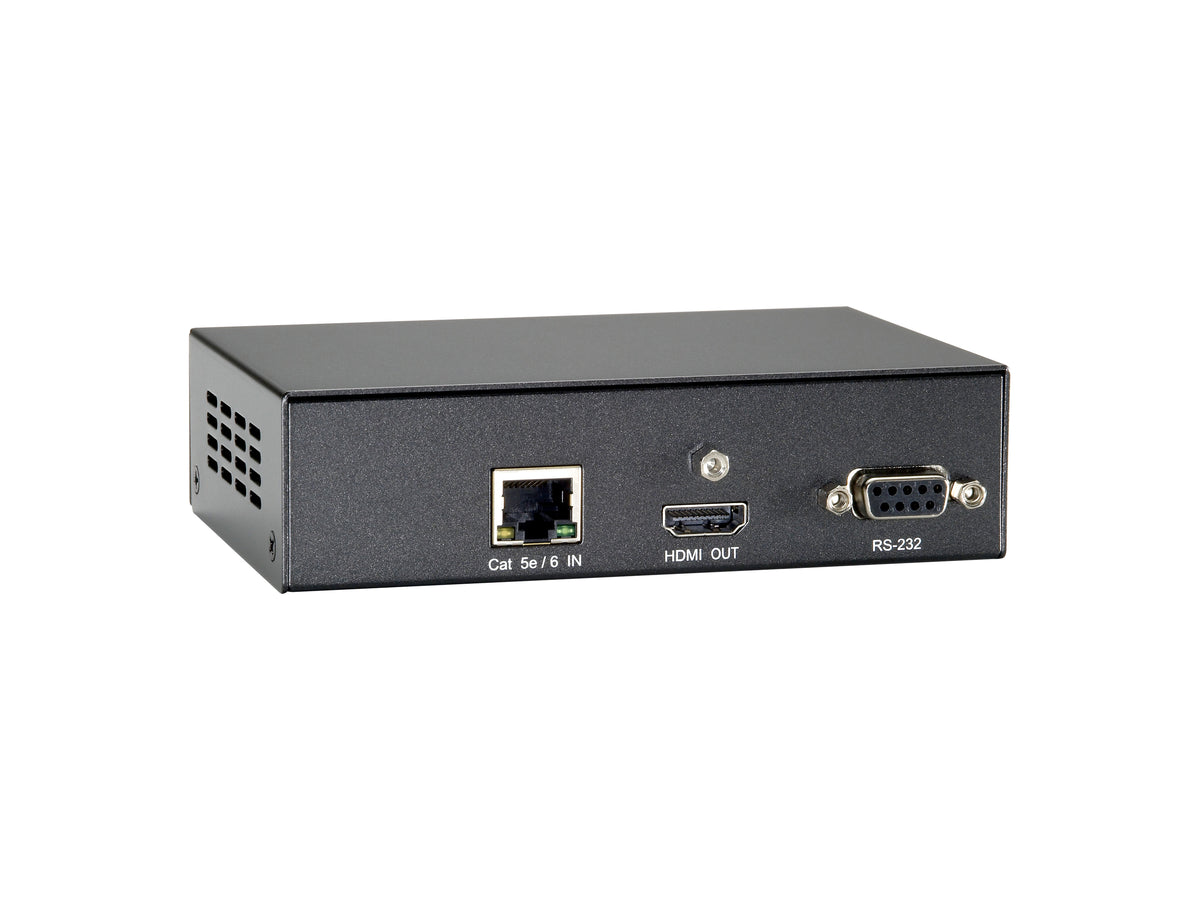

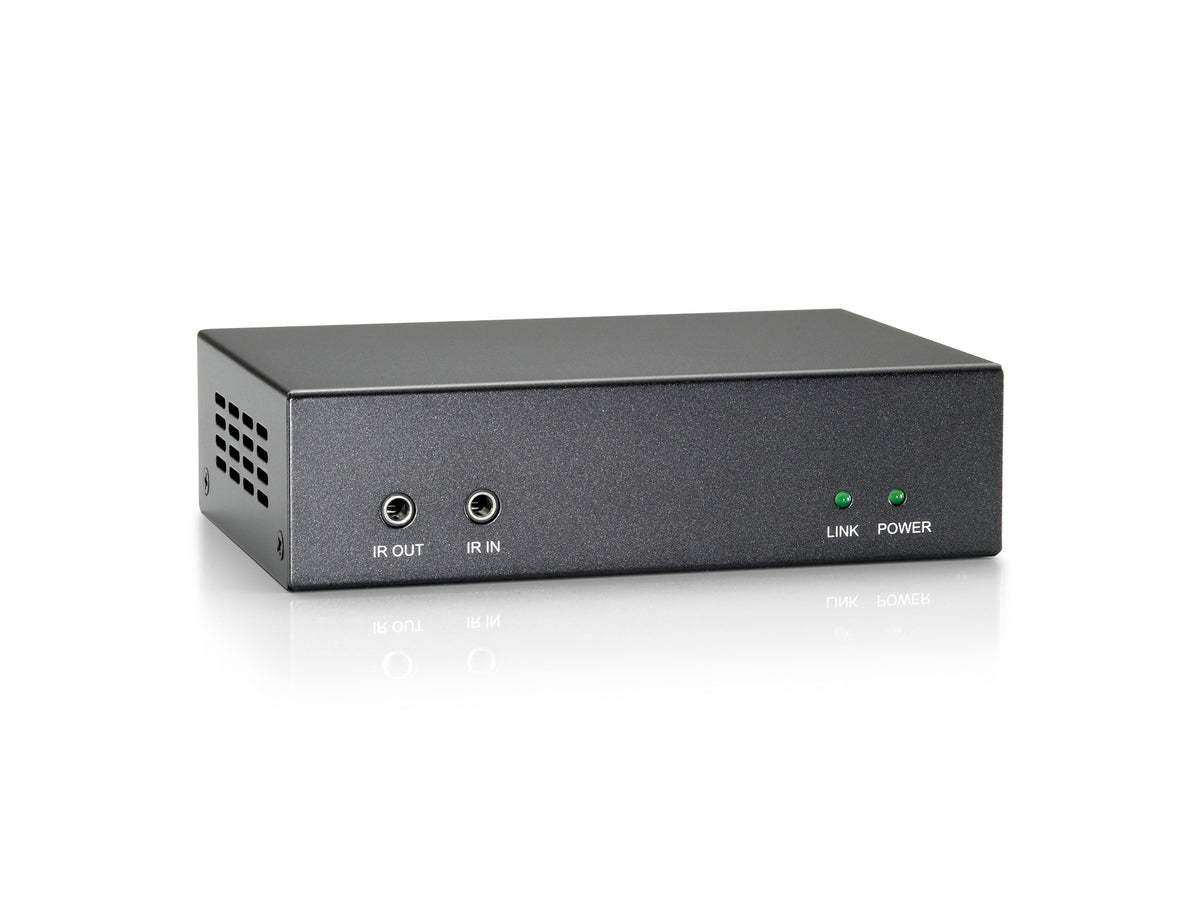

LevelOne HDMI over Cat.5 Receiver, HDBaseT, 100m, 802.3af PoE
€215,50
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

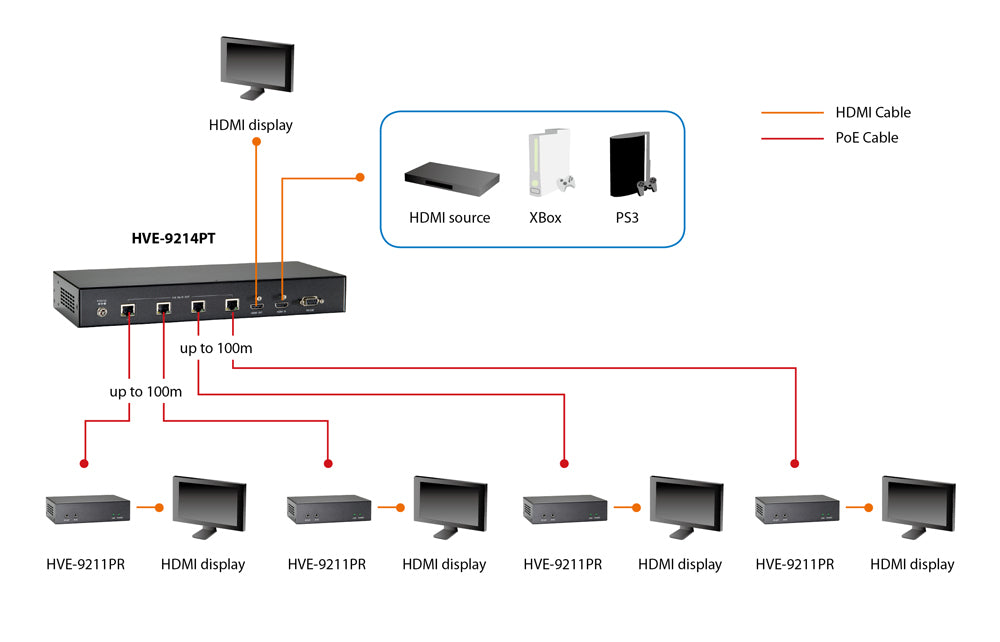

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.
The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.
All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.
Key Features
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.
All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.
Key Features
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
Specifications
Features
| Type | AV receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| LED indicators | Activity, Power |
| Supported video modes | 720p, 1080p |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 0.038 MHz |
| HDCP | Yes |
| Material | Metal |
| Colour depth | 48 bit |
| 3D | Yes |
| HDCP & EDID bypass | Yes |
| Baud rate | 115 Kbit/s |
| Plug and Play | Yes |
| Networking standards | IEEE 802.3af |
| Product colour | Black |
Ports & interfaces
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RS-232 input ports | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
Power
| Power consumption (receiver) (max) | 1110 mA |
| Power over Ethernet (PoE) | Yes |
Weight & dimensions
| Dimensions (WxDxH) | 125 x 85 x 40 mm |
| Width | 125 mm |
| Depth | 85 mm |
| Height | 40 mm |
Packaging data
| Package width | 190 mm |
| Package depth | 150 mm |
| Package height | 120 mm |
| Package weight | 814 g |
Packaging content
| Manual | Yes |
