LevelOne GEMINI 8-Channel PoE Network Video Recorder, 8 PoE Outputs, H.265
€636,75
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

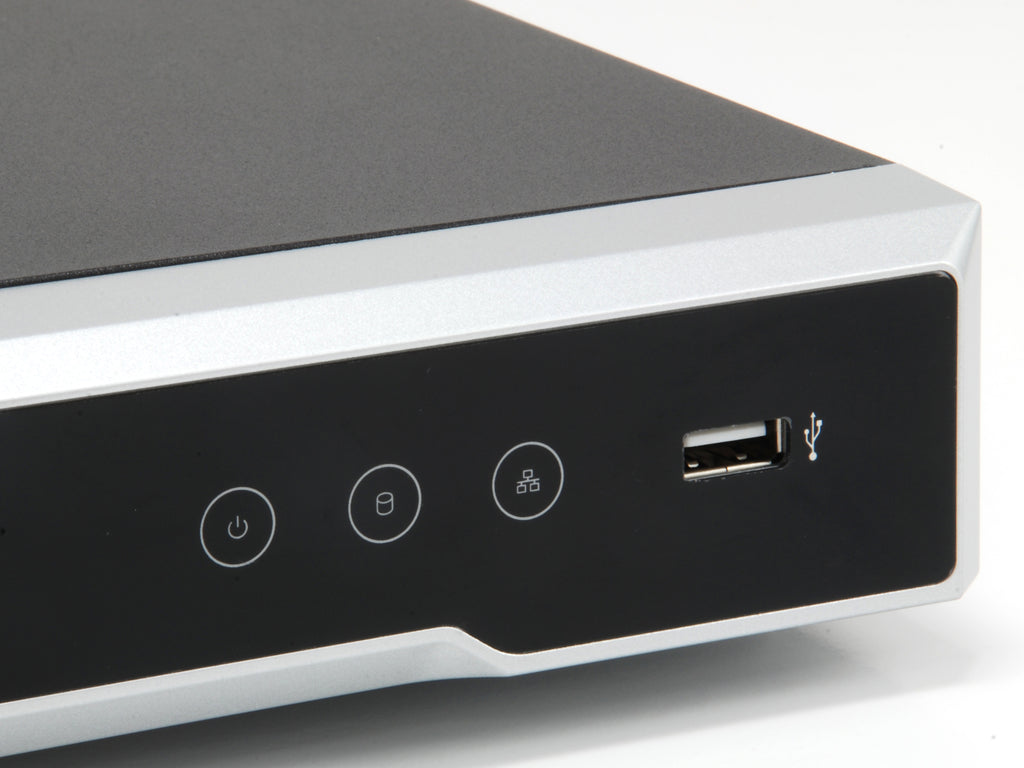

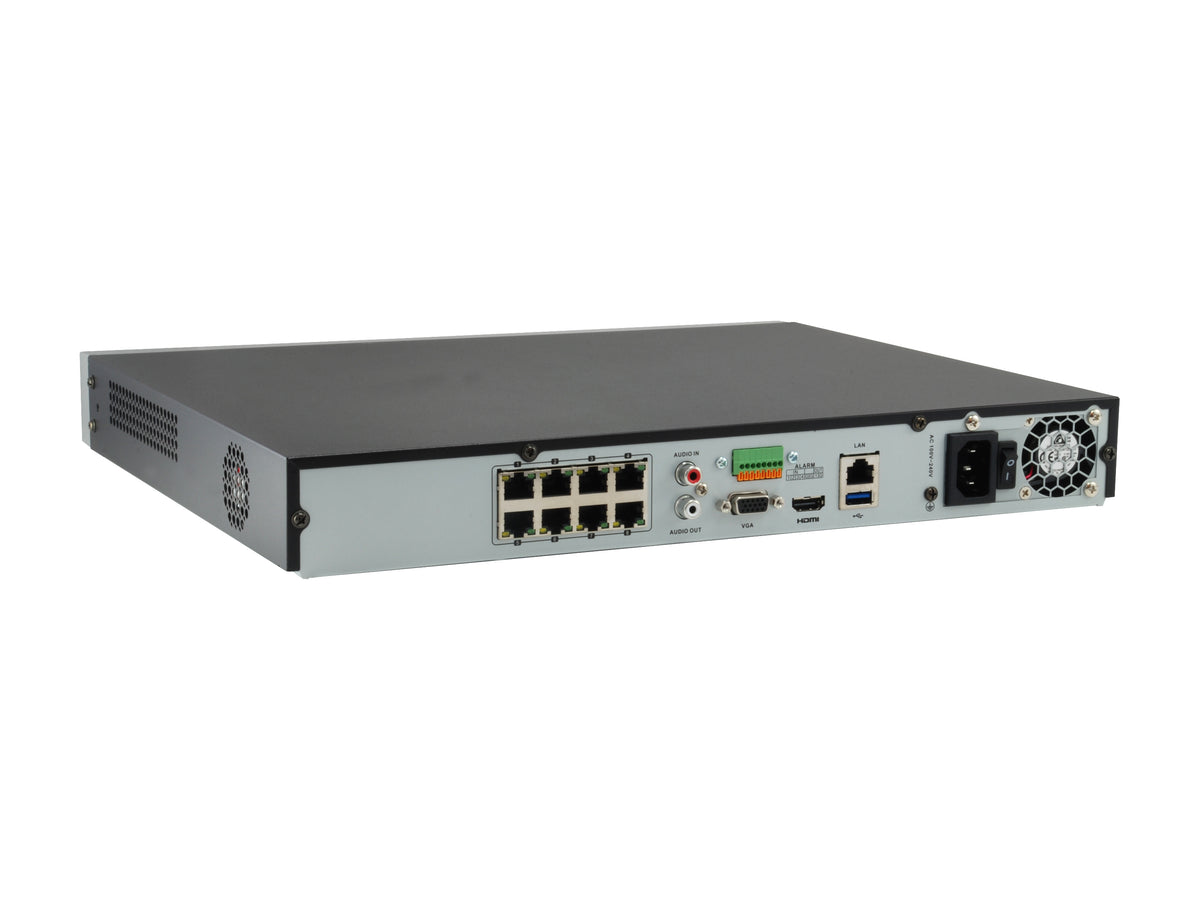

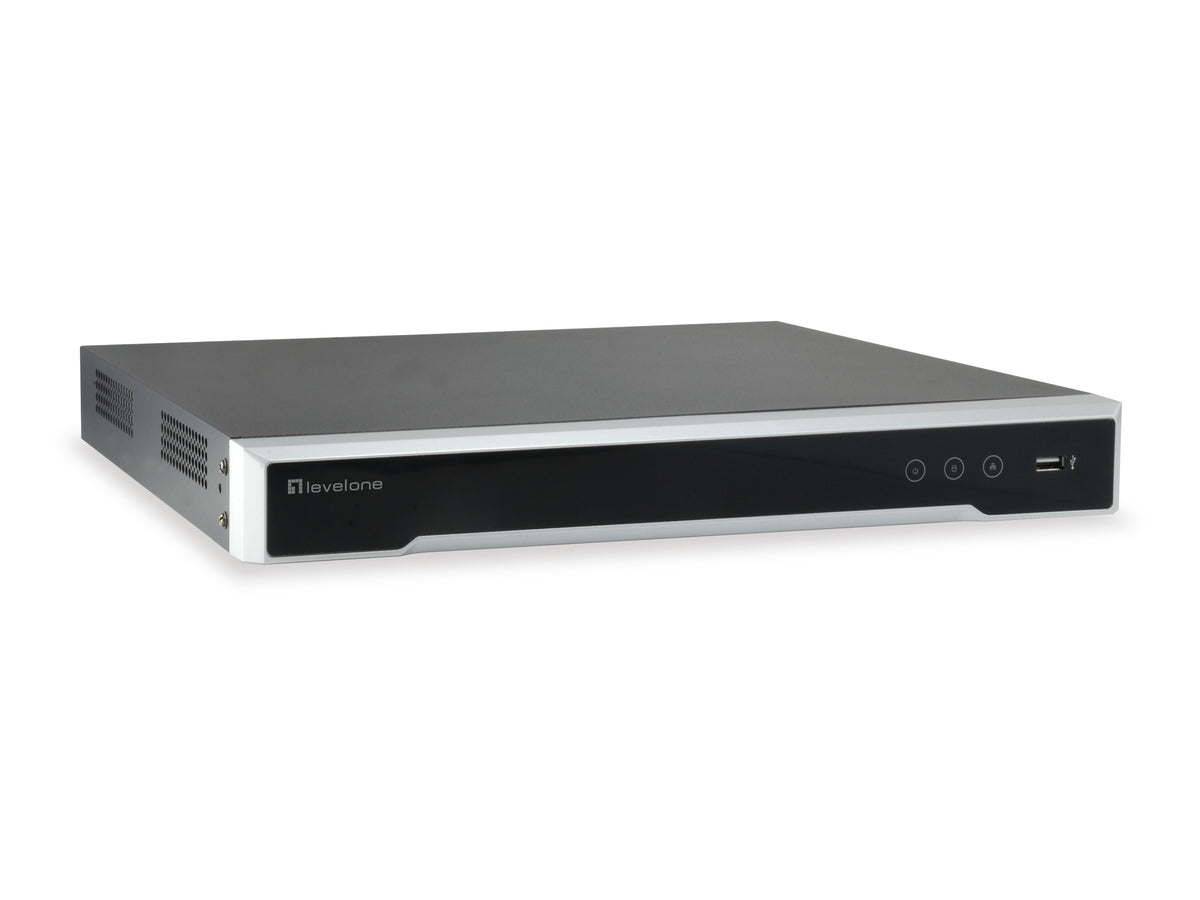

The LevelOne NVR-0508 NVR enables live view, recording and playback for up to 8 IP network cameras at the same time, featuring up to 8-megapixel resolution and H.265/H.264+/H.264/MPEG4 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app.

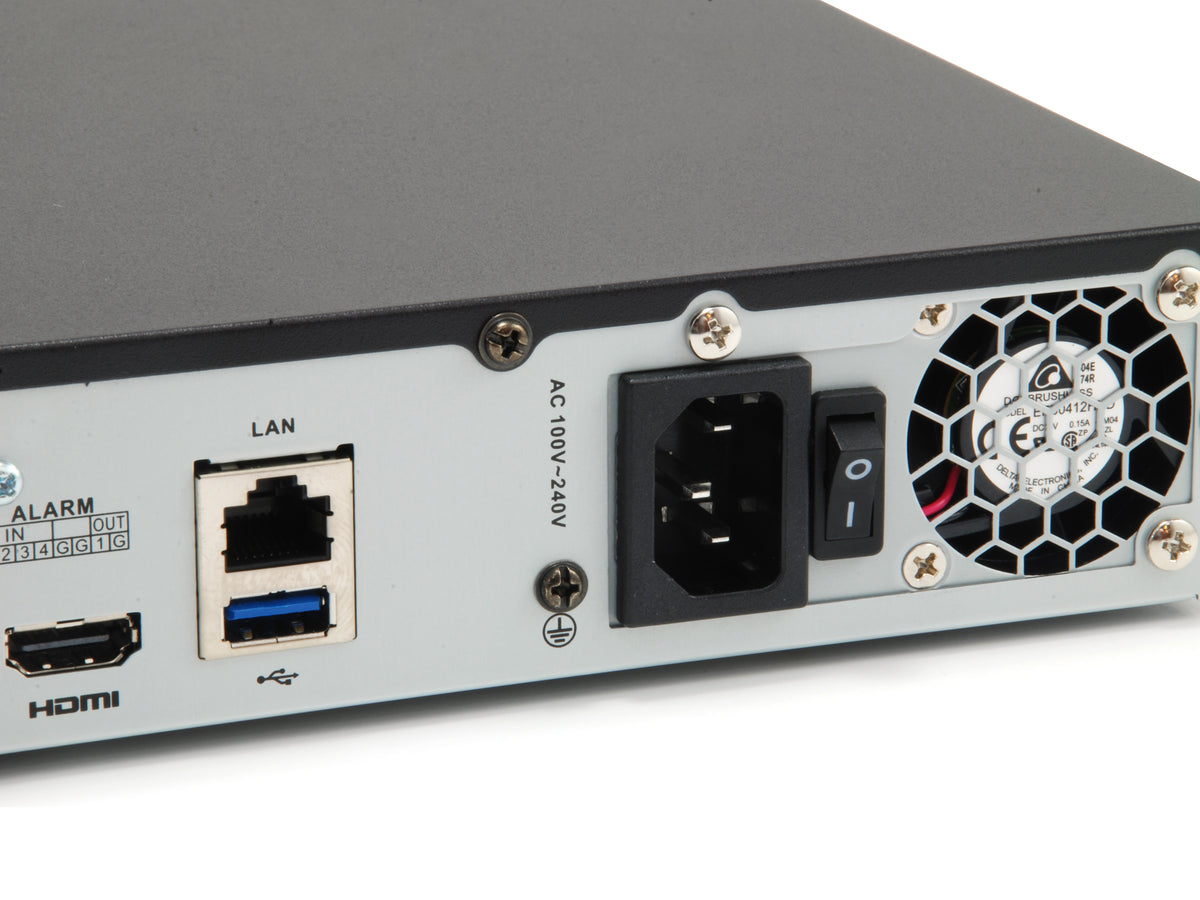

The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 2 HDD bays complete the package, with a disk capacity of up to 6TB making the LevelOne NVR-0508 a powerful, smart and cost-effective solution for managing your security network.

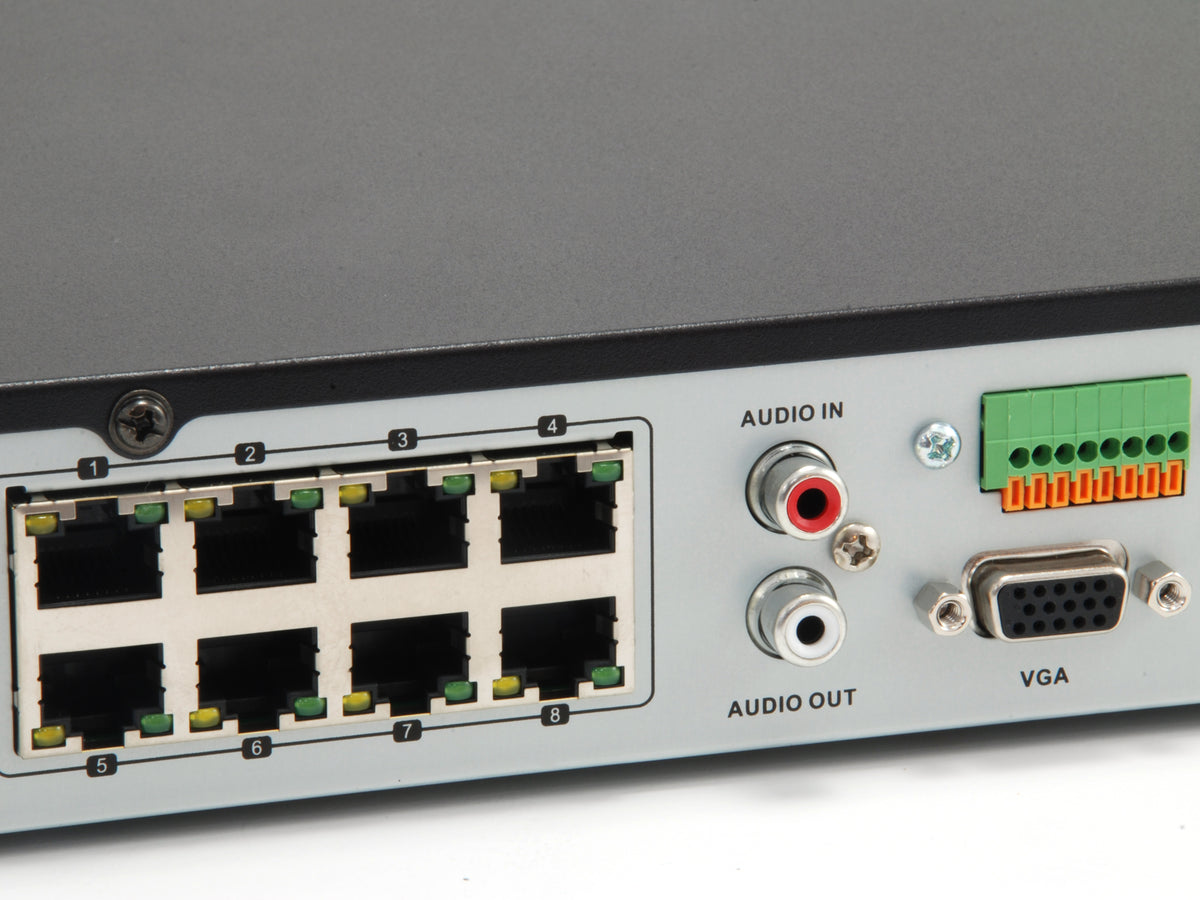

An integrated 8-port 802.3at PoE switch enables the NVR to run both power and data on the one cable to power up connected PoE cameras.
Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.
The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 2 HDD bays complete the package, with a disk capacity of up to 6TB making the LevelOne NVR-0508 a powerful, smart and cost-effective solution for managing your security network.
An integrated 8-port 802.3at PoE switch enables the NVR to run both power and data on the one cable to power up connected PoE cameras.
Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.
Specifications
Performance
| Video input channels | 8 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Number of users | 64 user(s) |
| Video formats supported | H.264, H.264+, H.265, MPEG4 |
| Operating system installed | Embedded LINUX |
| Throughput data rate | 160 Mbit/s |
| Number of fans | 1 fan(s) |
Wireless LAN features
| Wi-Fi | No |
Hard drive
| HDD capacity | 0 GB |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 12 TB |
| HDD interface | Serial ATA |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 9 |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 8 |
| HDMI output | Yes |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Networking standards | IEEE 802.3at |
| Supported network protocols | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP |
Features
| Rack mounting | Yes |
| LED indicators | Alarm, HDD, Power |
| On/off switch | Yes |
| Product colour | Black |
| Compatible products | Onvif camera |
| Country of origin | China |
| Certification | CE, FCC, ISO9001, ISO14001, uL |
Power
| Power consumption (typical) | 180 W |
| AC input voltage | 100 - 230 V |
System requirements
| Browser supported | Internet Explorer 9+ |
Operational conditions
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Width | 315 mm |
| Depth | 52 mm |
| Height | 385 mm |
| Weight | 3 kg |
| Package width | 435 mm |
| Package depth | 450 mm |
| Package height | 387 mm |
| Package type | Box |
| Package weight | 3.23 kg |
Packaging content
| Cables included | AC |
| AC adapter included | Yes |
| CD manual | Yes |
Logistics data
| Master (outer) case width | 548 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 412 mm |
| Master (outer) case gross weight | 14.1 kg |
| Products per master (outer) case | 4 pc(s) |
