LevelOne Fast Ethernet High Power PoE Splitter, 12V DC Output
€73,76
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

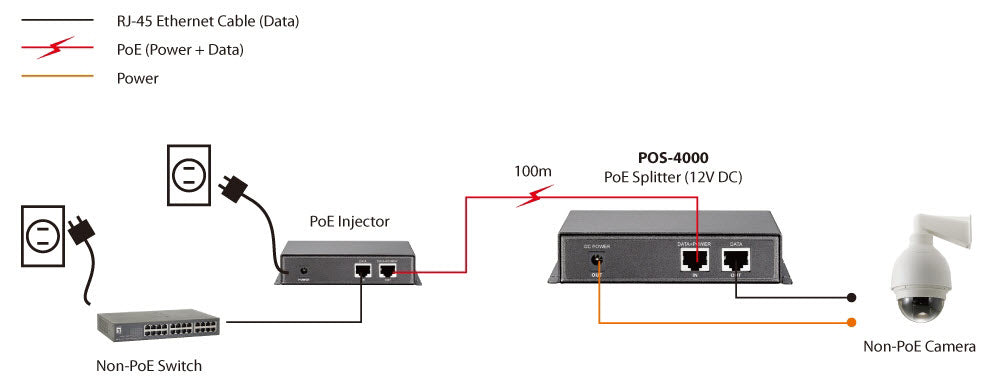

The LevelOne POS-4000 is a PoE Splitter working with the POI-4000, FSW-0513 and POH-1260 high power PoE injectors for enabling PoE functionality to network device that requires more power. The POS-4000 is capable of supporting maximum power output 12VDC/2.5A for device that requires power up to 30W. Internal current limit, short-circuit and overload protection are implemented to maintain safety of connected device. Furthermore, using with the POR-0100 PoE repeater can extend the PoE connecting distance beyond additional 100 meters.
- Enables high-power PoE connectivity for non-PoE device
- Max. power output up to 12VDC/2.5A (30W)
- Simple Plug and Play installation
- Enables high-power PoE connectivity for non-PoE device
- Max. power output up to 12VDC/2.5A (30W)
- Simple Plug and Play installation
Specifications
Features
| Networking standards | IEEE 802.3x |
| Cabling technology | 10/100Base-T |
| Power over Ethernet (PoE) | Yes |
| Product colour | Grey |
| LED indicators | Power |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-out jack | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Certificates
| Certification | FCC Rules Part 15 CE |
Weight & dimensions
| Width | 120 mm |
| Depth | 90 mm |
| Height | 28 mm |
Packaging content
| Quantity per pack | 1 pc(s) |
Packaging data
| Package width | 232 mm |
| Package depth | 148 mm |
| Package height | 80 mm |
| Package type | Box |
Power
| DC output voltage | 12V |
| Output power | 30 W |
| Output current (12V) | 2.5 A |
Logistics data
| Country of origin | Taiwan |
Documents
Fiche technique fournie par Icecat.
