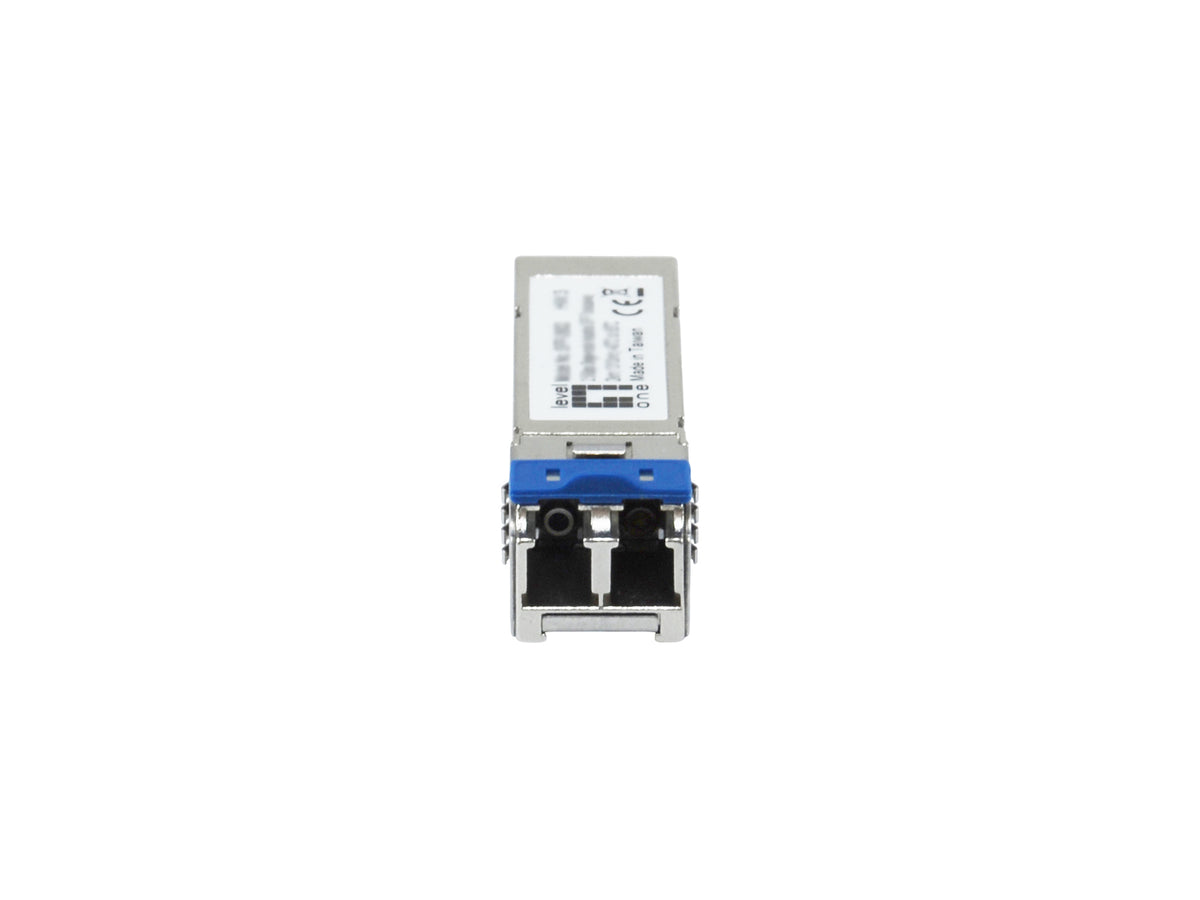

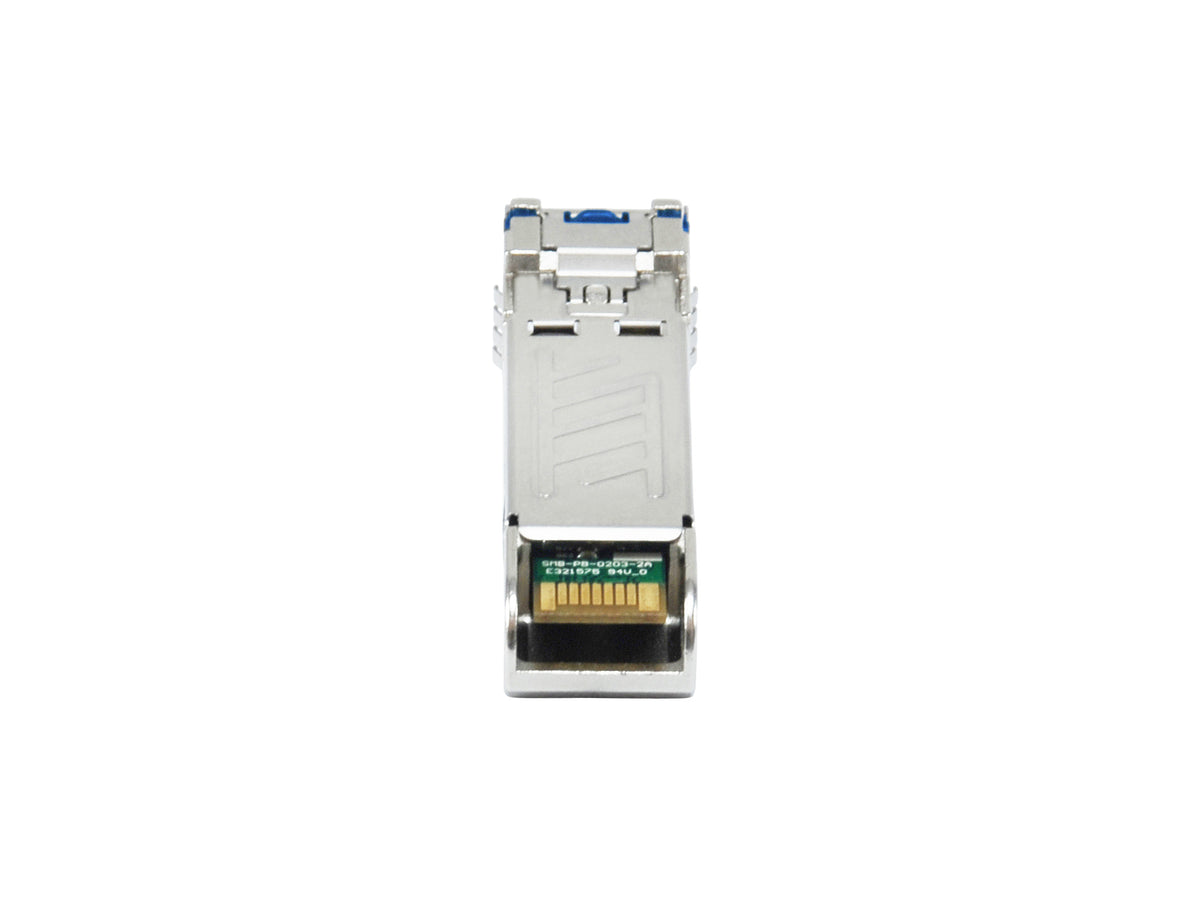

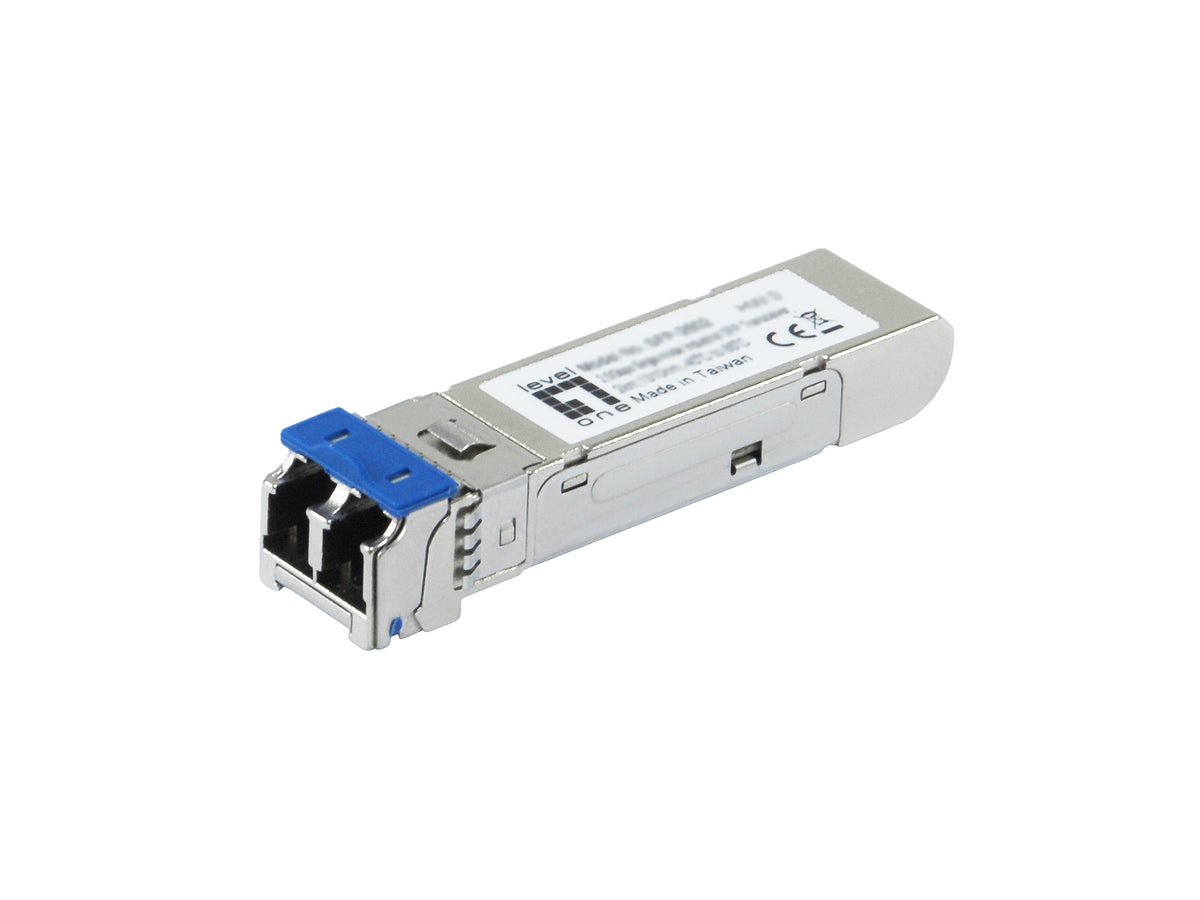

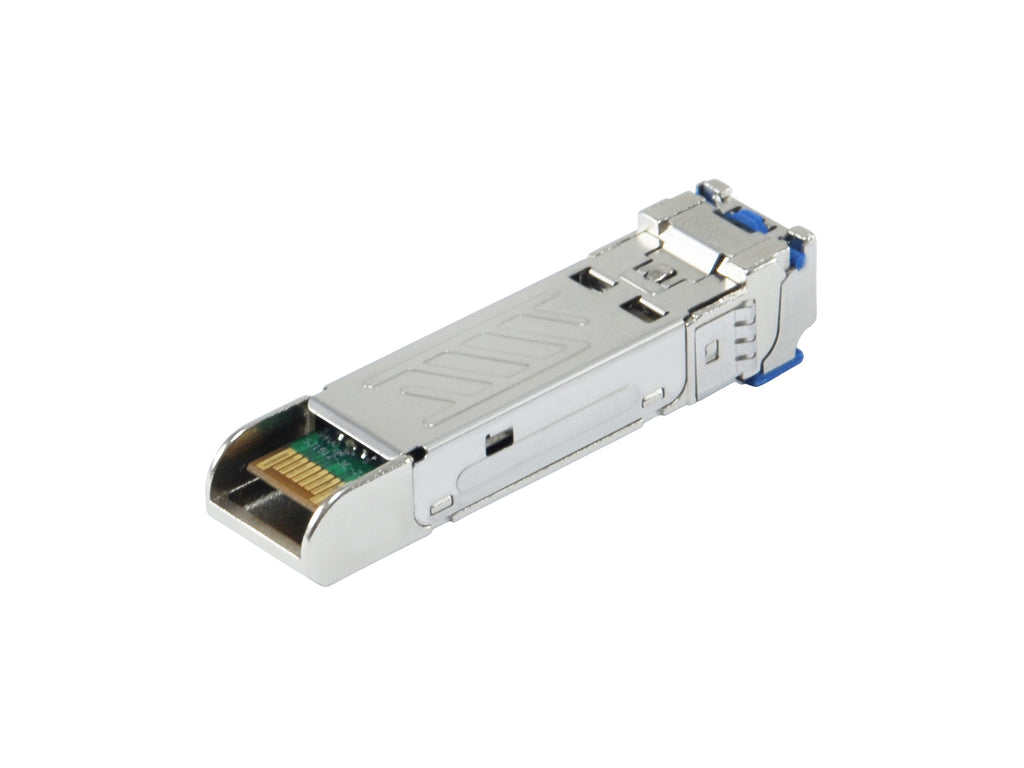

LevelOne 2.5Gbps Single-mode SFP Transceiver, 40km, 1550nm
€84,08
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
The levelOne SFP-2505 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 2.5 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it can reach a distance of up to 40km. The SFP-2505 transceiver operates using a wavelength of 1550nm with a DFB Laser Diode light source and has an LC port.
Specifications
Performance
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 2500 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 40000 m |
| Wavelength | 1550 nm |
| Tx power (min) | -2 dBmW |
| Tx power (max) | 3 dBmW |
| Copper ethernet cabling technology | 2.5GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Product colour | Silver |
| Form factor | SFP |
| Plug and Play | Yes |
| Hot-swap | Yes |
Power
| Power consumption (typical) | 1 W |
Certificates
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RoHS, TÜV mark, UL |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Width | 55.9 mm |
| Depth | 13.4 mm |
| Height | 13 mm |
| Weight | 15.5 g |
Packaging content
| Quantity per pack | 1 pc(s) |
Packaging data
| Package width | 110 mm |
| Package depth | 67 mm |
| Package height | 25 mm |
| Package weight | 41.66 g |
Logistics data
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet gross height | 164.4 cm |
| Customs product code (TARIC) | 8517620000 |
| Master (outer) cases per pallet | 34 pc(s) |
| Master (outer) case width | 365 mm |
| Master (outer) case length | 343 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 5.5 kg |
| Products per master (outer) case | 100 pc(s) |
| Country of origin | Taiwan |
