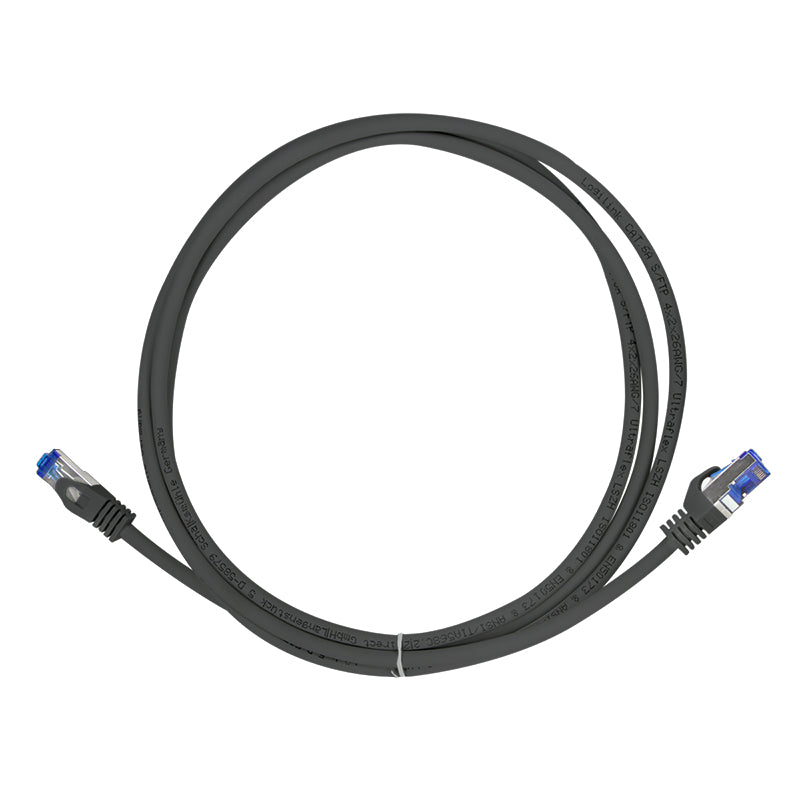

LogiLink C6A023S networking cable Black 0.5 m Cat6a S/FTP (S-STP) Round
€3,27
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
Patch cable Ultraflex, Cat.6A, S/FTP, black, 0.5 m" from LogiLink Professional
The certified LogiLink Cat.6A patch cable is ideal for data transfers up to 10 Gigabit Ethernet and transfer frequencies up to 500 MHz. The jacket is halogen-free and flame retardant, the copper wires are shielded in pairs, the overall shield is made of copper braid. The shielded RJ45 plugs come with an overmoulded slim strain relief and snagless design.
The certified LogiLink Cat.6A patch cable is ideal for data transfers up to 10 Gigabit Ethernet and transfer frequencies up to 500 MHz. The jacket is halogen-free and flame retardant, the copper wires are shielded in pairs, the overall shield is made of copper braid. The shielded RJ45 plugs come with an overmoulded slim strain relief and snagless design.
Specifications
Features
| Product colour | Black |
| Cable length | 0.5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector shielding | Yes |
| Connector shield material | Copper alloy |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor material | Copper |
| Cable class | Ea |
| Cabling technology | 10GBase-T |
| Ethernet interface type | 10 Gigabit Ethernet |
| AWG wire size | 26/7 |
| Frequency | 500 MHz |
| Fire-resistant | Yes |
| Molded cable boot | Yes |
| Snagless cable boot | Yes |
| Plug and Play | Yes |
Operational conditions
| Operating temperature (T-T) | -20 - 75 °C |
Sustainability
| Doesn't contain | Halogen |
Certificates
| Compliance certificates | CE, RoHS |
| Certification | ISO11801 Channel Class EA EN50173 & ANSI/TIA 568C.2 IEC 61034 IEC 60754-2 IEC 60332-1-2 |
Packaging content
| Quantity per pack | 1 pc(s) |
Technical details
| Sustainability compliance | Yes |
