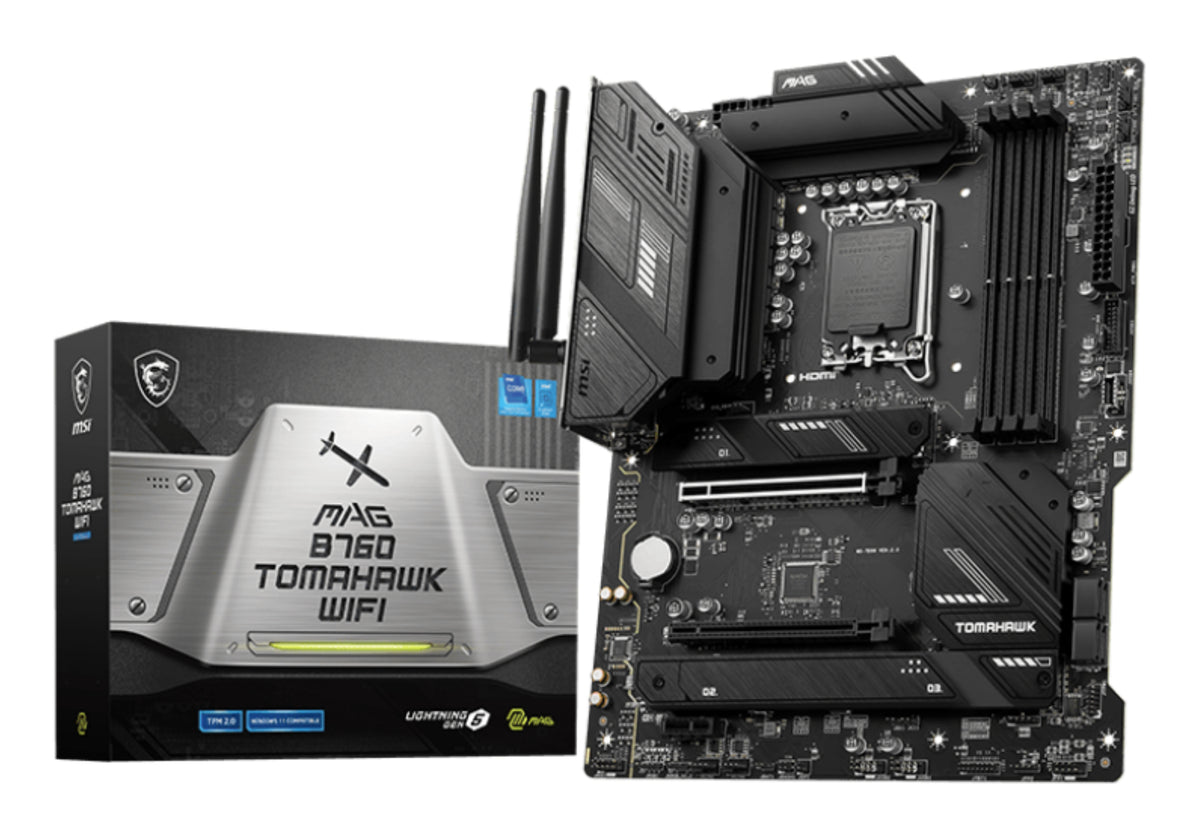

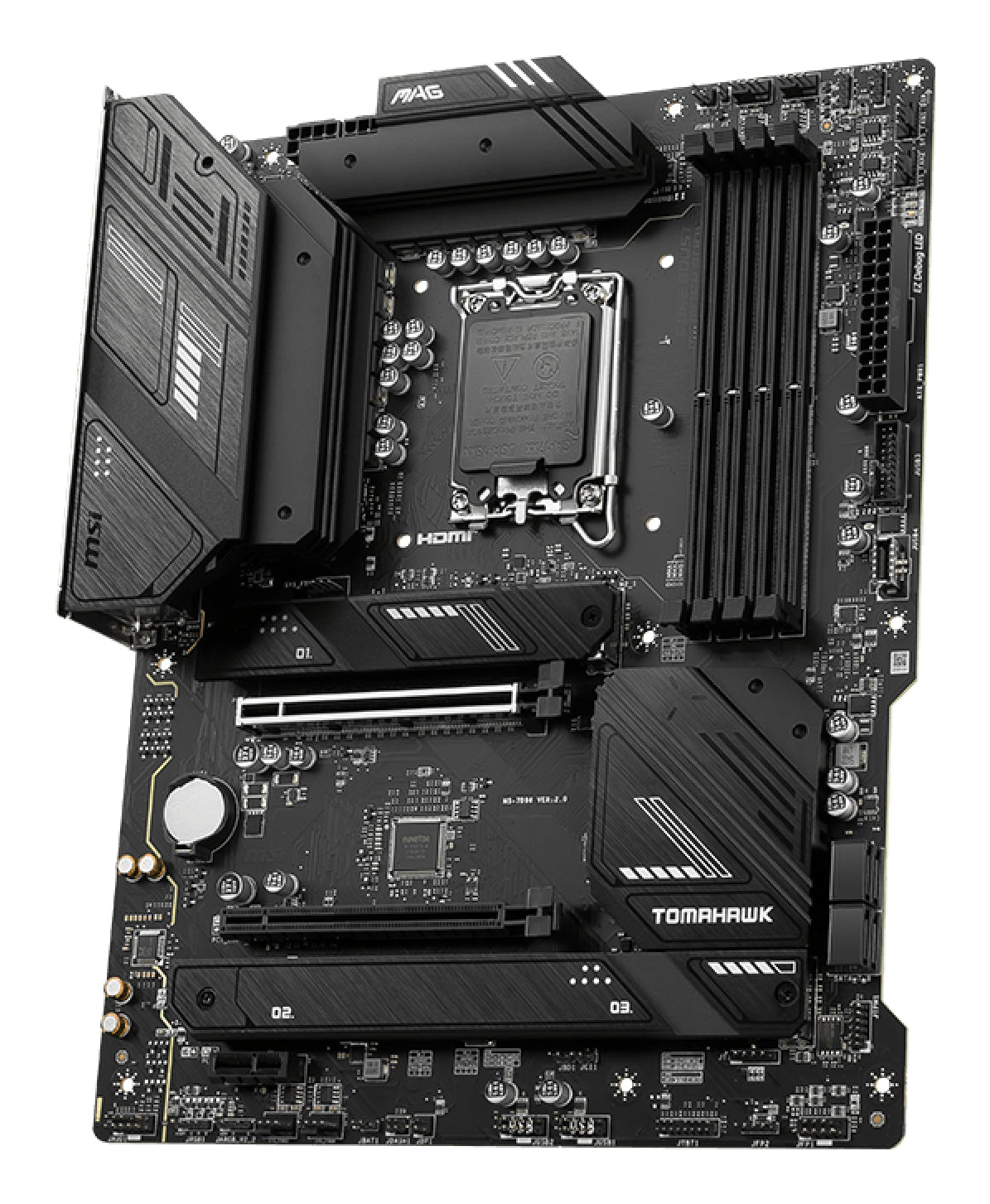

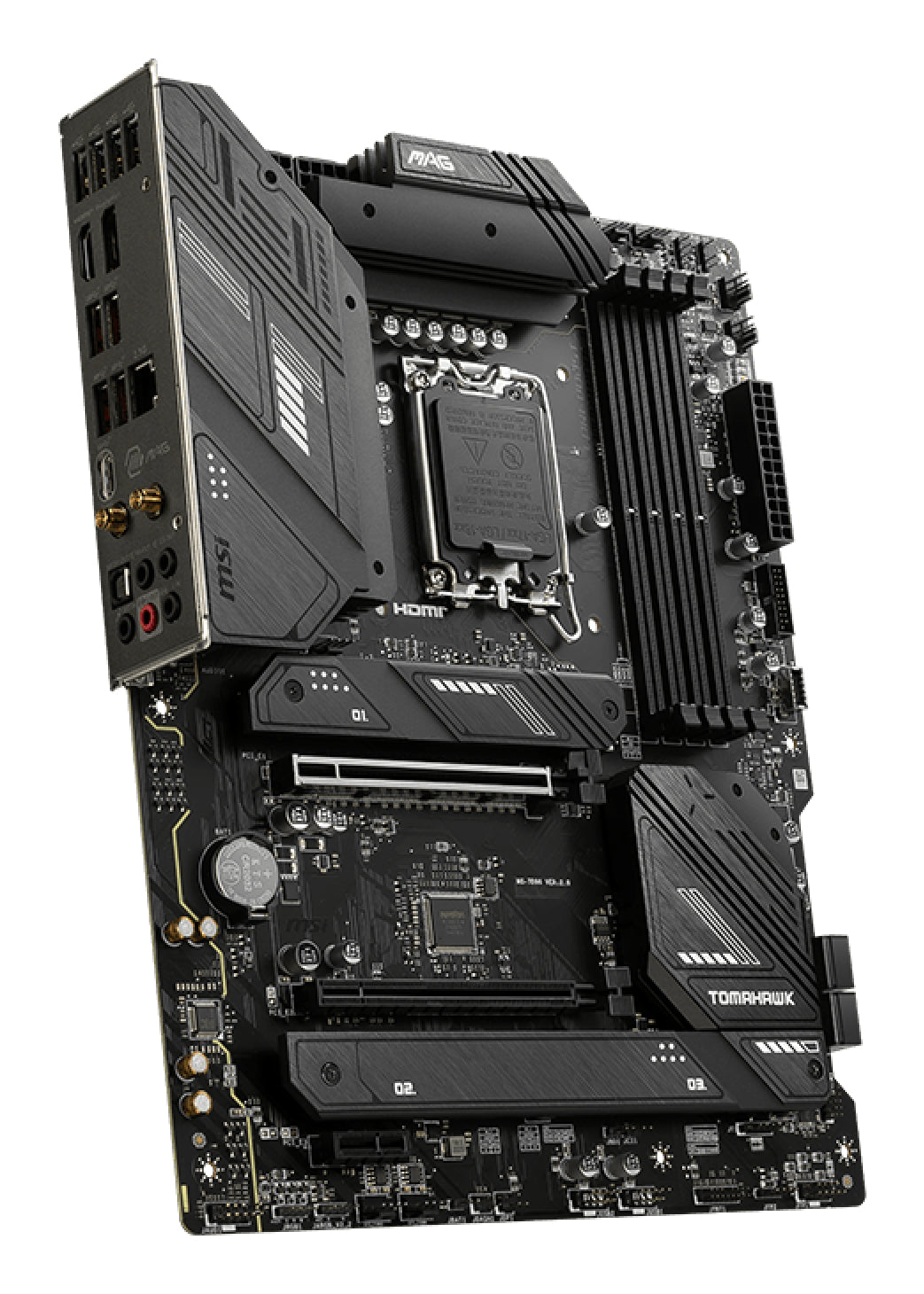

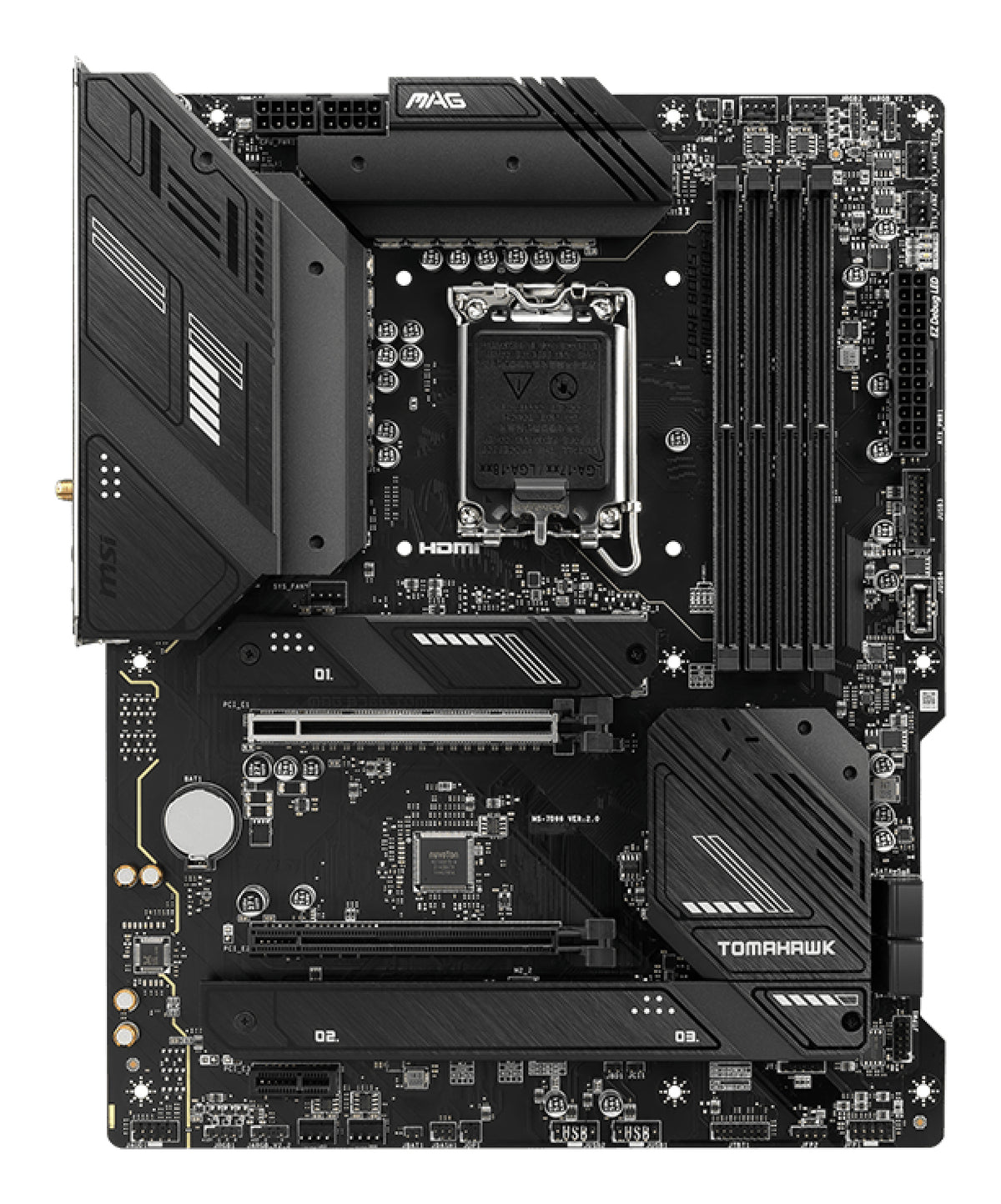

MSI MAG B760 TOMAHAWK WIFI motherboard Intel B760 LGA 1700 ATX
€200,61
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper
MOS and helps dissipate the heat.
7W/mK Thermal Pad &
Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper
MOS and helps dissipate the heat.
7W/mK Thermal Pad &
Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Specifications
Processor
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
Memory
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz |
| Supported memory clock speed (max) | 7000 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| On-board graphics card | No |
Internal I/O
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

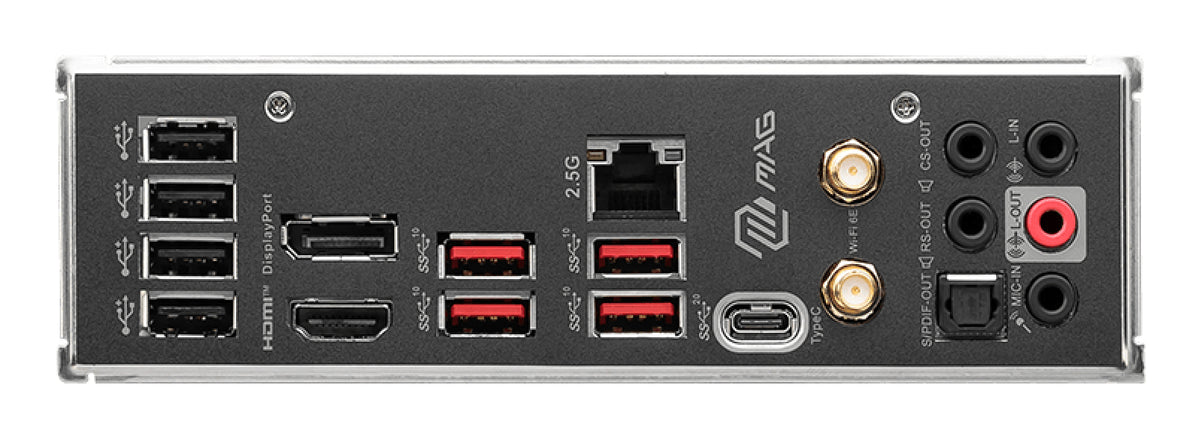

Rear panel I/O ports
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
Network
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Features
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
BIOS
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
Weight & dimensions
| Width | 243.8 mm |
| Depth | 304.8 mm |
