Neomounts WL40-550BL18 TV mount wall 43-75" - full motion - easy install
€284,27
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

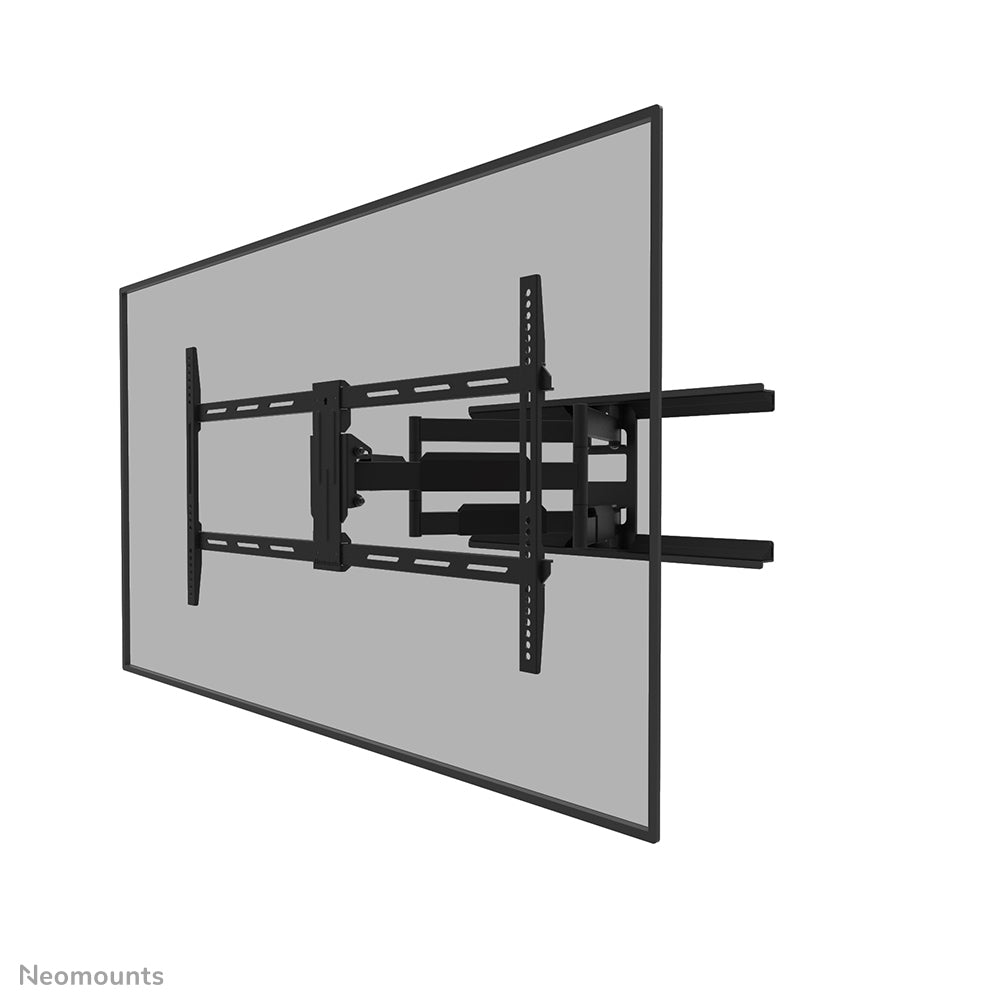

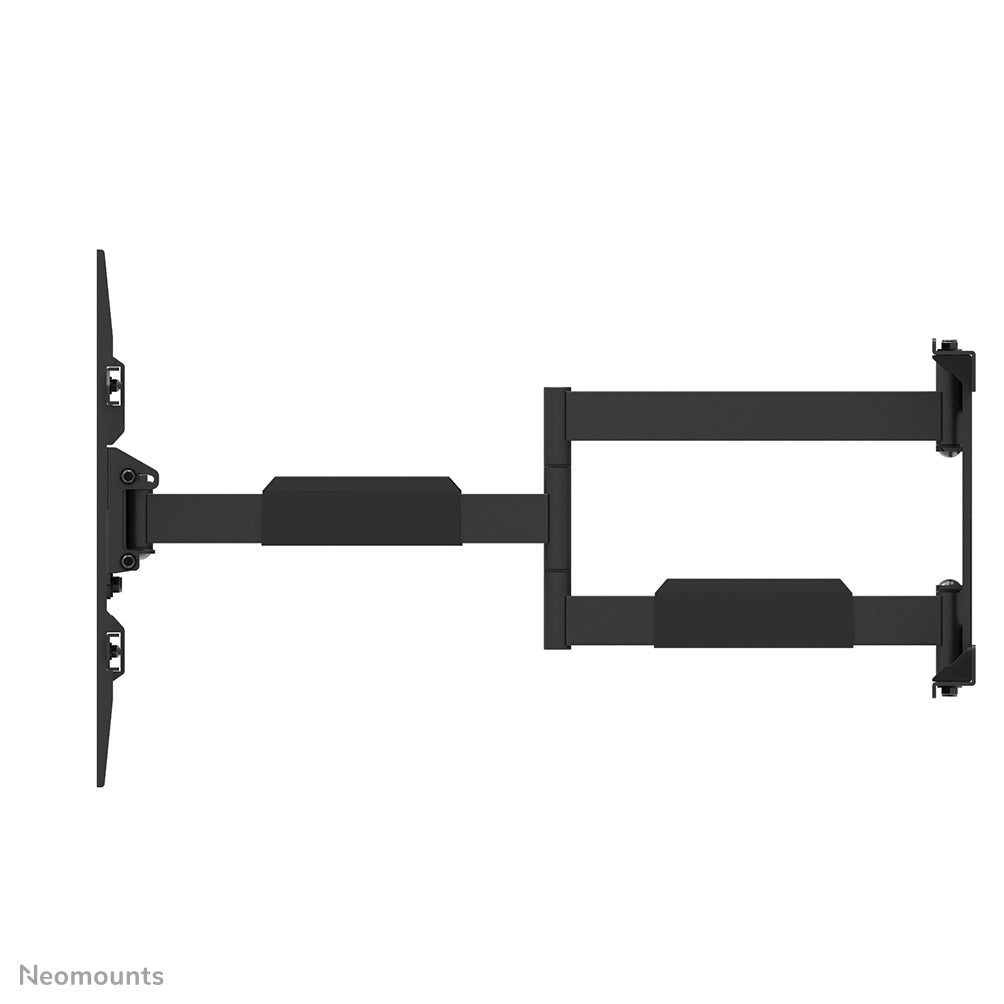

The Neomounts WL40-550BL18 LEVEL is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.

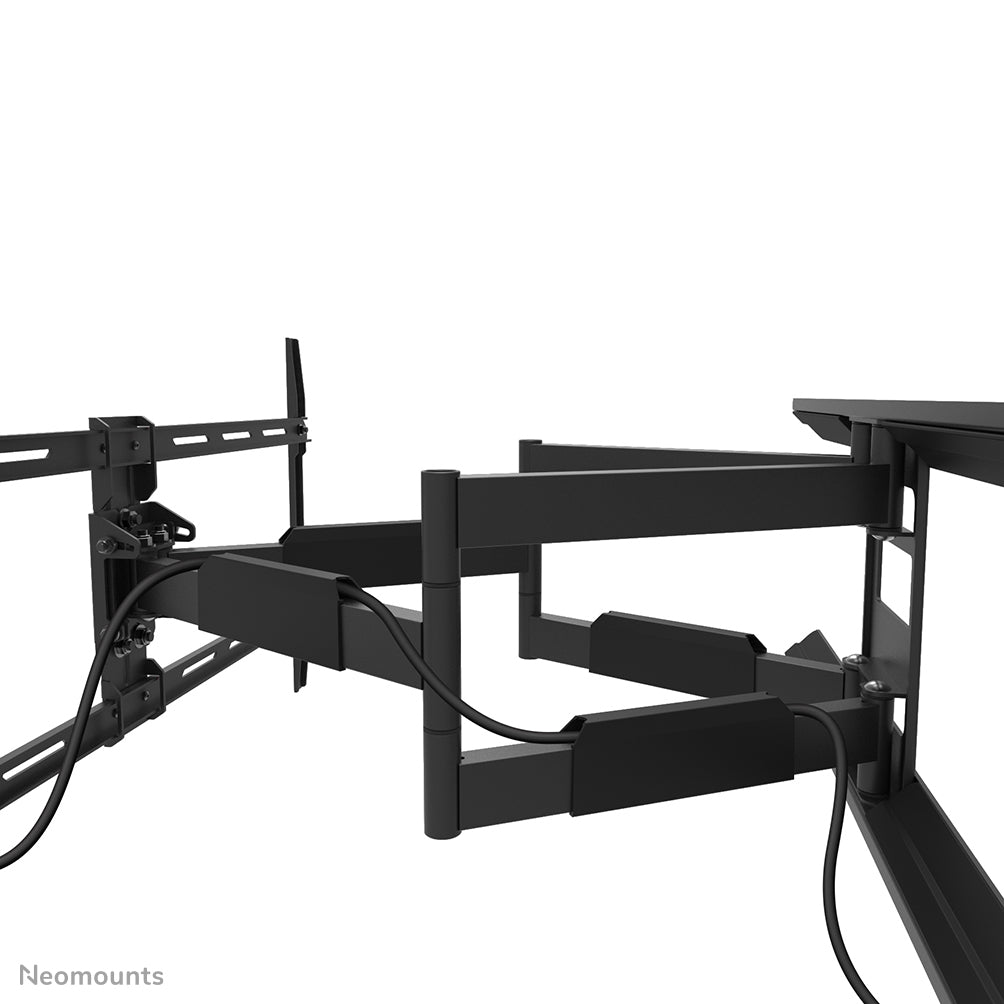

The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.
The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Specifications
Mounting
| Maximum weight capacity | 45 kg |
| Minimum screen size | 109.2 cm (43") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 45 kg |
| Maximum screen size | 190.5 cm (75") |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400,680 x 300,800 x 200,800 x 400 |
| Mounting type | Wall |
Ergonomics
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -3 - 15° |
| Swivelling | Yes |
| Swivel angle | 54° |
| Swivel angle range | 0 - 54° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Cable management | Yes |
| Type | Full motion |
| Distance to the wall (max) | 71 cm |
| Distance to the wall (min) | 5.5 cm |
Design
| Product colour | Black |
| Housing material | Steel |
Technical details
| Country of origin | China |
| Package net weight | 11.7 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
Packaging content
| Mounting kit | Yes |
Weight & dimensions
| Width | 850 mm |
| Depth | 55 mm |
| Depth (max) | 5.5 cm |
| Height | 436 mm |
| Weight | 9.9 kg |
Packaging data
| Package width | 882 mm |
| Package depth | 340 mm |
| Package height | 65 mm |
| Package weight | 11.7 kg |
Logistics data
| Master (outer) case width | 902 mm |
| Master (outer) case length | 145 mm |
| Master (outer) case height | 360 mm |
| Master (outer) case gross weight | 24 kg |
| Master (outer) case net weight | 22.1 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 40 pc(s) |
Video
https://www.youtube.com/watch?v=XwjoY5ut7As
Documents
Fiche technique fournie par Icecat.
