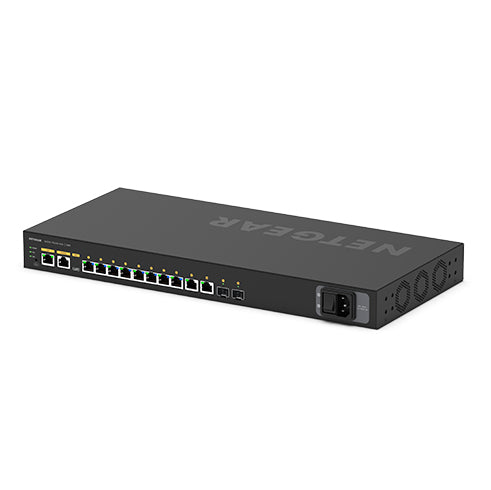

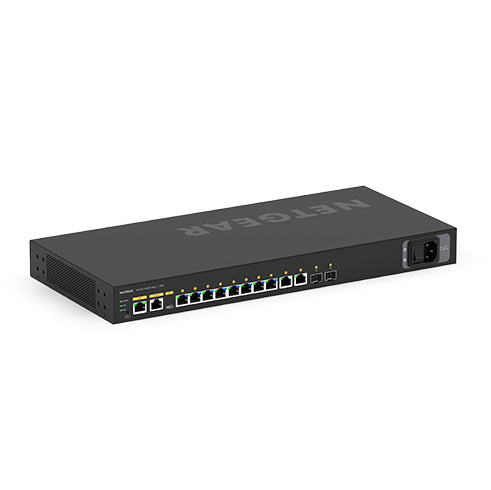

NETGEAR GSM4212PX Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
€1.568,46
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
Specifications
Management features
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
Network
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
Data transmission
| Switching capacity | 60 Gbit/s |
| Throughput | 44.64 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 2.14 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
Security
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
Multicast features
| Multicast support | Yes |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
Design
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | PoE, Power, Status |
Performance
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1250 MHz |
| Internal memory | 2048 MB |
| Noise level | 39.22 dB |
| Mean time between failures (MTBF) | 947871 h |
Power
| Power consumption (typical) | 306.4 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 1046.05 BTU/h |
Weight & dimensions
| Width | 440 mm |
| Depth | 200 mm |
| Height | 43.2 mm |
| Weight | 2.96 kg |
Logistics data
| Harmonized System (HS) code | 85176990 |
