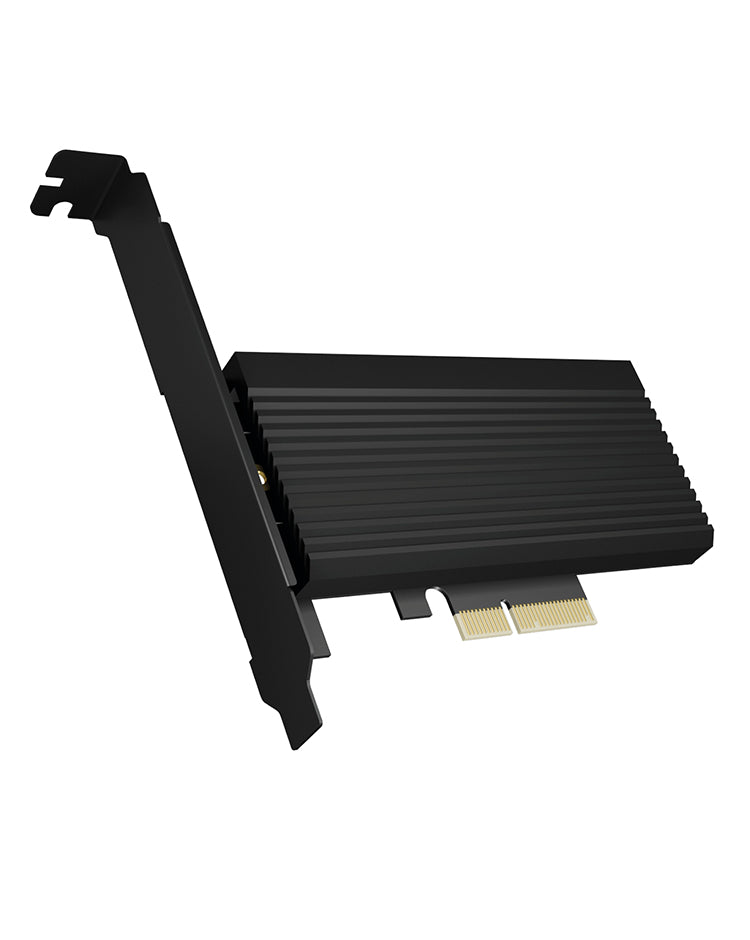

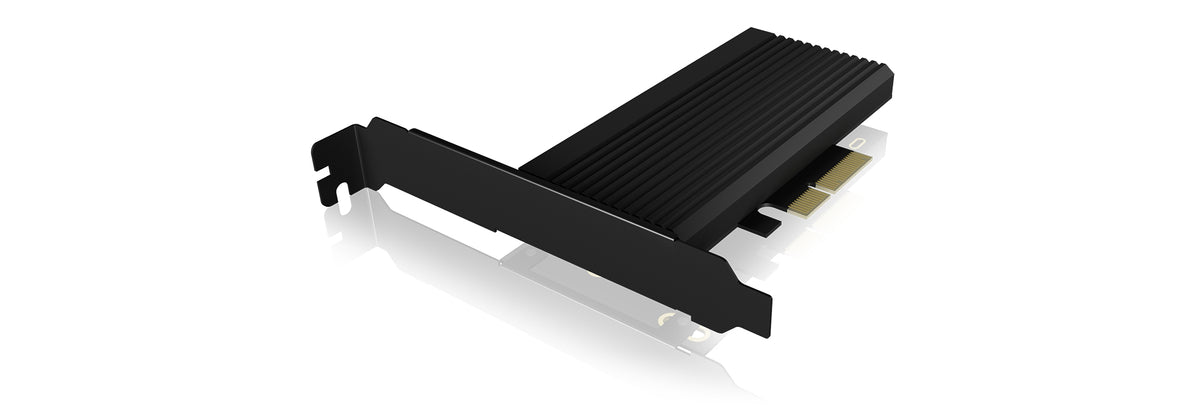

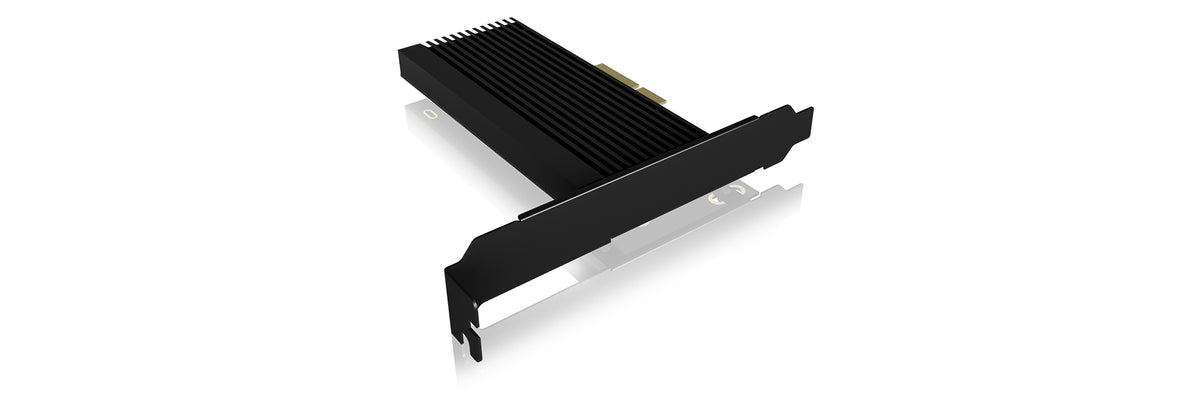

ICY BOX IB-PCI208-HS interface cards/adapter Internal M.2
€15,28
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
Ignite the data turbo
If you want to give your M.2 SSD the turbo boost, then connect it with the super-fast PCIe 4.0 expansion
card! This allows the data to reach transfer speeds of up to 64 Gbit/s - waiting was yesterday!
Always stays cool

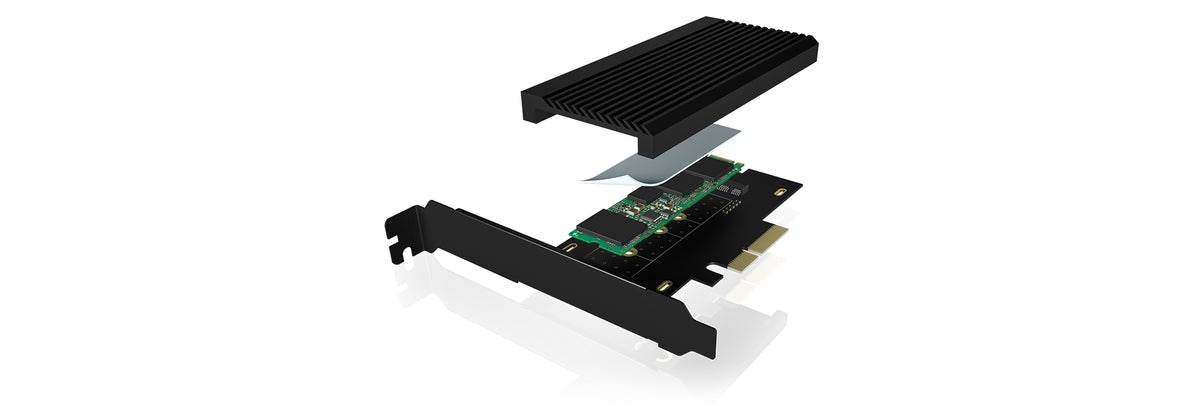

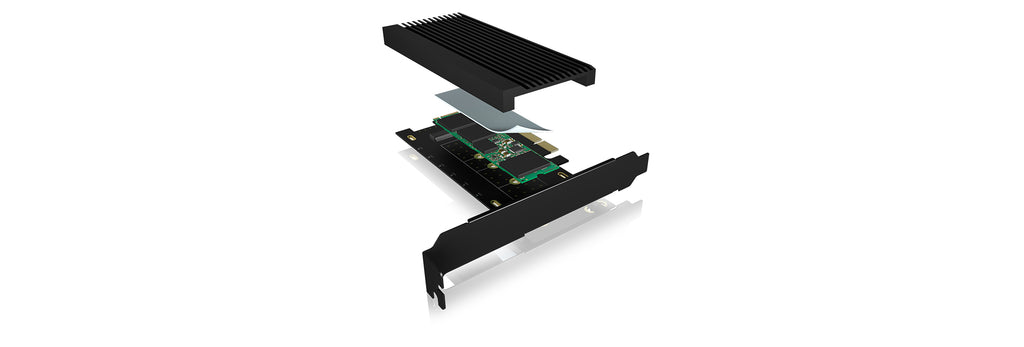

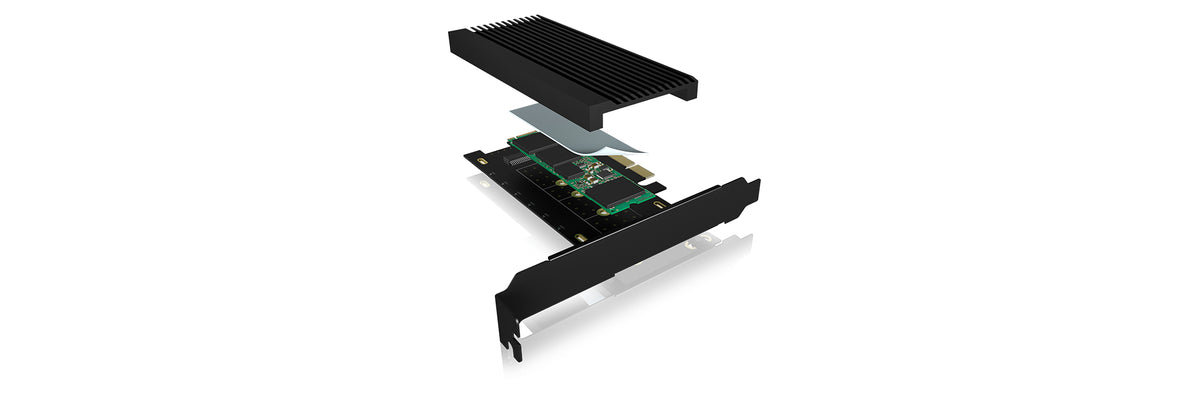

Even with the highest demands, your SSD always stays cool. The large, solid aluminium heat sink in the innovative cooling fin design ensures sufficient heat dissipation to keep your SSD running stably and efficiently. In addition, the expansion card comes with thermal pads that are applied to the M.2 SSD.
Quite adaptable

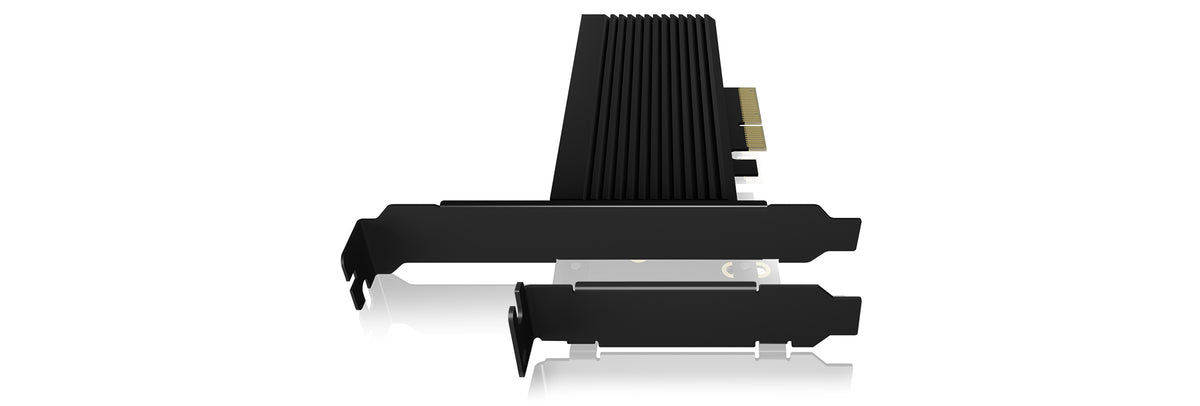

The perfect carrier for your M.2 SSD is called IB-PCI208-HS. In the variants with full or half profile bracket, it integrates perfectly into a free slot of your PC. The inserted M.2 NVMe is to be connected via an M-Key socket.
If you want to give your M.2 SSD the turbo boost, then connect it with the super-fast PCIe 4.0 expansion
card! This allows the data to reach transfer speeds of up to 64 Gbit/s - waiting was yesterday!
Always stays cool
Even with the highest demands, your SSD always stays cool. The large, solid aluminium heat sink in the innovative cooling fin design ensures sufficient heat dissipation to keep your SSD running stably and efficiently. In addition, the expansion card comes with thermal pads that are applied to the M.2 SSD.
Quite adaptable
The perfect carrier for your M.2 SSD is called IB-PCI208-HS. In the variants with full or half profile bracket, it integrates perfectly into a free slot of your PC. The inserted M.2 NVMe is to be connected via an M-Key socket.
Specifications
Ports & interfaces
| Host interface | PCIe |
| Output interface | M.2 |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 4.0 |
| NVMe | Yes |
| Number of M.2 (M) slots | 1 |
Design
| Internal | Yes |
| Product colour | Black |
| Cooling type | Passive |
| Country of origin | China |
Features
| Data transfer rate (max) | 64 Gbit/s |
System requirements
| Windows operating systems supported | Yes |
Weight & dimensions
| Width | 155 mm |
| Depth | 128 mm |
| Height | 20 mm |
| Weight | 22 g |
Packaging data
| Quantity per pack | 1 pc(s) |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Manual | Yes |
| Package width | 155 mm |
| Package depth | 27 mm |
| Package height | 200 mm |
| Package weight | 235 g |
Logistics data
| Harmonized System (HS) code | 84718000 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 300 mm |
| Master (outer) case gross weight | 9.4 kg |
Other features
| Material | Aluminium, Plastic |
