StarTech.com 8 Port 1U Rackmount USB KVM Switch with OSD - TAA
€545,06
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor

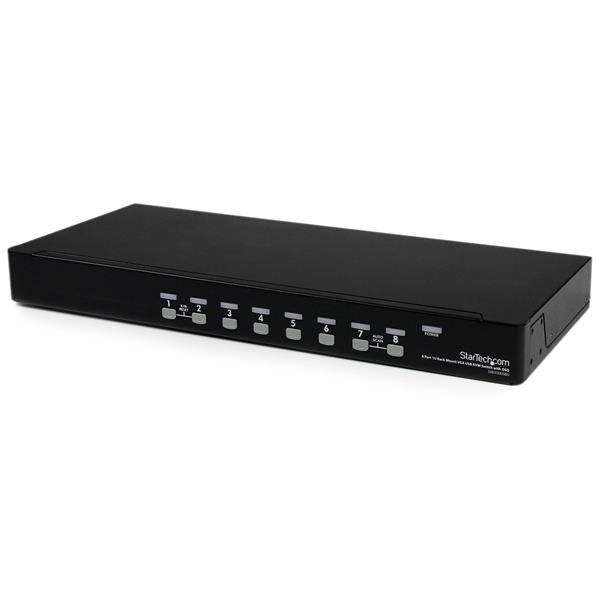

The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
The SV831DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
The SV831DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Specifications
Ports & interfaces
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 9 |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| Audio connections | No |
| DC-in jack | Yes |
Performance
| Maximum resolution | 1920 x 1440 pixels |
| Plug and Play | Yes |
| Daisy chain | Yes |
Design
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 150000 h |
| Certification | CE, FCC, TAA, REACH |
Display
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Power
| Input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | EU, UK, US |
Sustainability
| Compliance certificates | RoHS |
Operational conditions
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Width | 540 mm |
| Depth | 180 mm |
| Height | 45 mm |
| Weight | 2.9 kg |
Packaging data
| Package width | 89 mm |
| Package depth | 573 mm |
| Package height | 268 mm |
| Package weight | 3.3 kg |

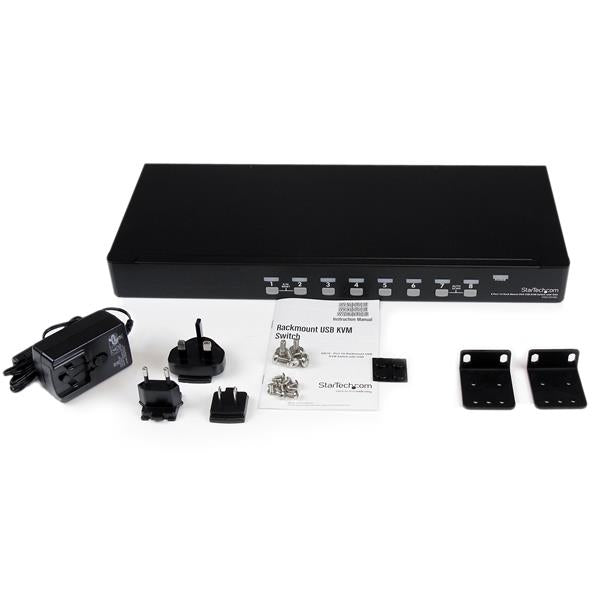

Packaging content
| Manual | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
Other features
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 540 x 180 x 45 mm |
| Ports quantity | 8 |
| Power requirements | 110 - 240 AC |
| Audio support | No |
| IP control | No |
Logistics data
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 607 mm |
| Master (outer) case length | 286 mm |
| Master (outer) case height | 337 mm |
| Products per master (outer) case | 4 pc(s) |
