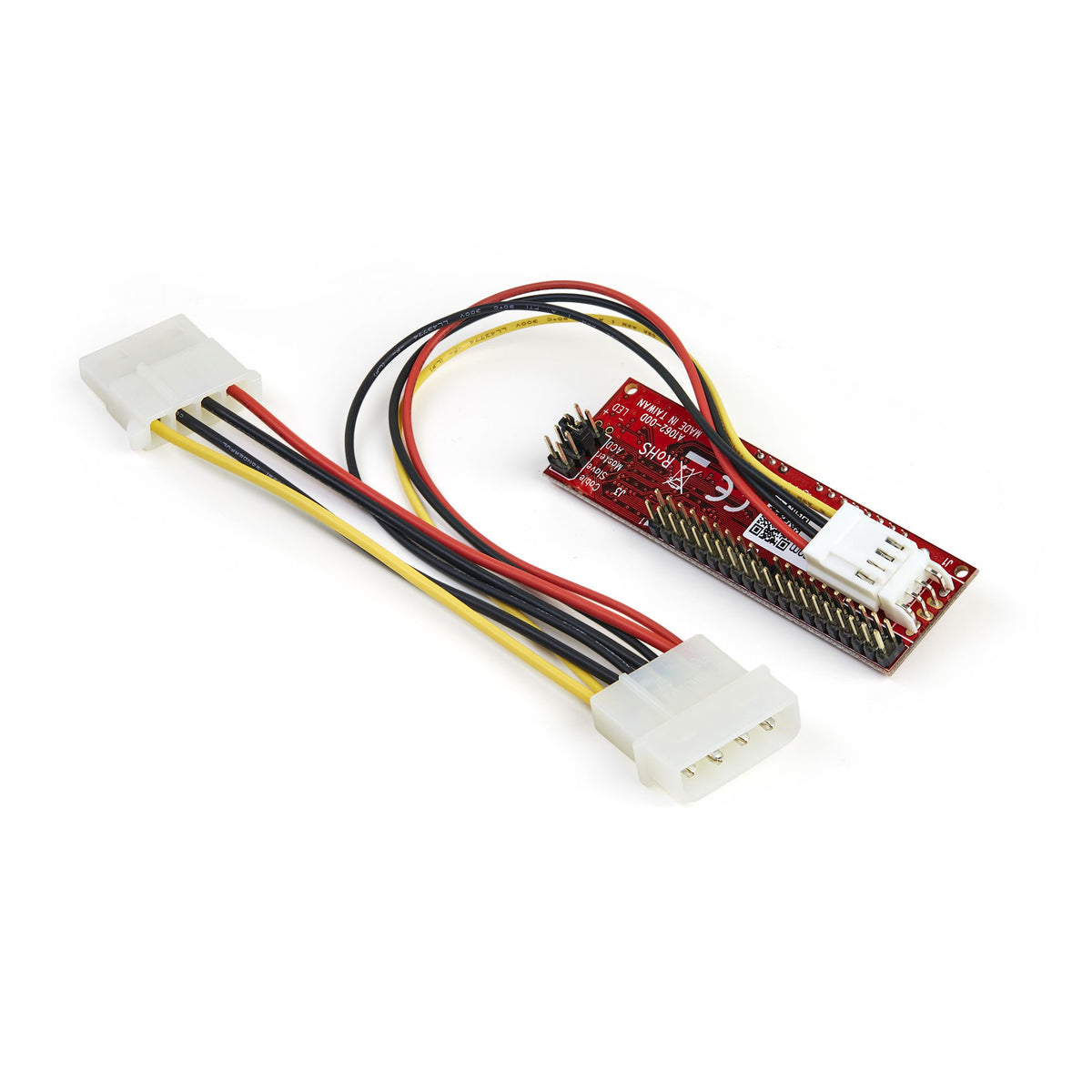

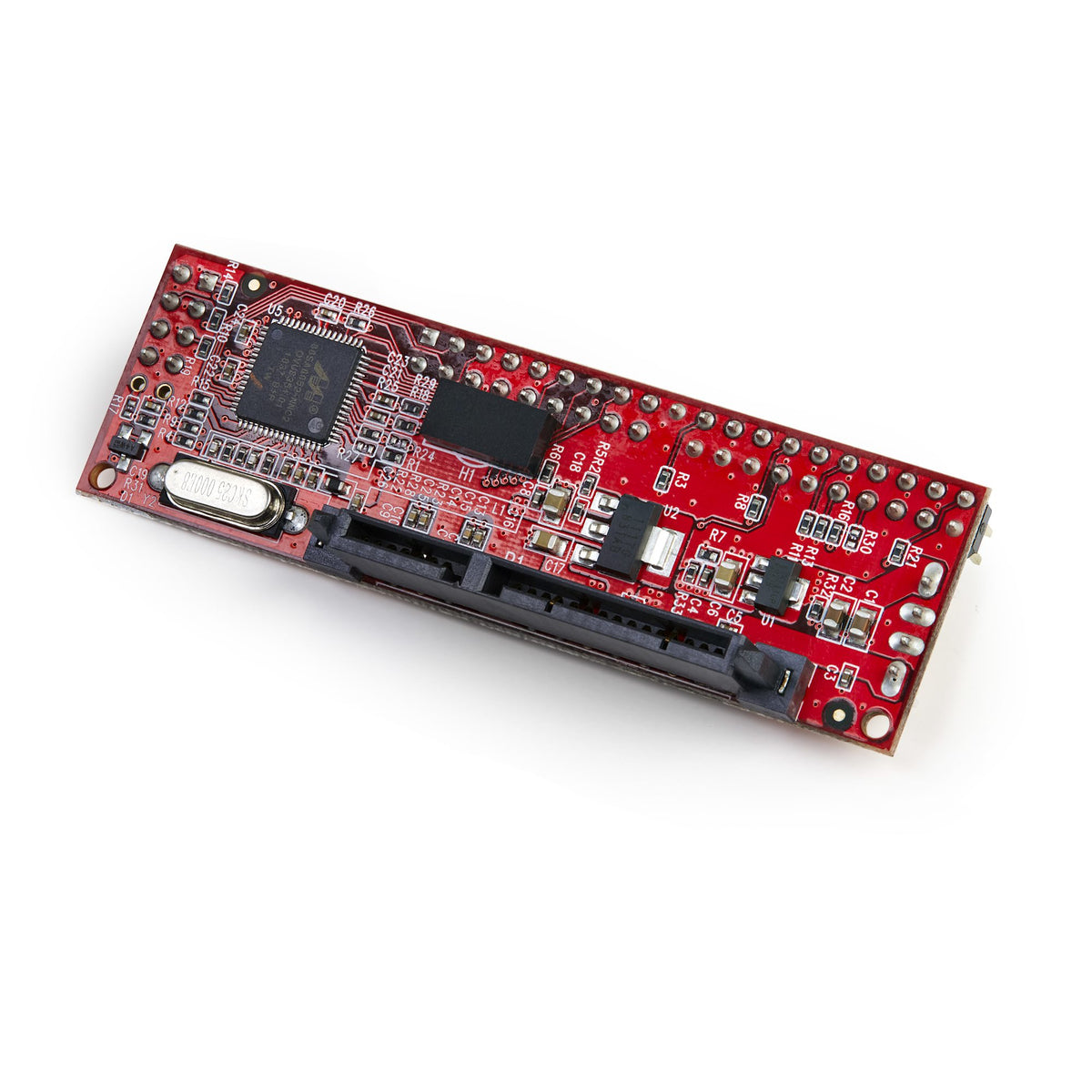

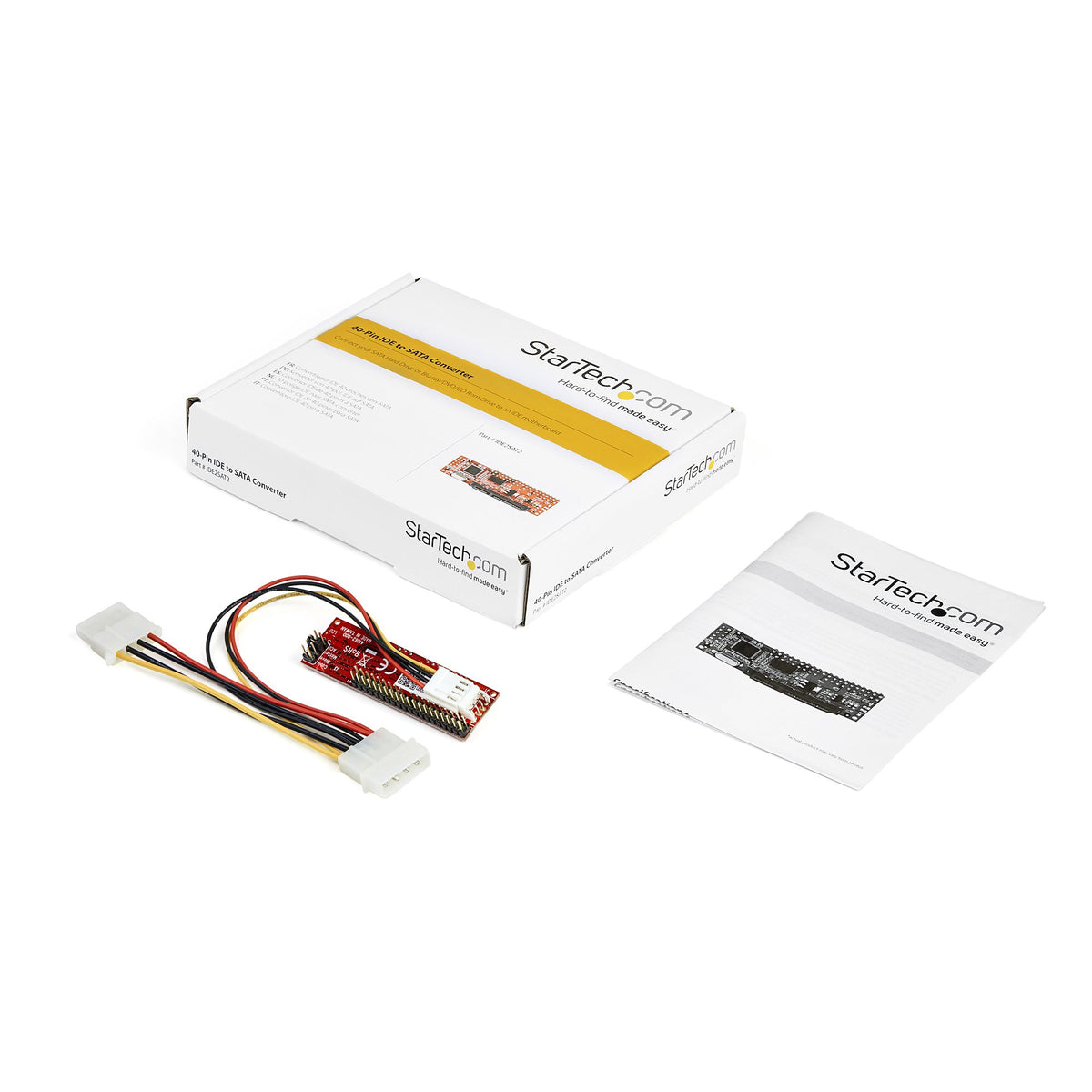

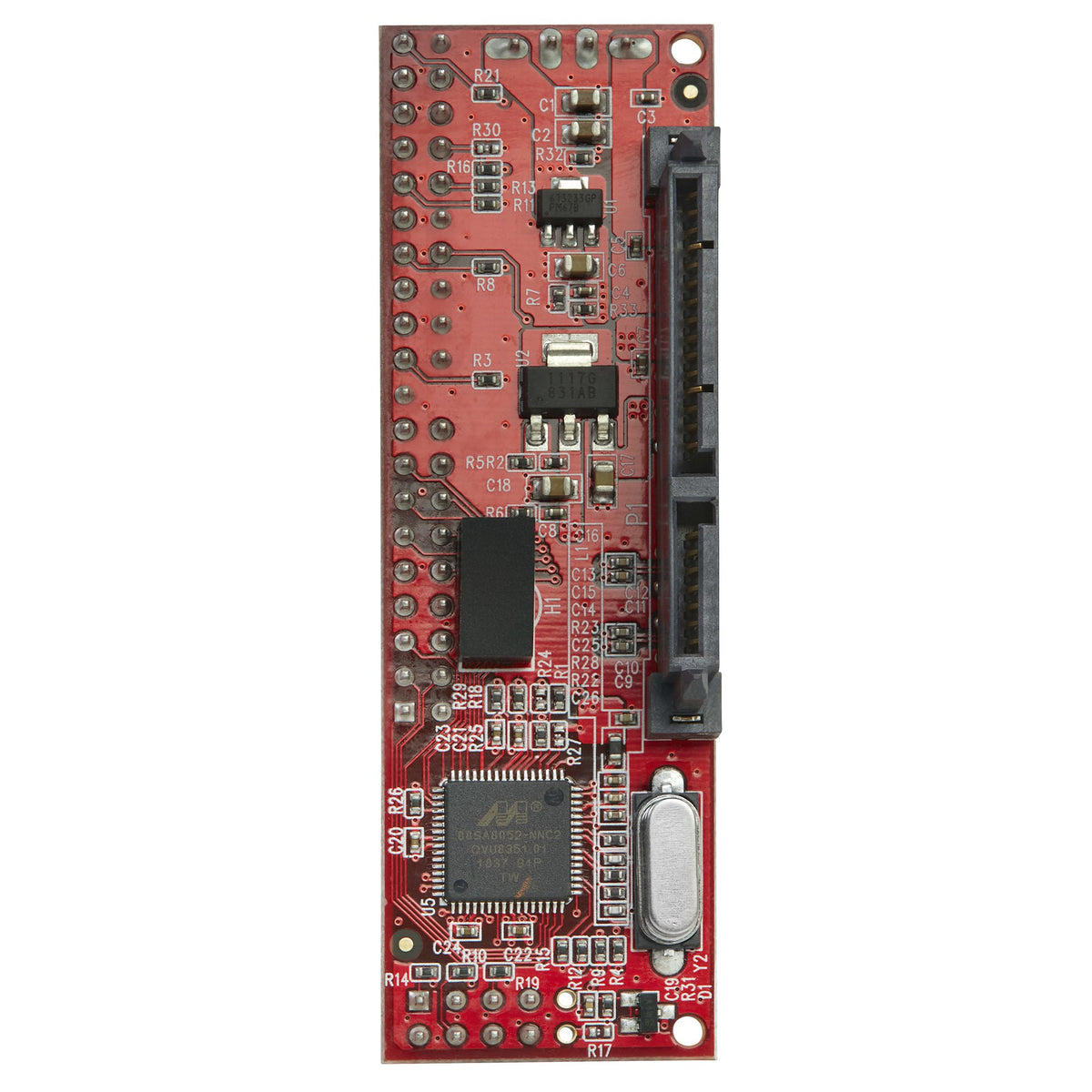

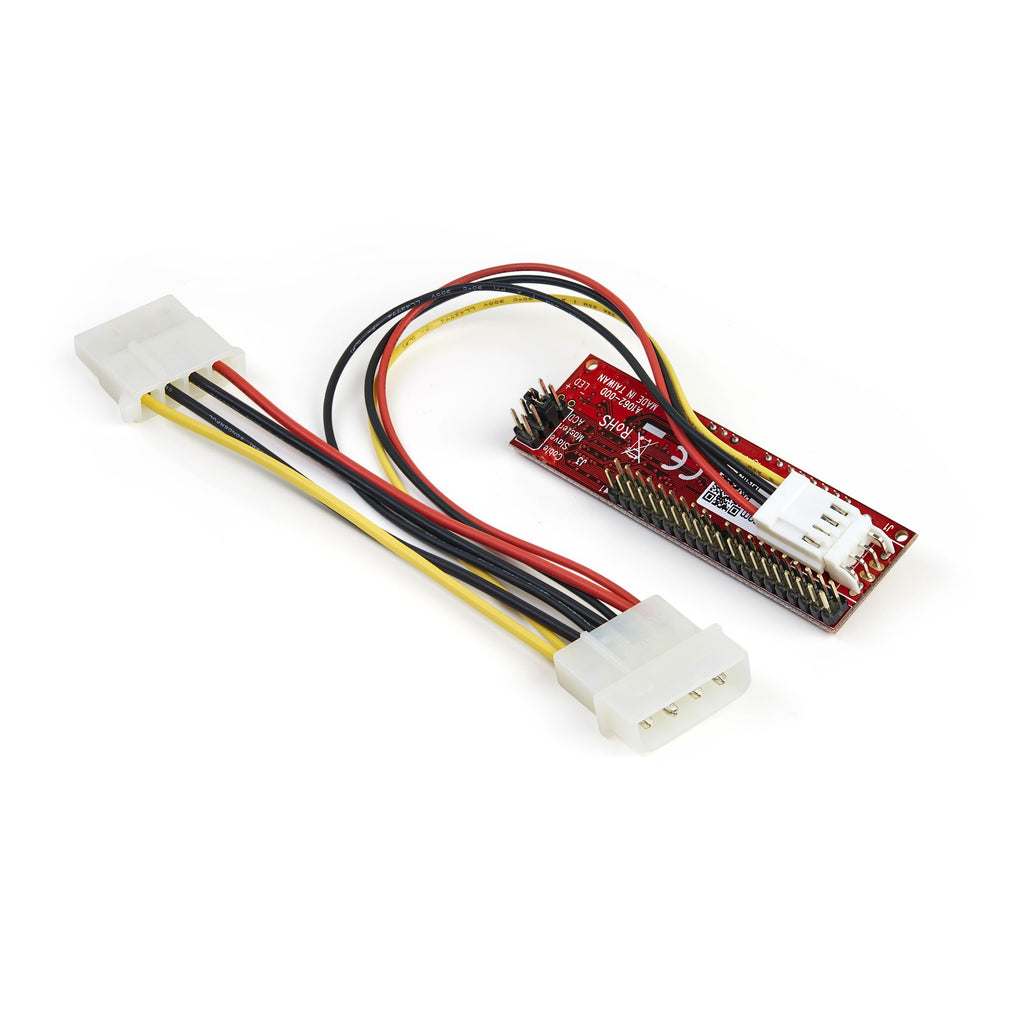

StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter - TAA
€22,98
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
Specifications
Ports & interfaces
| Host interface | IDE |
| Output interface | SATA |
| Connector(s) | 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) |
Design
| Internal | Yes |
| Product colour | Red |
| Certification | FCC, CE, TAA, REACH |
Features
| Chipset | Marvell - 88SA8052 |
| Data transfer rate (max) | 0.133 Gbit/s |
| Logical block addressing (LBA) support | 48 bit |
Operational conditions
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 80 °C |
| Operating relative humidity (H-H) | 15 - 90% |
Technical details
| Compliance certificates | RoHS |
Weight & dimensions
| Width | 20 mm |
| Depth | 75.5 mm |
| Height | 23 mm |
| Weight | 29 g |
Packaging data
| Manual | Yes |
| Package width | 142 mm |
| Package depth | 174 mm |
| Package height | 34 mm |
| Package weight | 89 g |
Logistics data
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 512 mm |
| Master (outer) case length | 396 mm |
| Master (outer) case height | 326 mm |
Other features
| Material | Plastic, Steel |
