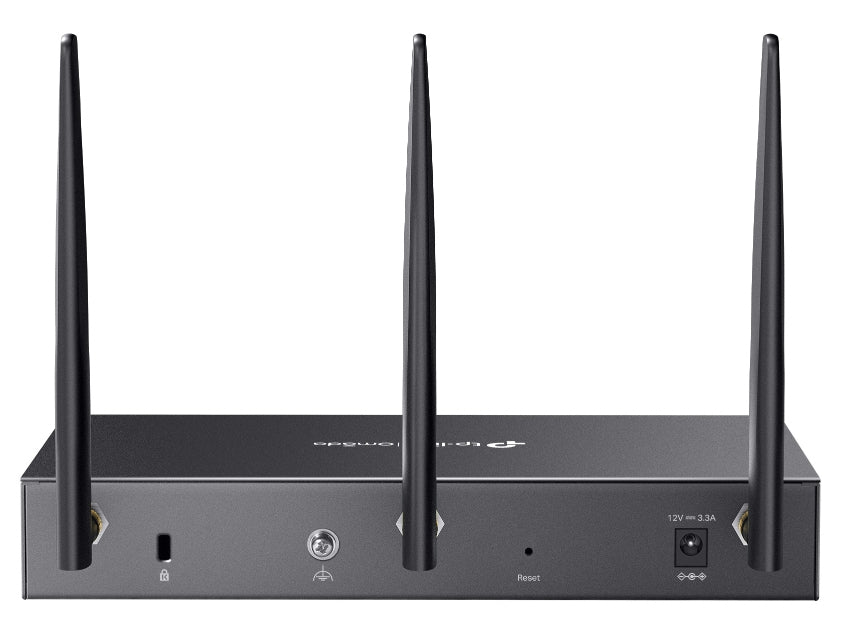

TP-Link Omada DR3220v-4G wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
€474,63
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
TP-Link Omada DR3220v-4G. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), WLAN data transfer rate (max): 2402 Mbit/s, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal. Voice codecs: G.711a, G.711ulaw, G.722, G.726, G.729ab
Specifications
WAN connection
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
Network
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Port triggering | Yes |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| Policy-based routing | Yes |
| Static route | Yes |
| Built-in FTP server | Yes |
| VPN support | IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN |
DSL features
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL2 | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| RJ-11 ports quantity | 3 |
| DC-in jack | Yes |
Management features
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| MU-MIMO technology | Yes |
Security
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| URL filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Voice codecs | G.711a, G.711ulaw, G.722, G.726, G.729ab |
Design
| Product colour | Black |

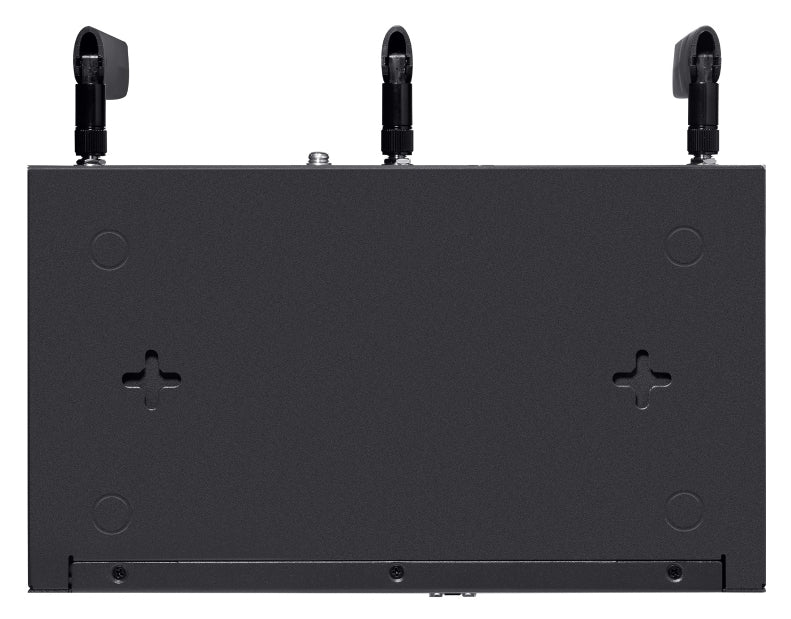

| Wall mountable | Yes |
| Indication light | Yes |
| LED indicators | DSL, LAN, USB, WLAN |
| Product type | Tabletop router |
Packaging content
| Cables included | LAN (RJ-45), Phone |
| AC adapter included | Yes |
| Antenna included | Yes |
Antenna
| Antenna design | External |
| Antenna gain level (max) | 4.5 dBi |
| Antennas quantity | 3 |
| Detachable antenna(s) | Yes |
Power
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 3.3 A |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
Packaging data
| Package type | Box |
| Number of products included | 1 pc(s) |
Documents
Fiche technique fournie par Icecat.
