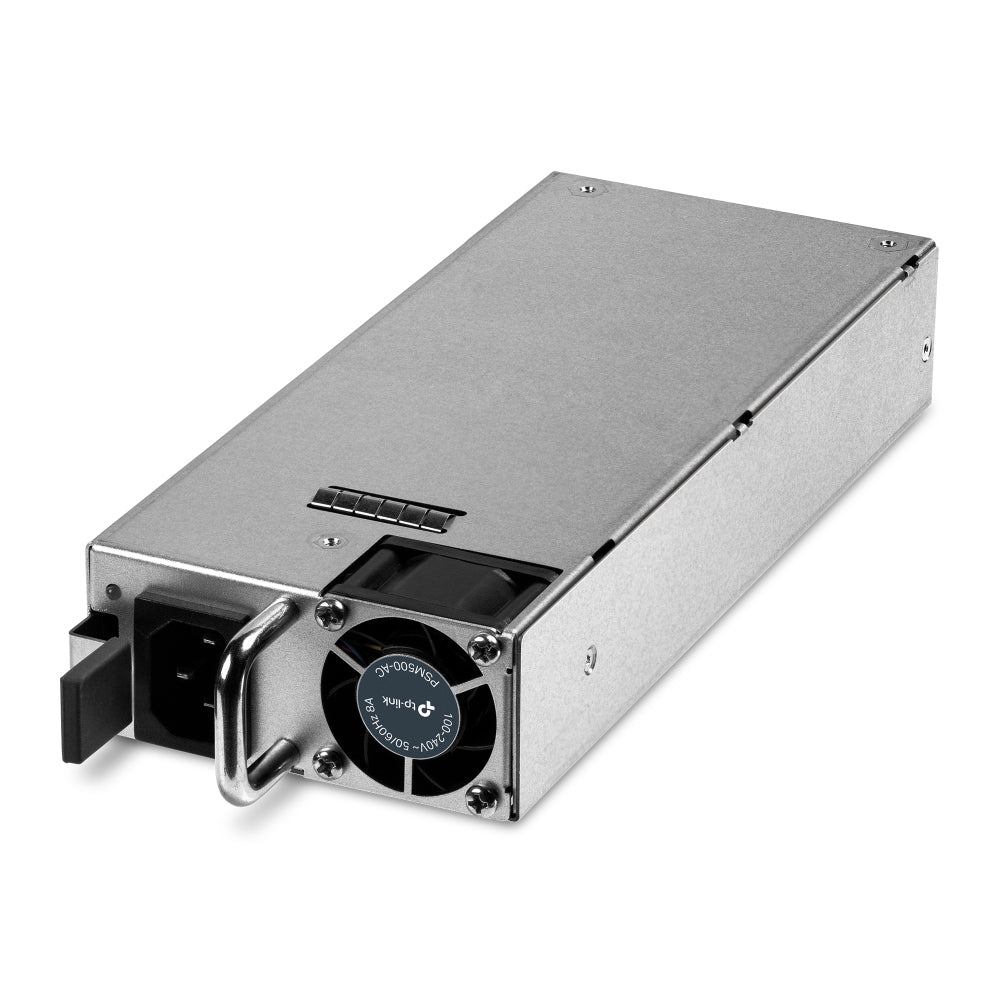

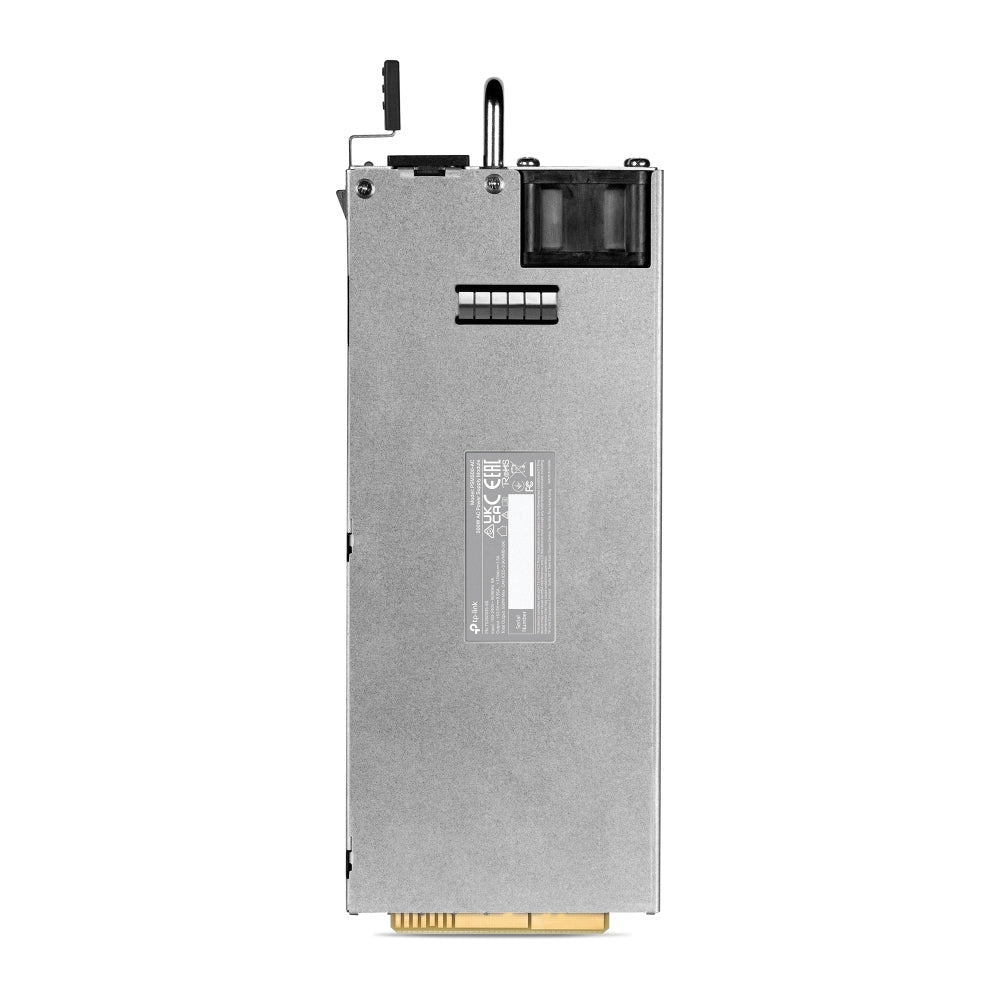

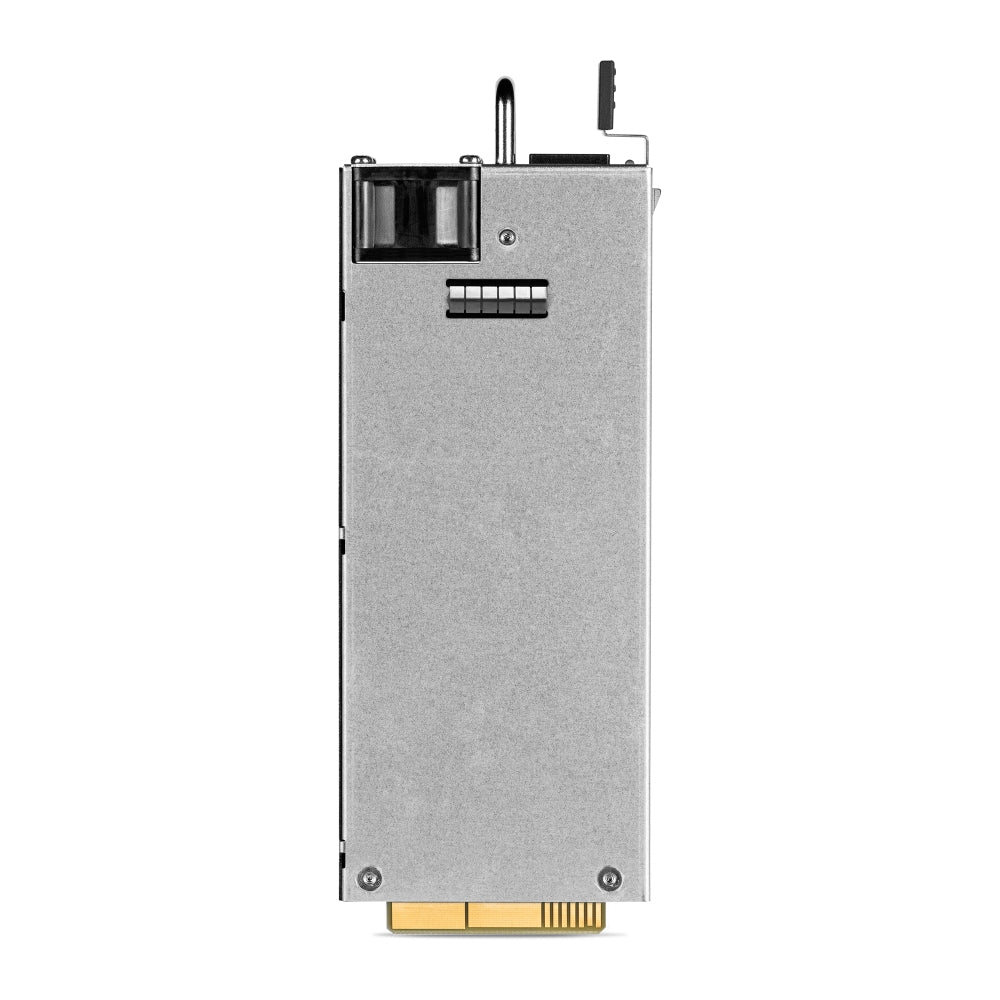

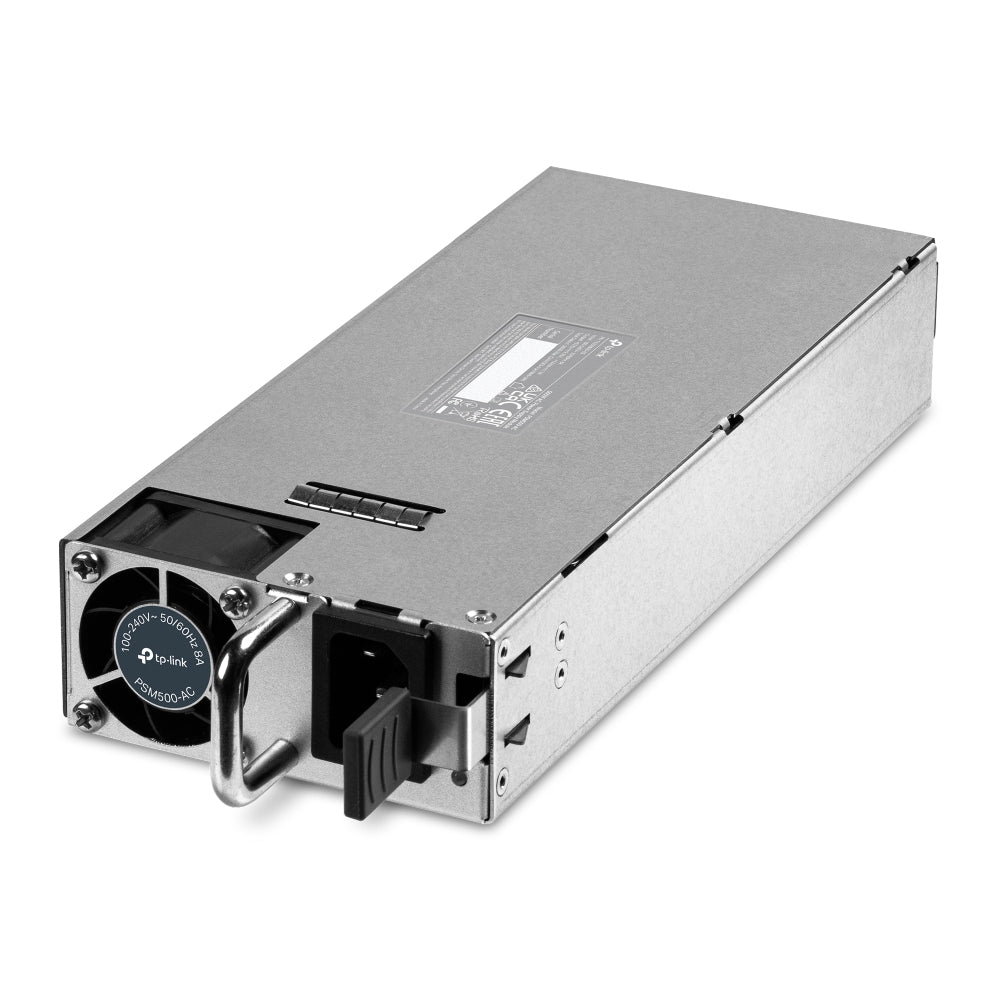

TP-Link PSM500-AC power adapter/inverter Indoor 500 W Metallic
€655,47
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
The TP-Link Power Supply Module PSM500-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 500 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.
Specifications
Features
| Purpose | Network switch |
| Power supply type | Indoor |
| Power current type | AC-to-DC |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 8 A |
| Output power | 500 W |
| Output voltage | 53.5 V |
| Output current | 9.35 A |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
| Compatibility | TP-Link SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y |
Design
| Product colour | Metallic |
| Housing material | Metal |
| Suitable for indoor use | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Width | 259.5 mm |
| Depth | 95.8 mm |
| Height | 40.1 mm |
Packaging content
| Quantity per pack | 1 pc(s) |
