Chieftec mATX Gehäuse GM-30B-M-OP, black Cube
€56,00
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

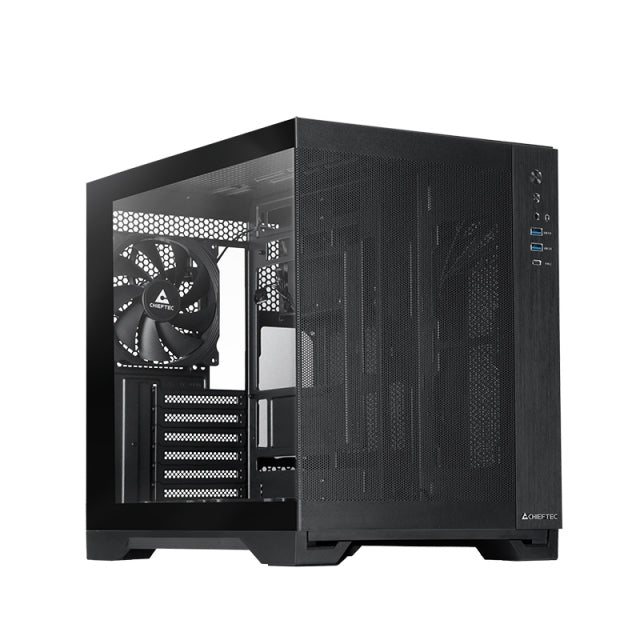

The CHIEFTEC Visio Air performance chassis features a dual-chamber layout to accommodate the latest back-connect motherboards, streamlining cable management for a cleaner interior view (ASUS BTF and MSI Project Zero compatible). The Visio Air comes with tempered glass on the side, a front combining brushed aluminum and mesh panel, along with two pre-installed 140mm PWM fans on the bottom and one 140mm PWM fan on the rear. This design enhances stability and airflow, effectively reducing heat accumulation inside the chassis while keeping noise levels low.
The rened internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated conguration.
The CHIEFTEC Visio Air is versatile enough for both work and home environments, making it a practical choice for various settings.
The rened internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated conguration.
The CHIEFTEC Visio Air is versatile enough for both work and home environments, making it a practical choice for various settings.
Specifications
Design
| Form factor | Cube |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of storage drives supported | 4 |
| Number of expansion slots | 6 |
| Full-Height expansion slots | 6 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | No |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 41 cm |
| Maximum PSU length | 20 cm |
Power supply
| Power supply included | No |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
Cooling
| Rear fans installed | 1x 140 mm |
| Bottom fans installed | 2x 140 mm |
| Liquid cooling capability | Yes |
| Top radiator sizes supported | 240,280,360 mm |
Storage
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Width | 295 mm |
| Depth | 430 mm |
| Height | 390 mm |
| Weight | 6.8 kg |
Documents
Fiche technique fournie par Icecat.
