CLUB3D 9-1 Dual HDMI™ USB-C® Hub PD3.0 100W
€60,95
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

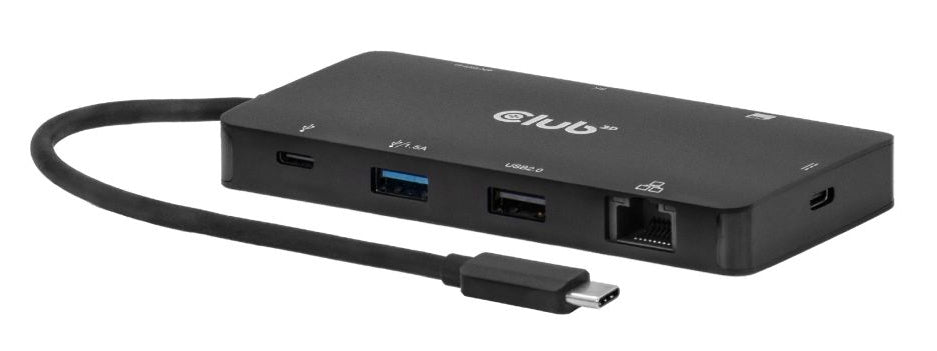

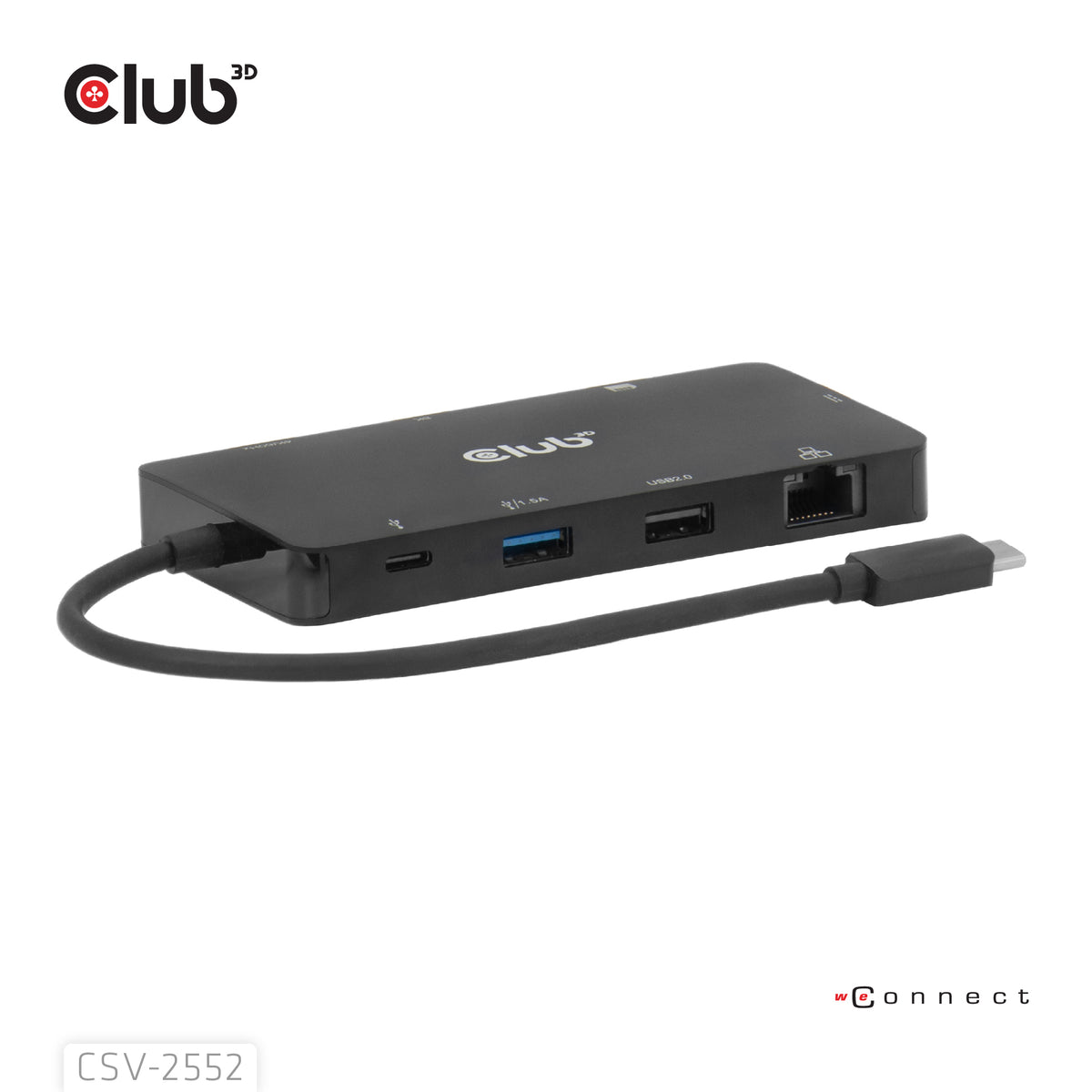

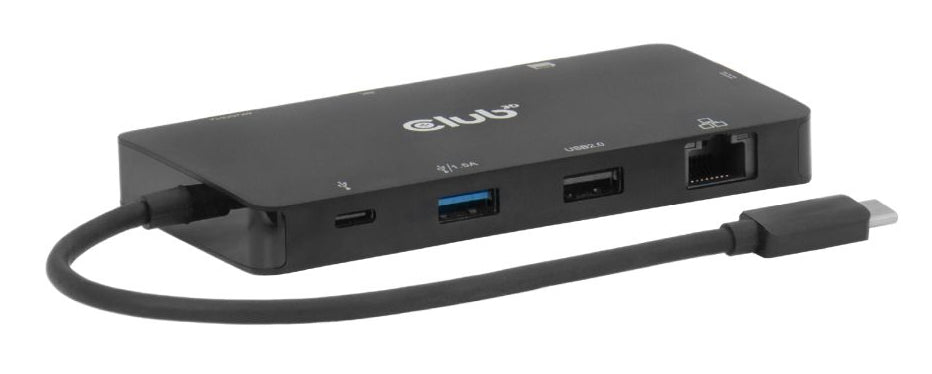

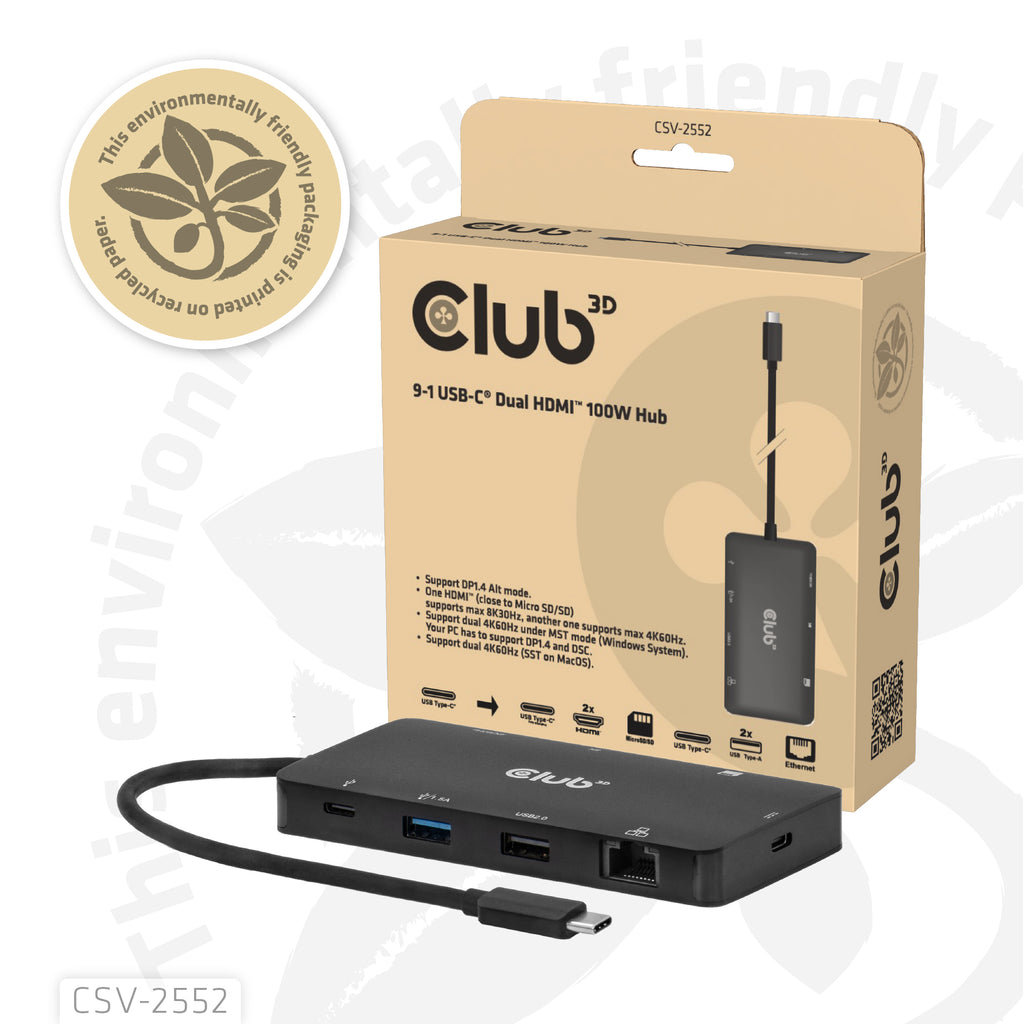

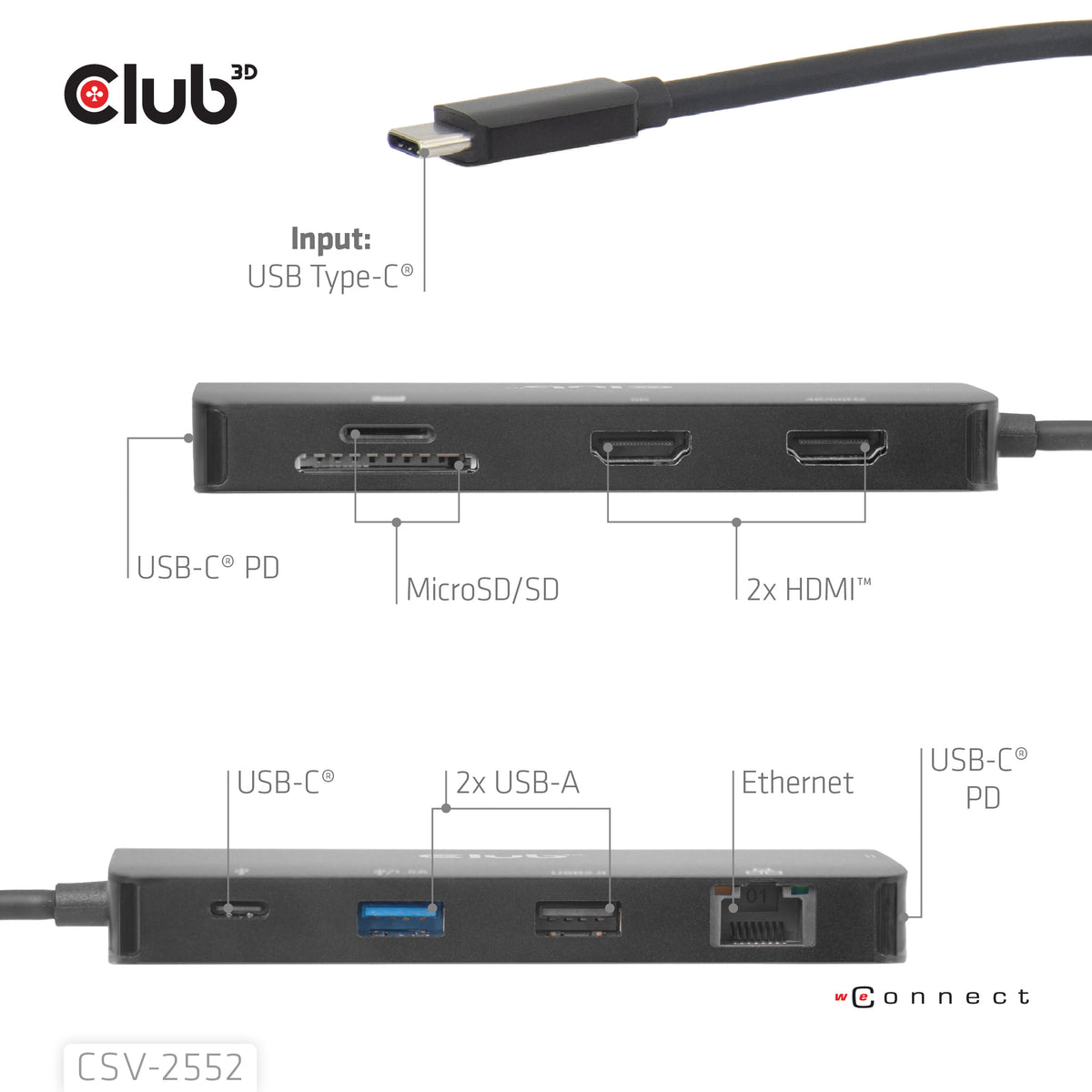

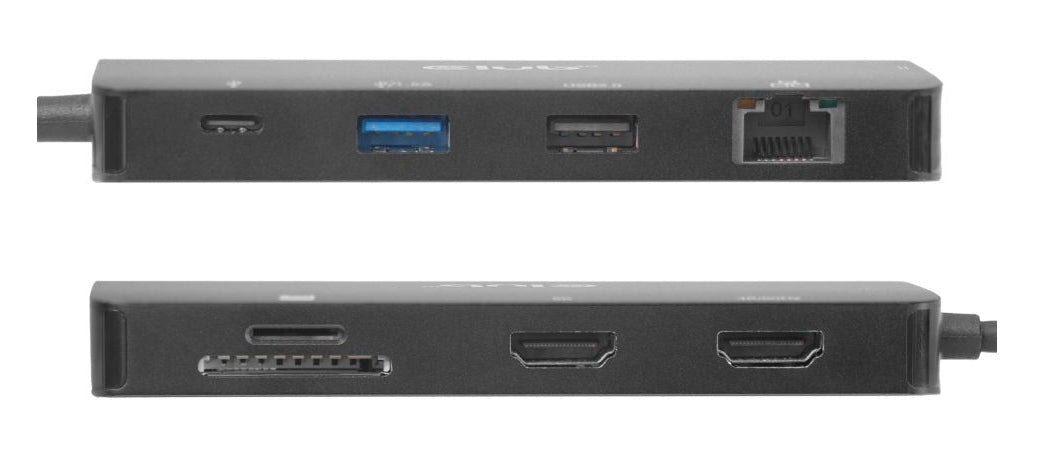

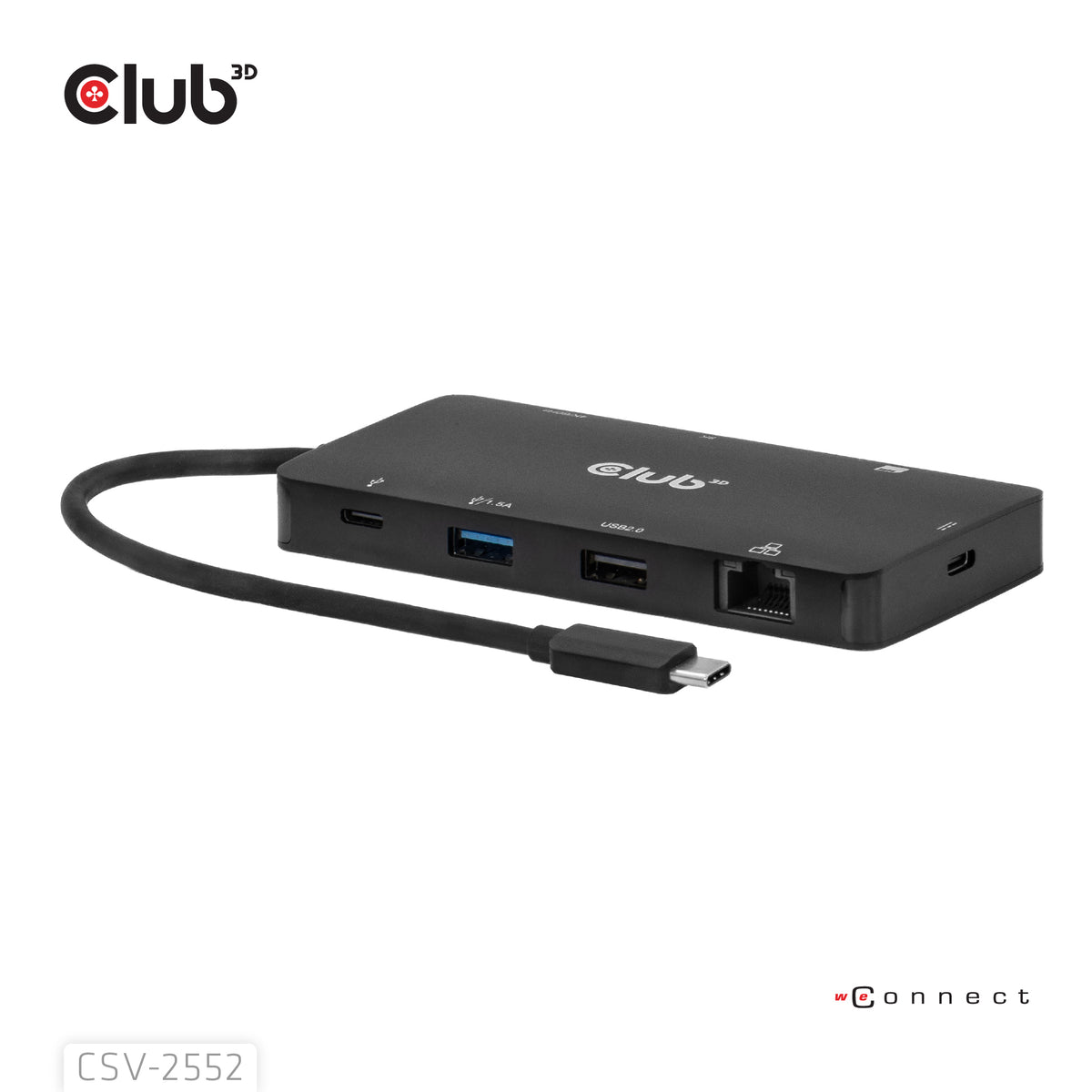

The Club 3D CSV-2552 is a USB-C® 9-1 hub with Dual HDMI™, 2x USB-A, 1x USB-C® data, RJ45, Micro SD/SD card slots and USB-C® charging female port, providing an ideal solution for extending the port of USB-C® or Thunderbolt host (PC/Laptop/Mobile phone, etc.), especially for those host with a single USB-C® port.
Specifications
Ports & interfaces
| Host interface | USB Type-C |
| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ports quantity | 9 |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | Yes |
| Card reader slot | 2 |
| Compatible memory cards | MicroSD (TransFlash), SD |
Features
| Data transfer rate | 5000 Mbit/s |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Product colour | Black |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HD type | 8K Ultra HD |
| Number of displays supported | 2 |
| Cable type | Round cable |
| Cable length | 0.17 m |
Network
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Power
| Power supply type | USB |
| Output voltage | 5 V |
| Output current | 2.4 A |
System requirements
| Windows operating systems supported | Windows 11 |
| Mac operating systems supported | Mac OS X 15.0 Sequoia |
Weight & dimensions

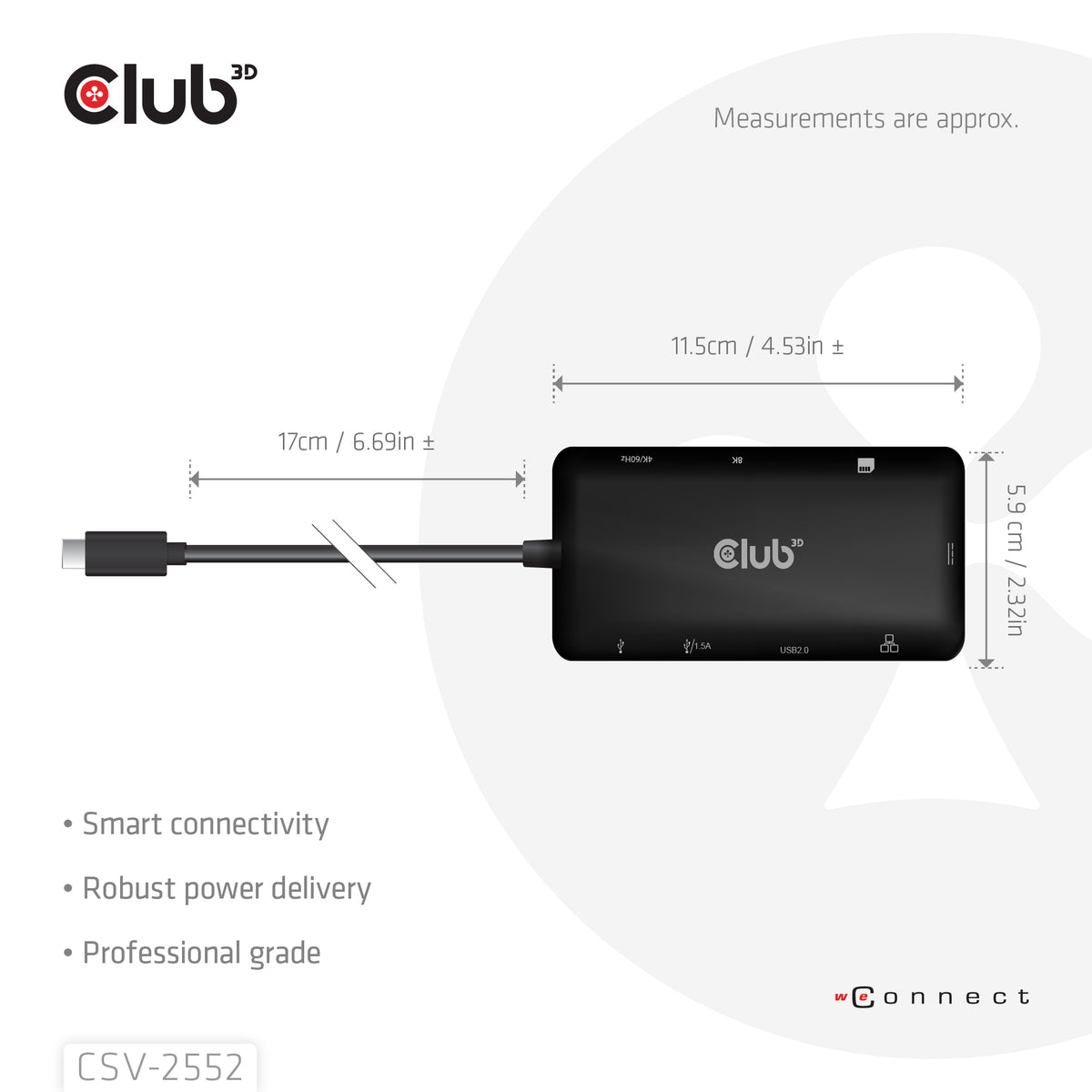

| Width | 115 mm |
| Depth | 59 mm |
| Height | 14 mm |
| Weight | 121 g |
Packaging data
| Quantity per pack | 1 pc(s) |
| Package width | 145 mm |
| Package depth | 145 mm |
| Package height | 45 mm |
| Package weight | 169 g |
Packaging composition
| Plastic packaging weight | 3 g |
| Paper/cardboard packaging weight | 45 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
Technical details
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Documents
Fiche technique fournie par Icecat.
