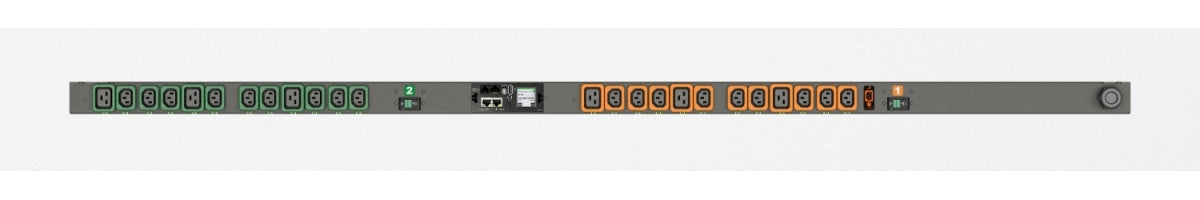

Vertiv Geist MGU5MGB1-24PH63-3PS6B2A10-S power distribution unit (PDU) 24 AC outlet(s) 0U Black
€2.345,41
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.
Specifications
Design
| PDU types | Monitored |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
| On/off switch | No |
Ports & interfaces
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Reset button | Yes |
| Cable length | 3.05 m |
Management features
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Nominal input voltage | 200-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 32 V |
| Load capacity | 230 VA |
| Power protection features | Over current |
Certificates
| Certification | CE Marked UKCA Marked Complies with IEC 62368-1 (DOC Available) Complies with EN 55032 and EN 55035 RoHS Compliant Cم Mark |
Operational conditions
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions
| Width | 51 mm |
| Depth | 66 mm |
| Height | 1683 mm |
Packaging data
| Package weight | 9.07 kg |
Documents
Fiche technique fournie par Icecat.
