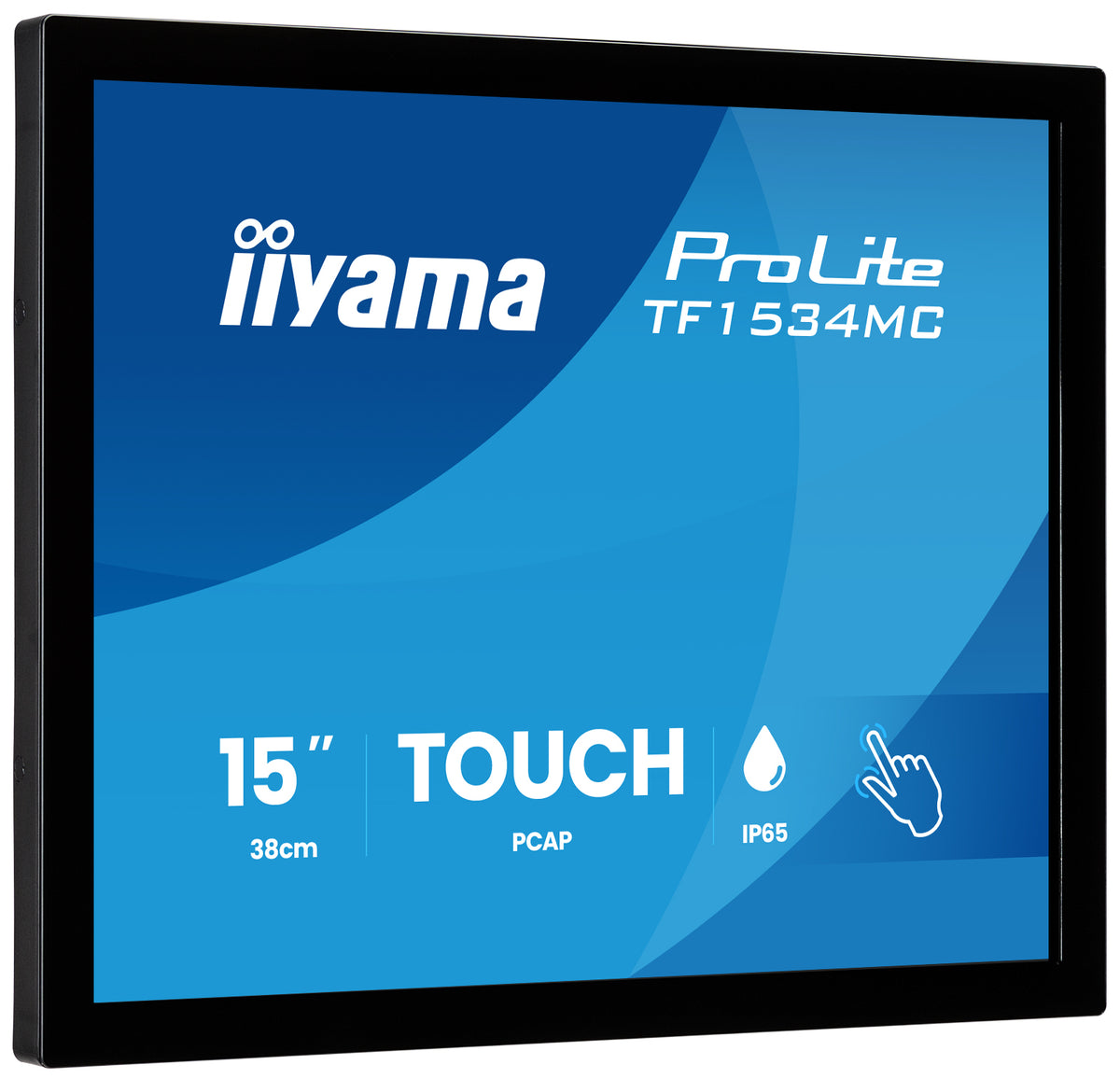

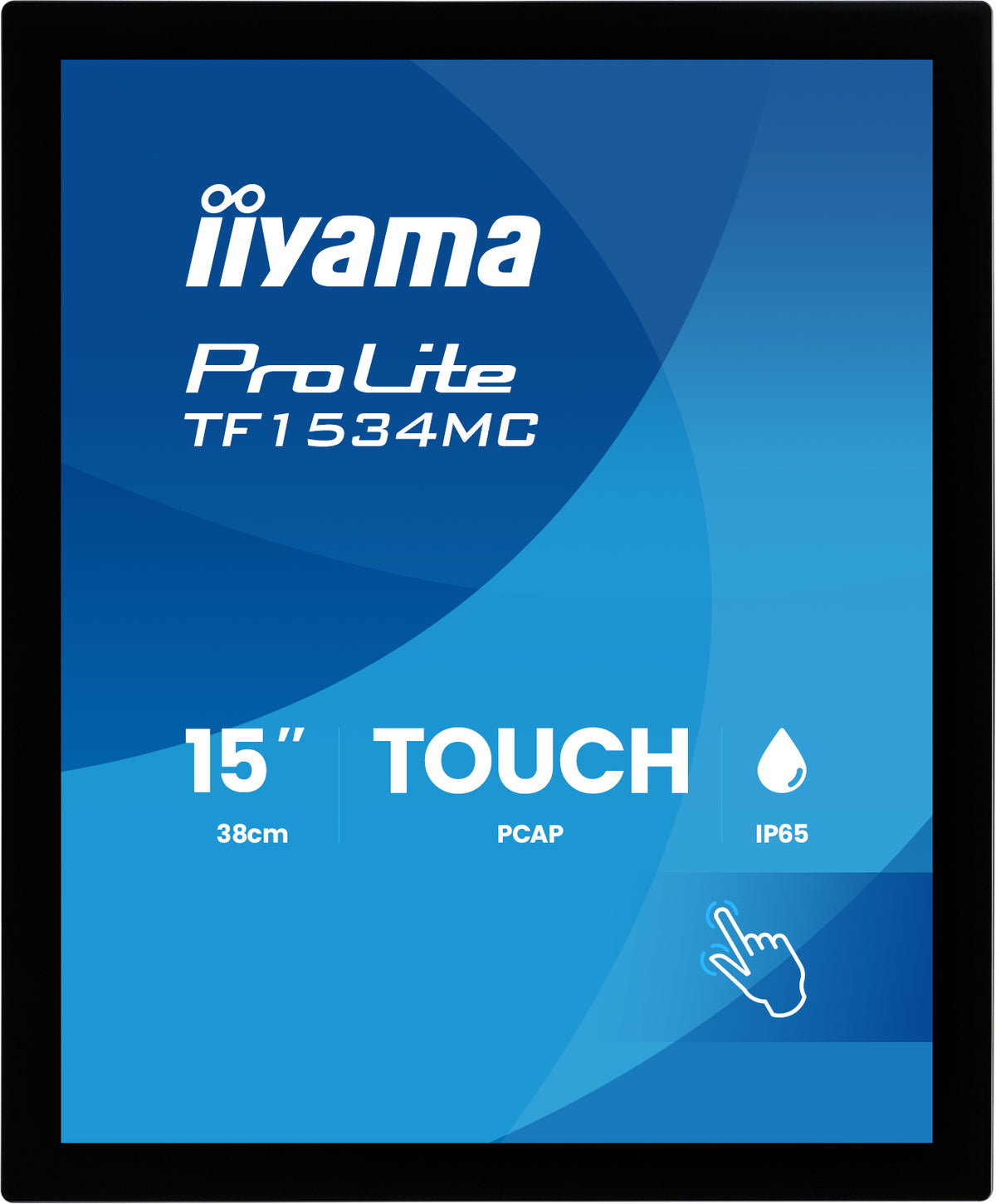

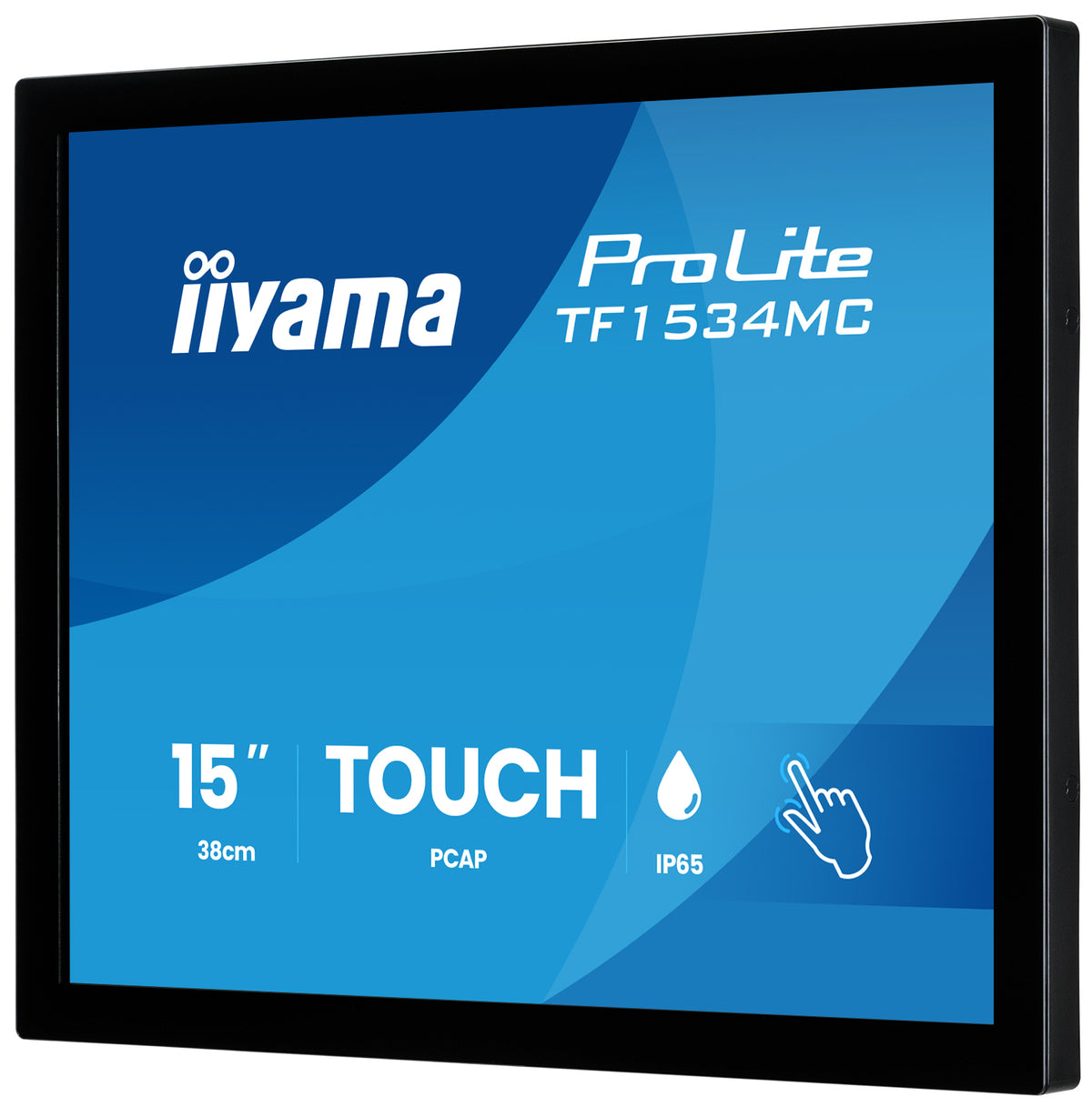

iiyama ProLite TF1534MC-B8X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Black
€515,59
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.

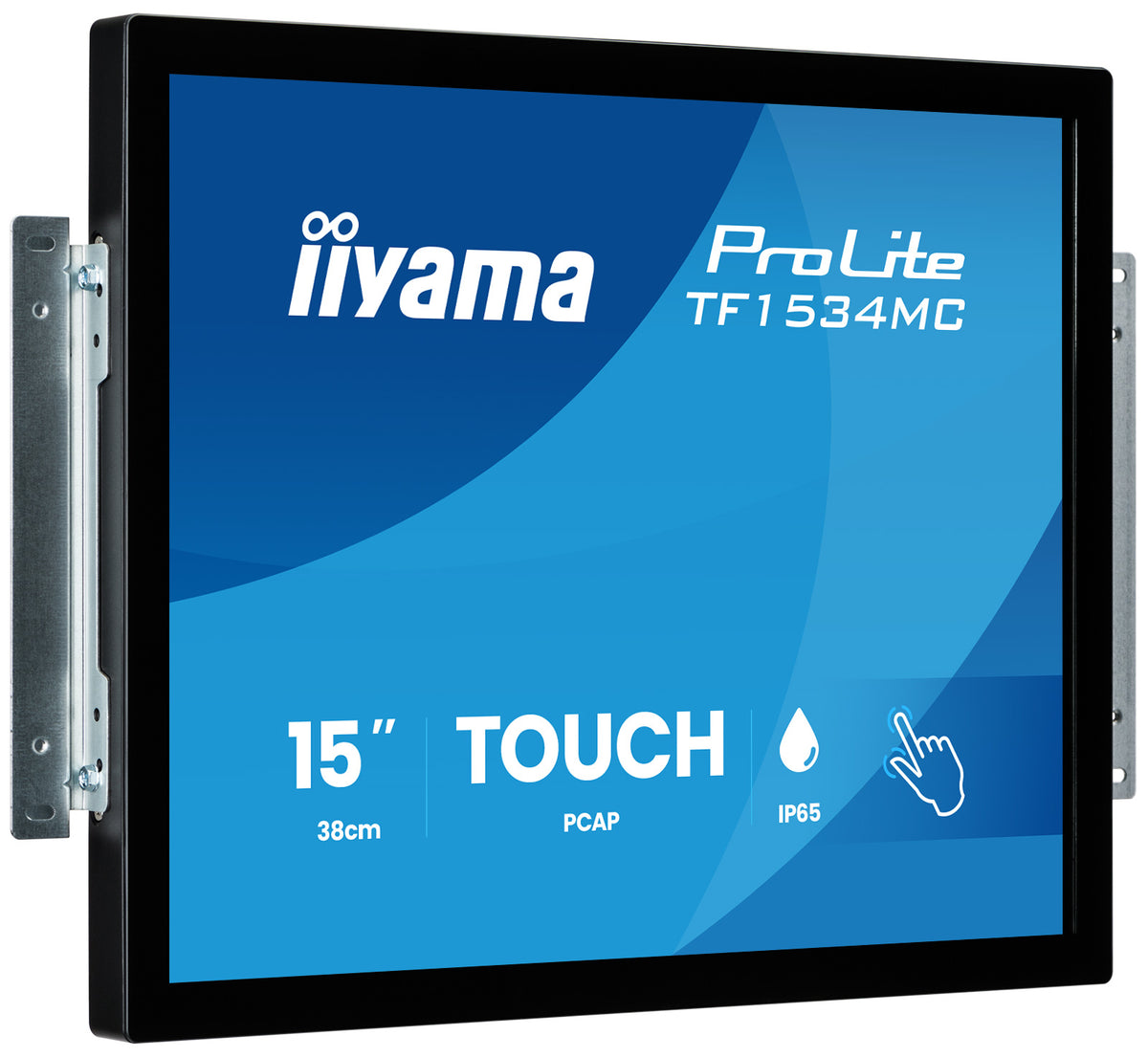

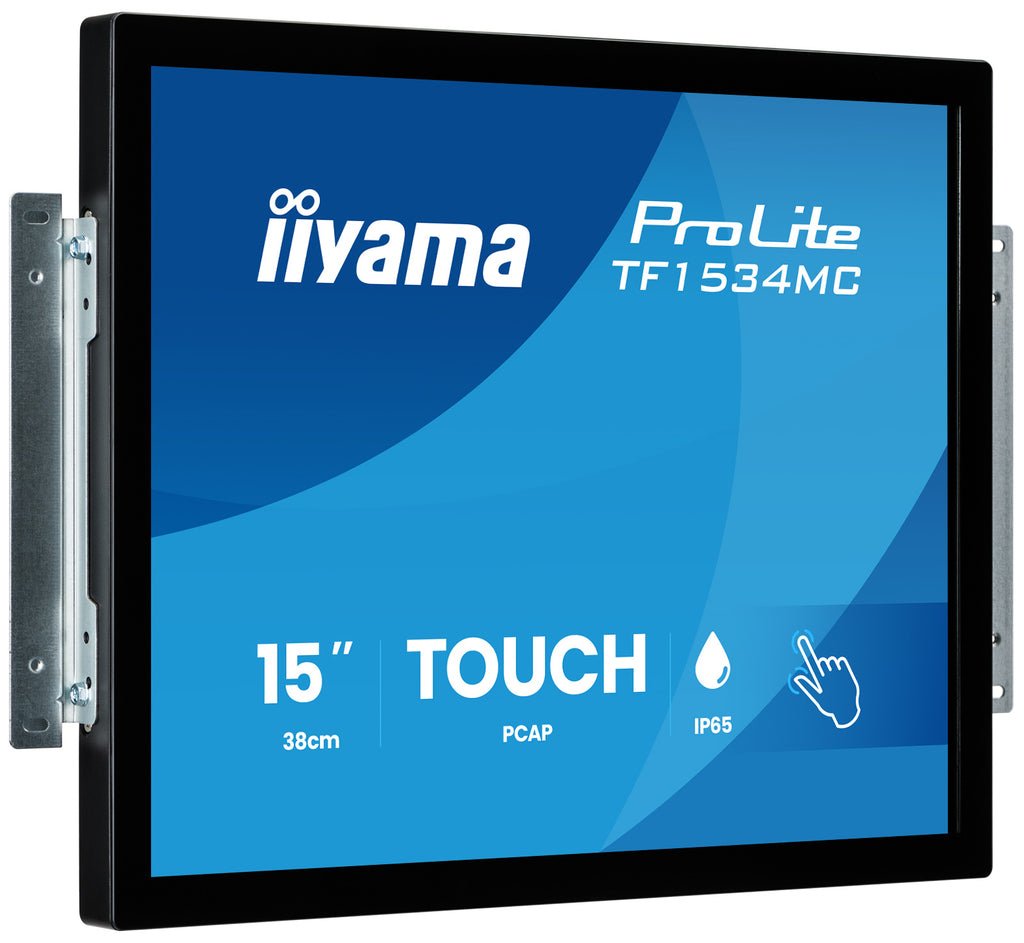

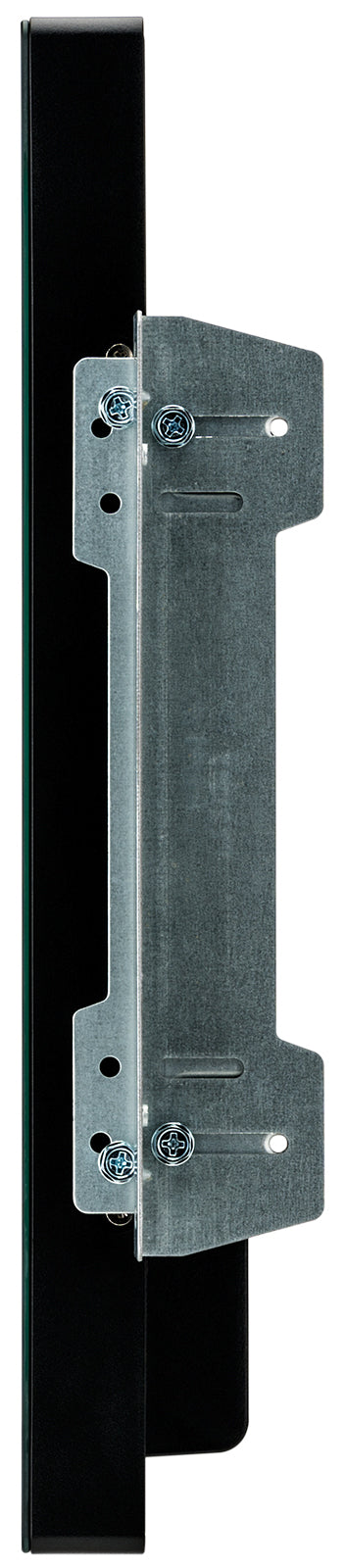

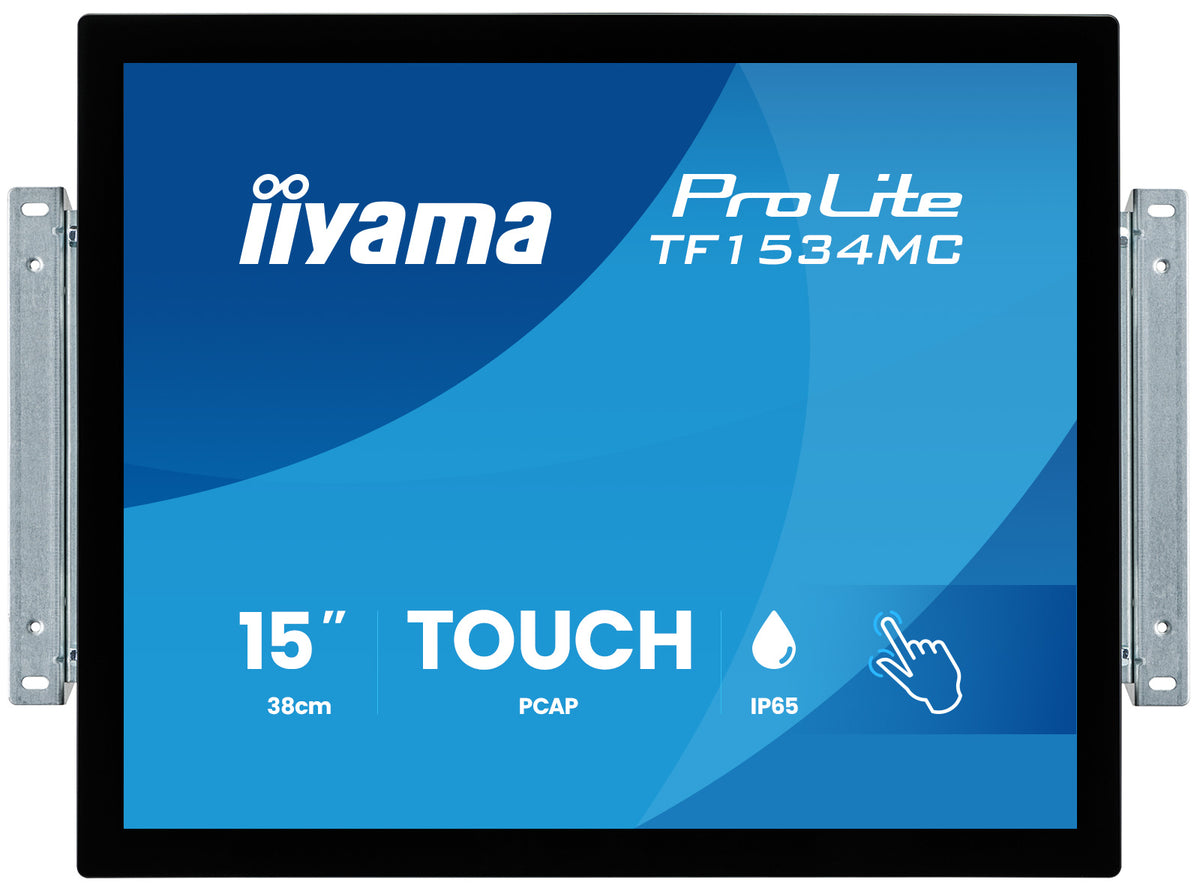

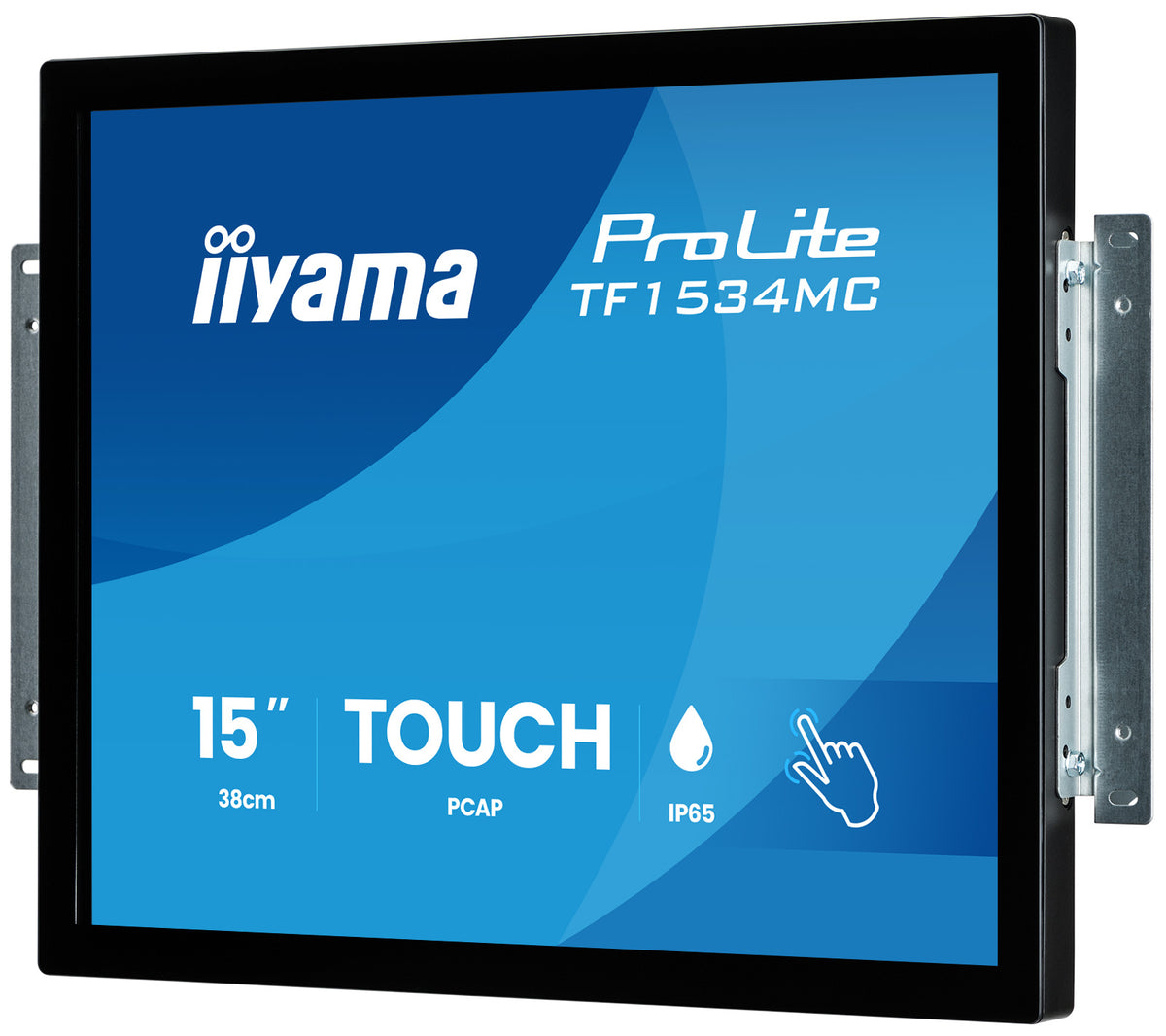

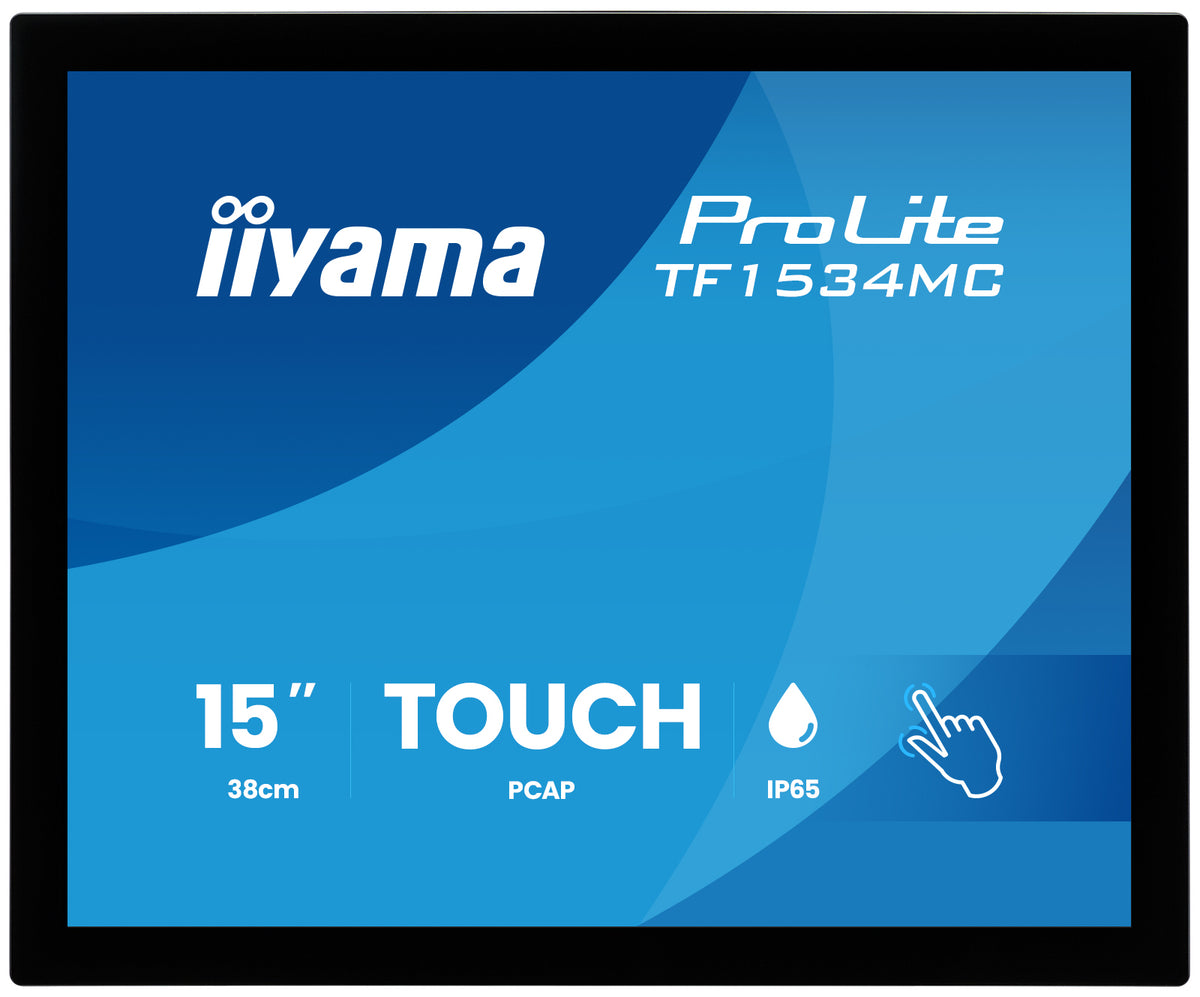

The ProLite TF1534MC-B8X is a 15” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance. With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction. For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
Specifications
Display
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TN |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 350 cd/m² |
| Display brightness (typical) | 300 cd/m² |
| Display brightness | 300 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Surface hardness | 7H |
Performance
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Palm rejection | Yes |
Multimedia
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
Ports & interfaces
| Built-in USB hub | No |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone out | No |
| HDCP | Yes |
Ergonomics
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
Power
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 9 kWh |
| Power consumption (typical) | 9 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
Weight & dimensions
| Width (with stand) | 338 mm |
| Depth (with stand) | 45 mm |
| Height (with stand) | 267 mm |
| Weight (with stand) | 2.7 kg |
Packaging data
| Package width | 355 mm |
| Package depth | 435 mm |
| Package height | 165 mm |
| Package weight | 4 kg |
| USB cable length | 1.8 m |
Packaging content
| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
Sustainability
| Sustainability certificates | ErP |
Other features
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2 mm |
| AC adapter included | Yes |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Brightness | 300 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 304 x 228 mm |
| Touch method | stylus, finger, glove (latex) |
| Weight | 2.7 kg |
| Height | 267 mm |
| Width | 338 mm |
| Depth | 45 mm |

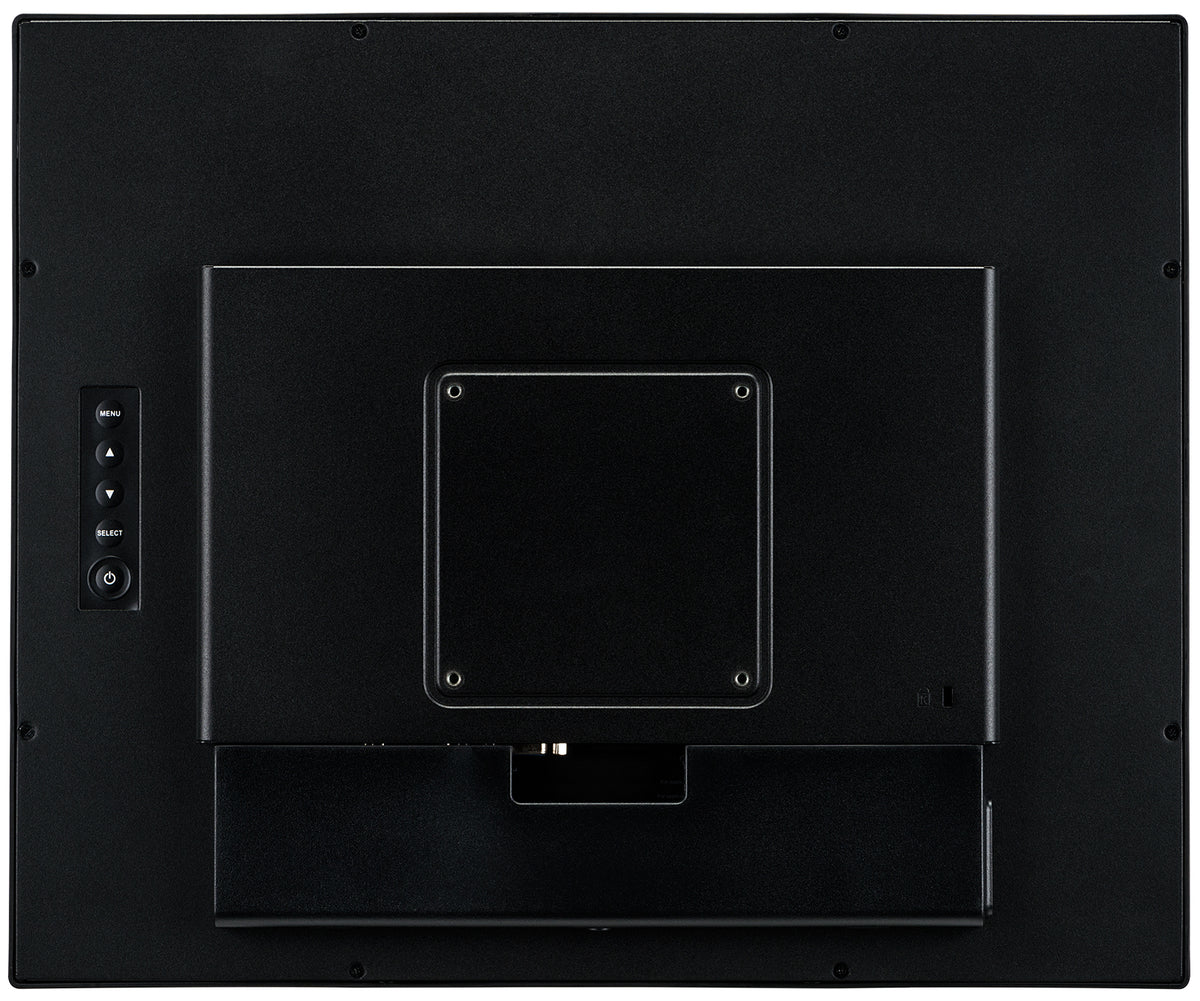

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Mean time between failures (MTBF) | 50000 h |
Technical details
| Native refresh rate | 75 Hz |
Logistics data
| Pallet net width | 91 cm |
| Pallet net length | 114 cm |
| Pallet net height | 2.43 m |
