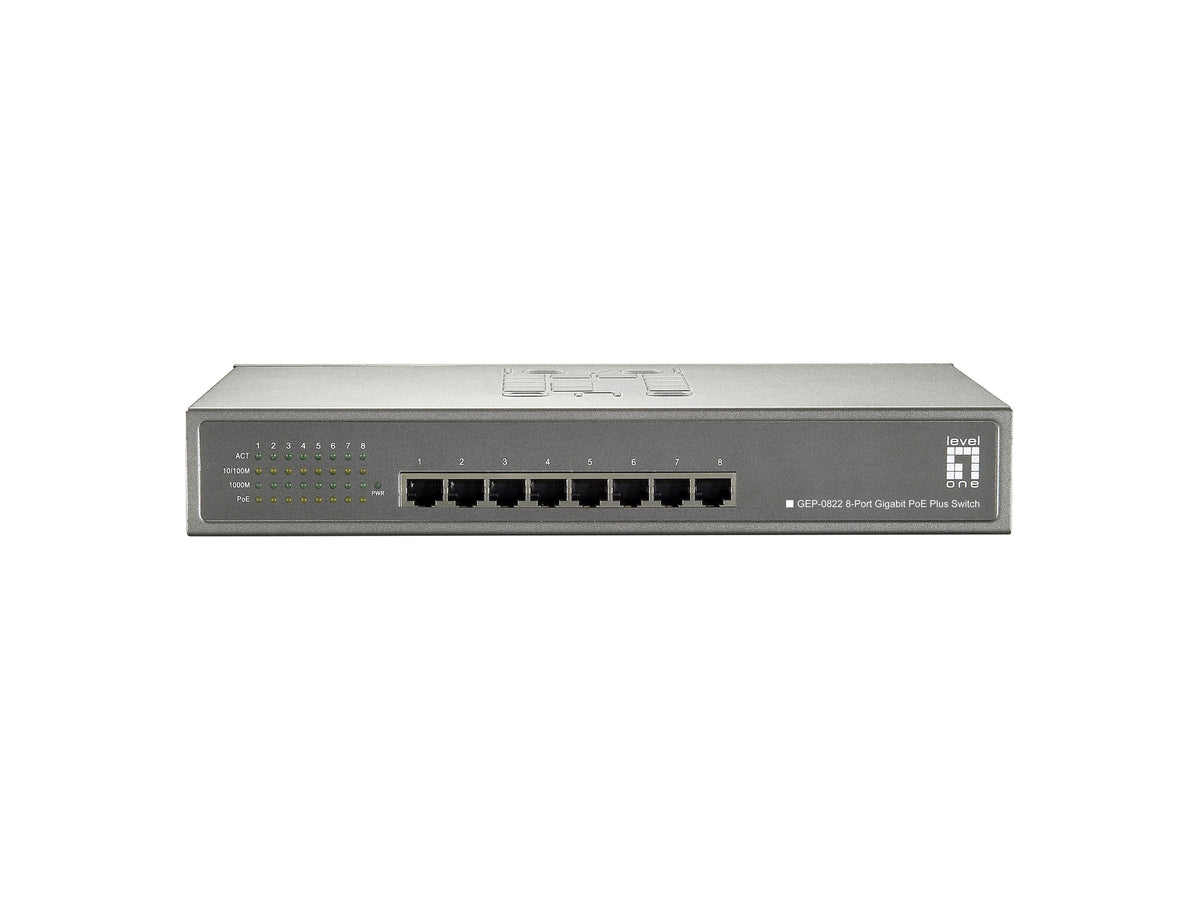

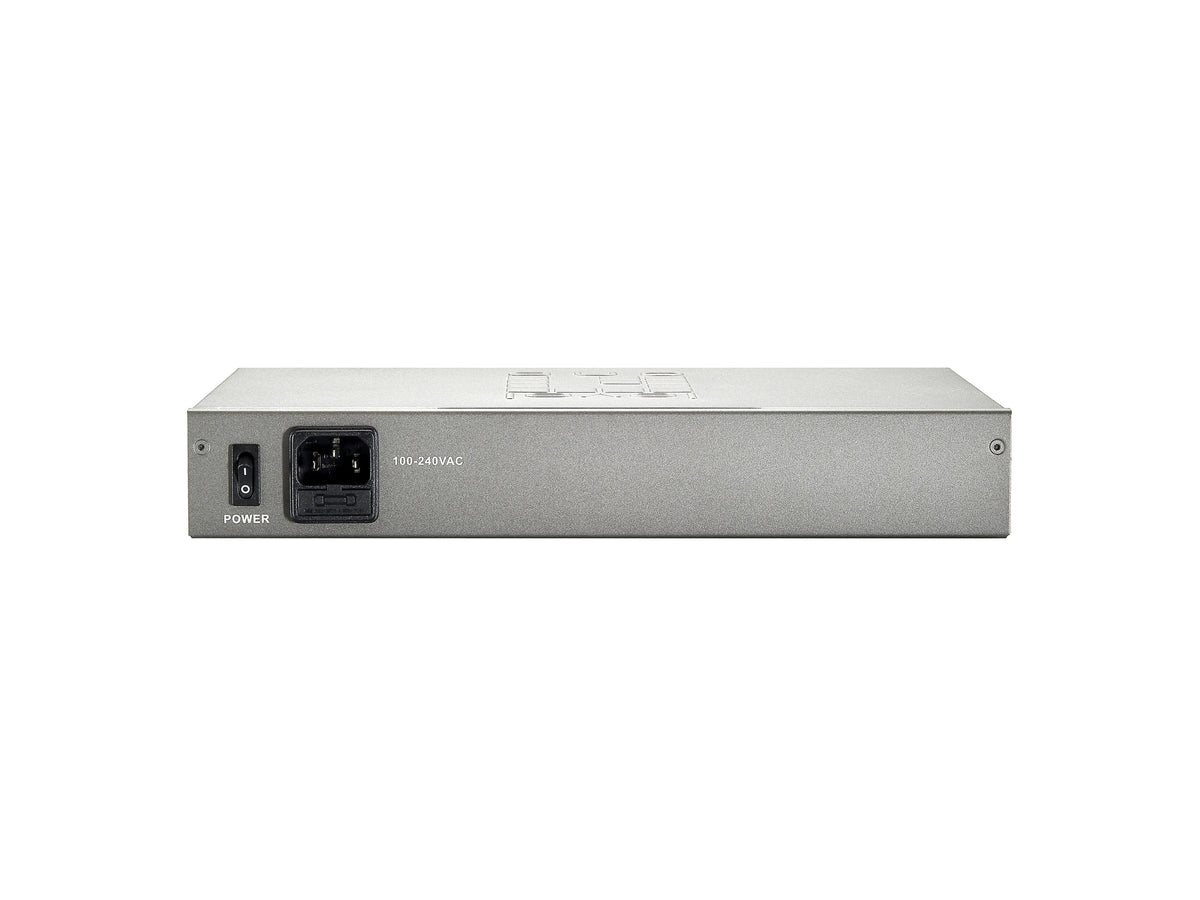

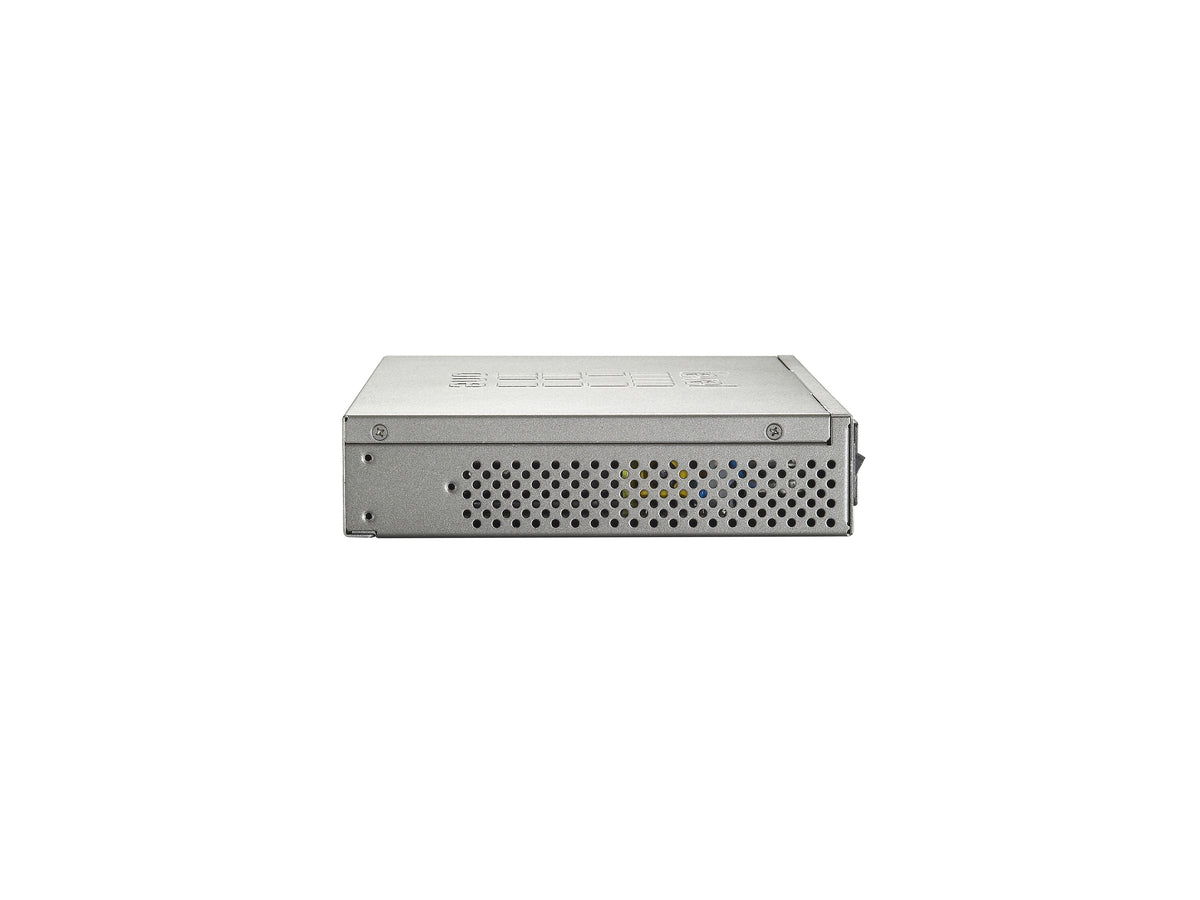

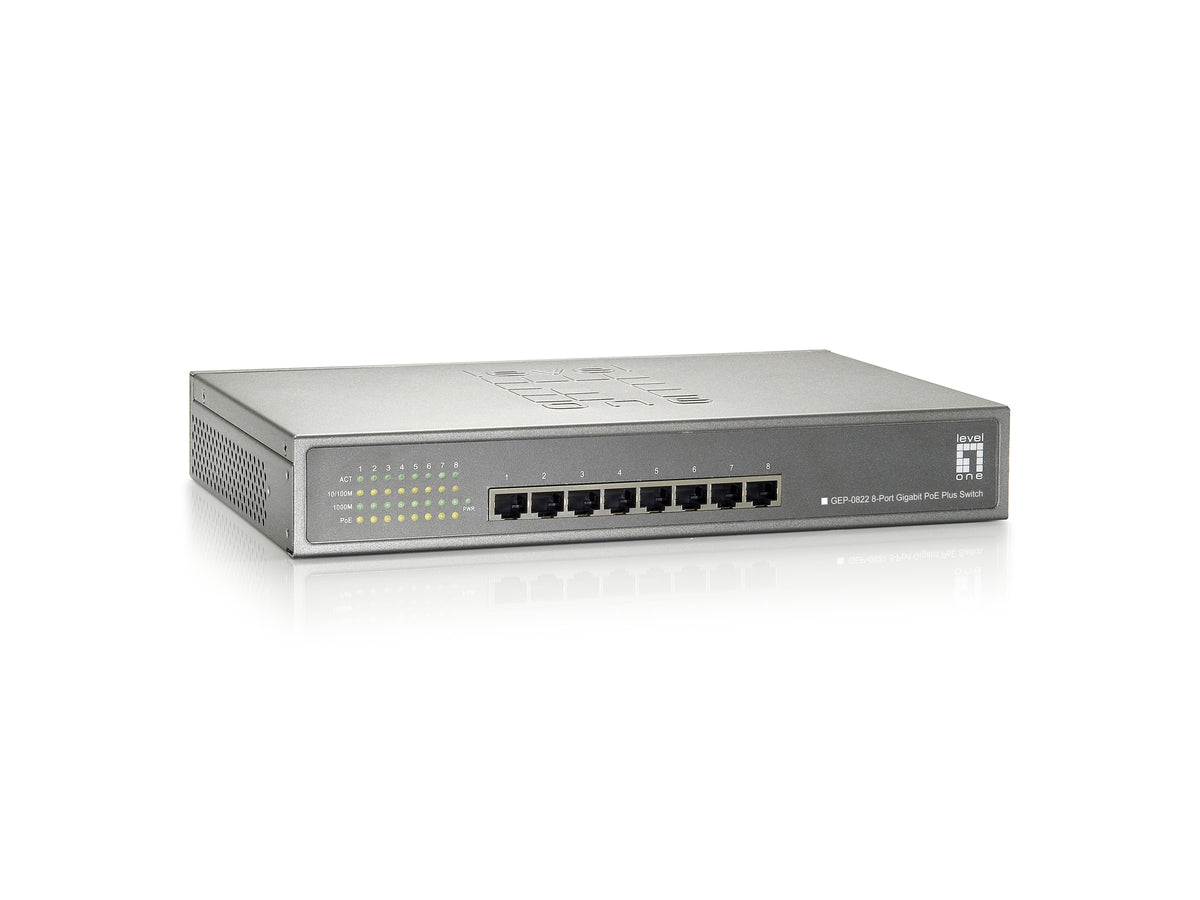

LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE, 240W
€458,55
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
The LevelOne GEP-0822 provides 8 x 10/100/1000Mbps ports with IEEE 802.3at PoE-Plus supported. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 240W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an inexpensive solution for PoE deploying infrastructure.
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch rackmount kit included
- Total PoE power budget: 240W, up to 30W per port
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch rackmount kit included
- Total PoE power budget: 240W, up to 30W per port
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Specifications
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Cable types supported | Cat5, Cat5e, Cat6, Cat7 |
Data transmission
| Switching capacity | 16 Gbit/s |
| MAC address table | 8192 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
Design
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Activity, PoE, Power |
Performance
| Buffer size | 128 KB |
Power
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 A |
| Power consumption (typical) | 250 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Width | 280 mm |
| Depth | 185 mm |
| Height | 44 mm |
| Weight | 2 kg |
Packaging content
| Cables included | AC |
| Quick start guide | Yes |
Packaging data
| Package type | Box |
| Package width | 371 mm |
| Package depth | 230 mm |
| Package height | 82 mm |
| Package weight | 2.26 kg |
Certificates
| Certification | FCC, CE |
Logistics data
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
