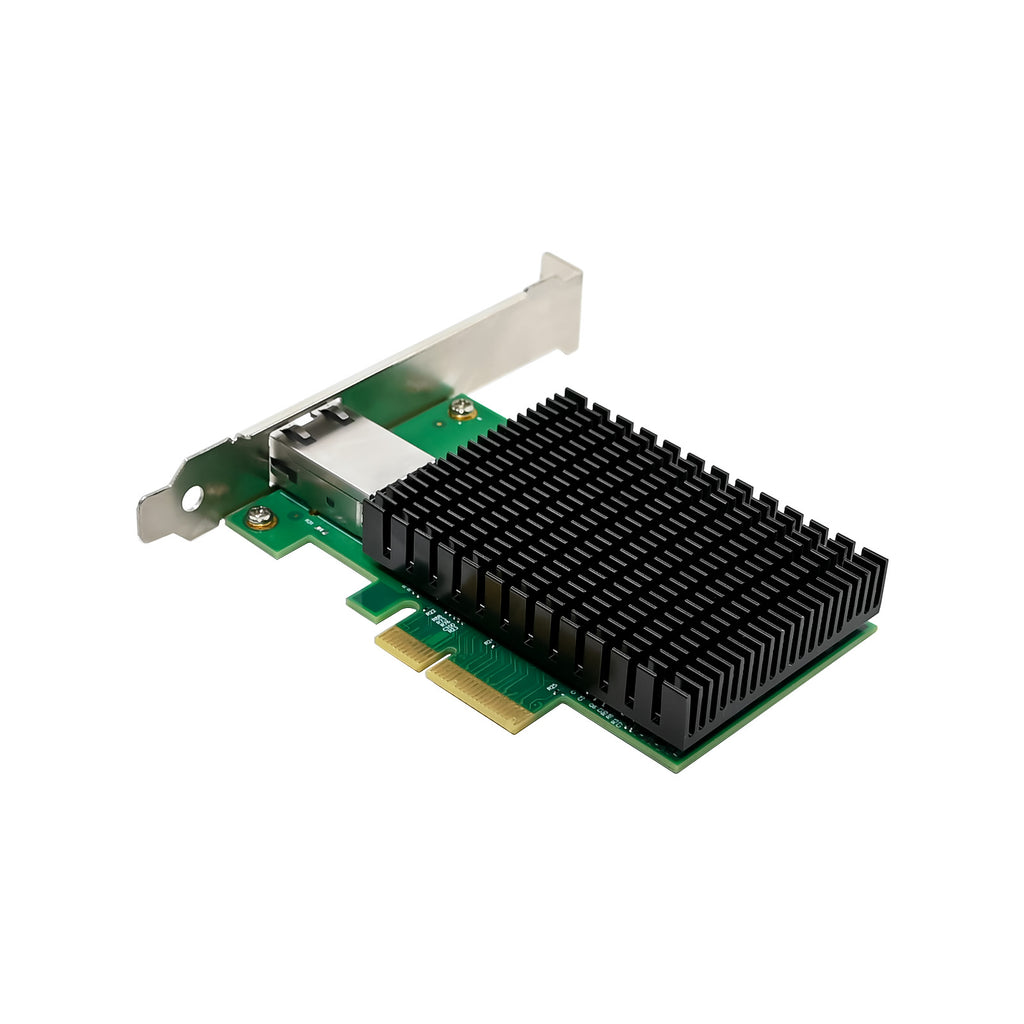

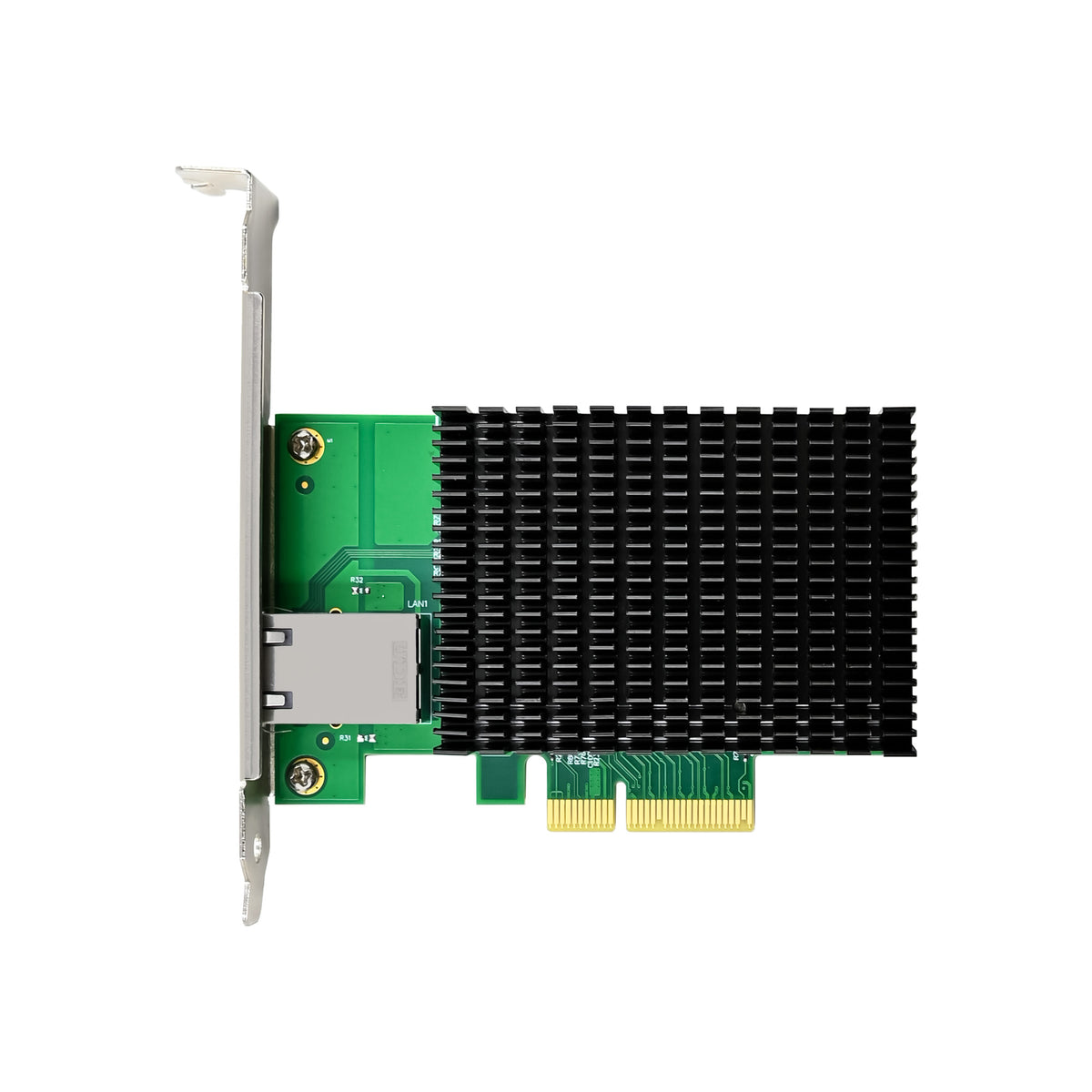

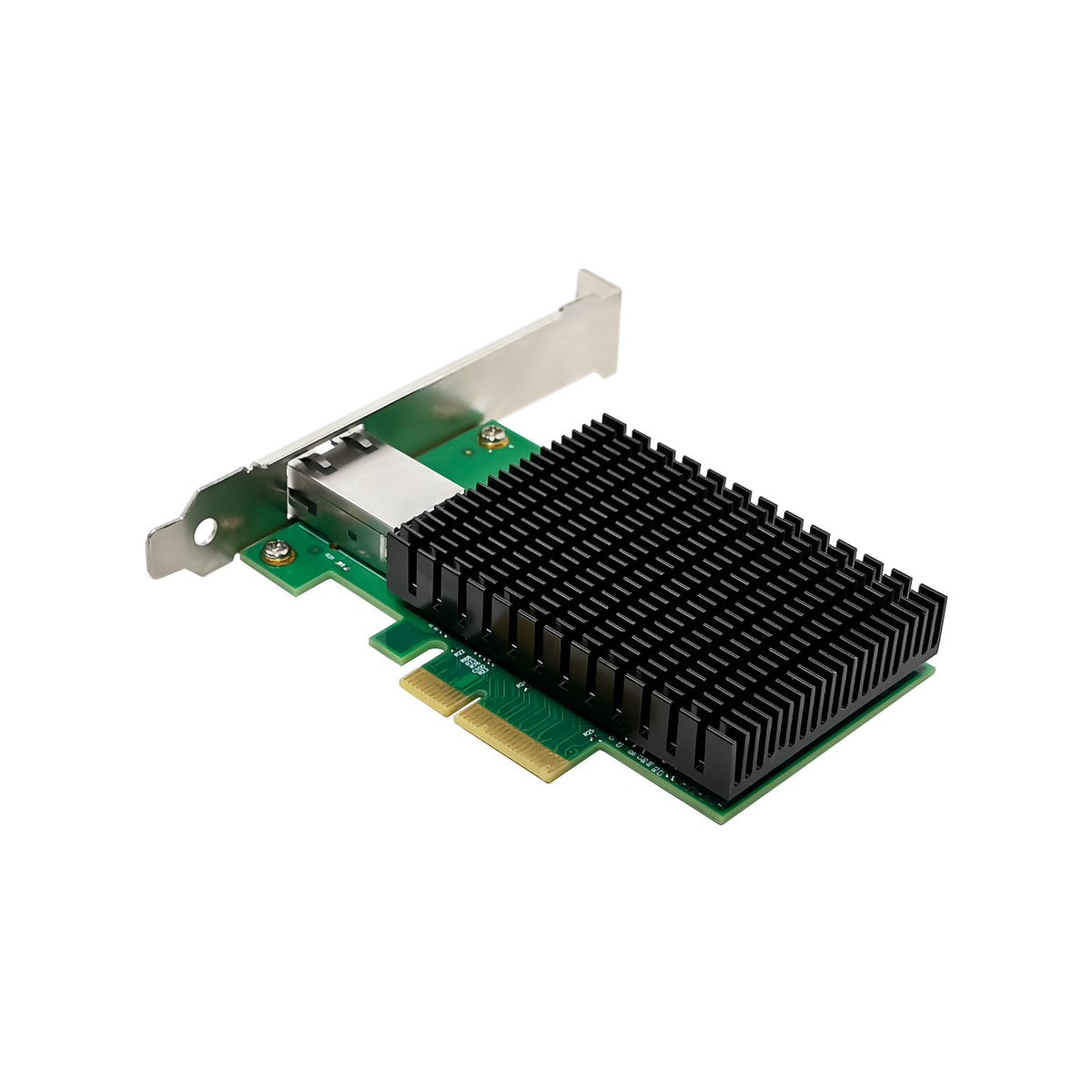

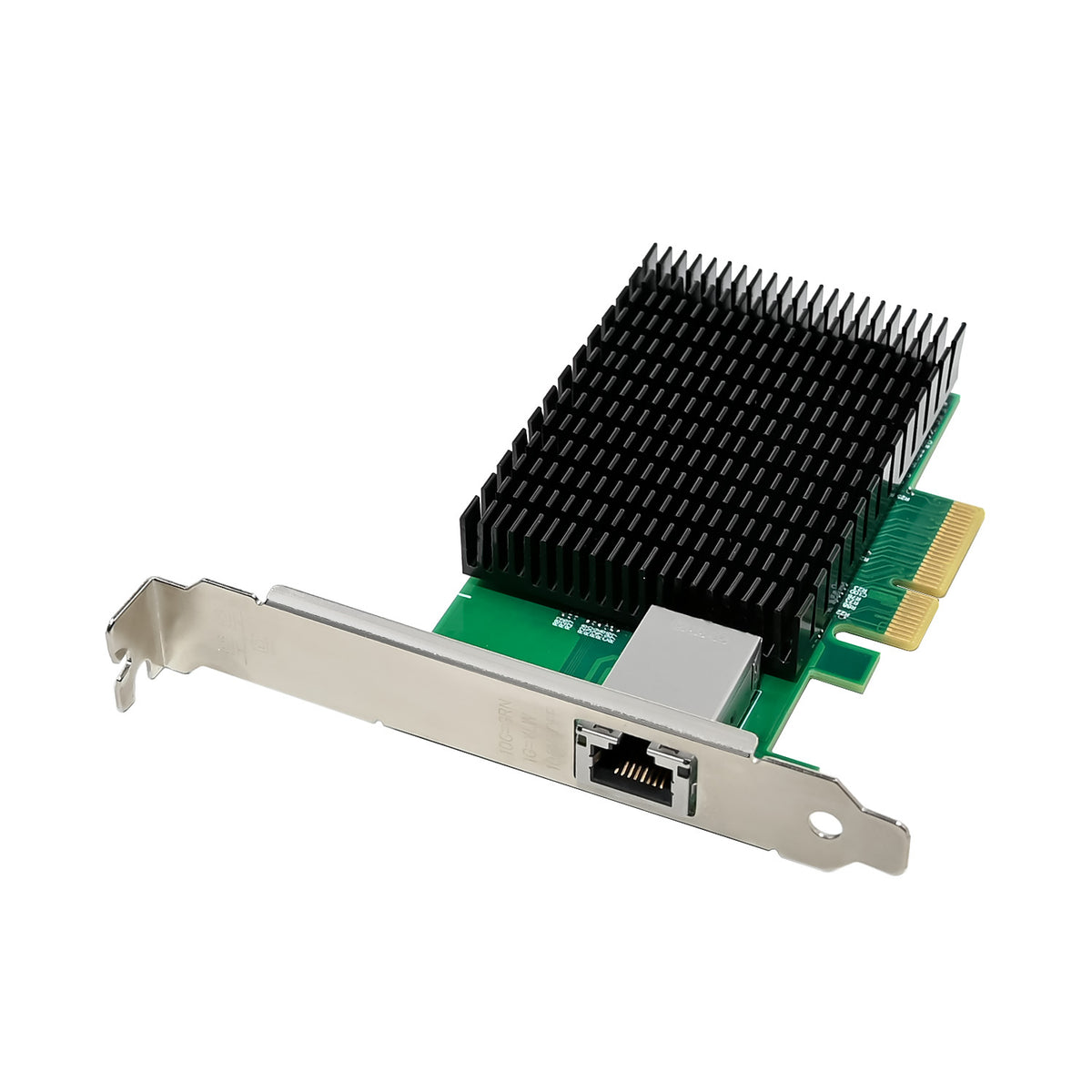

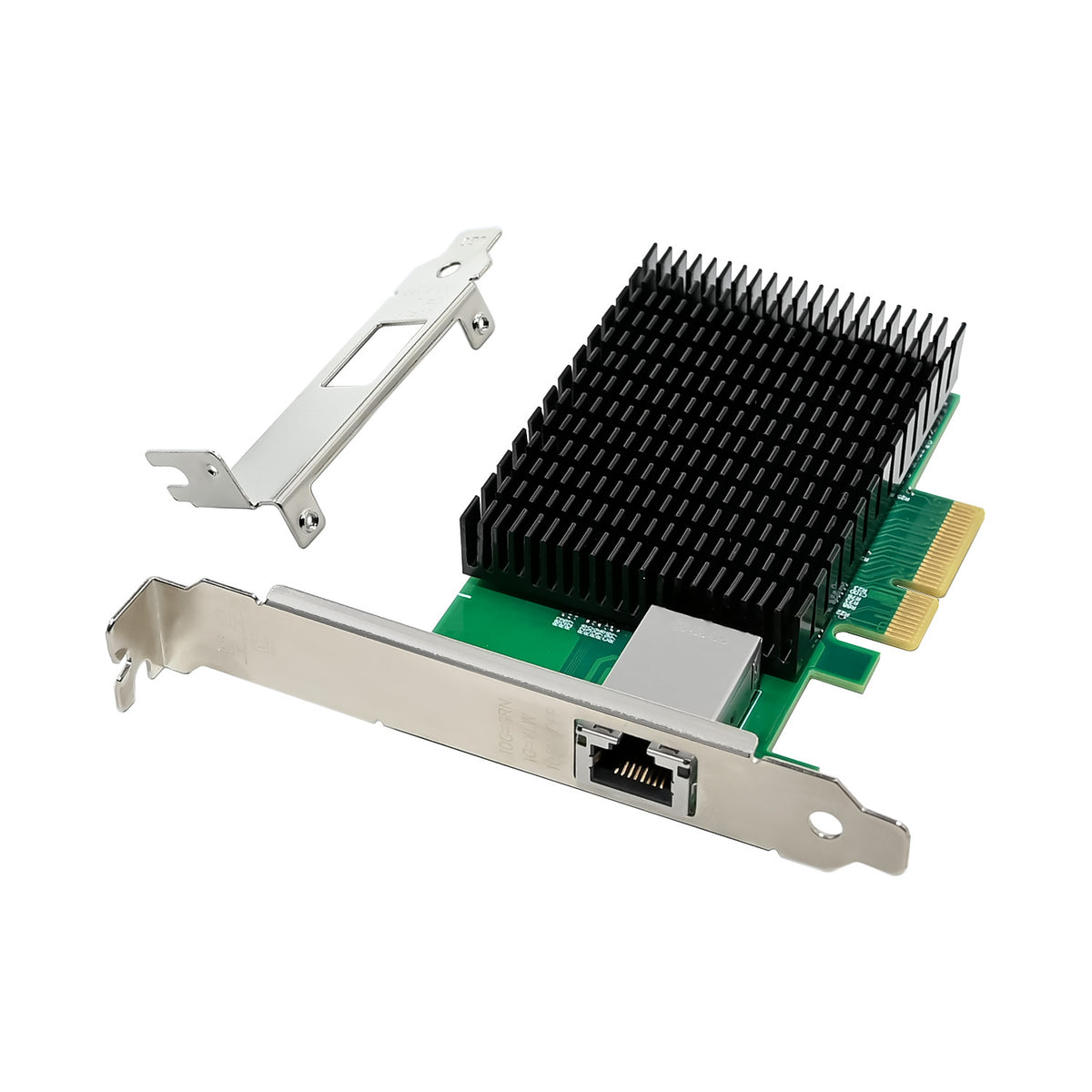

LevelOne 10-Gigabit PCIe x4 Network Card, 1 x RJ45
€124,56
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
The GNC-0210 is a powerhouse 10-Gigabit PCIe network card designed to turbocharge your network performance. Experience unparalleled data transfer speeds, enhanced efficiency, and perfect for handling large data transfers, streaming high-resolution content, and supporting resource-intensive applications.
Elevate your network experience with the GNC-0210. Embrace unmatched speed, efficiency, and control for a truly next-level connected experience.
Elevate your network experience with the GNC-0210. Embrace unmatched speed, efficiency, and control for a truly next-level connected experience.
Specifications
Ports & interfaces
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Supported network protocols | IPv4, IPv6 |
Design
| Component for | PC/Server |
| Product colour | Green |
| Internal | Yes |
| Country of origin | China |
System requirements
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012, Windows Server 2016 |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Sustainability
| Sustainability compliance | Yes |
Weight & dimensions
| Width | 105 mm |
| Depth | 68 mm |
| Height | 20 mm |
| Weight | 110 g |
Packaging data
| Package width | 183 mm |
| Package depth | 152 mm |
| Package height | 30 mm |
| Package weight | 230 g |
Technical details
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Logistics data
| Harmonized System (HS) code | 8517620090 |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 189.4 cm |
| Master (outer) cases per pallet | 19 pc(s) |
| Master (outer) case width | 490 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 350 mm |
| Master (outer) case gross weight | 15 kg |
| Products per master (outer) case | 60 pc(s) |
Documents
Fiche technique fournie par Icecat.
