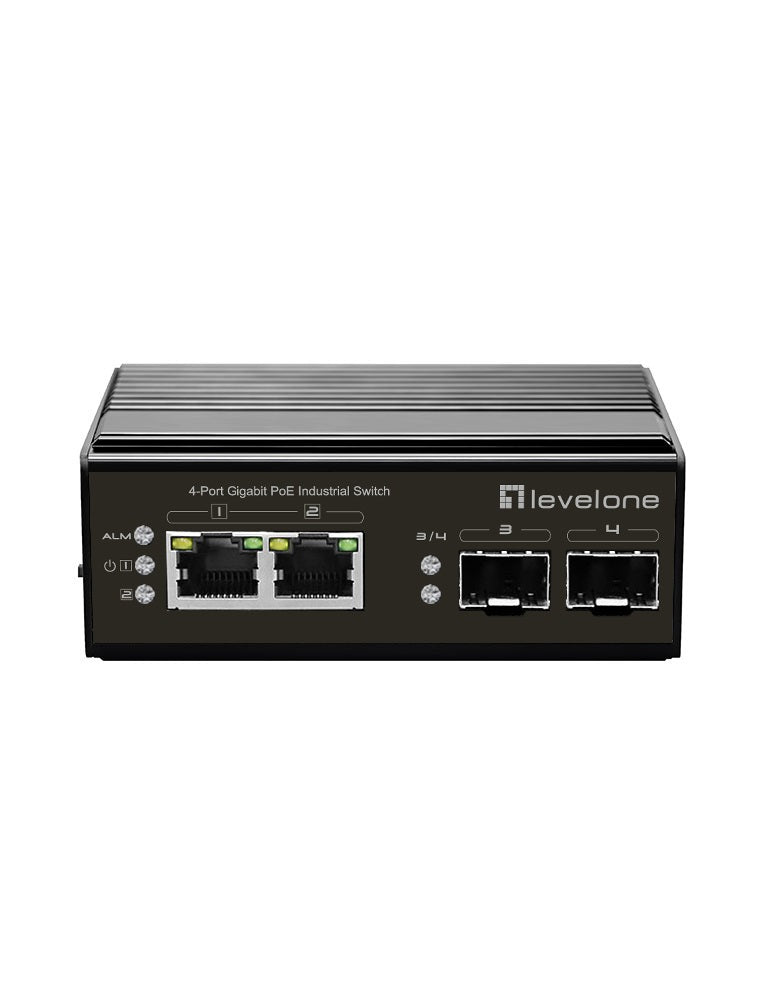

LevelOne IGP-0432 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
€190,89
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
LevelOne IGP-0432 Industry Ethernet Switch provides 2 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at/af PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.
Specifications
Management features
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 2 |
Network
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Ethernet LAN data rates | 1000 Mbit/s |
Data transmission
| Switching capacity | 8 Gbit/s |
| MAC address table | 8000 entries |
| Packet buffer memory | 5.95 MB |
Design
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Activity, Alarm |
Performance
| Fanless | Yes |
Power
| Power source | DC |
| DC input voltage | 48 - 57 V |
| Power consumption (typical) | 5 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Width | 65 mm |
| Depth | 35 mm |
| Height | 101 mm |
| Weight | 300 g |
Packaging content
| Quick start guide | Yes |
Packaging data
| Package type | Box |
| Package width | 110 mm |
| Package depth | 62 mm |
| Package height | 130 mm |
| Package weight | 350 g |
Technical details
| Pallet net height | 152.5 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
Logistics data
| Country of origin | China |
