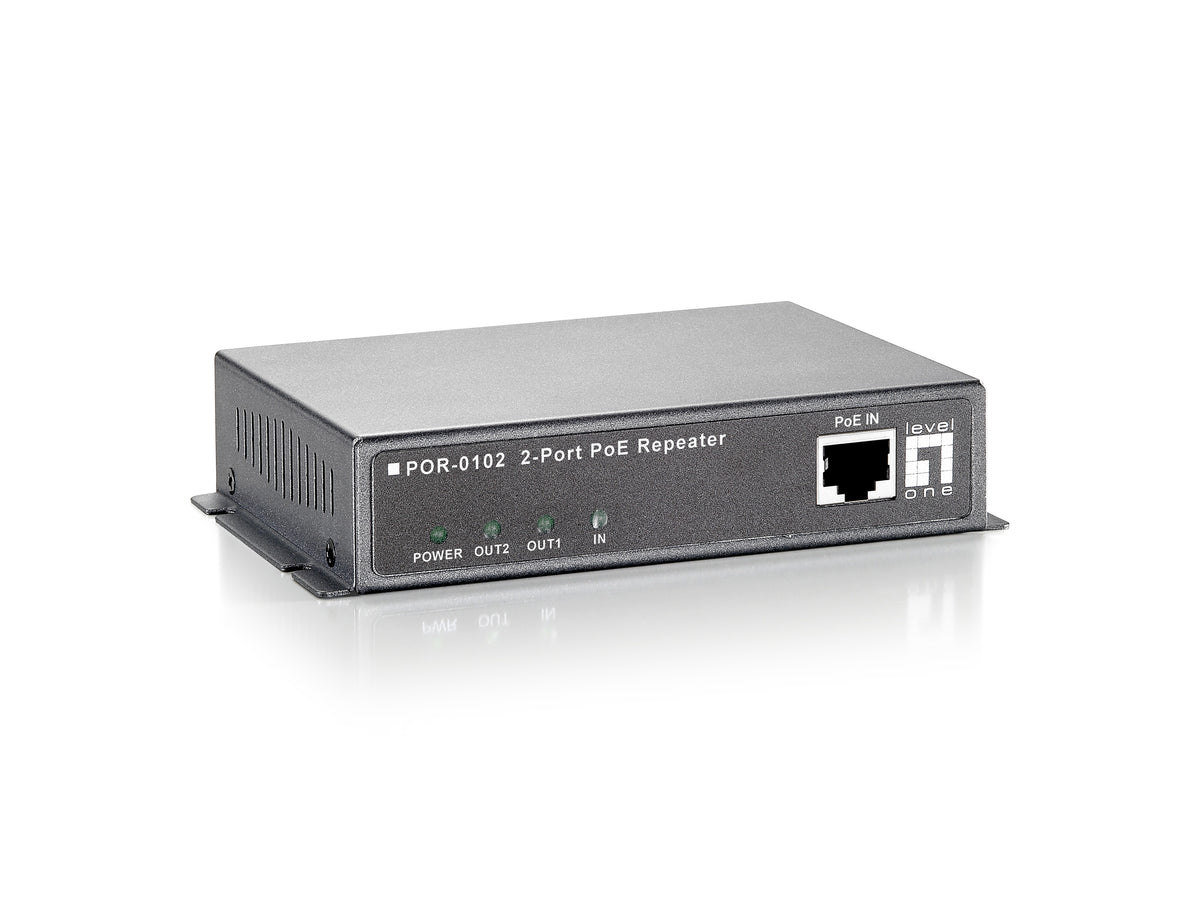

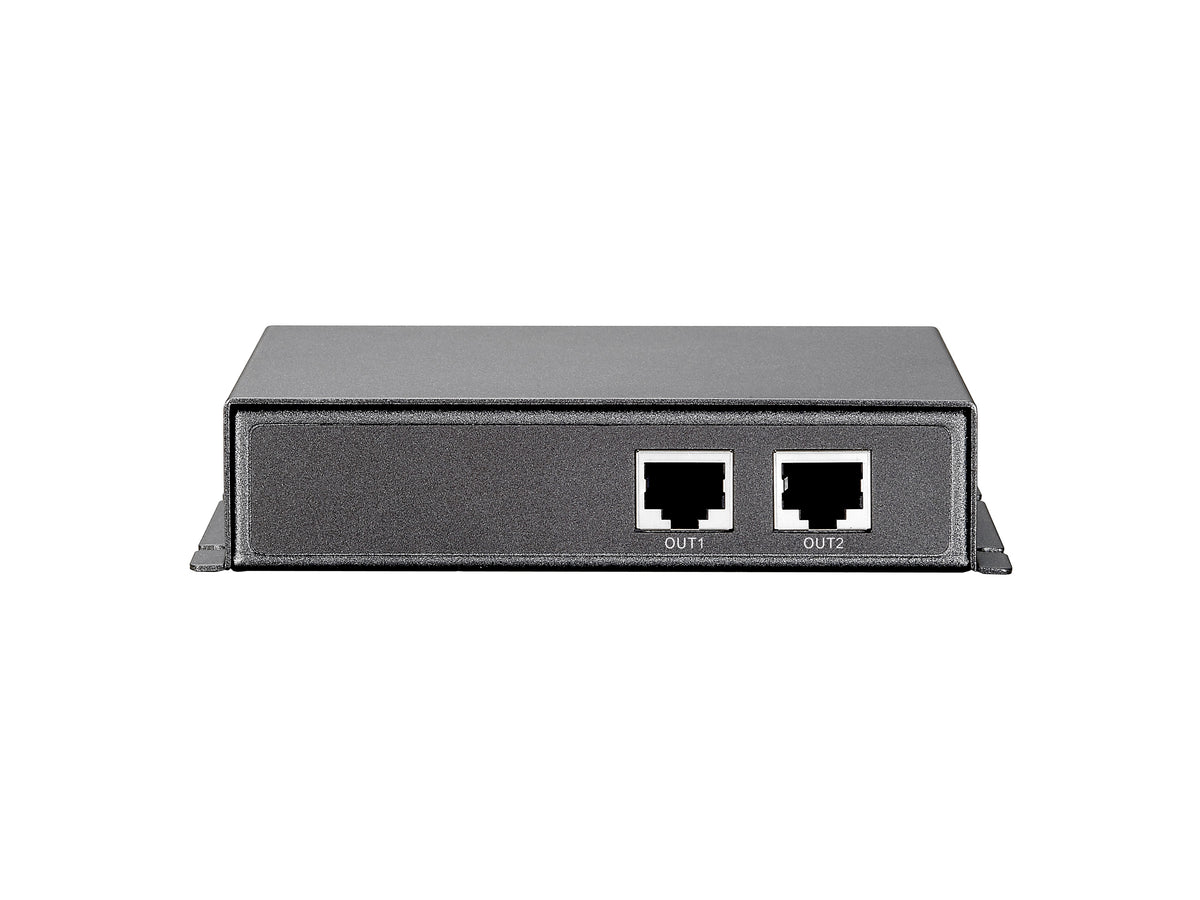

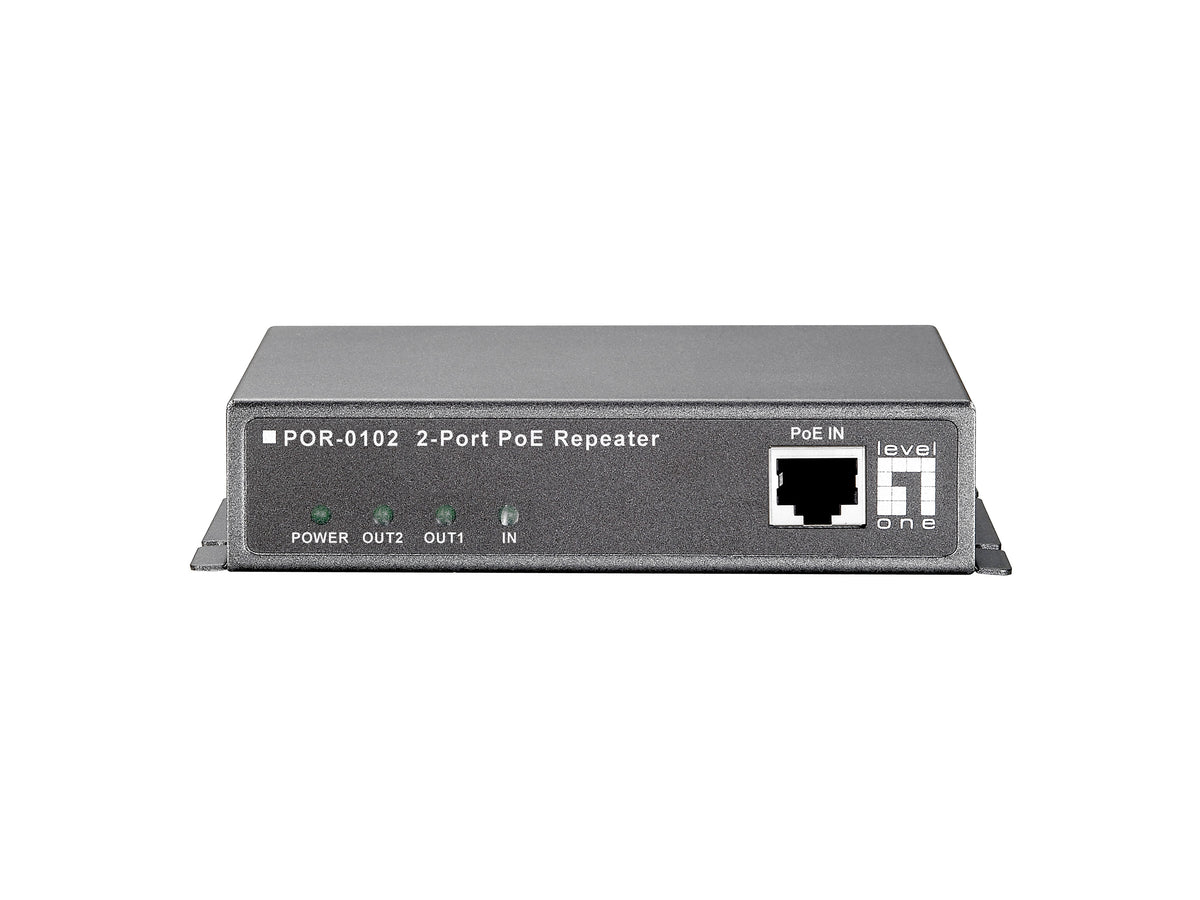

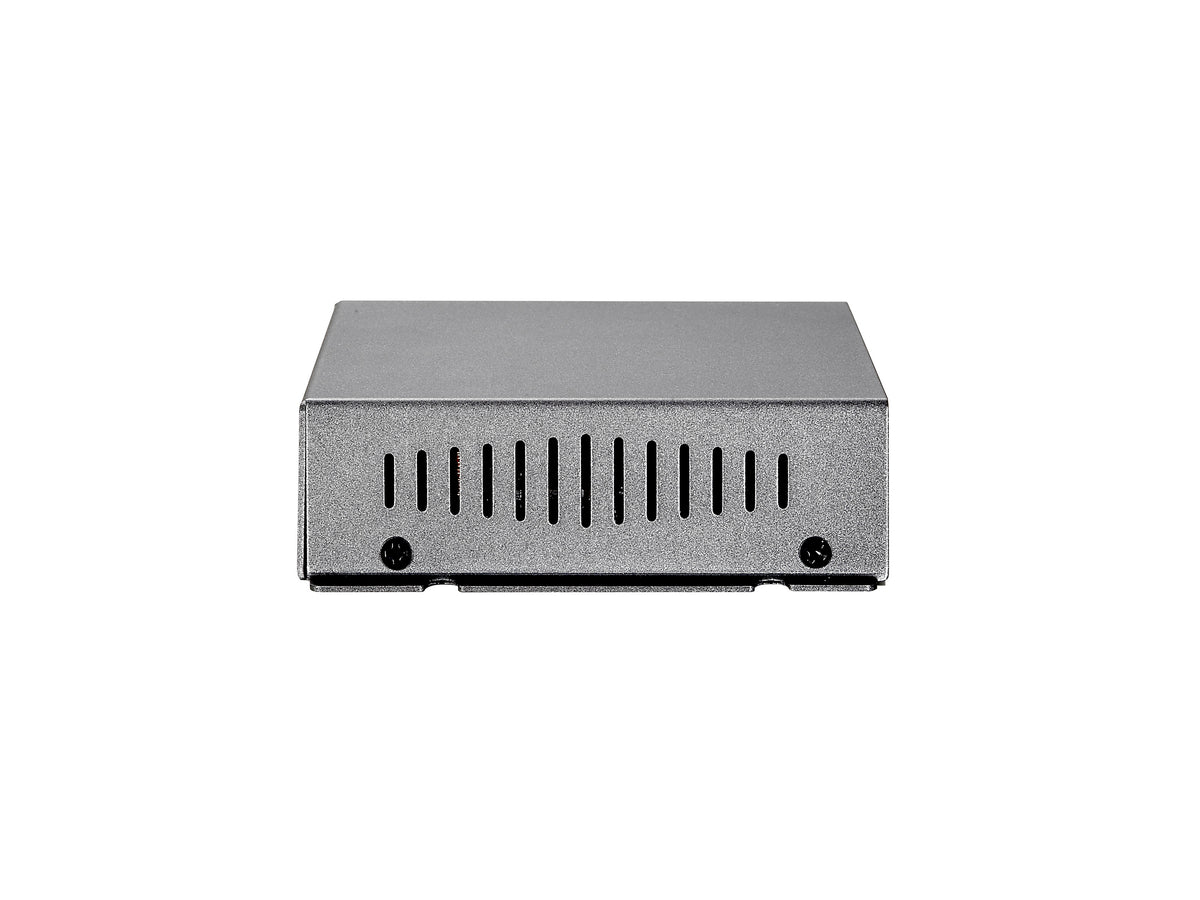

LevelOne PoE Repeater, 2 Ports, Cascadable
€292,04
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
Extend the reach of your PoE devices
For system integrators looking for a professional solution to help extend their PoE network, POR-0102 is the perfect accessory to increase your Power over Ethernet network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility.
Simple yet durable, no software required
As a PoE Repeater, POR-0102 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that POR-0102 uses no external power supply, making it an ideal component for system integrators looking to increase the distance of the attached devices. With a durable metal housing and small footprint, POR-0102 fits into any tight deployment.
Applications

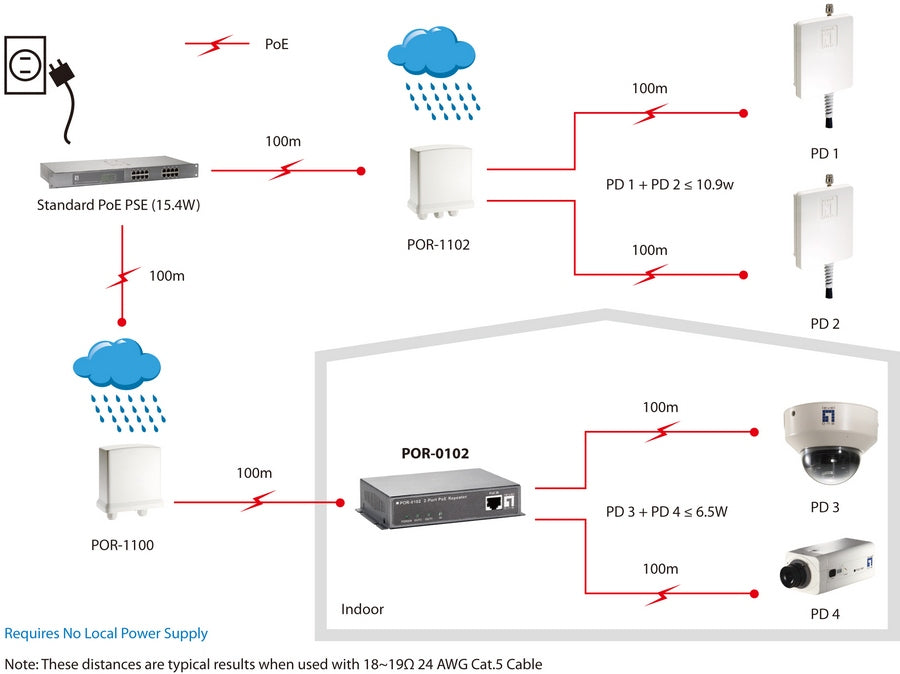

POR-0102 works great for large IP surveillance networks with many cameras deployed throughout a building or campus. It is also an ideal solution for outdoor wireless access points that are located far from the network control center.
- Extends Cat.5 cable installations to beyond 100 meters
- 2-Port Ethernet Power Sourcing Equipment(PSE)
- Forwards Power over Ethernet (PoE) to remote device
- Fully transparent no restrictions to network traffic
- No power required
- Simple to install works instantly
For system integrators looking for a professional solution to help extend their PoE network, POR-0102 is the perfect accessory to increase your Power over Ethernet network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility.
Simple yet durable, no software required
As a PoE Repeater, POR-0102 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that POR-0102 uses no external power supply, making it an ideal component for system integrators looking to increase the distance of the attached devices. With a durable metal housing and small footprint, POR-0102 fits into any tight deployment.
Applications
POR-0102 works great for large IP surveillance networks with many cameras deployed throughout a building or campus. It is also an ideal solution for outdoor wireless access points that are located far from the network control center.
- Extends Cat.5 cable installations to beyond 100 meters
- 2-Port Ethernet Power Sourcing Equipment(PSE)
- Forwards Power over Ethernet (PoE) to remote device
- Fully transparent no restrictions to network traffic
- No power required
- Simple to install works instantly
Specifications
Performance
| Type | Network repeater |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5 |
| Auto MDIX IEEE | Yes |
| Duplex system | Full, Half |
Network
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.3af, IEEE 802.3x |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 3 |
| Power over Ethernet (PoE) ports quantity | 3 |
Design
| Product colour | Black |
| LED indicators | PoE, Power |
| Country of origin | Taiwan |
| Certification | FCC Rules Part 15 CE |
Power
| Power consumption (max) | 2.5 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 90 mm |
| Depth | 120 mm |
| Height | 28 mm |
| Weight | 400 g |
Packaging data
| Package width | 148 mm |
| Package depth | 235 mm |
| Package height | 80 mm |
| Package weight | 530 g |
Logistics data
| Harmonized System (HS) code | 85176990 |
