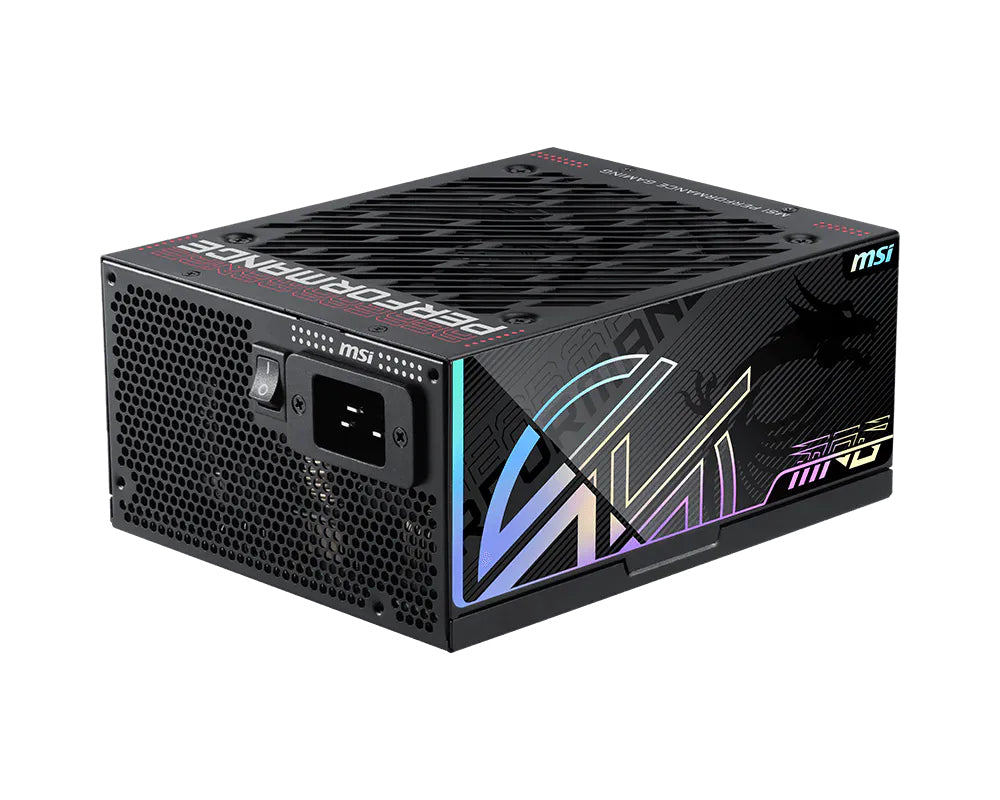

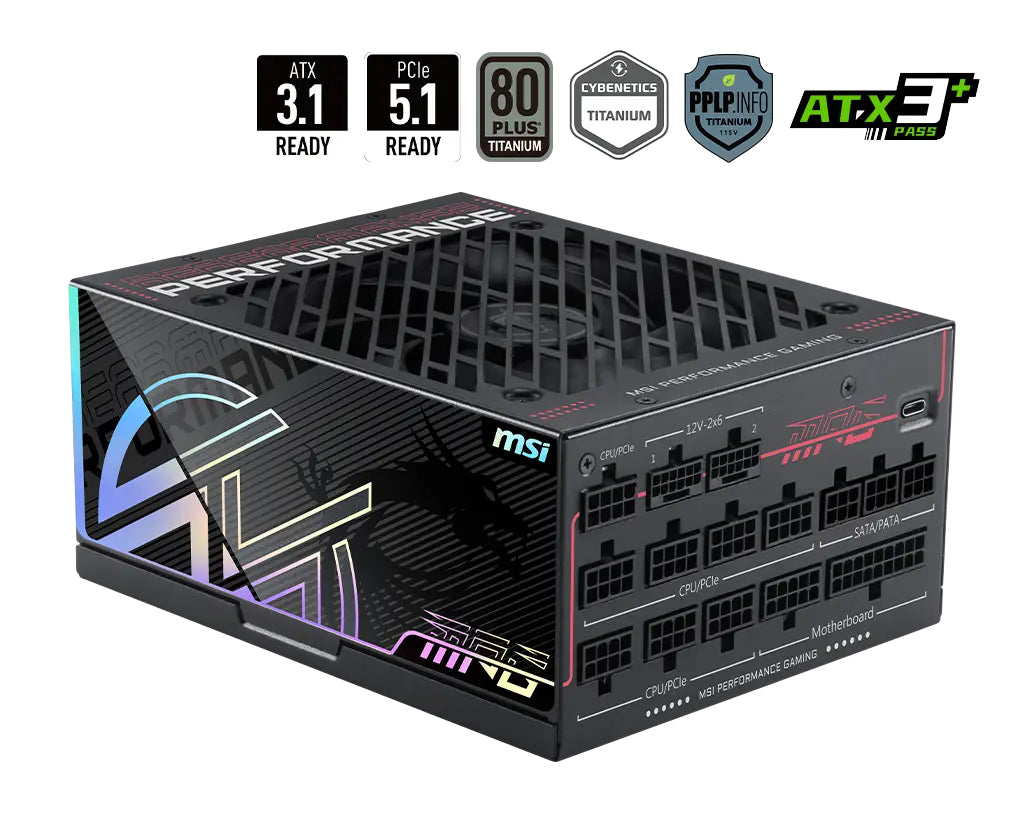

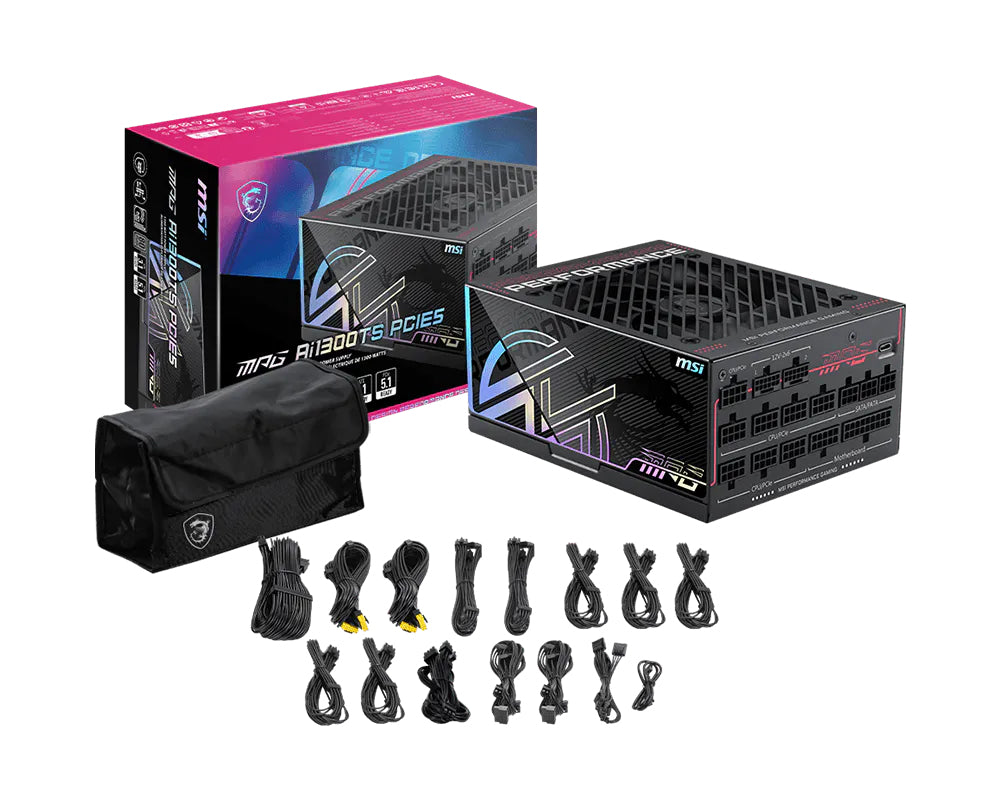

MSI MPG Ai1300TS PCIE5 power supply unit 1300 W 24-pin ATX ATX Black
€477,47
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
The Reliable Engine of Your PC Build
Support MSI Exclusive GPU Safeguard+, it’s the comprehensive and precisely protection, while under of computer using scenario.
SiC MOSFETs
Server-grade material, resulting in 10% less waste heat.
ATX 3.1 READY
Handle up to 240% total power excursion, 300% GPU power excursion.
TITANIUM
Energy efficiency, offering up to 94% efficiency.
2 x 12V-2x6
Comes with 2 x native 12V-2x6 connectors.
STABLE POWER DELIVERY
Minimizing the +12V regulation fluctuation into ±1%.
FULL DIGITAL DESIGN
The MCU controller can quickly manage dynamic adjustments.
NIGHT SOUND LEVEL
Low noise design.
ZERO FAN MODE
Fan completely stops under low load, delivering silent operating environment.
FDB FAN BEARING
To improve thermal performance and reduce noise, choose a larger, longer-lasting fan.
100% SERVER-GRADE
105°C CAPACITOR
High quality Japanese capacitor for the stability and durability.
ALLOY COPPER
For safety, offering superior current handling capability for higher current surges.
SAFETY CABLE
UL certified cable, robust high current handling capability.
PROTECTION
Equipped with multiple protection mechanisms, ensuring your system operates worry-free at all times.
DUAL COLOR 12V-2x6
CONNECTOR
Allowing you to quickly confirm connection tightness.
EMBOSSED CABLE
More Flexibility and Bendability, easy for the cable management.
CABLE ORGANIZER
Pre-installed with cable organizers, streamline the cable management process, resulting in a cleaner pc build.
POWER SUPPLY
OVERVIEW
Overall real-time current, output wattage, energy efficiency.
REAL-TIME DASHBOARD
Monitor the PSU detail message, and exporting selected real-time data.
COOLING WIZARD
Zero fan mode switch, and Allows users to customize the fan curve.
MSI Center
MSI’s exclusive MSI Center software allows you to customize power settings and monitor real-time electrical data through an intuitive graphical interface; please connect the USB Type-C cable to sync your power supply information.
Afterburner
MSI Afterburner (version 4.6.7 Beta 2) now supports individual pin current monitoring. This update also allows you to limit GPU power consumption automatically whenever the GPU Safeguard+ protection is triggered.
Support MSI Exclusive GPU Safeguard+, it’s the comprehensive and precisely protection, while under of computer using scenario.
SiC MOSFETs
Server-grade material, resulting in 10% less waste heat.
ATX 3.1 READY
Handle up to 240% total power excursion, 300% GPU power excursion.
TITANIUM
Energy efficiency, offering up to 94% efficiency.
2 x 12V-2x6
Comes with 2 x native 12V-2x6 connectors.
STABLE POWER DELIVERY
Minimizing the +12V regulation fluctuation into ±1%.
FULL DIGITAL DESIGN
The MCU controller can quickly manage dynamic adjustments.
NIGHT SOUND LEVEL
Low noise design.
ZERO FAN MODE
Fan completely stops under low load, delivering silent operating environment.
FDB FAN BEARING
To improve thermal performance and reduce noise, choose a larger, longer-lasting fan.
100% SERVER-GRADE
105°C CAPACITOR
High quality Japanese capacitor for the stability and durability.
ALLOY COPPER
For safety, offering superior current handling capability for higher current surges.
SAFETY CABLE
UL certified cable, robust high current handling capability.
PROTECTION
Equipped with multiple protection mechanisms, ensuring your system operates worry-free at all times.
DUAL COLOR 12V-2x6
CONNECTOR
Allowing you to quickly confirm connection tightness.
EMBOSSED CABLE
More Flexibility and Bendability, easy for the cable management.
CABLE ORGANIZER
Pre-installed with cable organizers, streamline the cable management process, resulting in a cleaner pc build.
POWER SUPPLY
OVERVIEW
Overall real-time current, output wattage, energy efficiency.
REAL-TIME DASHBOARD
Monitor the PSU detail message, and exporting selected real-time data.
COOLING WIZARD
Zero fan mode switch, and Allows users to customize the fan curve.
MSI Center
MSI’s exclusive MSI Center software allows you to customize power settings and monitor real-time electrical data through an intuitive graphical interface; please connect the USB Type-C cable to sync your power supply information.
Afterburner
MSI Afterburner (version 4.6.7 Beta 2) now supports individual pin current monitoring. This update also allows you to limit GPU power consumption automatically whenever the GPU Safeguard+ protection is triggered.
Specifications
Power
| Total power | 1300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 15 A |
| Maximum input current (@220V) | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1299.96 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 108.33 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces

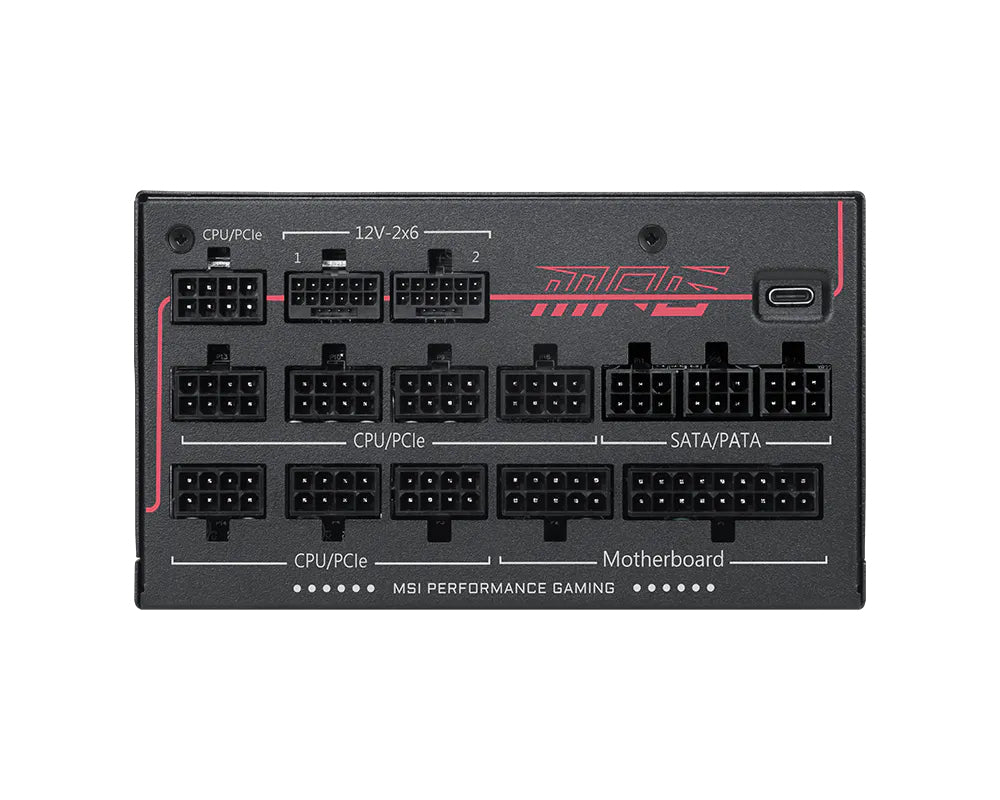

| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| ATX Power connector (24-pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Fully-Modular |
Performance
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
Design
| Product colour | Black |
| Cooling type | Active |

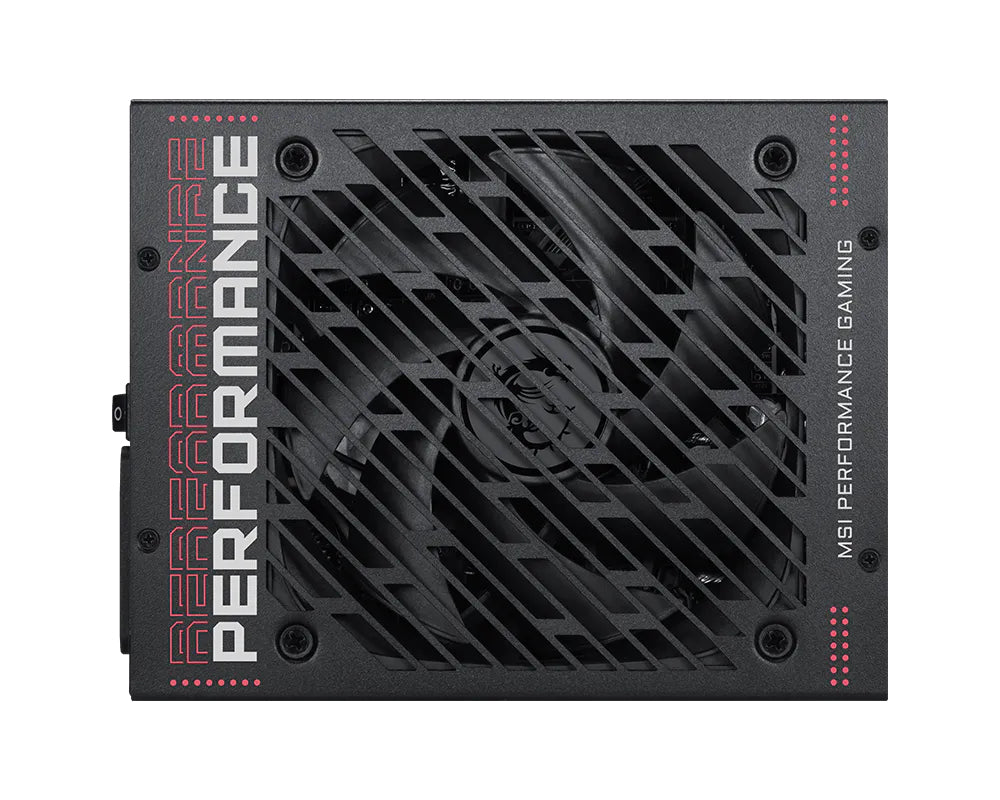

| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| On/off switch | Yes |
Weight & dimensions
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
Logistics data
| Country of origin | China |
