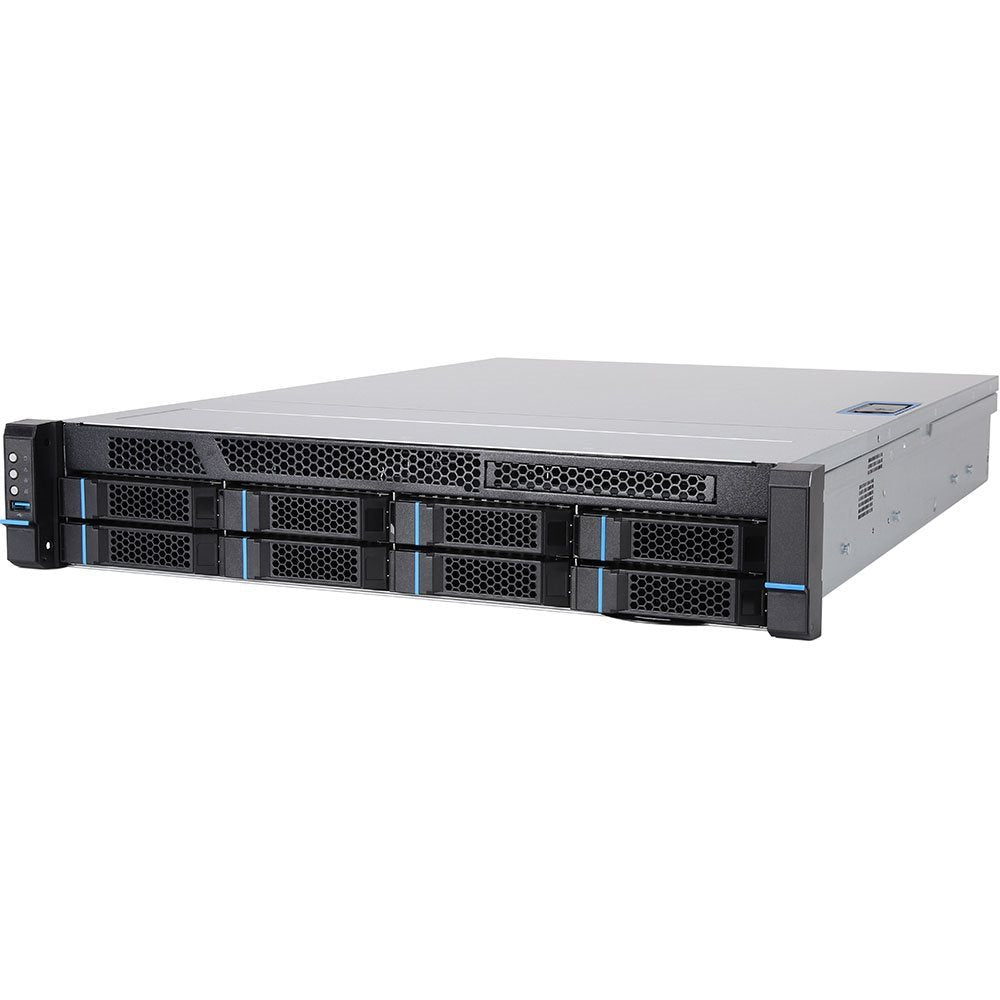

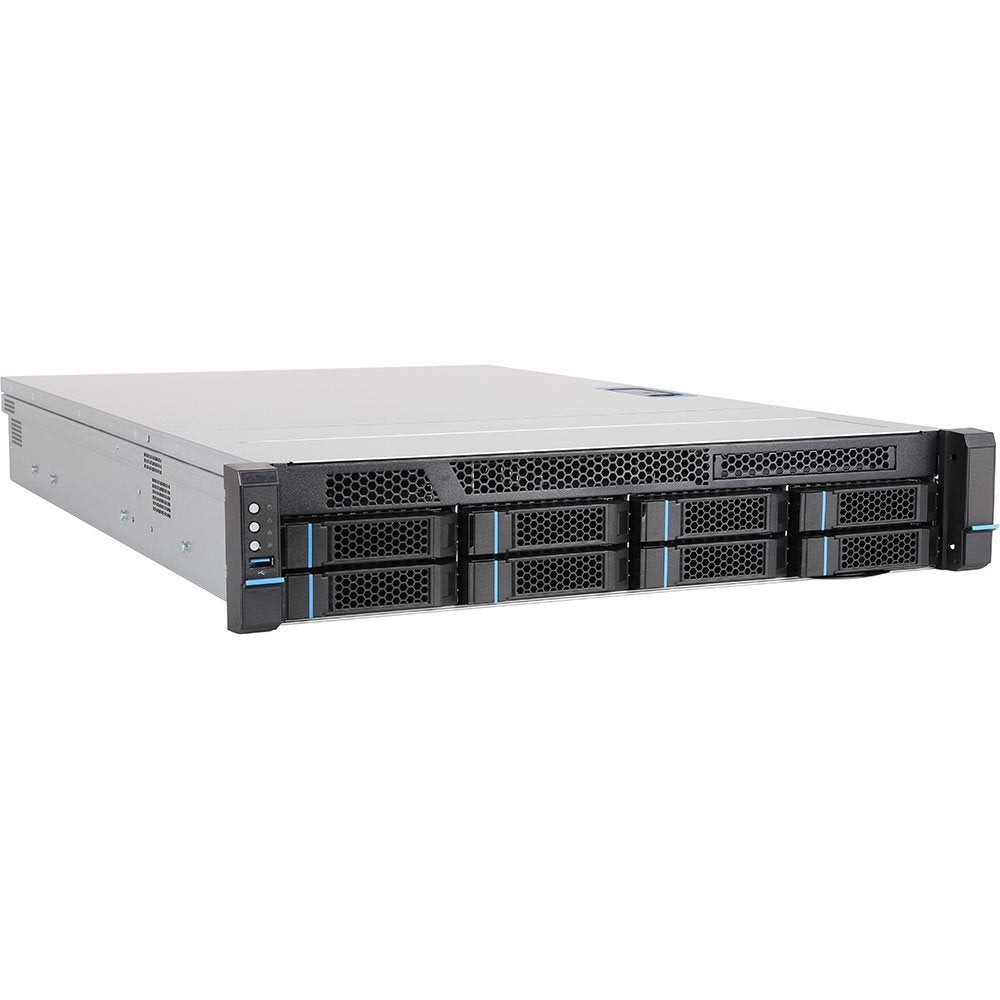

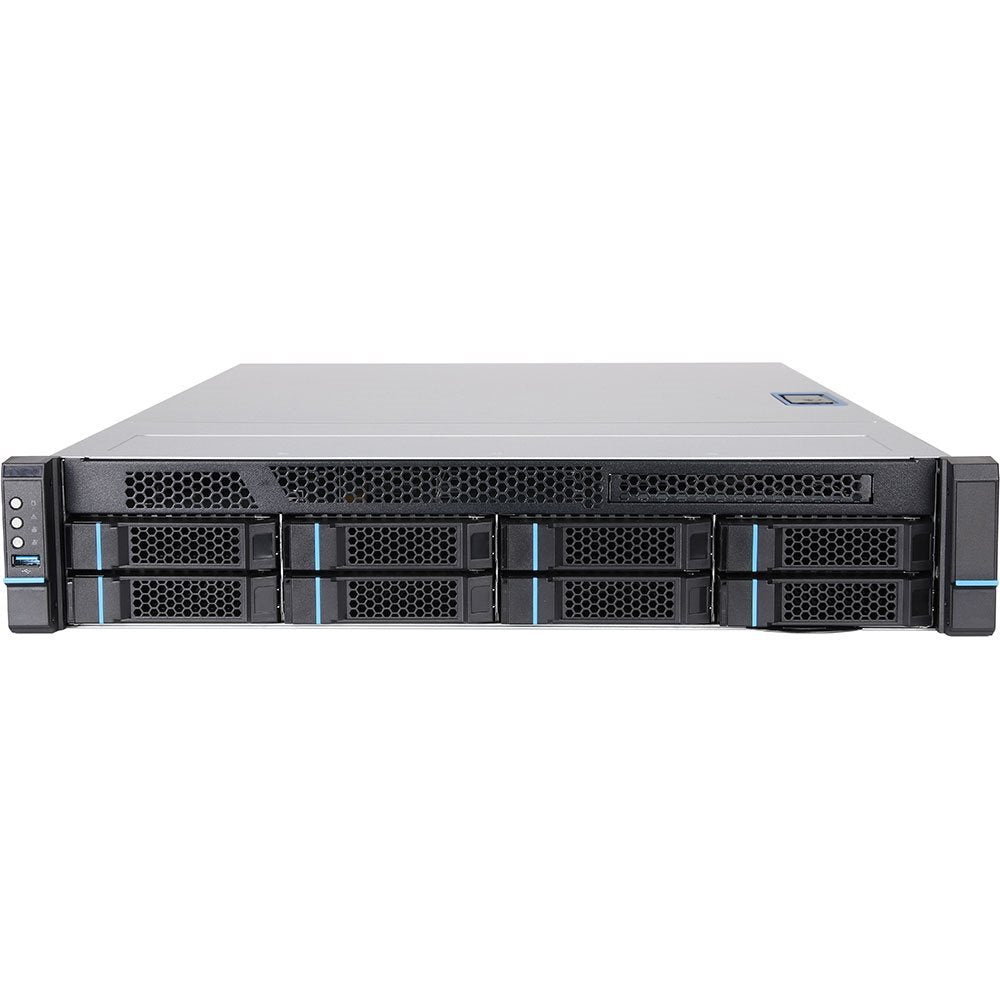

TERRA 3230 G6 6369P/64/2x1.9/C/RPSU server 3.84 TB Rack Intel® Xeon® 3.3 GHz 64 GB DDR5-SDRAM 800 W
€10.403,84
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
TERRA SERVER 3230 G6 6369P/64/2x1.9/C/RPSU. Processor family: Intel® Xeon®, Processor frequency: 3.3 GHz, Processor model: 6369P. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 3.84 TB. Ethernet LAN. Power supply: 800 W, Redundant power supply (RPS) support. Chassis type: Rack
Specifications
Processor
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 6369P |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 5.7 GHz |
| Performance cores | 8 |
| Processor cores | 8 |
| Processor cache | 24 MB |
| Motherboard chipset | Intel C266 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
Memory
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Maximum internal memory | 128 GB |
Storage
| Total storage capacity | 3.84 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 3.84 TB |
| SSD interface | SATA III |
| RAID support | Yes |
| RAID levels | 1 |
| Supported RAID controllers | Broadcom MegaRAID 9560-8i |
| Number of 5.25" bays | 1 |
| Optical drive type | No |
| Internal drive bays | 8x 3.5"/2.5" |
Graphics
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
| Maximum graphics card memory | 64 MB |
Network
| LAN controller | Intel X710-AT2 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| PCI Express x8 (Gen 4.x) slots | 2 |
| PCI Express x8 (Gen 5.x) slots | 1 |
Design
| Chassis type | Rack |
| Cooling type | Active |
| Rack mounting | Yes |
Performance
| Remote administration | Ja |
Software
| Operating system installed | No |
| Compatible operating systems | Windows Server 2019¦ |
Power
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of main power supplies | 2 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Width | 438 mm |
| Depth | 660 mm |
| Height | 87 mm |
Technical details
| Compliance certificates | CE |
Other features
| Motherboard manufacturer | Asus P13R-E/10G-2T |
| Memory type | 4x DDR5 PC4400, UB ECC |
Documents
Fiche technique fournie par Icecat.
