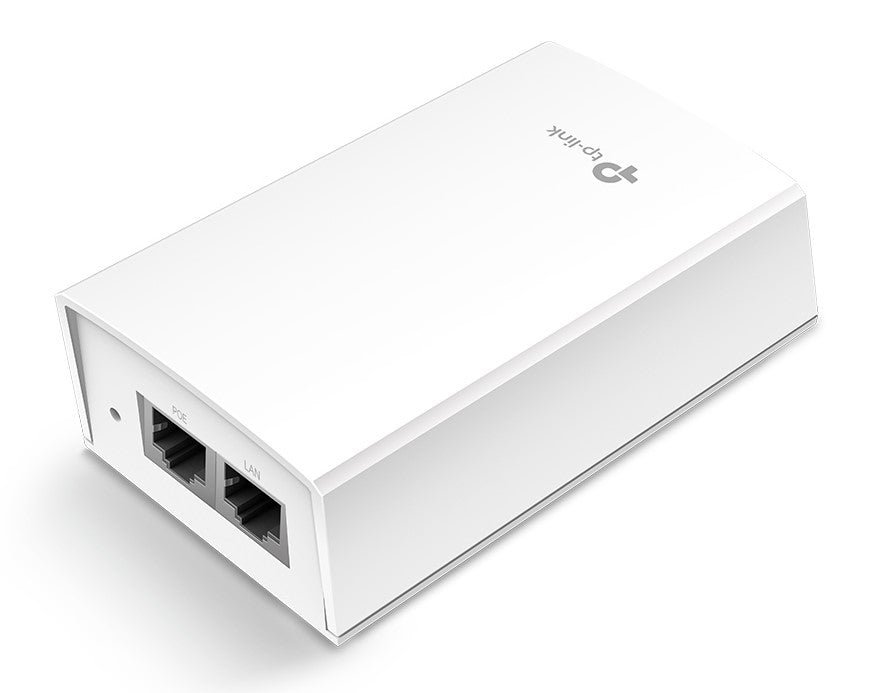

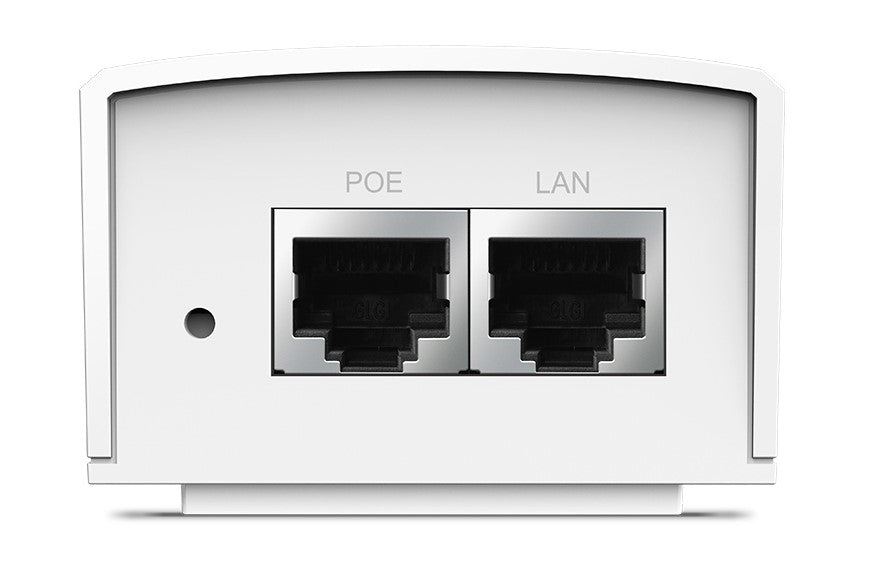

TP-Link 48V Passive PoE Adapter
€18,74
Taxes included.
30-day returns
On request, subject to conditions. Check the return policy and exceptions.
Need help before buying?
Contact our team for product questions or help with your order.
Passive PoE Adapter
Powers TP-Link products that
support 48V passive PoE
Power Your Devices
Use the passive PoE adapter TL-POE4824 to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE4824 offers a convenient wall-mounting brackets to be easily installed on a wall.
Powers TP-Link products that
support 48V passive PoE
Power Your Devices
Use the passive PoE adapter TL-POE4824 to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE4824 offers a convenient wall-mounting brackets to be easily installed on a wall.
Specifications
Network
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
Features
| Product colour | White |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Power |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Power over Ethernet (PoE) voltage | 48 V |
| Output power | 24 W |
Certificates
| Compliance certificates | RoHS |
| Certification | FCC, CE, RoHS |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Width | 110 mm |
| Depth | 57 mm |
| Height | 38.8 mm |
Packaging content
| Number of products included | 1 pc(s) |
| Wall mounting kit | Yes |
| Power cord included | Yes |
Packaging data
| Package width | 65 mm |
| Package depth | 198 mm |
| Package height | 65 mm |
| Package weight | 370 g |
Logistics data
| Harmonized System (HS) code | 85044095 |
